RC Car Revival: Upgrading to High-Capacity 18650 Batteries in Series

Don't throw away that broken RC car sitting in the back of your closet! Often, when a remote-controlled toy stops working, the culprit isn't a fried motor or a broken circuit board—it's simply a dead, degraded battery pack.

In this Instructable, I will show you how I rescued a broken RC car from the landfill by replacing its old, useless battery with a high-capacity, custom-built dual 18650 lithium-ion battery system.

The original battery gave the car a very limited runtime. To fix this and significantly upgrade its performance, I salvaged the car's original connector and wired two 18650 cells (3.7V, 2200mAh each) in a series configuration. This allowed me to match the exact voltage required by the car's electronics while massively boosting its capacity and autonomy. Because these new batteries are physically larger, I also adapted the chassis to securely mount them on top, giving the car a rugged, modified look.

To replicate this project, you will need a mix of basic electronics components and standard bench tools. Most of these parts can be easily salvaged or bought for a few dollars online.

Components and Materials

1. 1x Broken RC Car: Ensure the internal circuit board and motors are still functioning before starting. We only want to replace the dead power source.
2. 2x 18650 Li-Ion Batteries: Make sure they are rated at 3.7V and 2200mAh each. Using matching cells is crucial for balanced discharging.
3. 2x 18650 Single Battery Holders: These plastic cases (portapilas) come with pre-attached red and black wire leads, making soldering much easier.
4. 1x Original Battery Connector: Salvaged from the old broken battery pack.
5. Heat-Shrink Tubing or Electrical Tape: Essential for insulating your soldered wire connections and preventing accidental shorts.
6. Zip Ties or Heavy-Duty Double-Sided Tape: To secure the oversized battery holders onto the exterior chassis of the car.

Tools Required

1. Wire Cutters / Pliers: Crucial for cleanly cutting the old battery wires one by one.

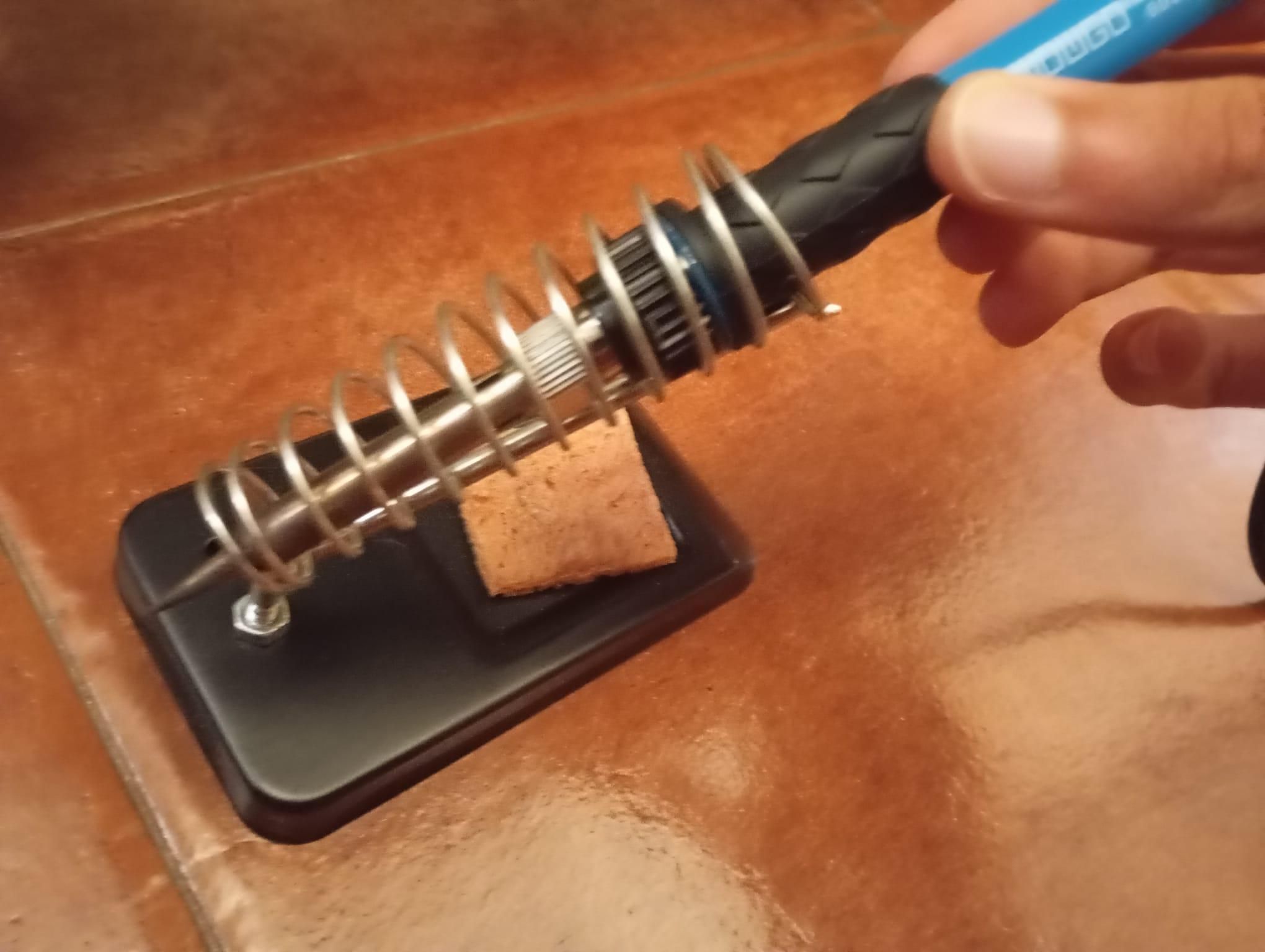

2. Soldering Iron & Solder Wire: A basic electronics soldering iron with some tin solder to connect the wires securely.
3. Wire Strippers (Optional): To expose the copper core of the wires before splicing.

The first phase of this project requires extreme caution. Lithium-ion batteries store a significant amount of energy, and mishandling them can lead to dangerous short circuits or chemical hazards.

⚠️ Crucial Safety Protocol: Cut Wires One by One!

When dealing with a live battery pack, never cut the positive (red) and negative (black) wires simultaneously with your pliers. Doing so will cause the metal blades of your tool to bridge both wires, creating an immediate short circuit. This can lead to sparks, severe burns, damage to your tools, or even a battery fire.

1. Locate the wires connecting the old battery pack to the car's circuit plug.
2. Take your wire cutters and cut the Red wire (+) first.
3. Isolate or tape that loose end before moving on.
4. Cut the Black wire (-).

Once completely disconnected, handle the old battery with care. Do not attempt to open its outer protective casing or compartment to avoid inhaling any toxic gases. Dispose of it responsibly at a local e-waste recycling point.

🔍 Decoding the 4-Pin Serial Connector

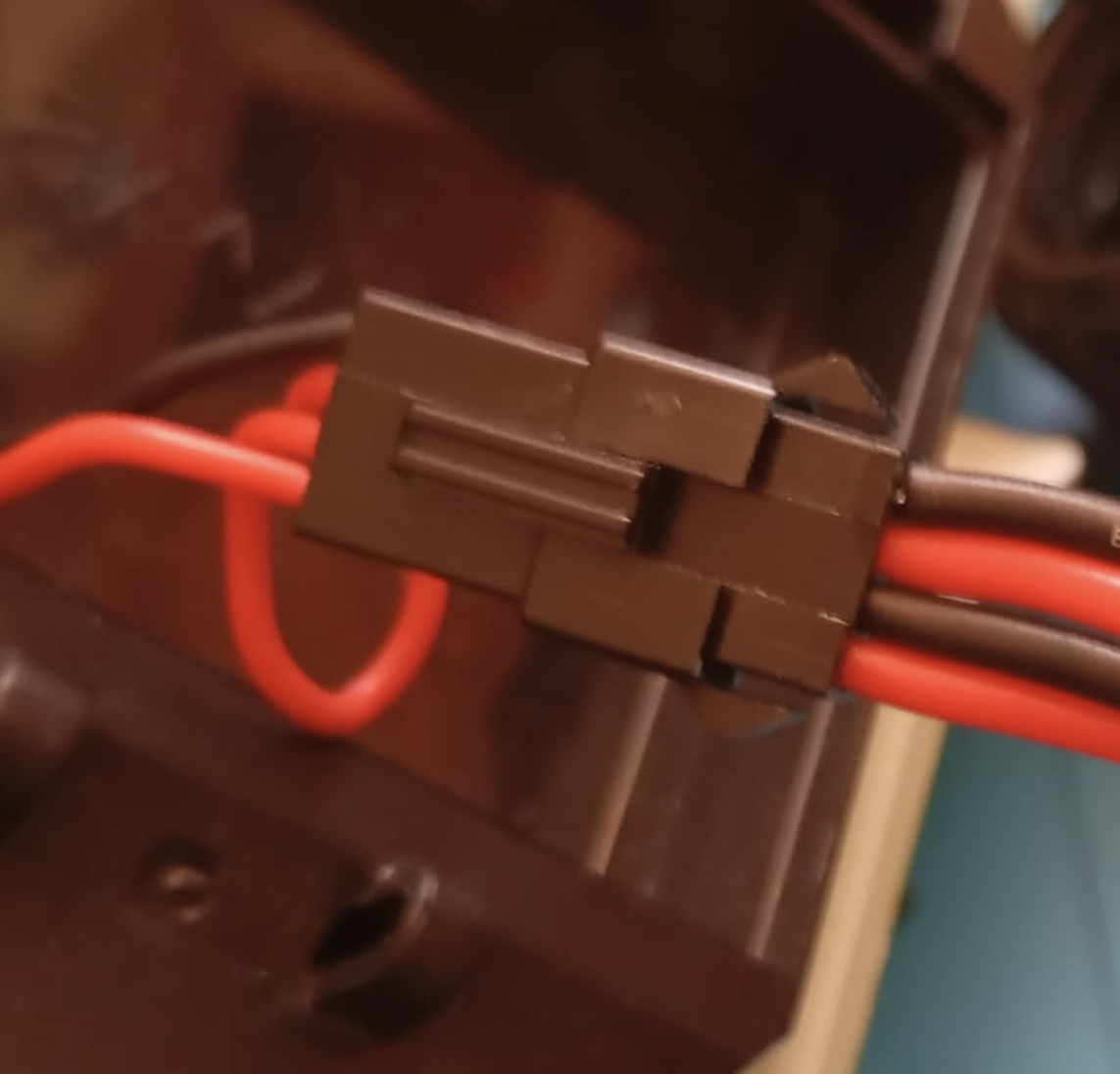

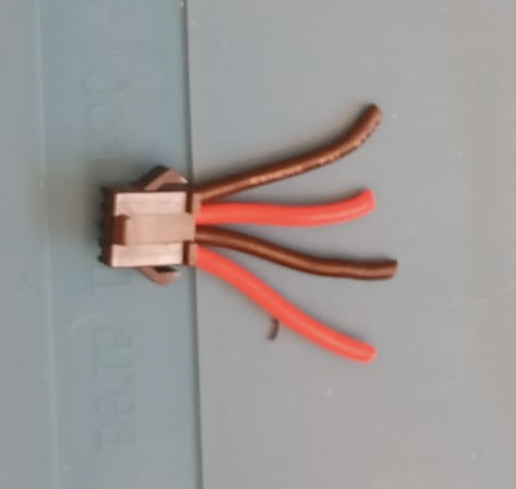

With the battery gone, take a close look at the salvaged connector plug that goes into the car. You will notice an interesting wiring layout with four pin slots:

1. Pin 1 (Far Left): Connected to a Red wire.
2. Pin 4 (Far Right): Connected to a Black wire.
3. Pins 2 & 3 (The Middle Pins): Bridged directly together.

Why is it wired this way? This specific connector design is an elegant hardware trick to put two individual battery cells in series. By bridging the two middle pins inside the connector itself, the car's circuit board automatically chains the negative lead of the first cell to the positive lead of the second cell the moment you plug it in. This completes the circuit and sums up the voltage while utilizing separate physical battery slots or holders.

Now that we understand how the car expects to receive its power, we can prepare our new 18650 battery holders to match this exact configuration.

Before warming up the soldering iron, let's take a look at the physics that makes this upgrade safe and functional.

When combining multiple batteries to power a device, there are two primary ways to wire them: Parallel or Series. For our RC car, we need a series circuit.

Understanding the Math

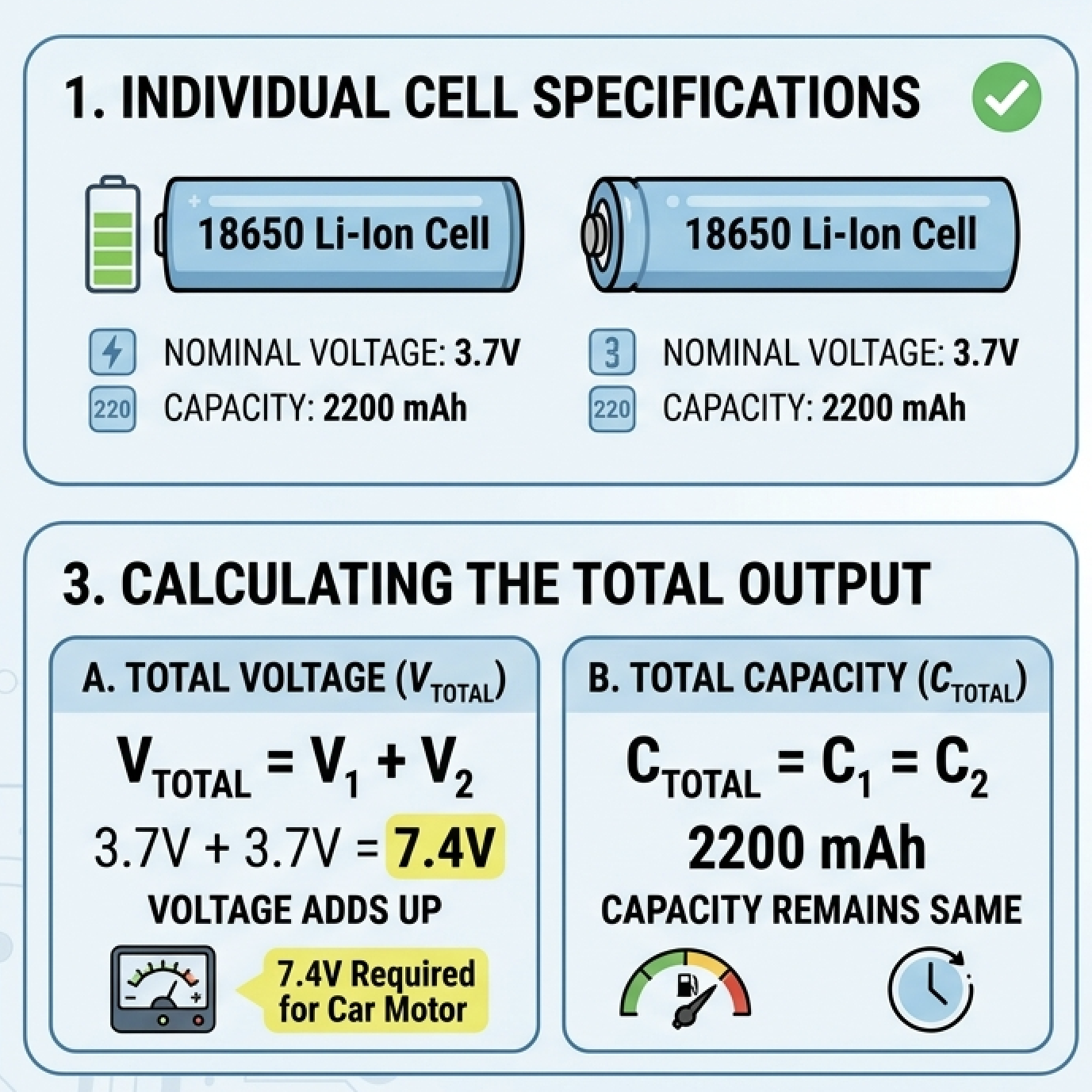

Our new power source consists of two individual 18650 lithium-ion cells. Each cell has the following nominal specifications:

1. Voltage: 3.7 Volts
2. Capacity: 2200 mAh (milliampere-hours)

By wiring these two cells in a series configuration through our 4-pin connector, we get the following results:

1. Total Voltage

In a series circuit, the voltages of individual power sources add up. The positive terminal of one battery connects to the negative terminal of the next, pushing the electrical current with greater force.

1. Formula: Total Voltage = Voltage 1 + Voltage 2
2. Calculation: 3.7V + 3.7V = 7.4V

This 7.4V total output is exactly what our RC car's motor and receiver board require to operate at full speed without burning out the electronics.

2. Total Capacity

Unlike voltage, the total capacity (and maximum current output) in a strict series circuit does not change. The current flows sequentially through both batteries.

1. Calculation: Total Capacity = 2200 mAh

Why Is This a Huge Upgrade?

You might wonder: if the capacity stays at 2200 mAh, how did we improve the car's autonomy?

The original factory battery pack used much smaller, cheaper cells with a very low capacity rating, often around 500 mAh to 800 mAh in standard toy RC cars. By installing high-quality 18650 cells, we keep the voltage identical to factory specs, but we have tripled or quadrupled the total energy capacity.

This gives our modified vehicle a massive boost in runtime, allowing it to drive for hours instead of just minutes!

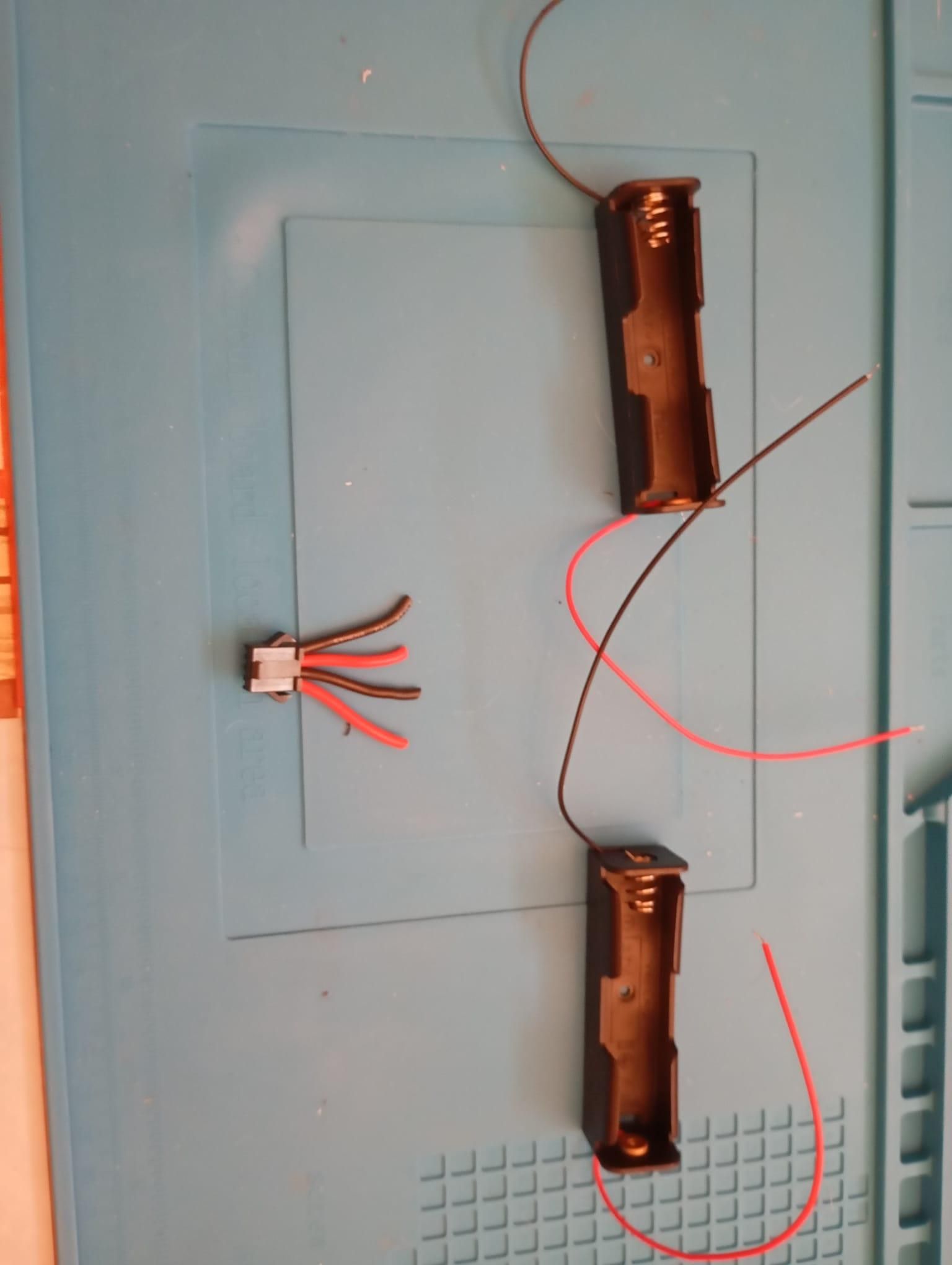

With the wiring layout clear, it is time to connect our two single 18650 battery holders to the original 4-pin car connector we salvaged earlier. This step requires a soldering iron to ensure a low-resistance, durable connection that won't break during high-speed RC driving.

Wiring Layout Refresher

Remember, our 4-pin connector acts as the bridge. We need to attach the leads from both battery holders so they link together sequentially:

1. Holder 1 Red (+) goes to the main positive pin of the connector.
2. Holder 1 Black (-) goes to one of the bridged middle pins.
3. Holder 2 Red (+) goes to the other bridged middle pin.
4. Holder 2 Black (-) goes to the main negative pin of the connector.

Step-by-Step Soldering Process

1. Prepare the Wires: Strip about 5mm of insulation off the ends of all the wires (the connector pins and the battery holder leads) using wire strippers or your cutters.
2. Tinning: Apply a small amount of fresh solder to the exposed copper tips of each wire. This process, called "tinning," helps the heat transfer smoothly and makes joining the wires much easier.
3. Slide the Heat-Shrink Tubing On: Before joining any wires, cut small pieces of heat-shrink tubing and slide them down one side of the wires. If you forget this step, you won't be able to put the tubing on after the wires are joined!

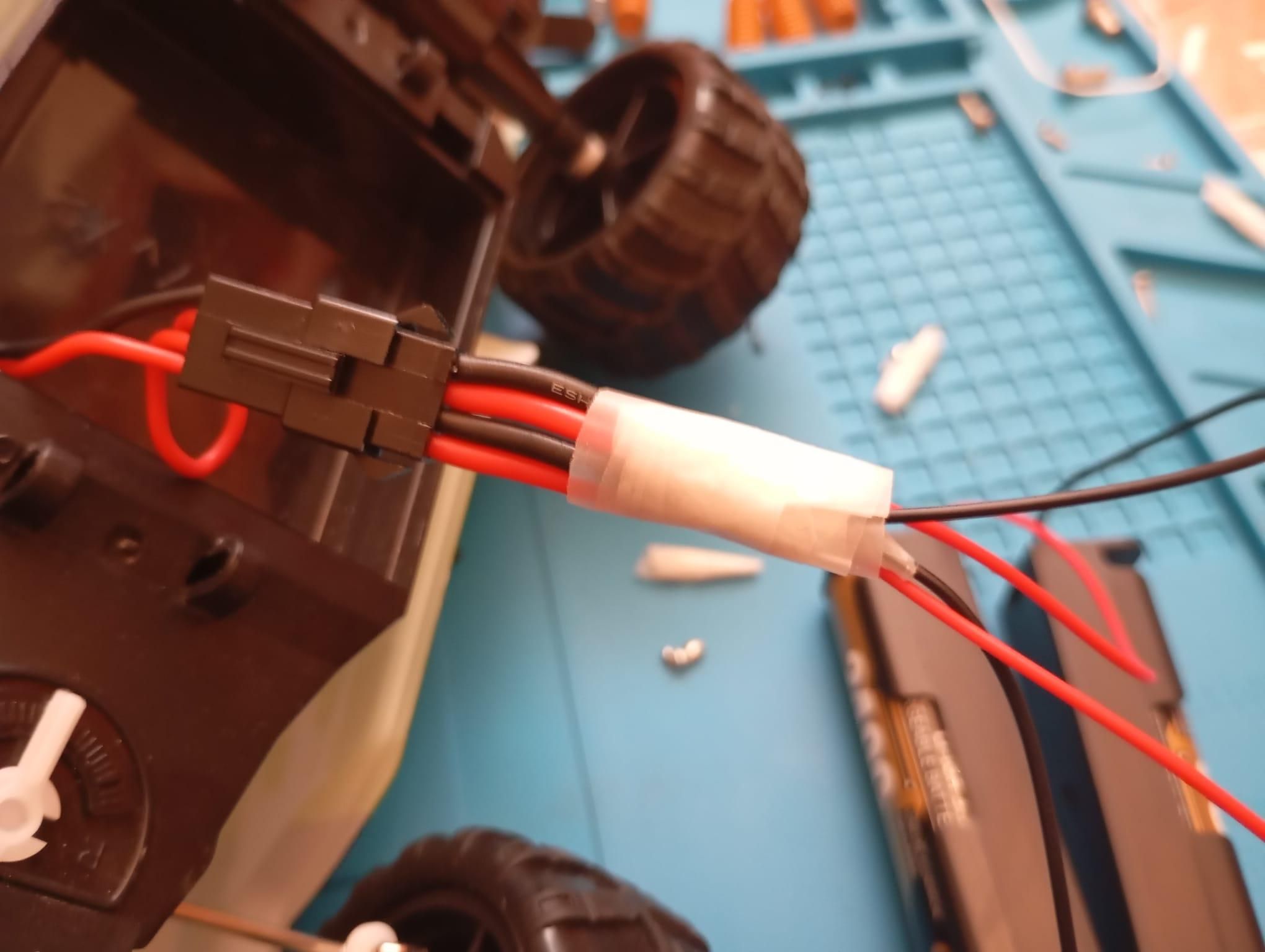

4. Solder the Joints: Bring the tinned ends of the corresponding wires together, touch them with the hot soldering iron tip, and apply a bit more solder. Hold them still for a couple of seconds until the shiny liquid tin cools down and turns solid gray.

Insulating the Connections

Safety does not end when the soldering iron is turned off. Exposed copper can easily touch other components or metal parts on the car chassis, leading to a catastrophic short circuit.

1. Slide the heat-shrink tubing back over the freshly soldered, bare wire joints.
2. Use the side of your hot soldering iron tip, a lighter, or a heat gun to gently warm the tubing. It will shrink snugly around the joint, forming a perfect waterproof and electricity-proof seal.
3. If you do not have heat-shrink tubing, wrap each joint tightly with high-quality electrical tape. Ensure no bare metal is visible.

Once finished, you will have a neat, custom dual-battery harness ready to plug directly into your vehicle.

With the wiring harness perfectly soldered and insulated, we reach the final stage of the project: adapting the chassis for the new cells and executing the performance test run. Because the 18650 cells are significantly larger than the original stock battery, they will not fit inside the factory internal compartment. We will execute a clean and secure external installation instead.

1. External Chassis Mounting

To mount the two new battery holders without compromising the car's center of gravity or steering mechanics, follow these steps:

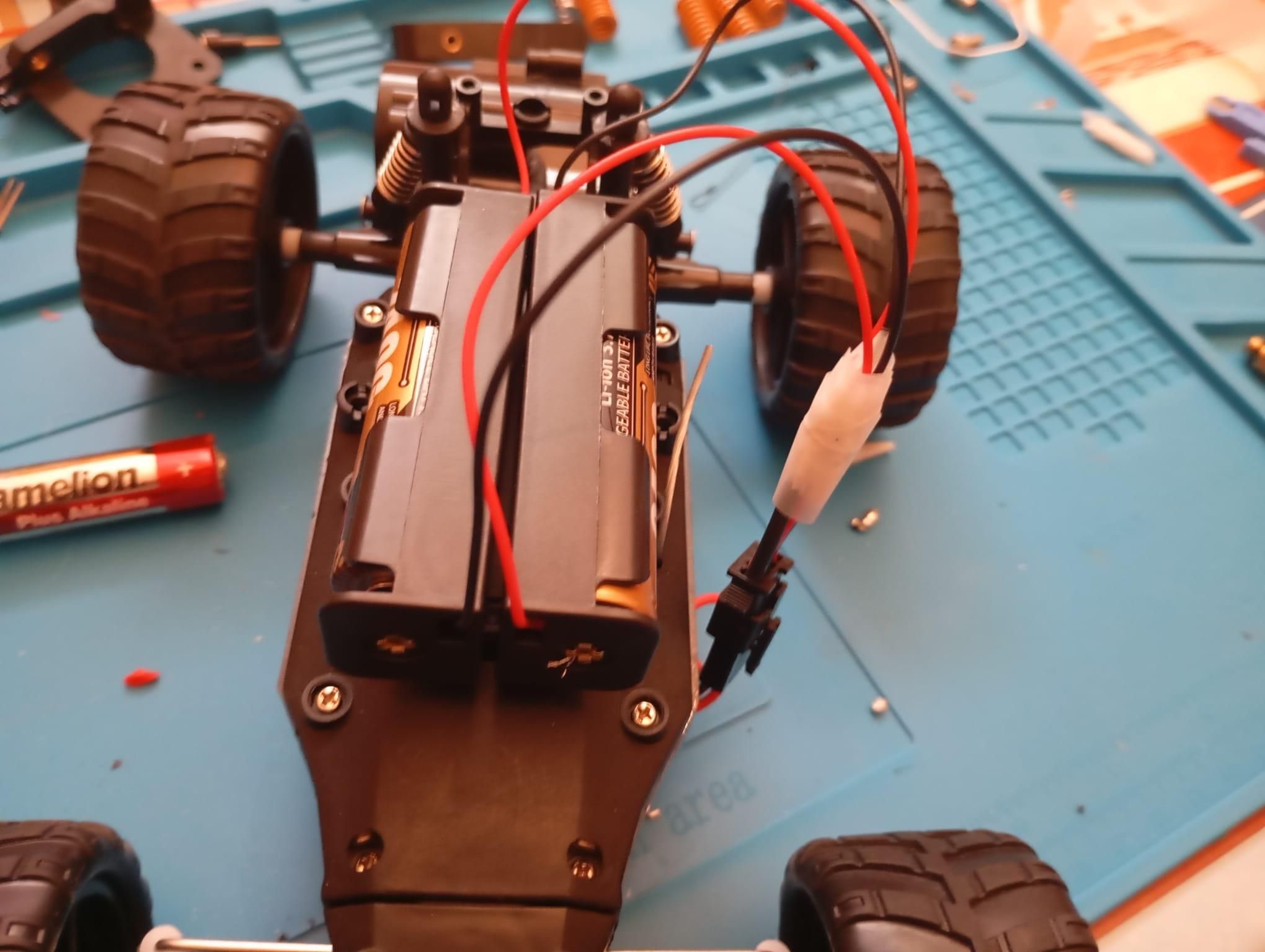

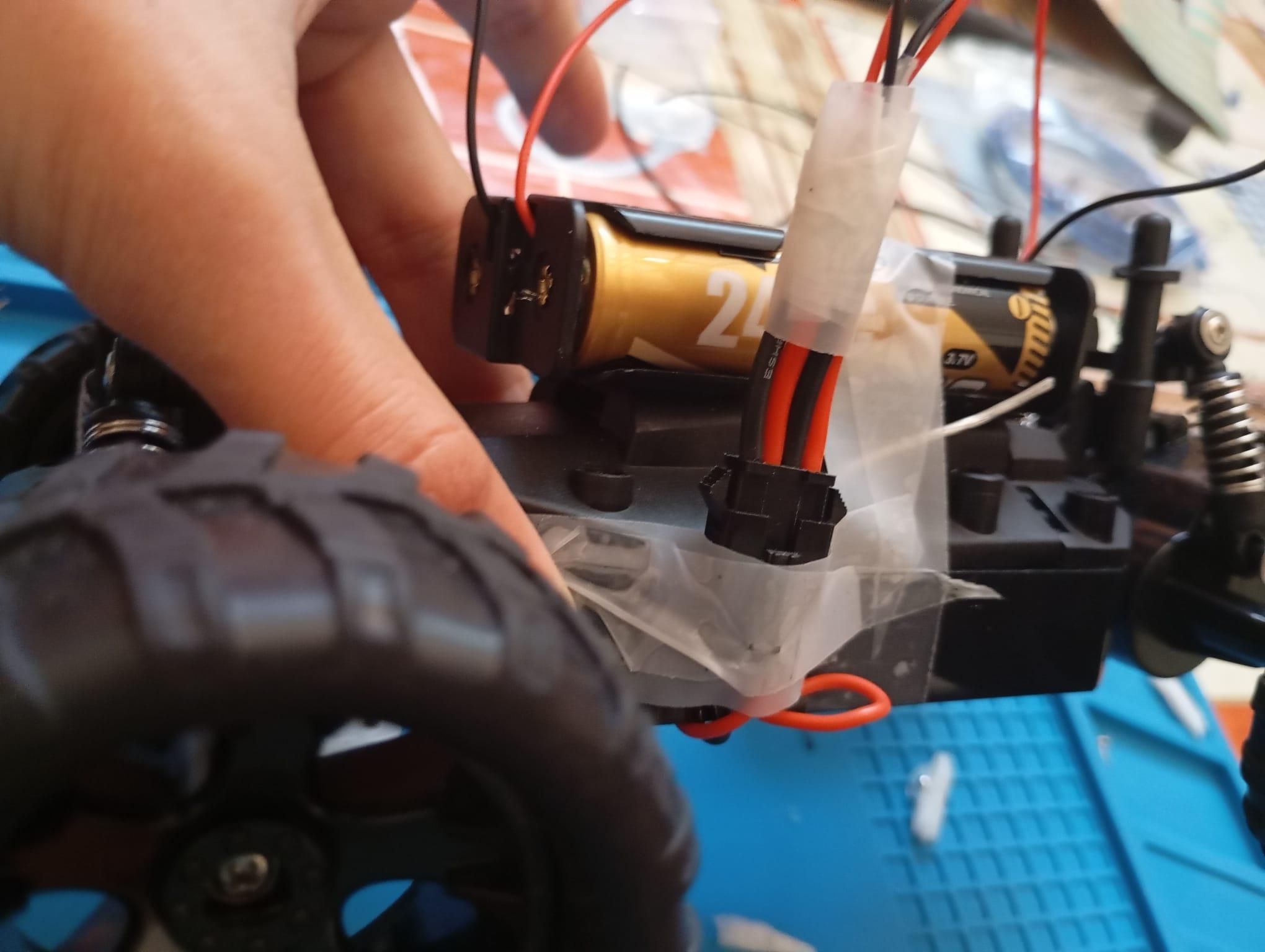

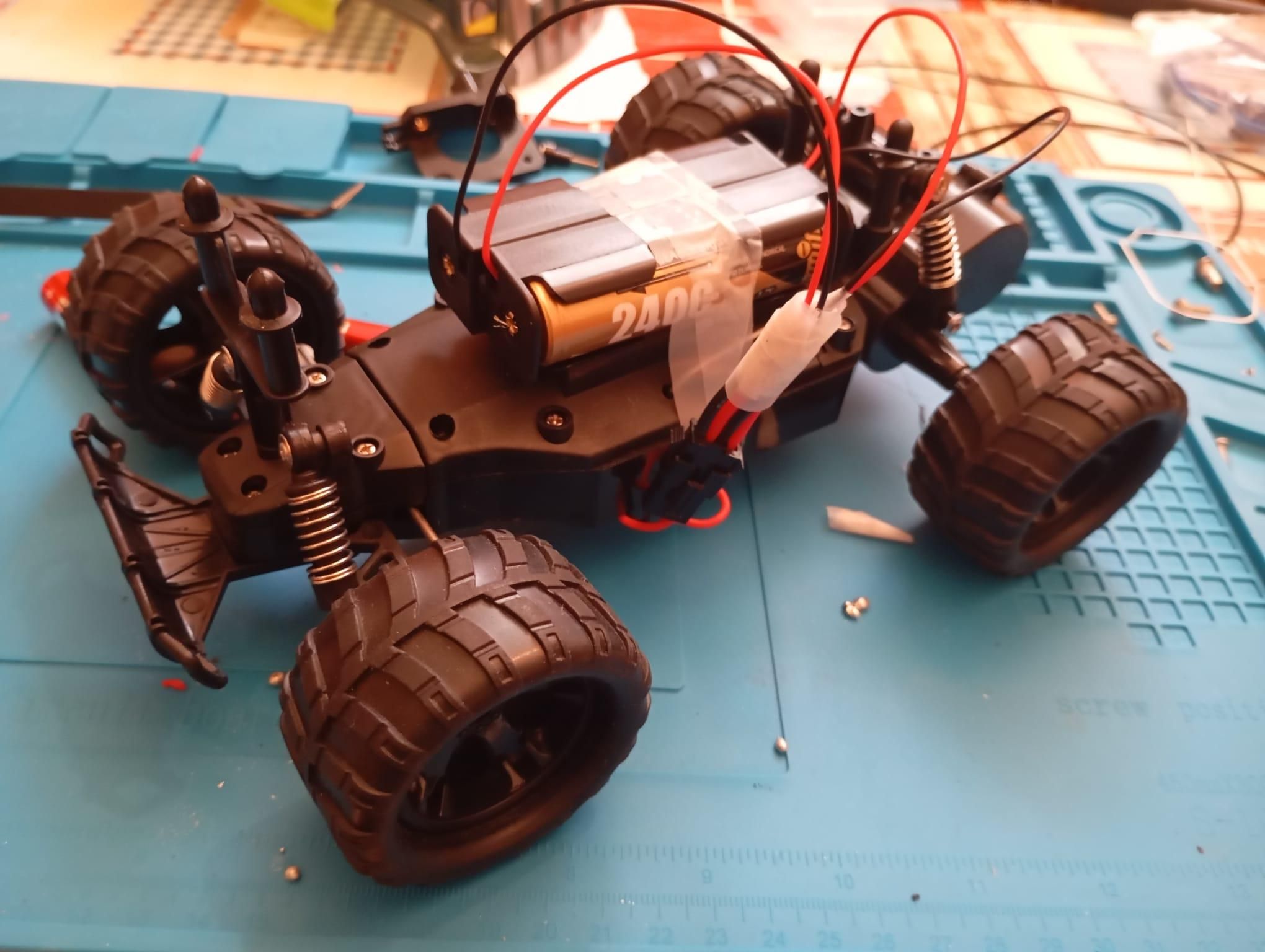

1. Positioning: Place both battery holders on top of the car's upper chassis or directly onto the lid of the old battery compartment. Make sure they do not interfere with the free movement of the wheels or the radio antenna.
2. Solid Anchoring: Use plastic zip ties tightly fastened around the chassis or high-quality, heavy-duty double-sided outdoor tape. This will prevent the batteries from flying off during high-speed turns, drift maneuvers, or accidental crashes.
3. Wire Routing: Guide the wires from the new connector safely so that they are not under tension and cannot get caught in any moving drive shafts or motor gears.

⚠️ SAFETY NOTE FOR INSTALLATION: Ensure that the plastic edges of the holders or the zip ties do not pinch or crush the electrical wires. Continuous vibration during driving could wear down the plastic insulation over time, resulting in a short circuit.

2. The Test Run

The most exciting moment has arrived! Follow this sequence to power up your modified vehicle safely for the first time:

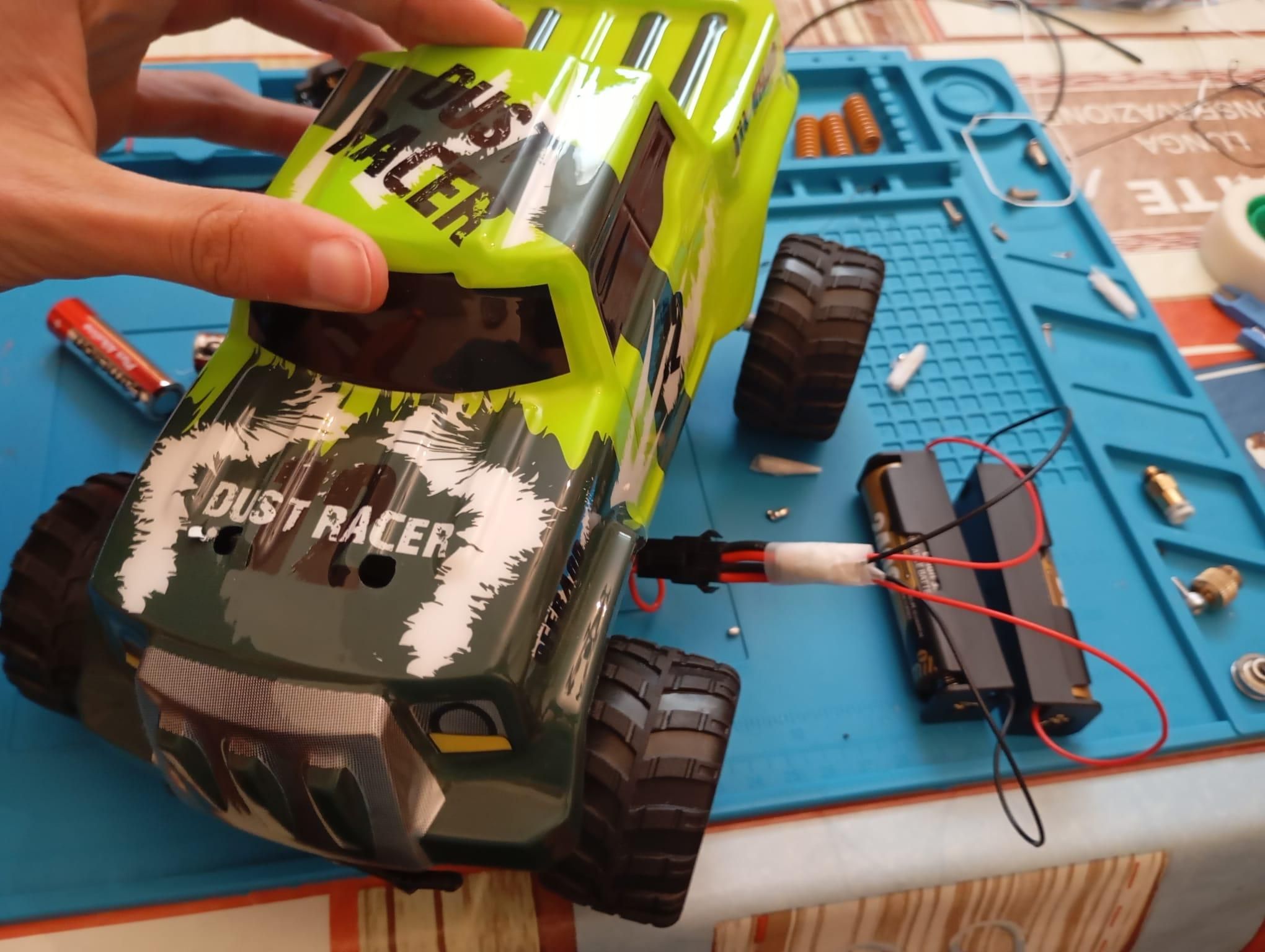

1. Step A: Insert both fully charged 18650 batteries into their respective external holders, paying strict attention to the polarity indicators (+ and -) stamped on the plastic.
2. Step B: Plug the modified 4-pin connector into the car's receiver socket.
3. Step C: Place the vehicle with its wheels suspended in the air (propped up on a small block or held carefully in your hand) and flip the power switch on. Check that the status LED lights up. Press the remote throttle gently.

If the wheels spin with full power, place it on the ground and enjoy hours of continuous racing!

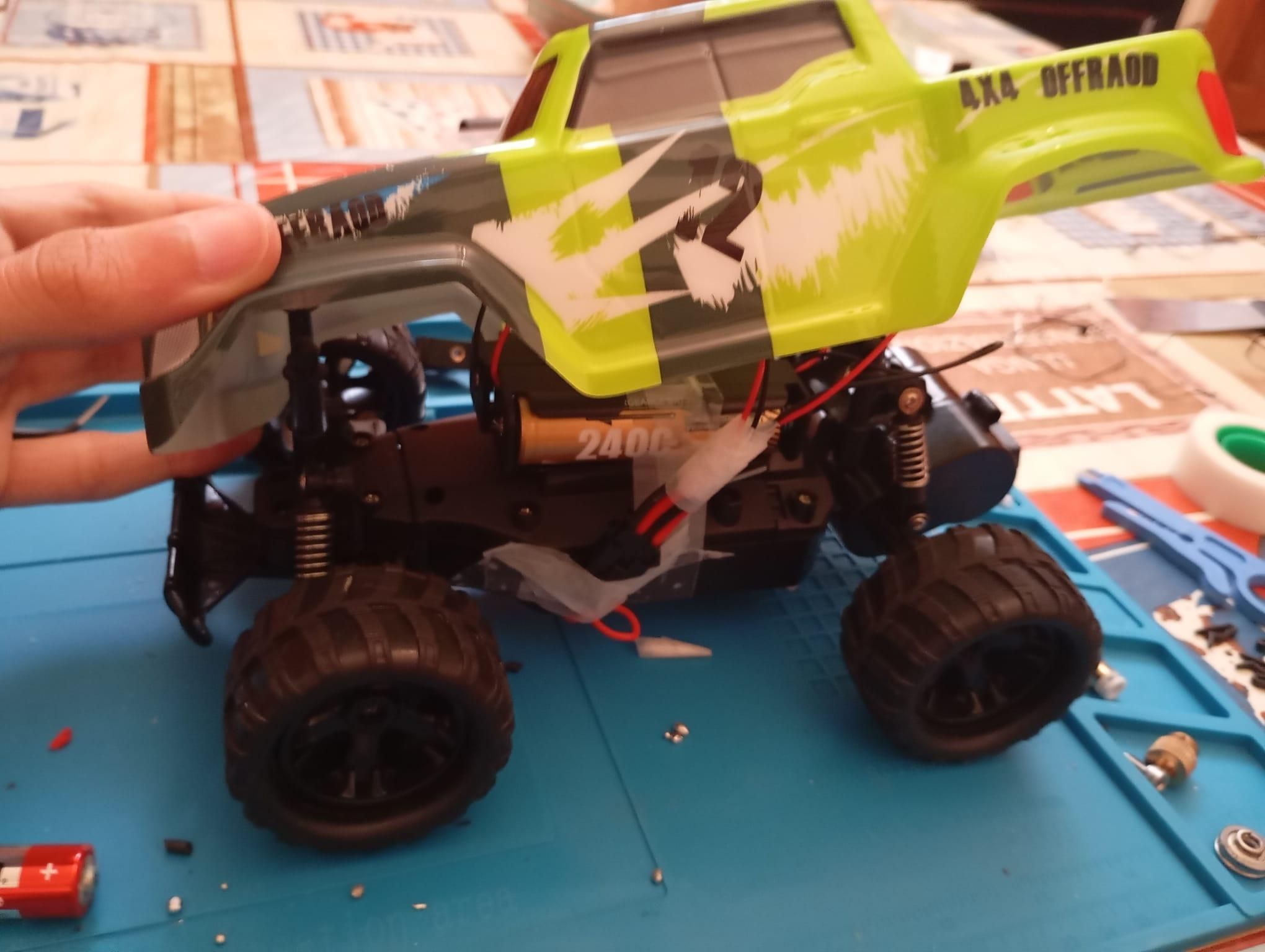

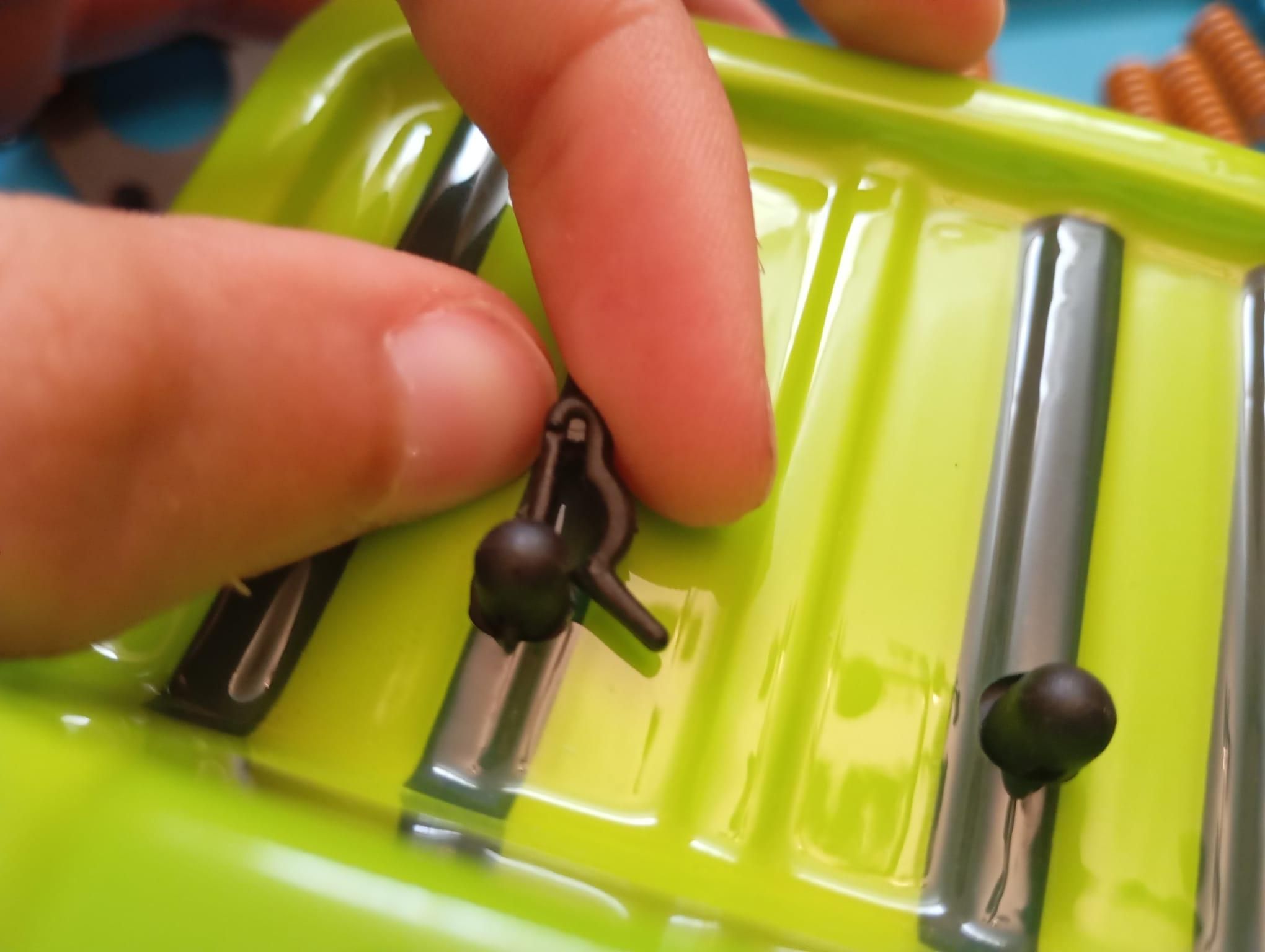

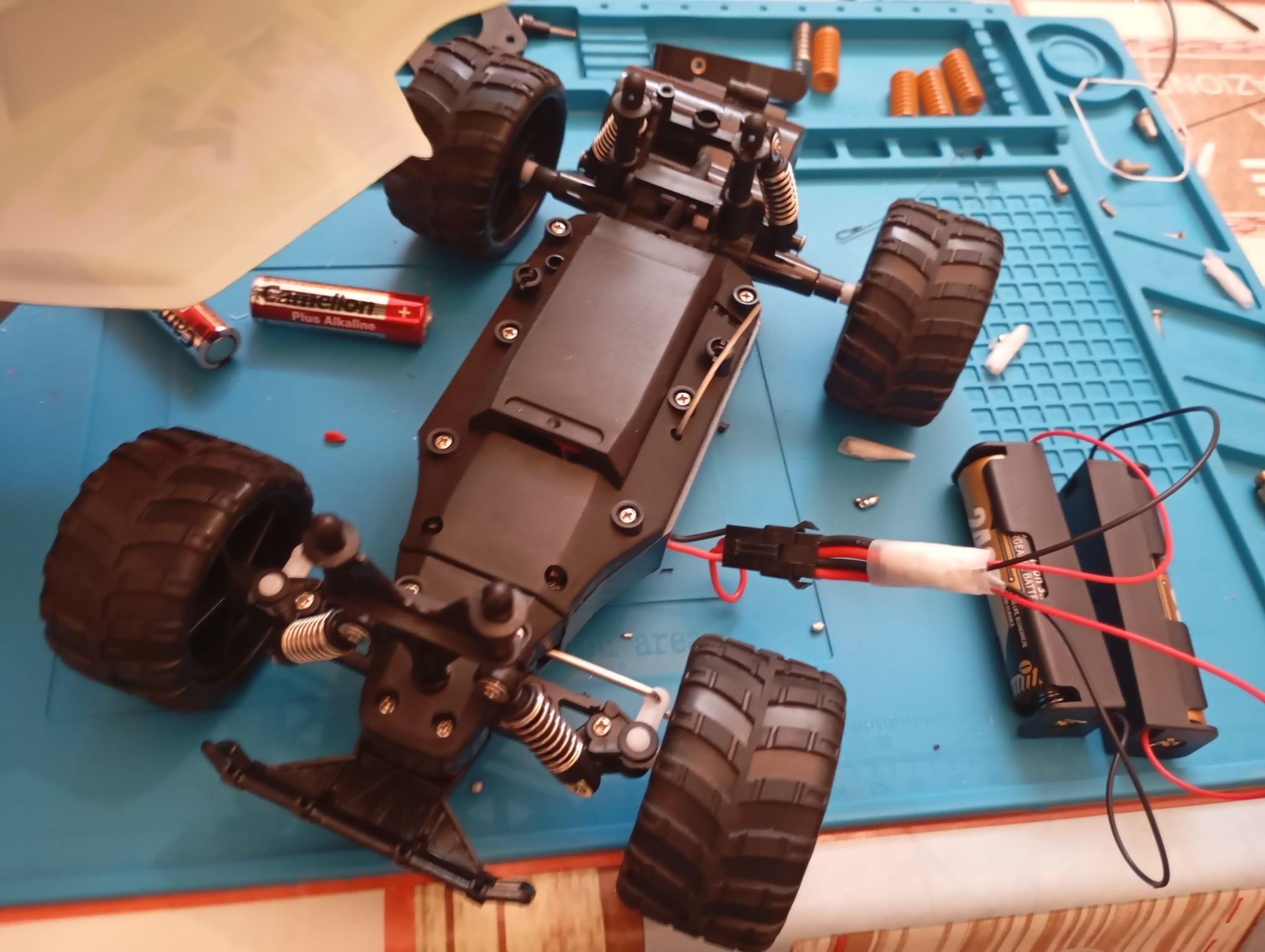

Because the new 18650 battery cells are significantly larger than the original factory power pack, they could not fit inside the internal battery compartment. Instead of just taping them down haphazardly, I decided to take this project to the next level by designing a custom external mount using Autodesk Tinkercad.

This custom part securely cradles the new battery assembly, preventing it from sliding around during high-speed runs and giving the RC car a professional, rugged look.

The Design Process

1. Taking Measurements: First, I measured the exact length and width of the 18650 battery holders to ensure a snug friction-fit.

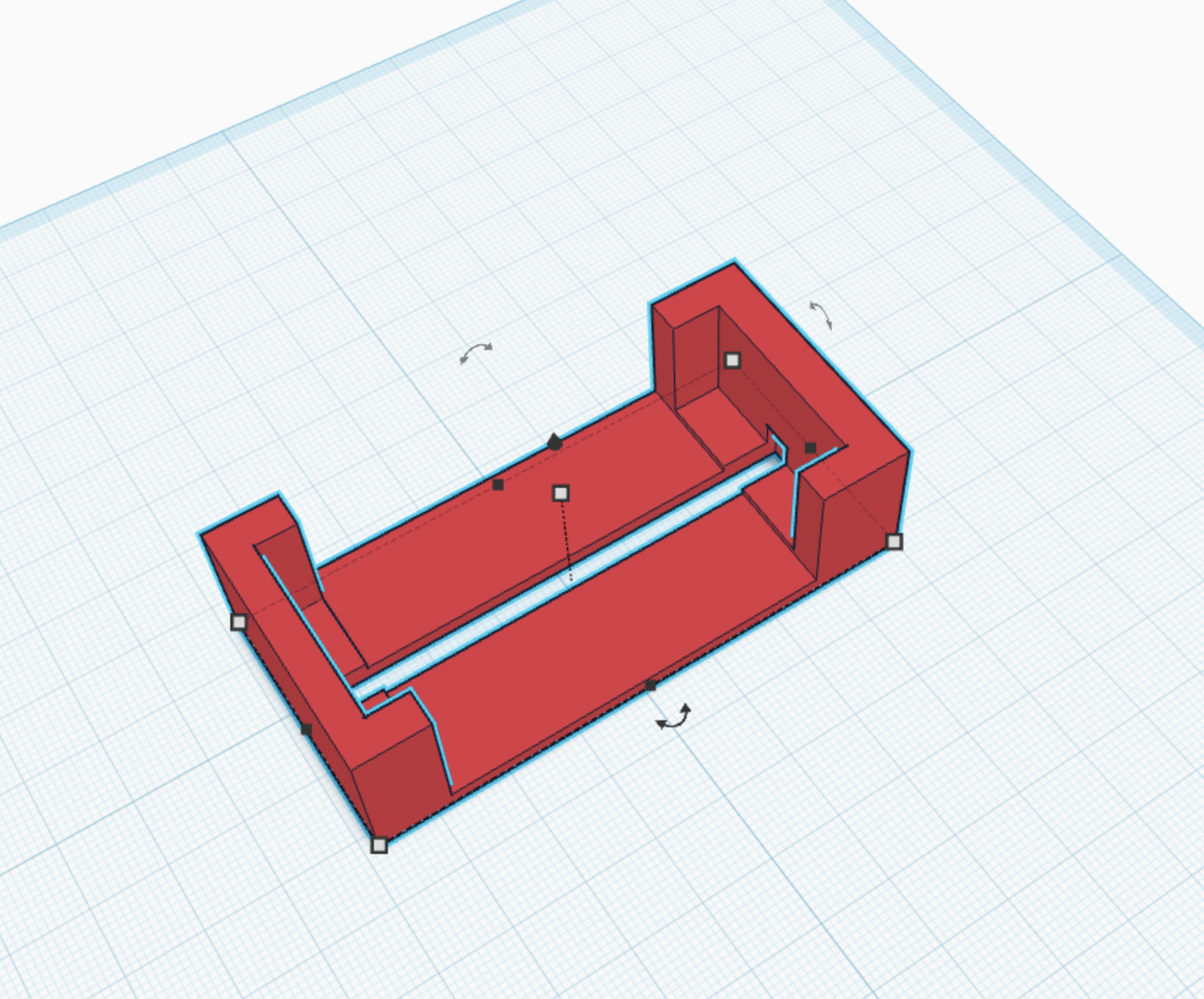

2. Modeling in Tinkercad:
3. I designed a solid rectangular base with raised, thick protective walls on both ends to securely trap the battery compartments and absorb any impacts from crashes.
4. Cable Management: I included a precise cutout slot running down the center and through the front wall. This channel serves as a dedicated pathway for the red and black power wires, keeping them perfectly organized and preventing them from getting pinched or tangled in the car's steering.
5. Exporting for Production: Once the proportions were adjusted, I grouped the shapes and prepared the final model as an .STL file to be 3D printed.

By taking a broken toy destined for the landfill and applying basic electronic principles, we successfully built a high-performance RC vehicle with four times the autonomy of its factory version. This project proves that with two 18650 cells, some solder, and a bit of creativity, anyone can upgrade standard electronics to break free from short battery lives and wall outlets.

Future Upgrades to Consider

If you want to take this project even further, here are a few ideas for future iterations:

1. Integrated BMS (Battery Management System): Adding a small 2S BMS circuit board would allow you to charge the 18650 batteries safely through a USB cable without removing them from their external holders.
2. Voltage Monitor: Installing a mini digital voltage display on the chassis to monitor exactly when the lithium batteries are running low.

Thank you for following along with my build! If you have any questions about soldering, series wiring, or adapting your own RC vehicles, drop a comment below.
