Railix : Building a Custom Steel Staircase Handrail

Hi,

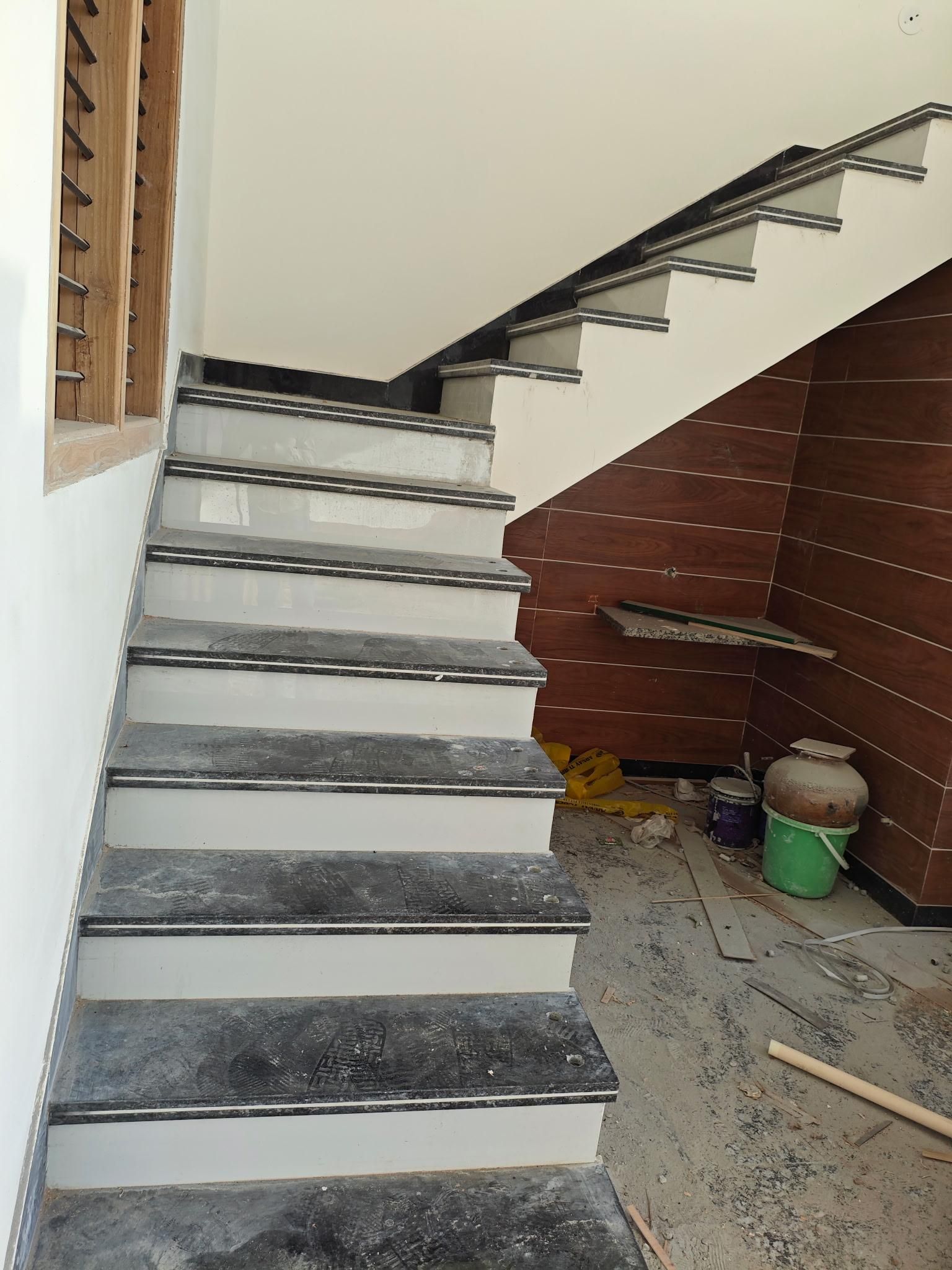

In my house, there was no handrail on the staircase. Since there are children in my family, I was always worried that they might accidentally fall while using the stairs. I was also concerned that anyone coming down the staircase too quickly could slip, and without a handrail there would be nothing to hold onto for support.

As a maker, I decided to solve this problem myself. As soon as I made the decision, I went to the local market and purchased all the required materials, including steel tubes of different sizes and the supporting hardware needed to build a strong and durable staircase handrail.

I chose to do the entire project on my own. Building it myself gave me the freedom to create a design that matched my vision and the style of my home, without depending on anyone else. I also believe that when we work on our own home projects, we put our heart into them, paying extra attention to every detail to make the final result both functional and aesthetically pleasing.

Since I am not a professional staircase handrail fabricator, I spent some time watching YouTube videos and learning the basic techniques before starting. This helped me understand the correct methods, avoid mistakes, and ensure that the handrail would be safe, sturdy, and professionally finished.

By the way, subscribe to my YouTube channel for more projects like this. I also update my upcoming projects on Instagram.

buy me a coffee! ☕: Donate

In this Instructables, I will show you the complete process of building a custom steel staircase handrail, from planning and material selection to installation and final finishing.

Strongly Advised: The tools utilized in this tutorial are specialized and require a comprehensive understanding of their operation. They are tools owned by professionals. Therefore, if you intend to undertake this project, it is essential to possess adept knowledge of each tool's functionality. In the absence of sufficient expertise, it is recommended to seek assistance from individuals experienced in handling these tools. Your safety and the quality of your project are paramount, and collaborating with experts will ensure a successful and secure outcome.

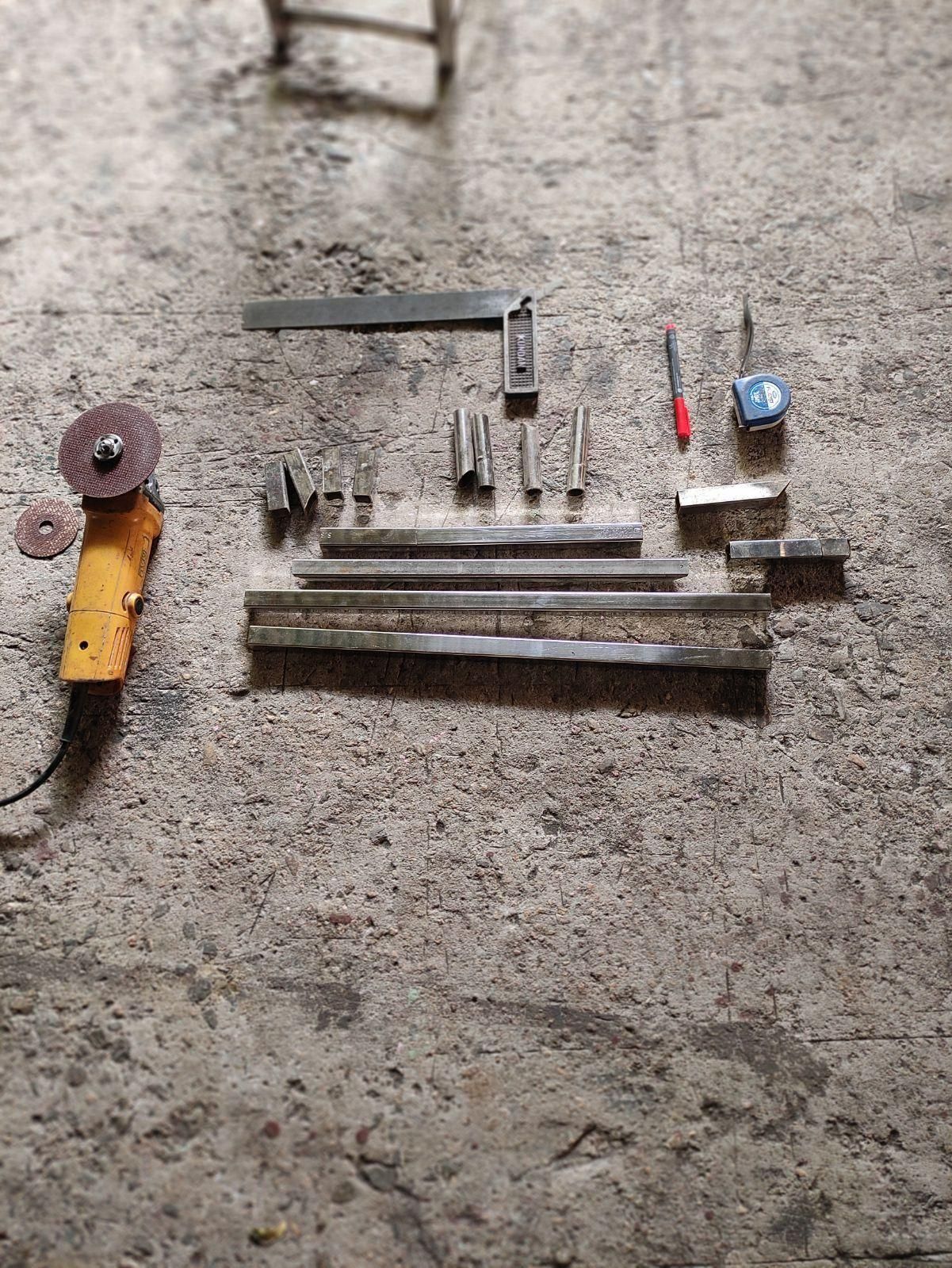

Material

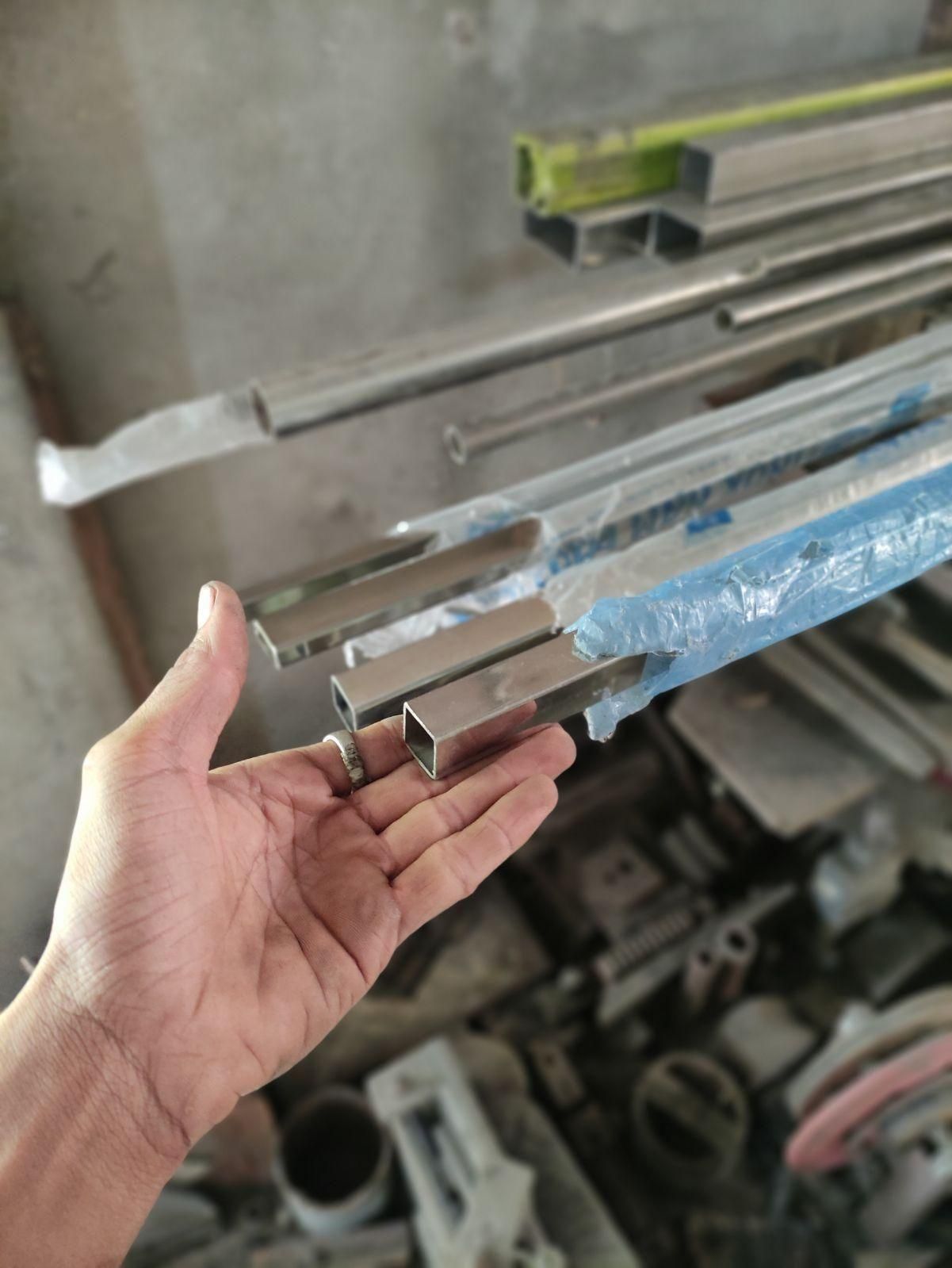

1. Stainless Steel Rectangular Tubes
2. Staircase Essential Steel Parts

Tools

1. Inch tape
2. Marker
3. Angle grinder
4. Die grinder
5. Cut off disk
6. Grinding disk
7. Scotch Brite wheel
8. Buffing wheels
9. Polishing compound
10. Tig welding set
11. Welding glove
12. Welding helmet
13. Tig welding rod
14. White Cement

The entirety of the materials used for this project are made from 304-grade stainless steel, which is highly suitable for outdoor and external applications due to its excellent strength, durability, and corrosion resistance.

While I have made every effort to include all the tools and materials used in this project, it is possible that a few items may have been unintentionally omitted. However, the most important thing is to use the right tools for the job.

As mentioned earlier, using tools that simplify, speed up, and improve your work is essential. The key is to choose tools that enhance both efficiency and accuracy, making the fabrication process smoother and more enjoyable. By working with the proper equipment, you can achieve better results, save time, and ensure the successful completion of your project.

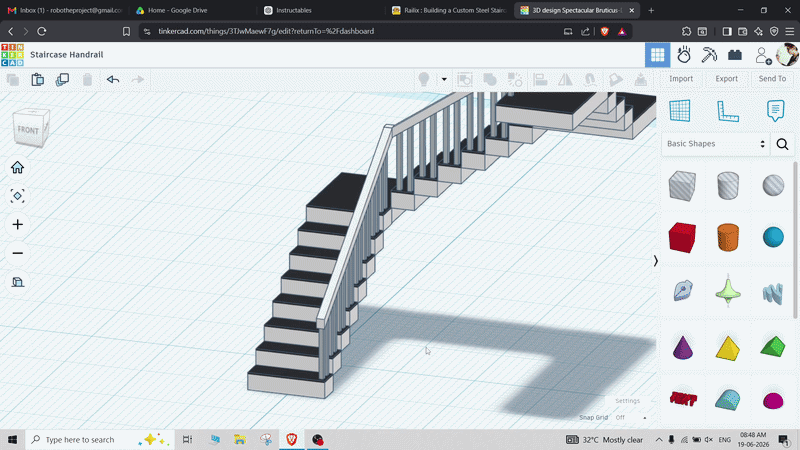

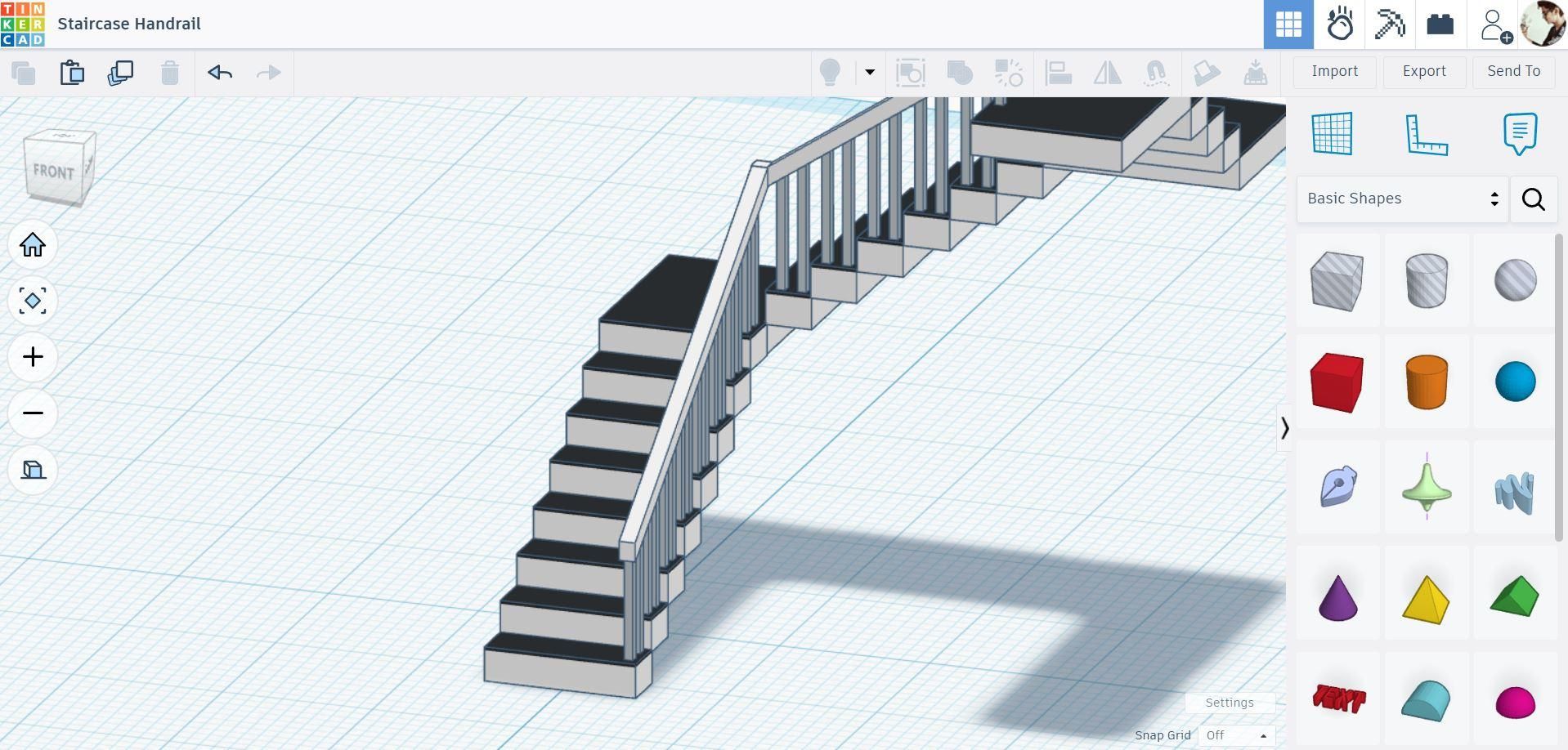

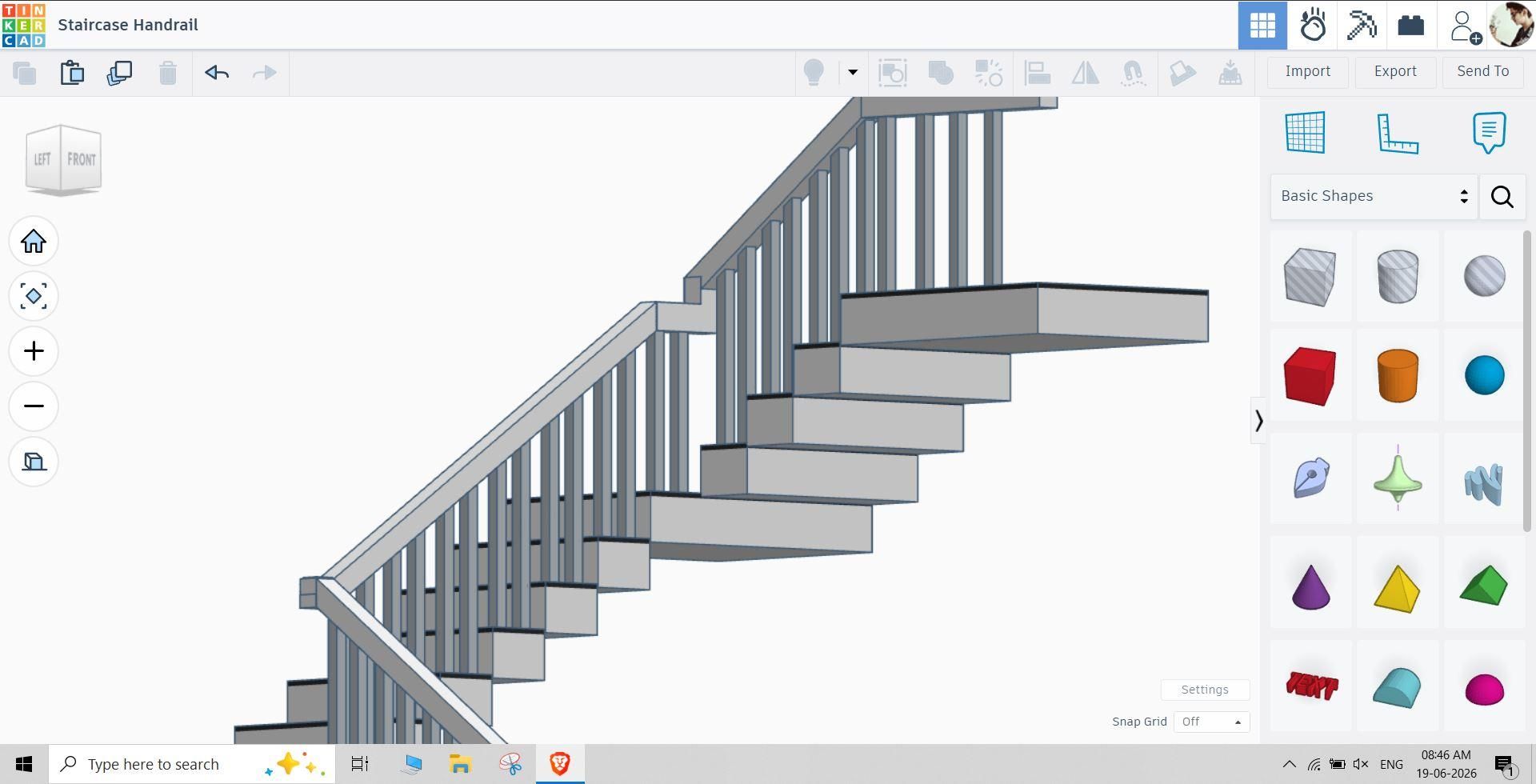

Before cutting any metal or drilling any holes, I created a 3D model of the staircase handrail in Tinkercad. This helped me visualize the final look and feel of the project before starting the actual fabrication. By creating a digital model, I was able to experiment with the design, check the proportions, and ensure that the handrail would match the style of the staircase.

The 3D model also helped me plan the project more effectively. It gave me a clear idea of the tube lengths, cutting angles, and bend locations, reducing the chances of mistakes during fabrication. Having a virtual representation of the handrail made it much easier to estimate materials and understand how all the components would fit together.

I am not a professional 3D designer, but Tinkercad made the entire process surprisingly easy. Tinkercad is a free, beginner-friendly 3D design tool that runs directly in a web browser. Its simple drag-and-drop interface allows anyone to create useful 3D models without requiring advanced CAD knowledge. For makers, DIY enthusiasts, and beginners, it is an excellent tool for turning ideas into visual designs before starting a project.

Creating this model gave me more confidence before fabrication and helped ensure that the final handrail looked exactly the way I imagined it.

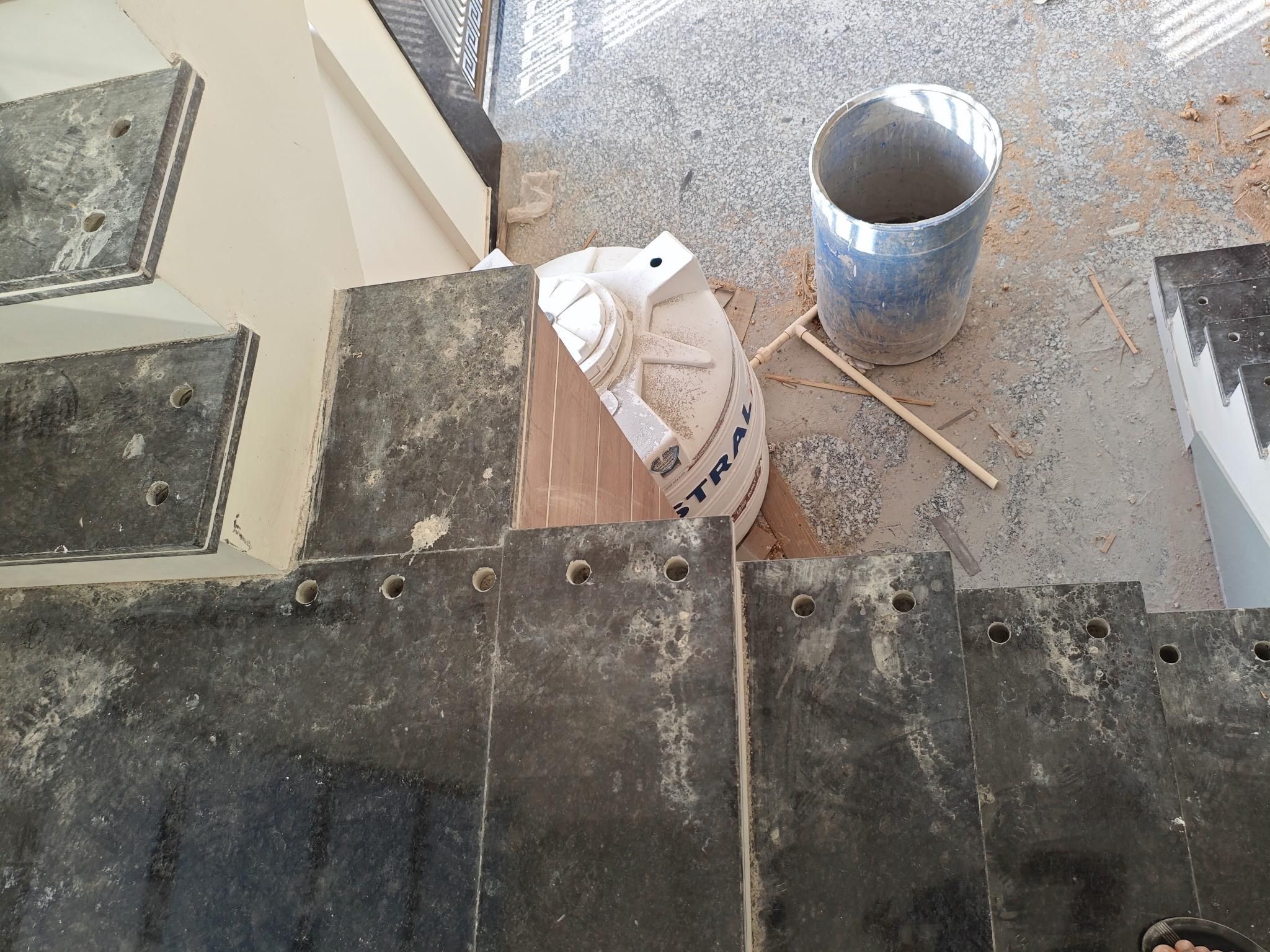

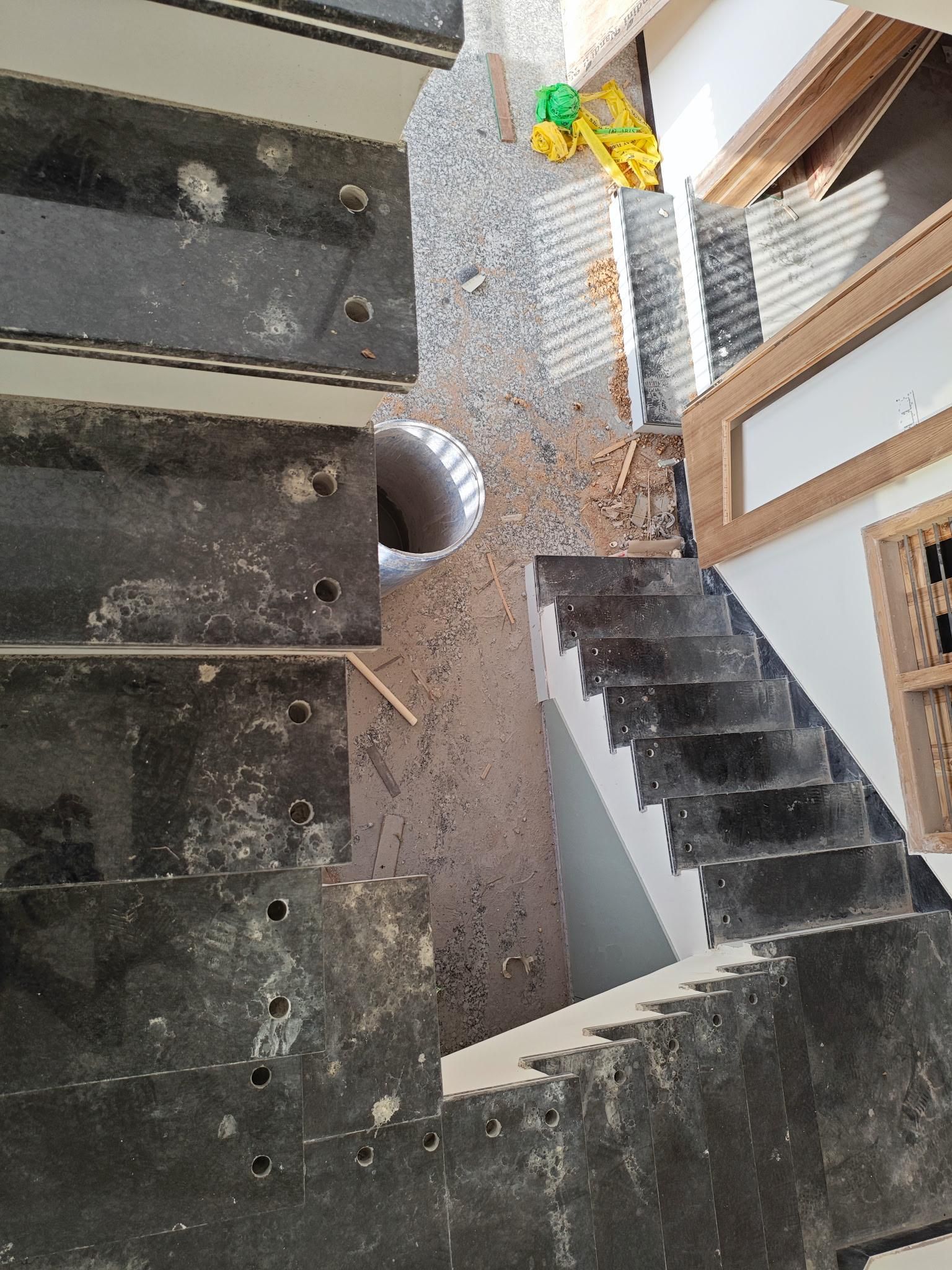

The first step in building the handrail is making the mounting holes in the staircase. As shown in the image, each stair step has two holes that will be used to support the handrail structure. These holes will hold two square rods of different heights, which will later support the top handrail tube and provide the required strength and stability.

To ensure proper alignment, I first measured and marked the positions of all the holes on each step. Taking accurate measurements at this stage is very important because even a small error can affect the final appearance and alignment of the handrail. Once all the positions were marked, I used a drill machine to carefully drill the holes in each stair tread.

After drilling, I cleaned the holes and checked their alignment to make sure the square rods would fit properly. With all the holes completed, the staircase was ready for the next step of installing the support rods and building the handrail structure.

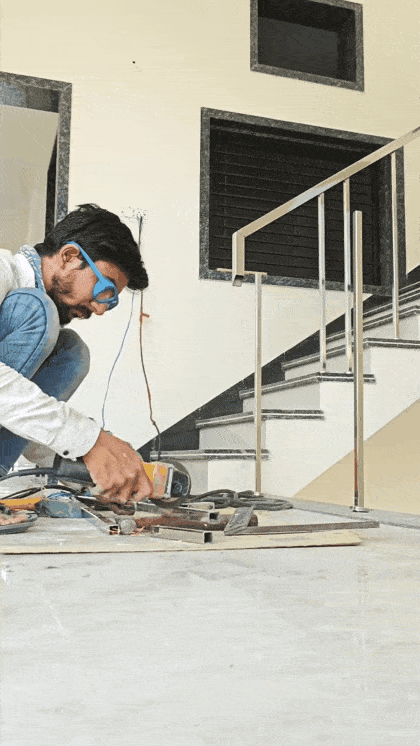

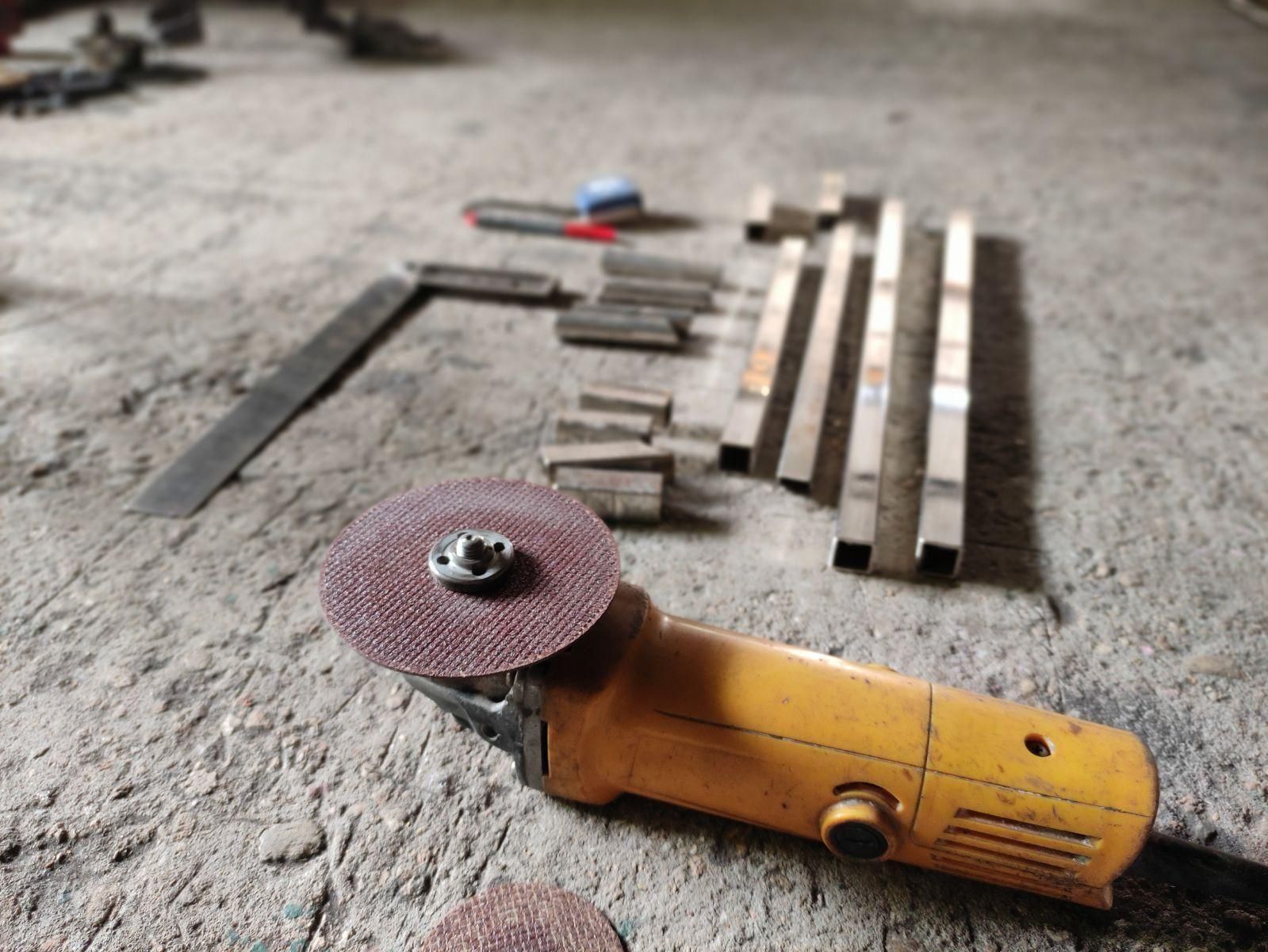

After completing the holes, the next step was cutting the steel tubes that would be mounted into them. Using the measurements taken from the staircase, I carefully marked each tube and cut it to the required length. Since the staircase height changes from step to step, the support tubes were cut to different lengths to maintain a smooth and consistent handrail angle.

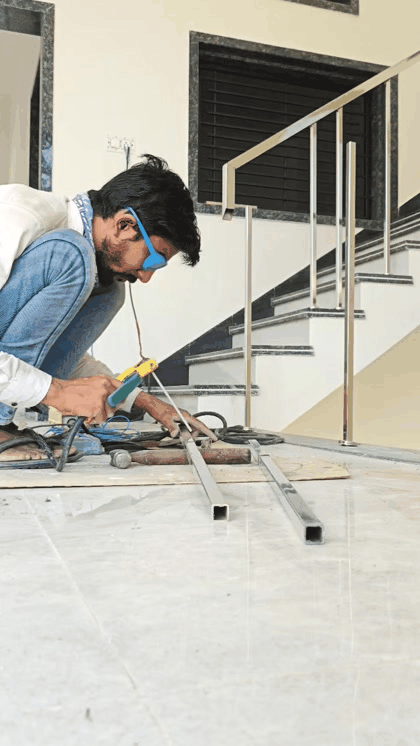

Some of the tubes were shorter than required, so I joined them by welding to achieve the desired length. After welding, I used a grinder to smooth the welds and prepare the surface for polishing. The goal was to make the joints virtually invisible, giving the tubes the appearance of being made from a single piece of steel.

To achieve a professional finish, I used a buffing polishing compound along with a buffing wheel mounted on a die grinder. A small amount of polishing compound was applied to the surface, and the buffing tool was carefully moved along the welded areas. This process gradually removed the remaining marks from welding and sanding, restoring the smooth metallic finish of the tube.

With patience and attention to detail, the welded joints became almost impossible to notice, resulting in clean, polished tubes that looked factory-made and were ready for installation in the staircase holes.

all the holes drilled and the support tubes cut to size, the next step was installing the base tubes into the staircase. Each square tube was carefully inserted into its corresponding hole and aligned vertically to ensure the handrail would be straight and uniform along the entire staircase.

Once the tubes were positioned correctly, I used white cement to firmly secure them inside the holes. The cement fills the gaps around the tubes, creating a strong foundation and preventing any movement over time. During this process, I continuously checked the alignment of each tube to make sure they remained perfectly upright while the cement cured.

To give the installation a cleaner and more professional appearance, I added stainless-steel cover plates (escutcheon covers) around the base of the tubes. These circular covers hide the drilled holes and the cement filling, resulting in a neat and polished finish while also protecting the area around the mounting points.

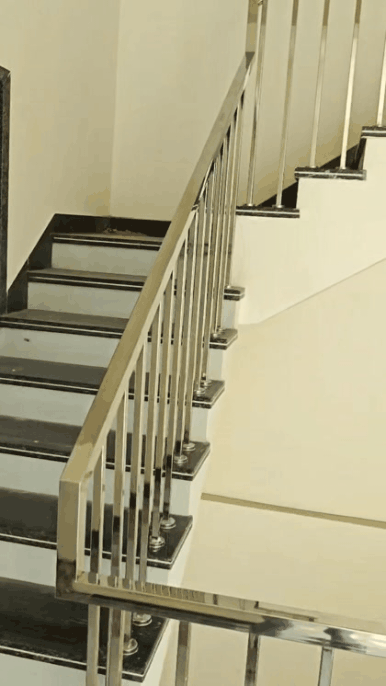

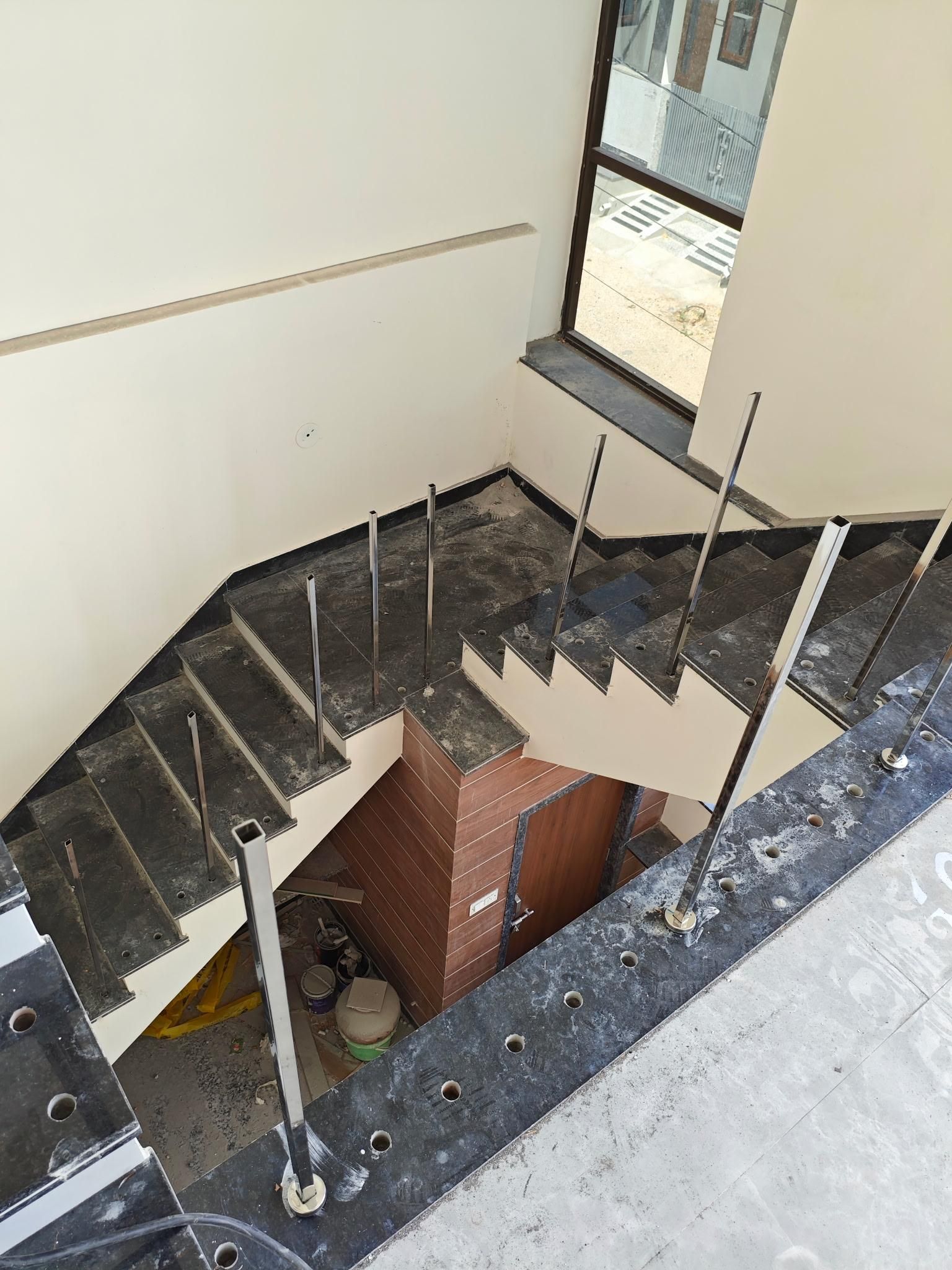

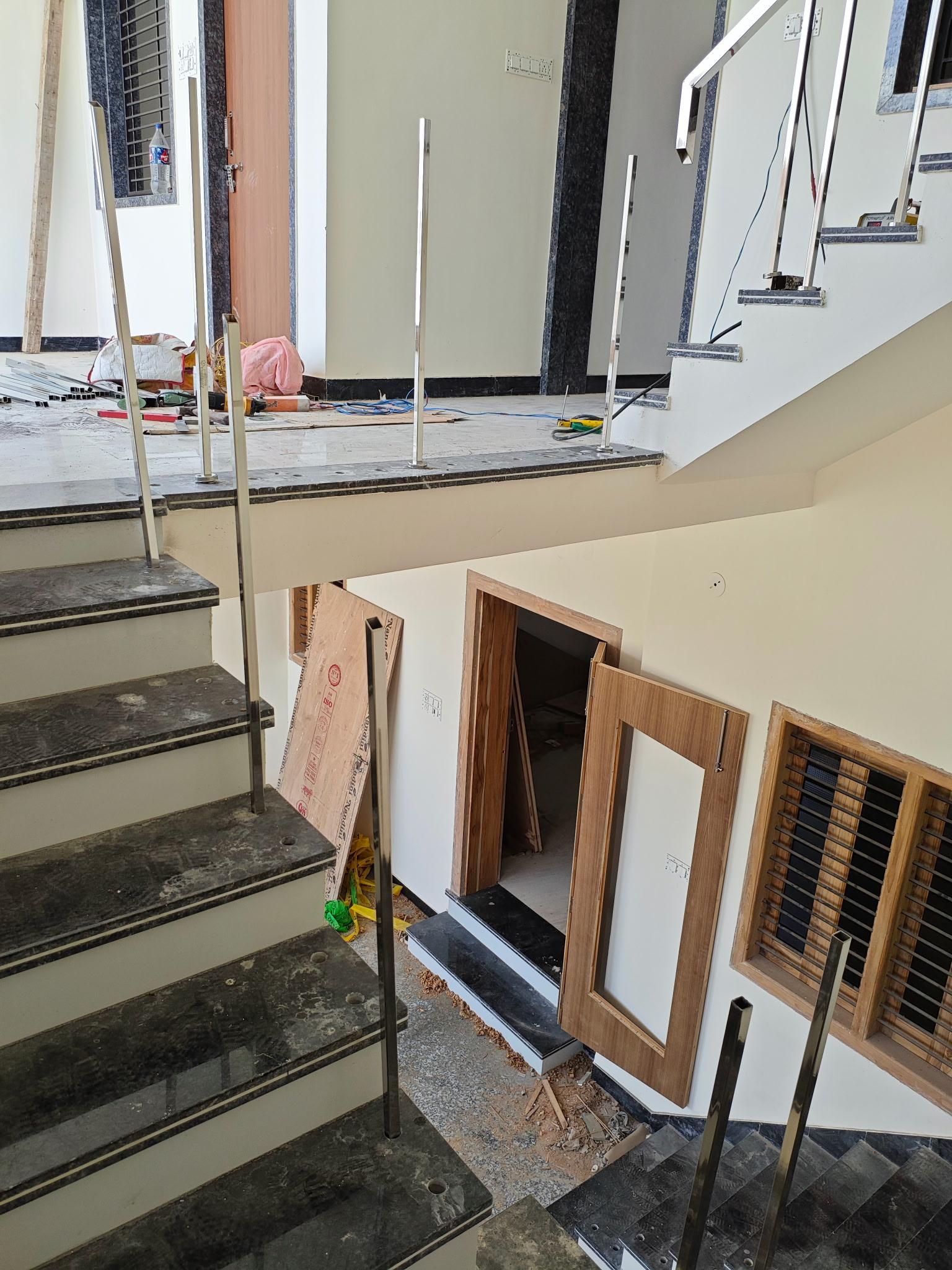

As shown in the image, the staircase now has a complete row of vertical support tubes securely mounted and ready for the next stage—the installation of the top handrail tube that will connect everything together into a strong and safe staircase railing.

all the base tubes securely installed, the next step was to attach the top handrail tube. For this, I used a larger and thicker square tube than the vertical support tubes. The thicker tube not only provides a comfortable grip but also adds strength and rigidity to the entire handrail structure.

Since the handrail follows the angle of the staircase and includes a corner turn, the top tube had to be cut and shaped carefully. I made precise angle cuts at the required locations so that the different sections could fit together perfectly. After checking the alignment, the tube sections were welded together to create a continuous handrail.

Once the top tube was assembled, it was positioned on top of the vertical support tubes and welded to each base tube. During welding, I continuously checked the alignment to ensure the handrail remained straight, level, and followed the staircase smoothly.

At this stage, the entire handrail structure was complete and strong enough to support daily use. The weld marks and joints were still visible, but that was expected. In the next step, I will smooth, polish, and finish all the welded areas to give the handrail a clean, seamless, and professional appearance.

the entire handrail structure assembled and welded together, the final step was to give it a smooth, polished, and professional finish. All the visible weld joints were carefully ground and sanded to remove any imperfections and create seamless transitions between the connected tubes.

After sanding, I used a buffing wheel and polishing compound to bring out the natural shine of the stainless steel. This process removed the remaining scratches and welding marks, making the joints nearly invisible and giving the handrail a clean, mirror-like appearance. The polishing stage required patience, but it made a huge difference in the final look of the project.

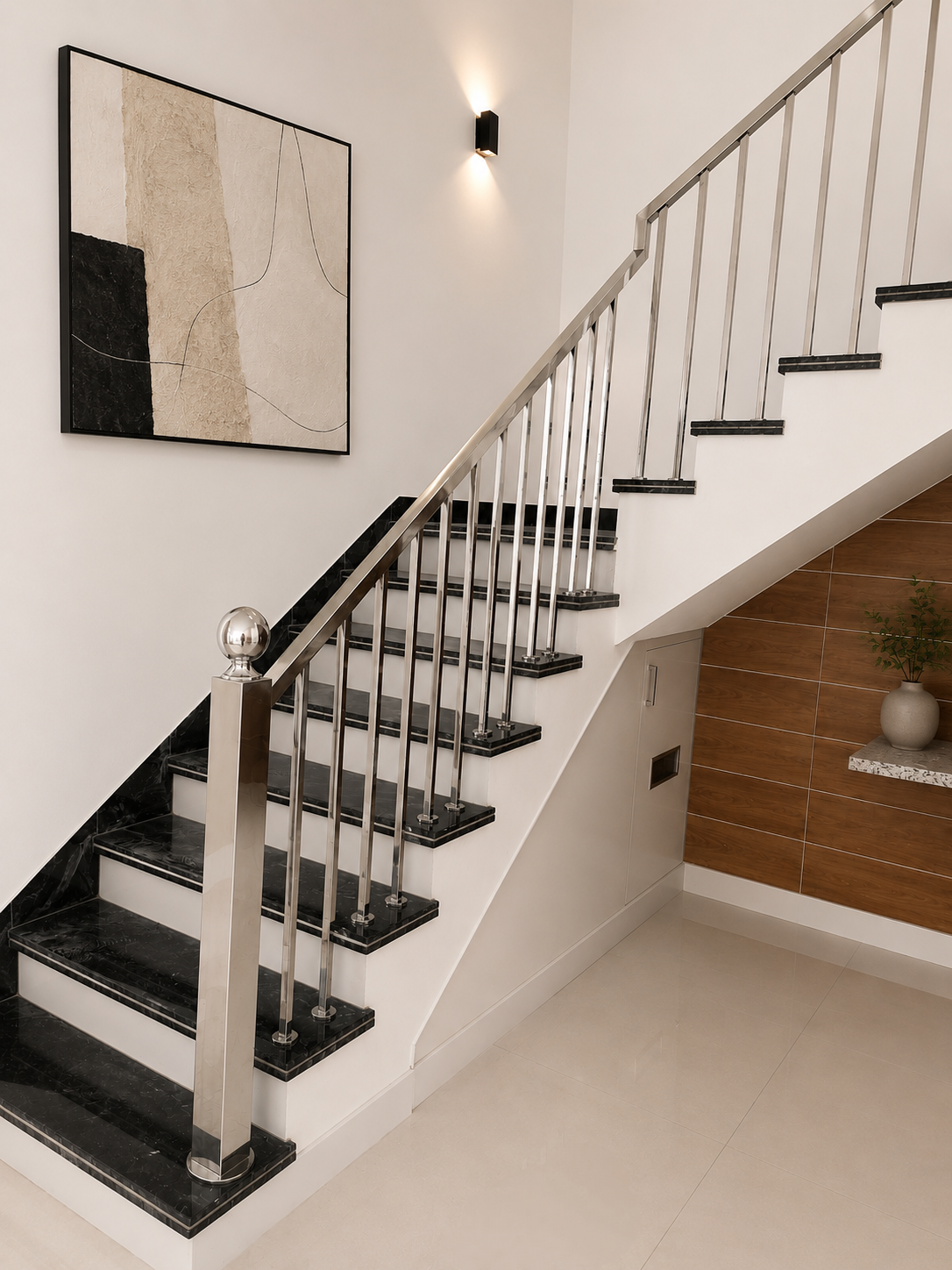

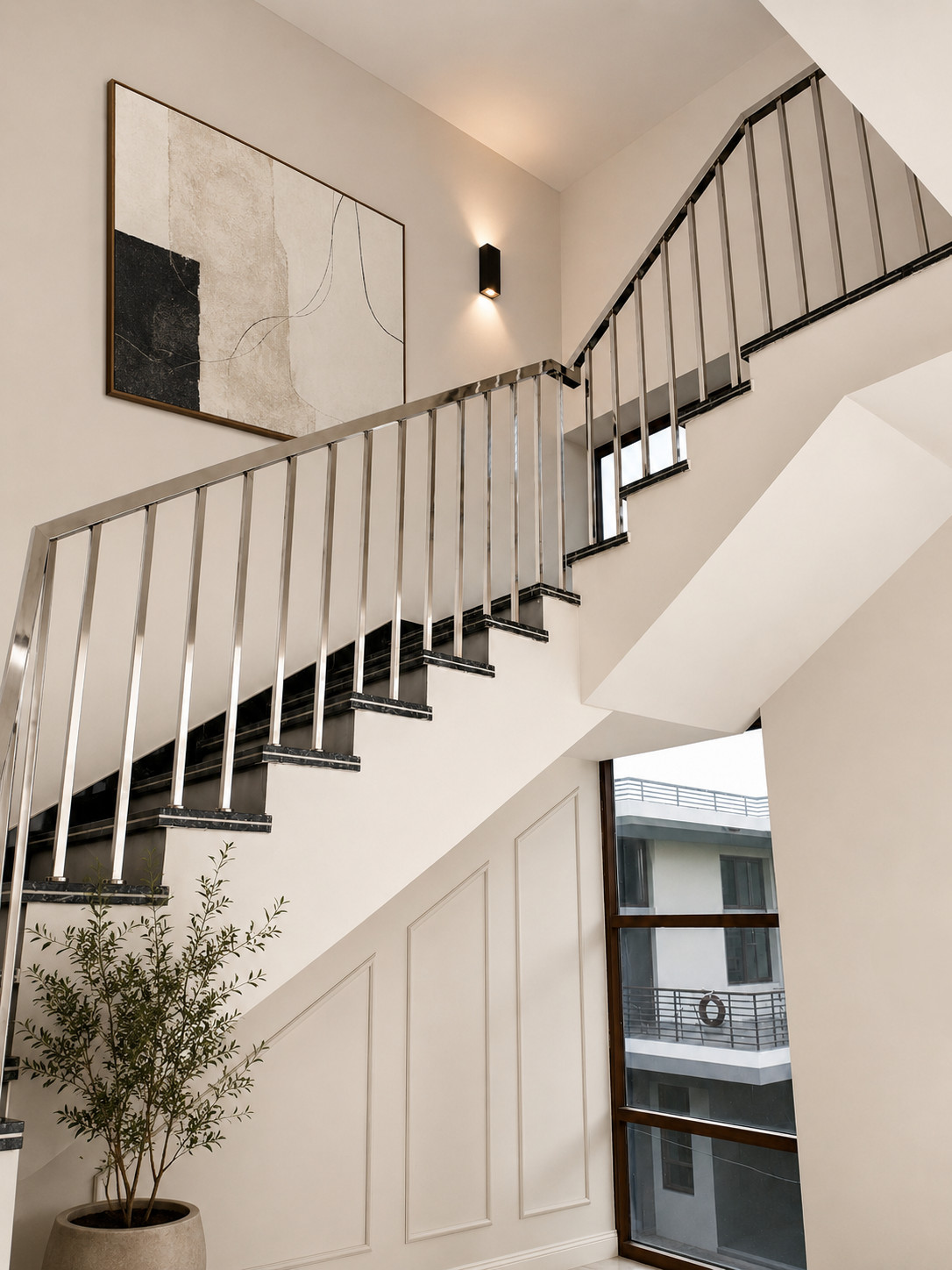

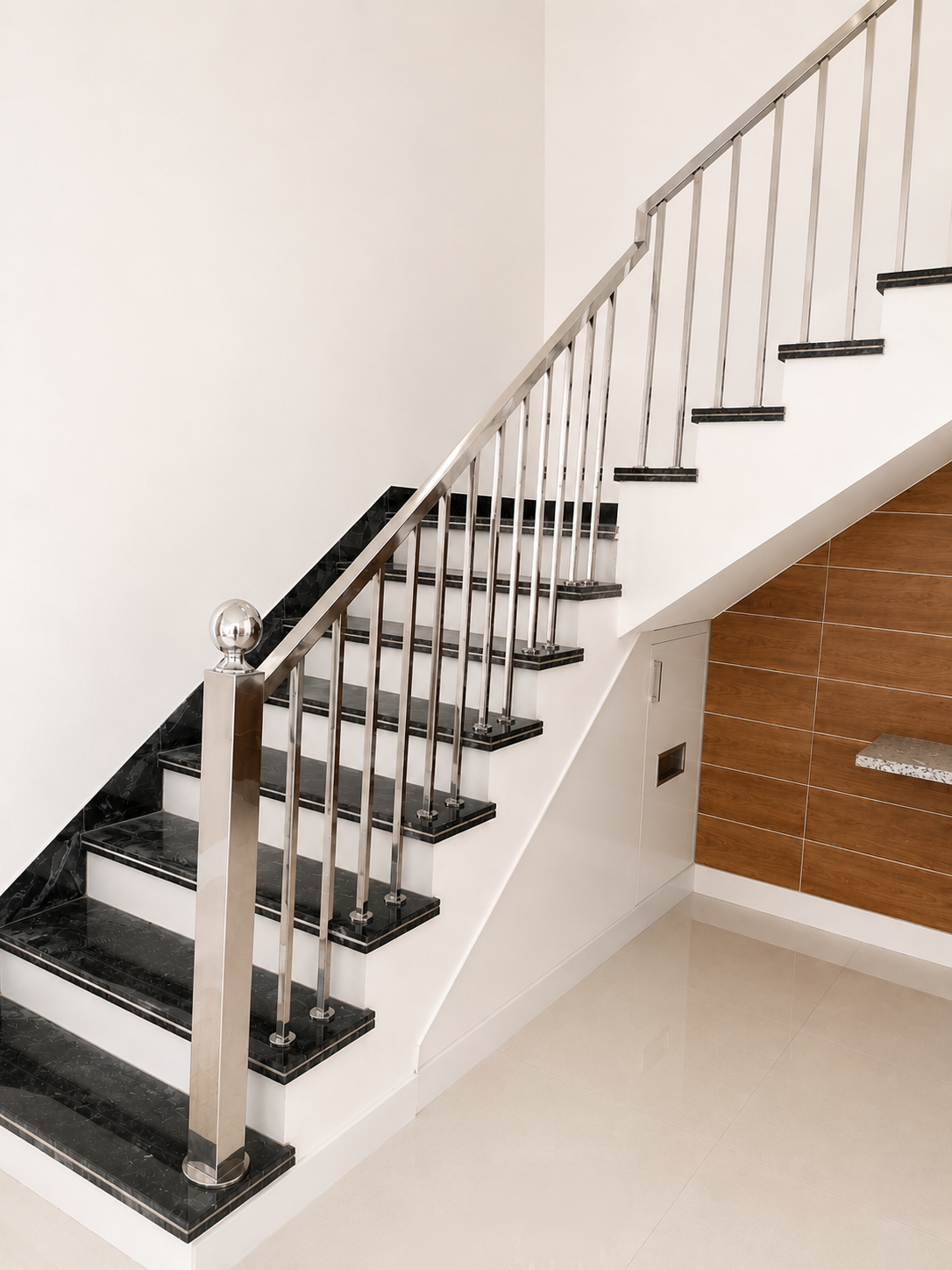

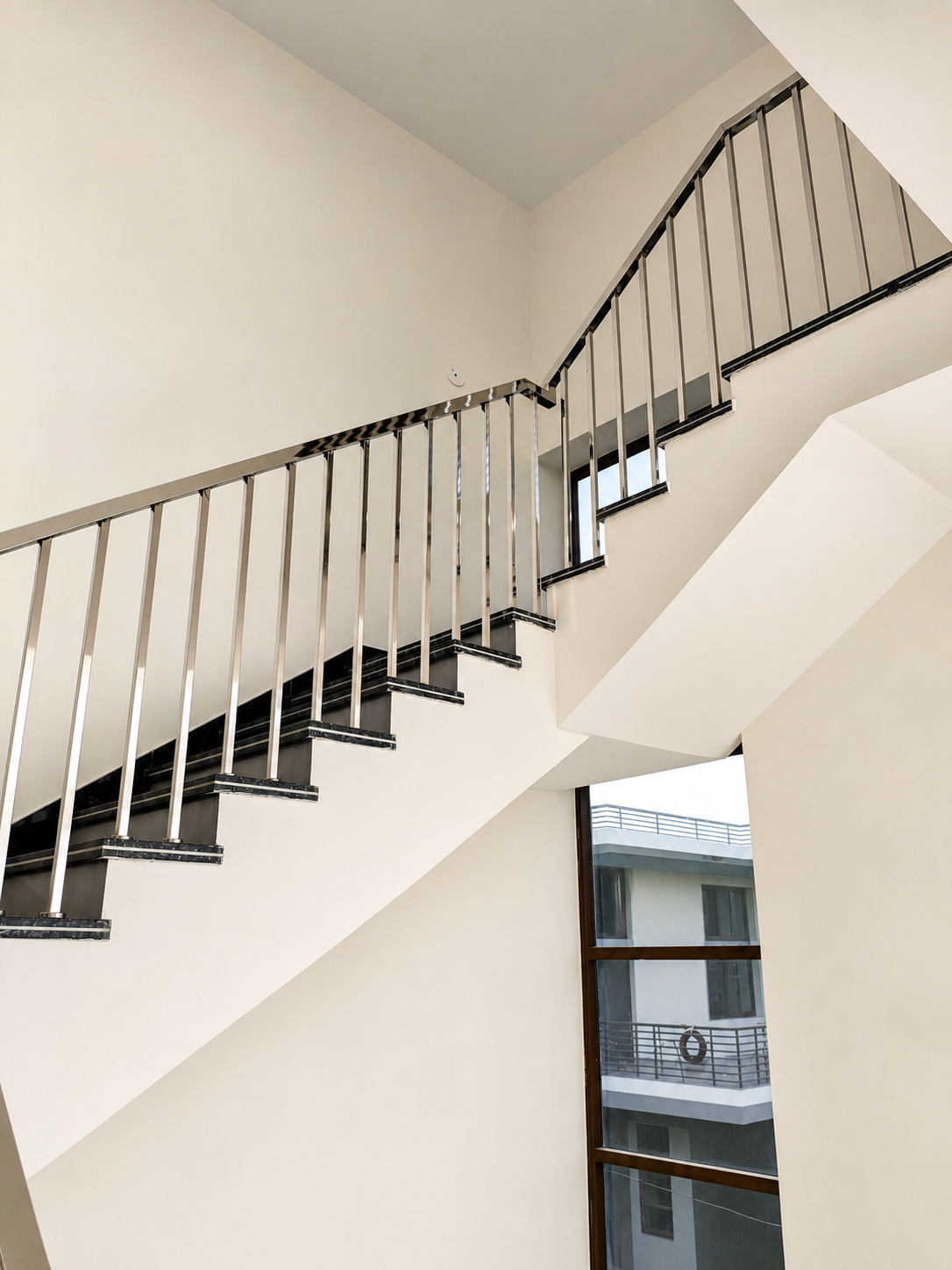

Once the polishing was complete, I thoroughly cleaned the entire handrail to remove dust, fingerprints, and polishing residue. The result was a strong, safe, and elegant staircase handrail that perfectly complements the modern design of the house.

This project not only improved the safety of the staircase for children and family members but also enhanced the overall appearance and value of the home. Building it myself was a rewarding experience that allowed me to learn new skills, save costs, and create something that will be useful for many years to come.

And with that, the staircase handrail project was complete! 🎉
