Raspberry Pi Barcode Scanner Terminal for Inventory Management

Managing inventory manually can be time-consuming and prone to errors. Traditional inventory there is very complicated because there are many chances of errors. In this project, we build a compact and cost-effective Barcode Scanner Terminal using Raspberry Pi and a USB Barcode Scanner. The system captures barcode data instantly and helps streamline inventory tracking, asset management, and product identification processes. Raspberry Pi handles the barcode input and processes data in real-time, making inventory operations faster and more reliable. Raspberry pi is best for managing inventory systems. This project is user friendly. This system can detect the errors and it scans barcodes very clearly and efficiently.

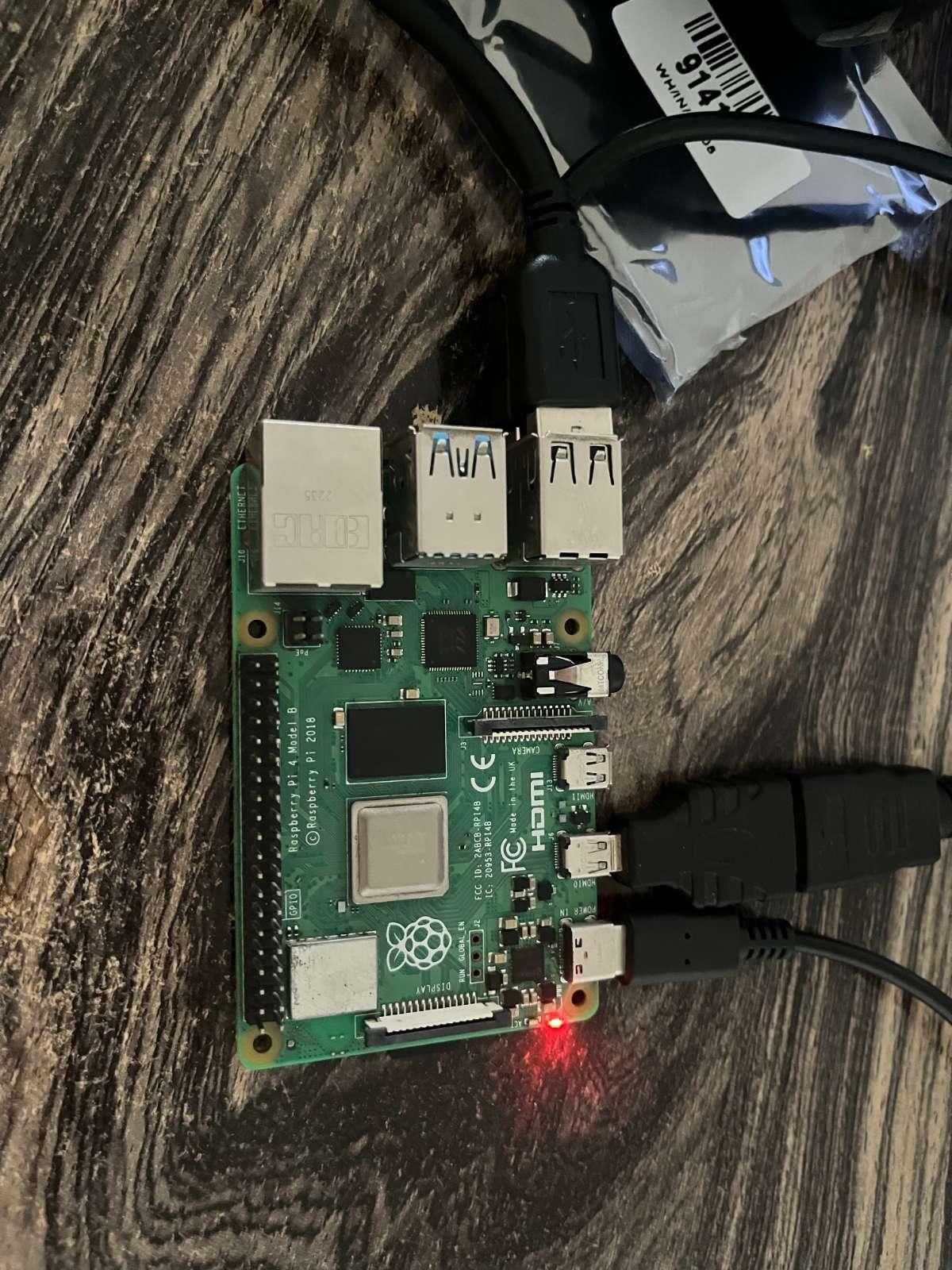

1. Raspberry Pi 4 / Raspberry Pi 3
2. USB Barcode Scanner
3. MicroSD Card (16GB or higher)
4. Raspberry Pi Power Supply
5. HDMI Monitor
6. USB Keyboard & Mouse
7. Internet Connection (Optional)
8. Python Software Environment

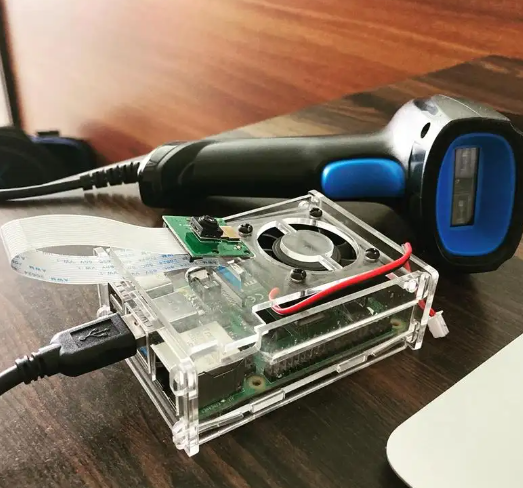

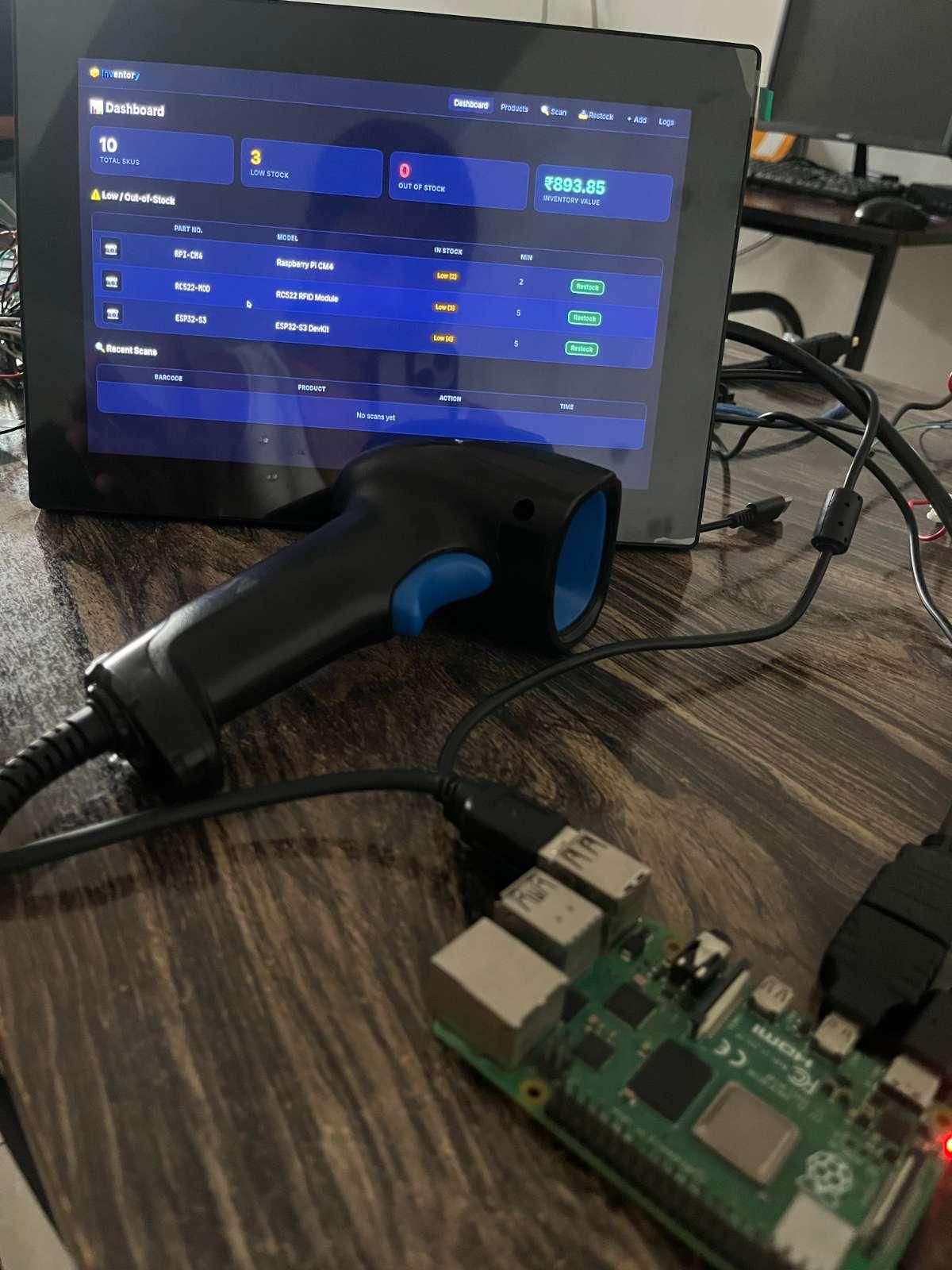

Connect the Raspberry Pi to a monitor, keyboard, and mouse. Insert the microSD card with Raspberry Pi OS installed and connect the USB Barcode Scanner to one of the USB ports.

The barcode scanner behaves like a keyboard input device, allowing scanned data to be captured directly by software running on the Raspberry Pi. hardware components are easily available and under the budget.

Update your Raspberry Pi and install the necessary Python libraries.

sudo apt update

sudo apt upgrade

pip install pandas

These libraries help process barcode data and maintain inventory records.

Test the scanner by opening a text editor and scanning any product barcode. If the barcode appears automatically in the text field, the scanner is correctly configured.

Most USB barcode scanners work as HID keyboard devices and require minimal setup.

Create a simple CSV or SQLite database to store:

1. Product ID
2. Product Name
3. Quantity
4. Date & Time
5. Inventory Status

This database serves as the central repository for all scanned items.

Develop a Python script that listens for barcode input and automatically updates inventory records whenever a barcode is scanned.

Features:

1. Real-time barcode capture
2. Inventory update automation
3. Duplicate item handling
4. Scan history logging

Scan multiple products and verify that:

1. Barcode data is captured correctly
2. Records are stored successfully
3. Inventory count updates automatically
4. Scan logs are generated

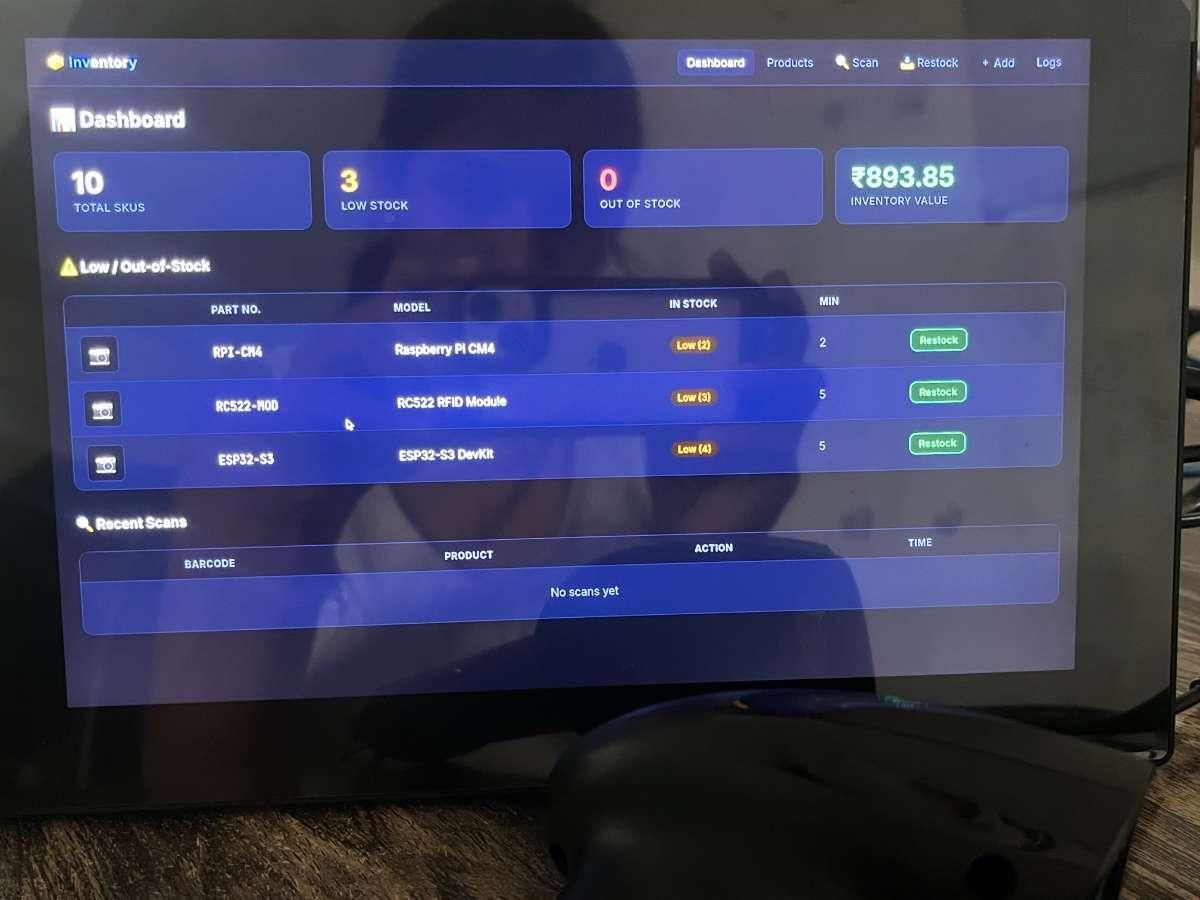

The system should provide immediate feedback and accurate inventory tracking.

This project can be used in:

1. Retail Stores
2. Warehouses
3. Asset Tracking Systems
4. Libraries
5. Educational Labs
6. Attendance Systems
7. Product Identification Solutions

1. Faster inventory processing
2. Reduced manual errors
3. Low-cost implementation
4. Easy customization
5. Real-time monitoring
6. Scalable architecture
7. Simple deployment

1. Cloud Database Integration
2. Wi-Fi Synchronization
3. Touchscreen Interface
4. RFID/NFC Support
5. Mobile App Connectivity
6. Web-Based Dashboard

This Raspberry Pi Barcode Scanner Terminal provides an efficient and affordable solution for inventory management and asset tracking. The main part of this project there components is easily available and affordable price. By combining Raspberry Pi with barcode scanning technology, businesses can reduce manual workload, improve operational accuracy, and monitor inventory in real time. Raspberry PI works as a main controller of this system. The modular design allows easy customization for retail, warehouse, industrial, and educational applications, making it a practical solution for modern inventory automation.
