Reaction Time Tester Using Arduino Nano and OLED

The objective of this project is to measure how quickly a person can react to a visual signal.

The OLED displays “GO!” after a random delay. The user must press the button as quickly as possible. The Arduino measures the time between displaying “GO!” and pressing the button and shows the result in milliseconds.

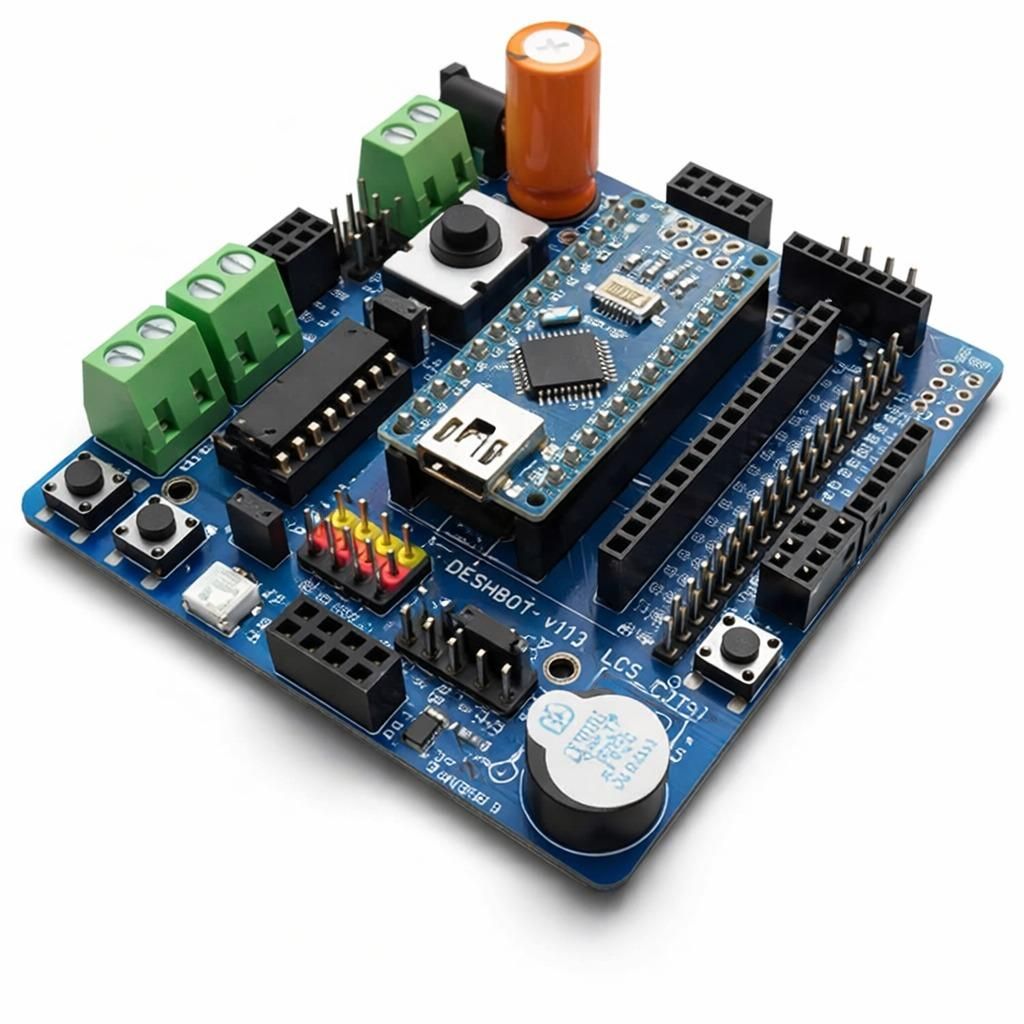

DESHBOT SHIELD

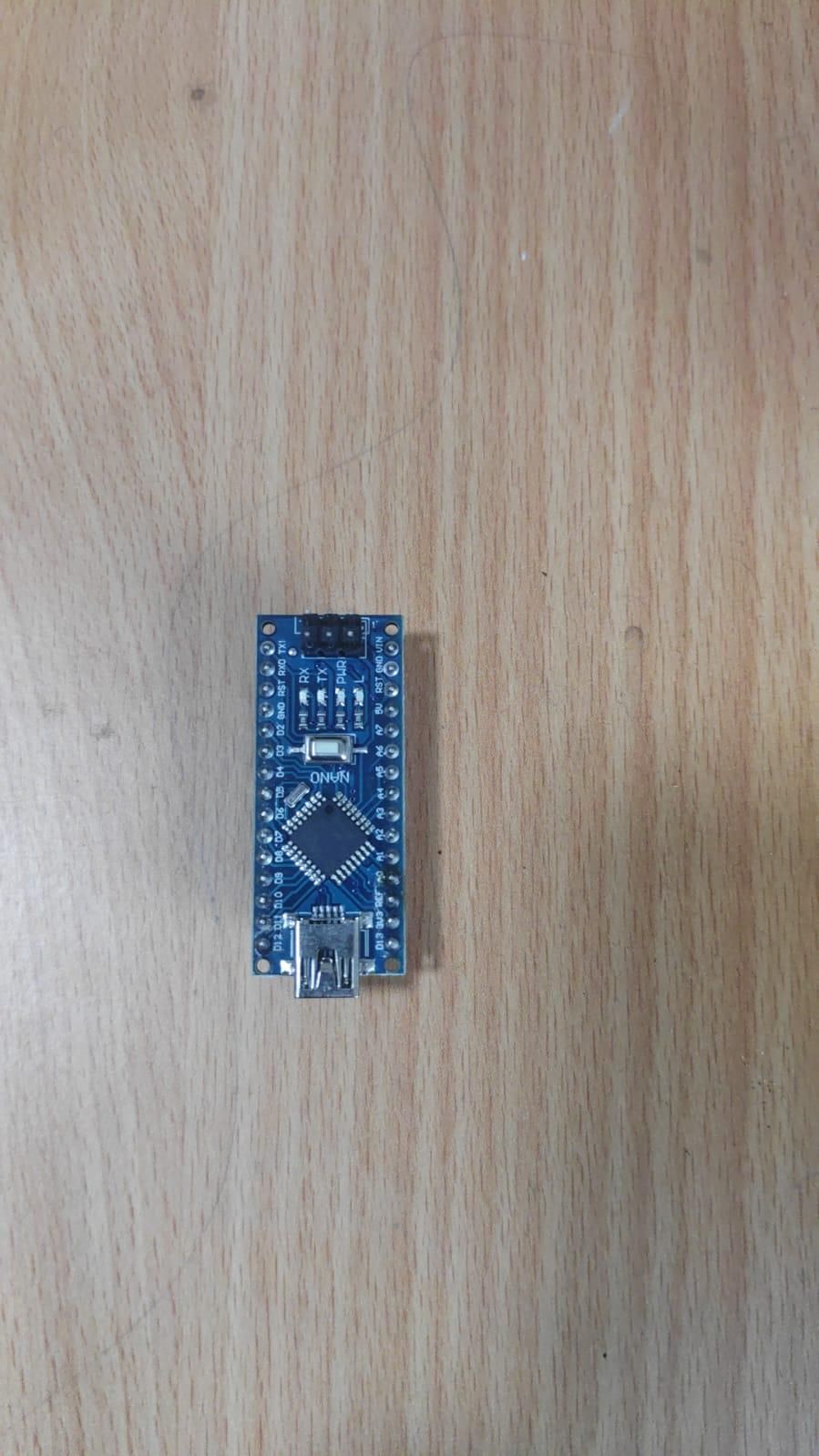

ARDUINO NANO

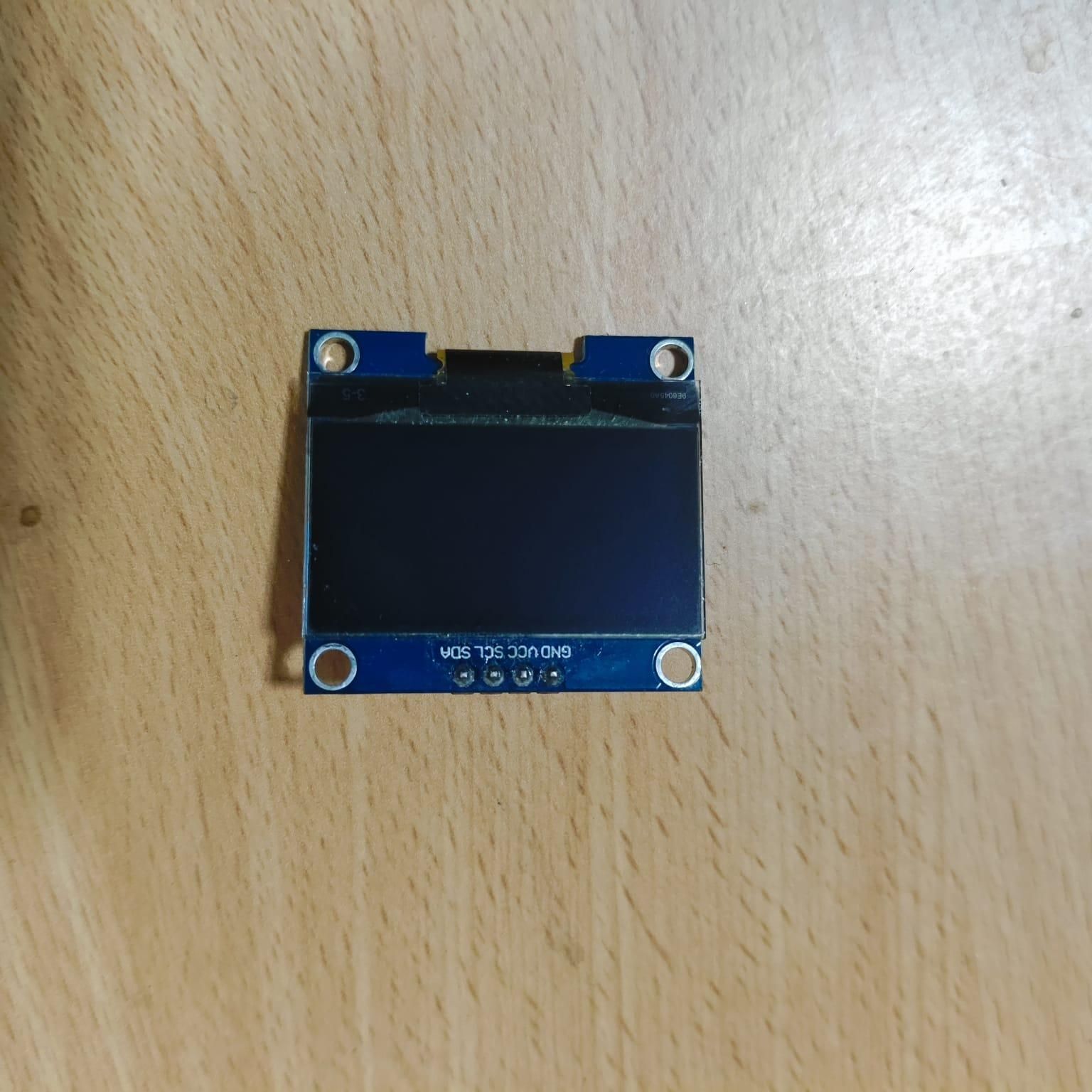

OLED DISPLAY

INBUILD BUTTON

The Arduino Nano controls the test and displays information on the OLED.

The test follows these steps:

1. The OLED displays READY.
2. The user presses the button to start.
3. The OLED displays WAIT....
4. The Arduino waits for a random period between approximately 2 and 5 seconds.
5. The OLED displays GO!.
6. The Arduino starts measuring time.
7. The user presses the button as quickly as possible.
8. The Arduino calculates the reaction time.
9. The result is displayed on the OLED in milliseconds.

Working Flow

READY → Button Press → WAIT → Random Delay → GO! → Button Press → Reaction Time

Reaction Time Measurement

The Arduino uses the millis() function to measure elapsed time.

When GO! appears:

After the user presses the button:

The result is displayed in milliseconds (ms).

For example:

TIME

287 ms

The Reaction Time Tester demonstrates how an Arduino Nano can combine button input, OLED display, random timing, and time measurement to create an interactive electronic game. It provides a simple and entertaining way to measure reaction time in milliseconds.
