Roborock S7 MaxV Fan Signal Check + 5 Pin Connector Pinout

by frenzi3793 in Circuits > Robots

9 Views, 0 Favorites, 0 Comments

Roborock S7 MaxV Fan Signal Check + 5 Pin Connector Pinout

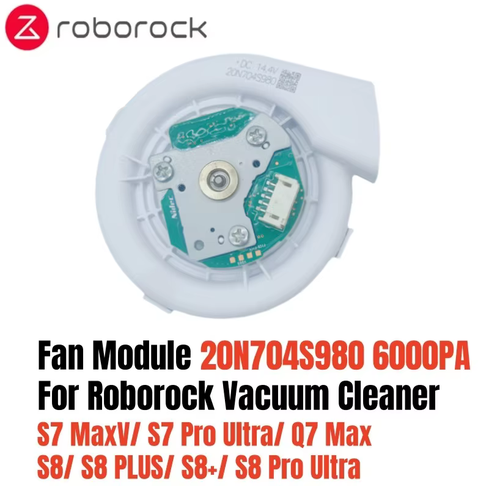

Useful notes on the 5 pin 20N704S980 Roborock fan modules, to check if the proper signal are present (especially when trying to solve error 18)

Pinout

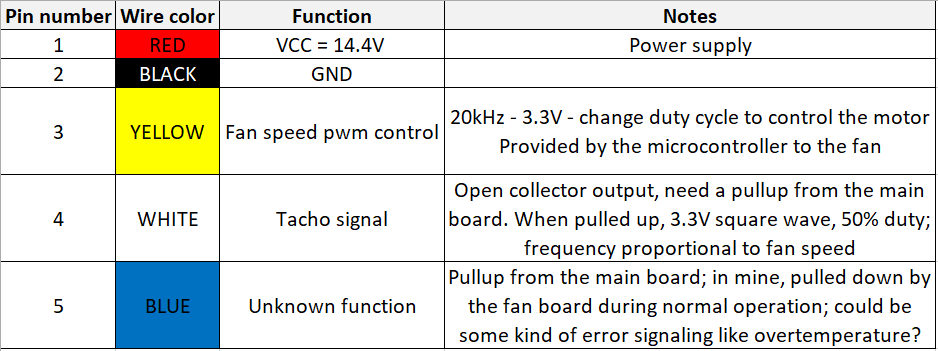

In the attached table, the pinout and functions of the fan connector. Blu wire (pin 5) function is not clear; possibily a digital error 0/1 signal, not being used in my case (pulled low if motor control is ok)

Signal to Be Checked

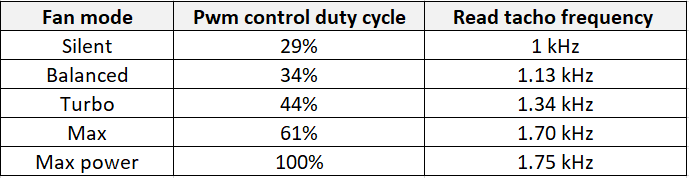

In the attached table, the signal to be checked
