How to Assemble a Pluto Drone: Beginner’s Guide

Drones are unmanned aerial vehicles (UAVs) that are widely used for photography, surveillance, delivery systems, research, and educational purposes. A quadcopter drone works using four motors and propellers that help it achieve stable flight and movement in different directions.

The Pluto Drone is a compact and beginner-friendly drone designed for learning drone technology, programming, and assembly. This drone uses the Primus V5 Flight Controller (FC), which acts as the brain of the drone by controlling the motors, maintaining stability, and processing sensor data during flight.

In this Instructable, I have provided the complete step-by-step assembly process of the Pluto Drone using the Primus V5 Flight Controller. Each component is explained clearly to make the building process simple and easy to follow for beginners.

If you want to purchase the Pluto Drone kit or learn more about it, you can visit the official website using the link provided below.

https://www.dronaaviation.com/product/pluto-1-2

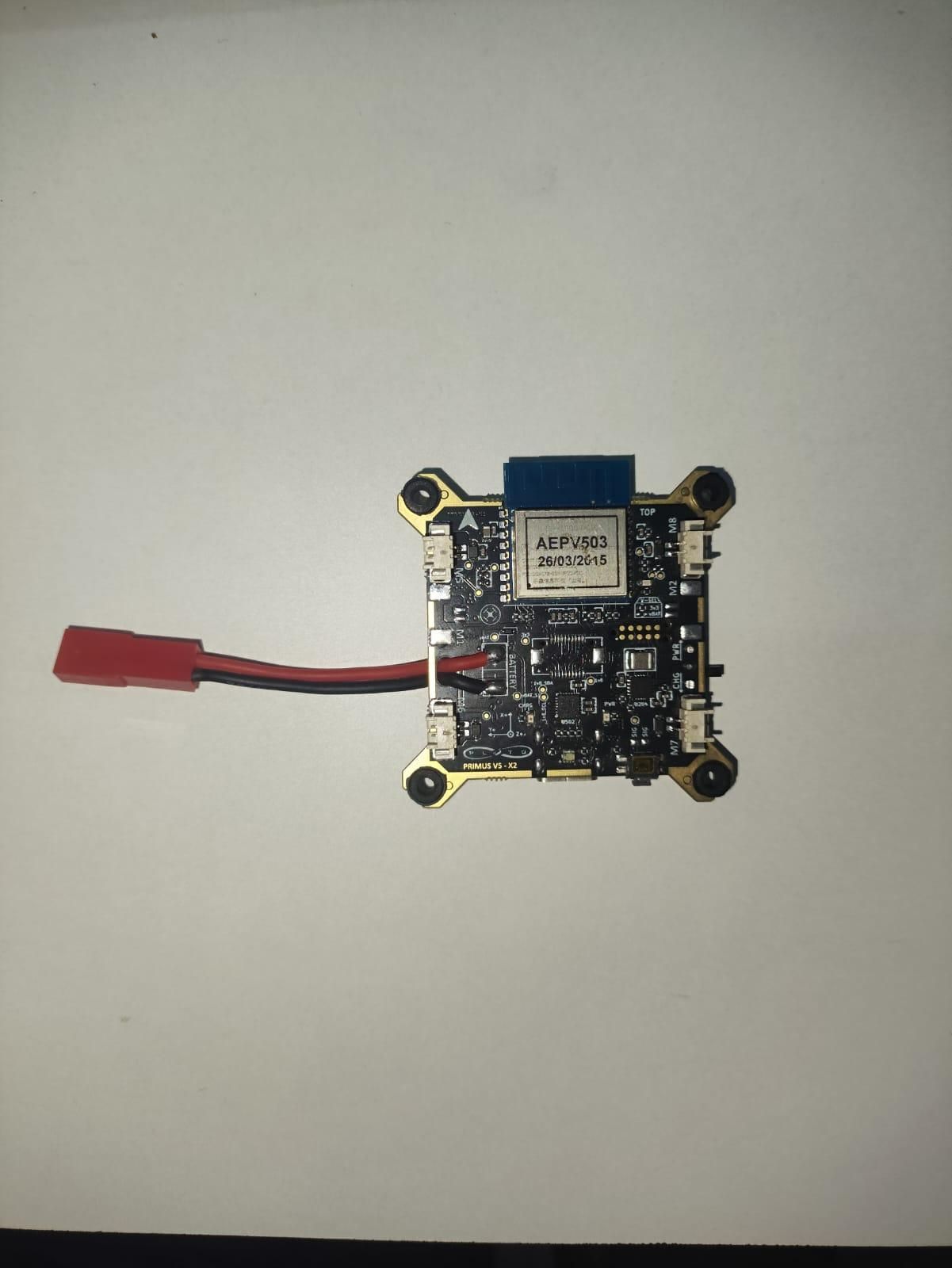

Insert the Rubber Dampers Into the Corners of the Flight Controller

Rubber dampers are used while fixing the flight controller (FC) to the main frame to reduce vibrations produced by the motors and propellers.

Without dampers, these vibrations can directly reach the flight controller and affect the sensors

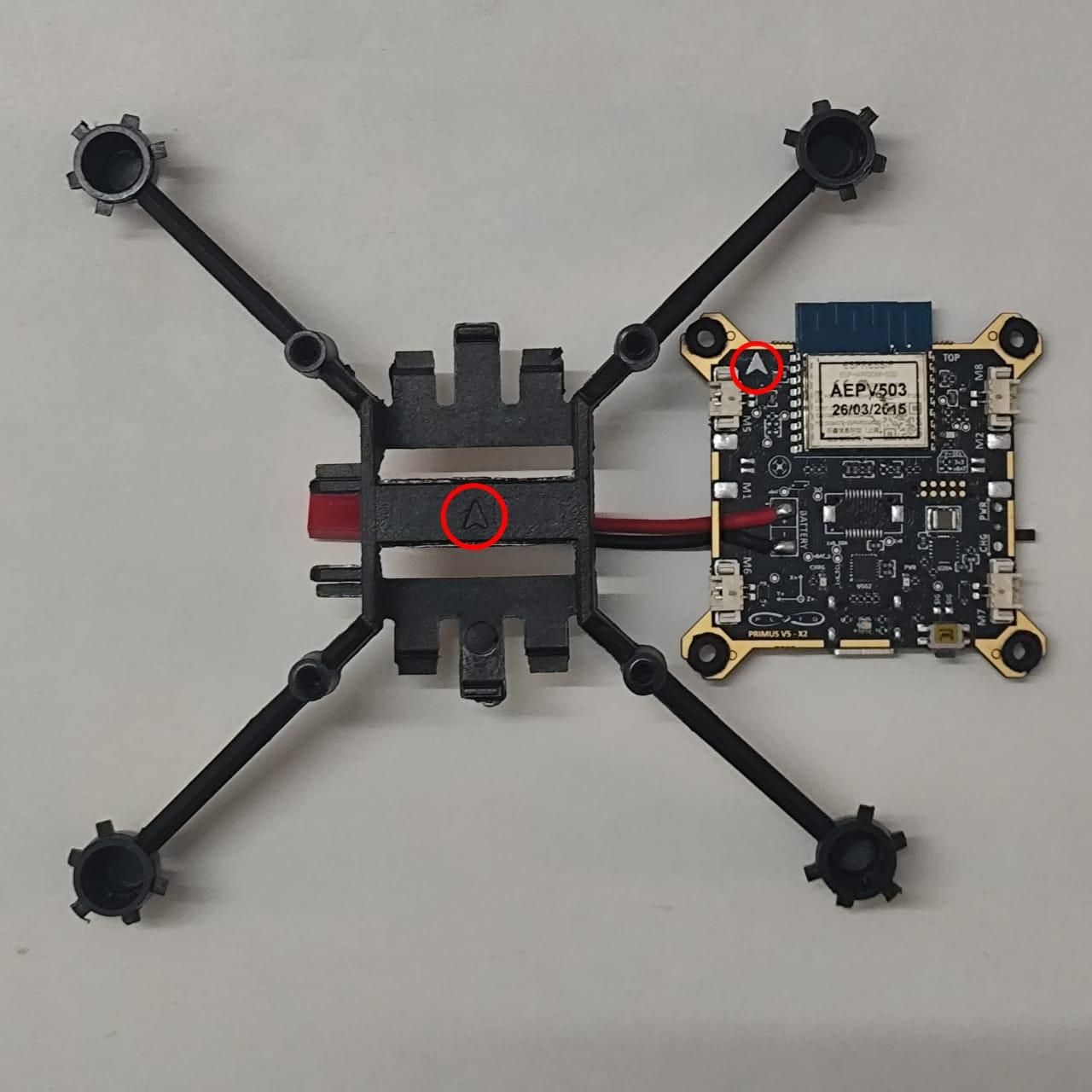

Alight the Main Frame Arrow With the Arrow on the Flight Controller

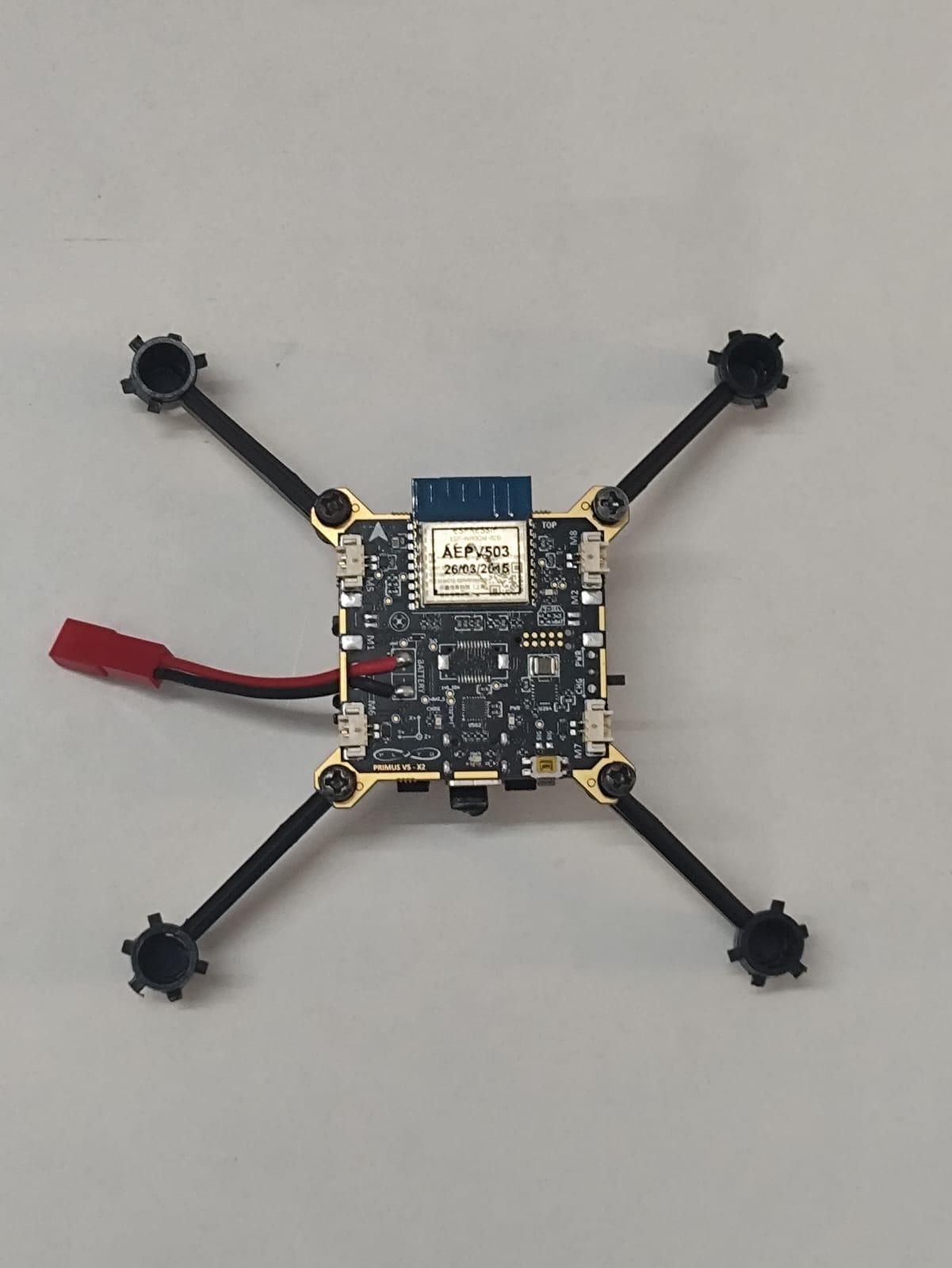

Secure the Flight Controller on Main Frame Using Screws

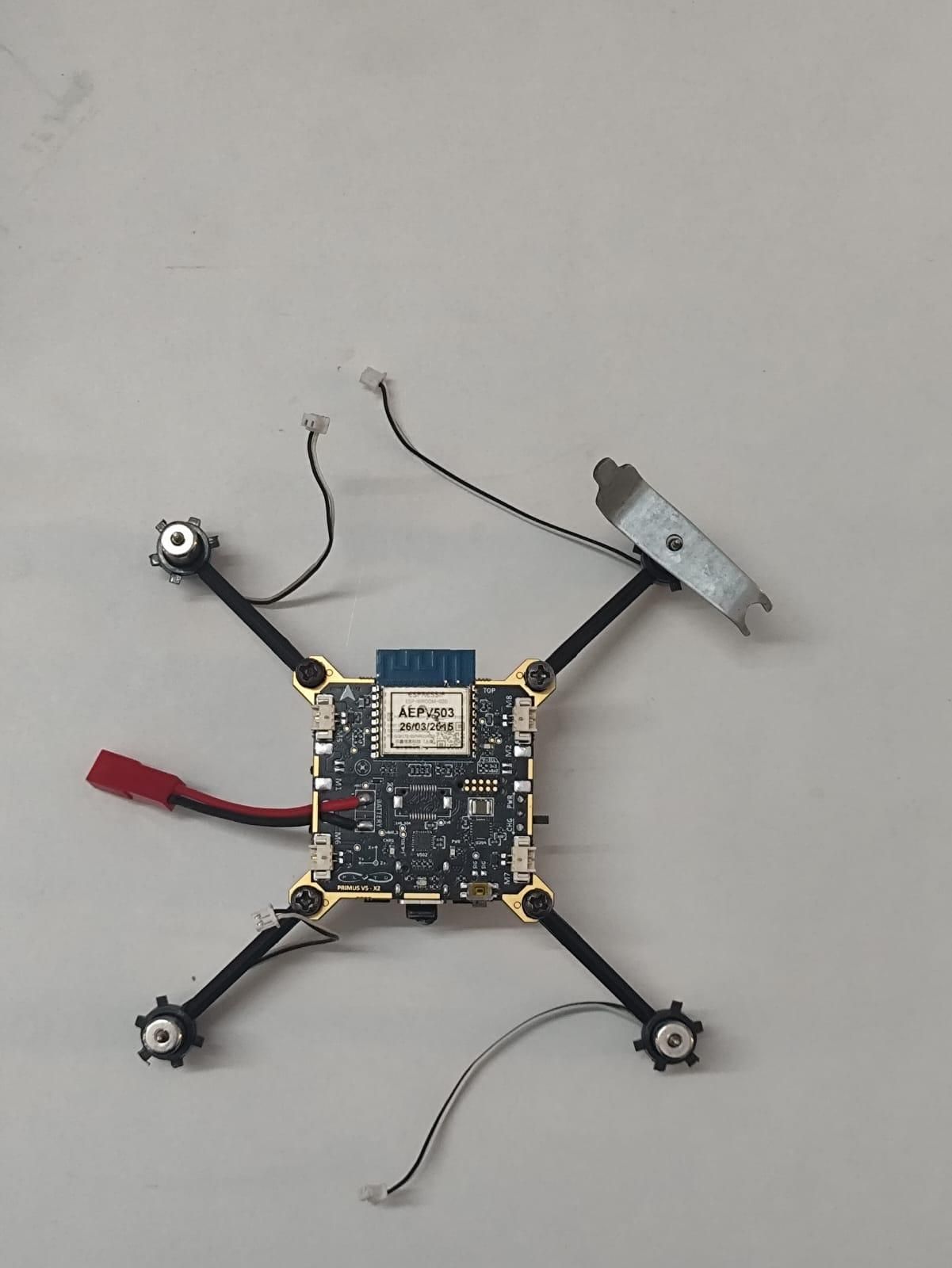

Take 4 Motor and Press Them Firmly Into the Mount at the End of Each Arm

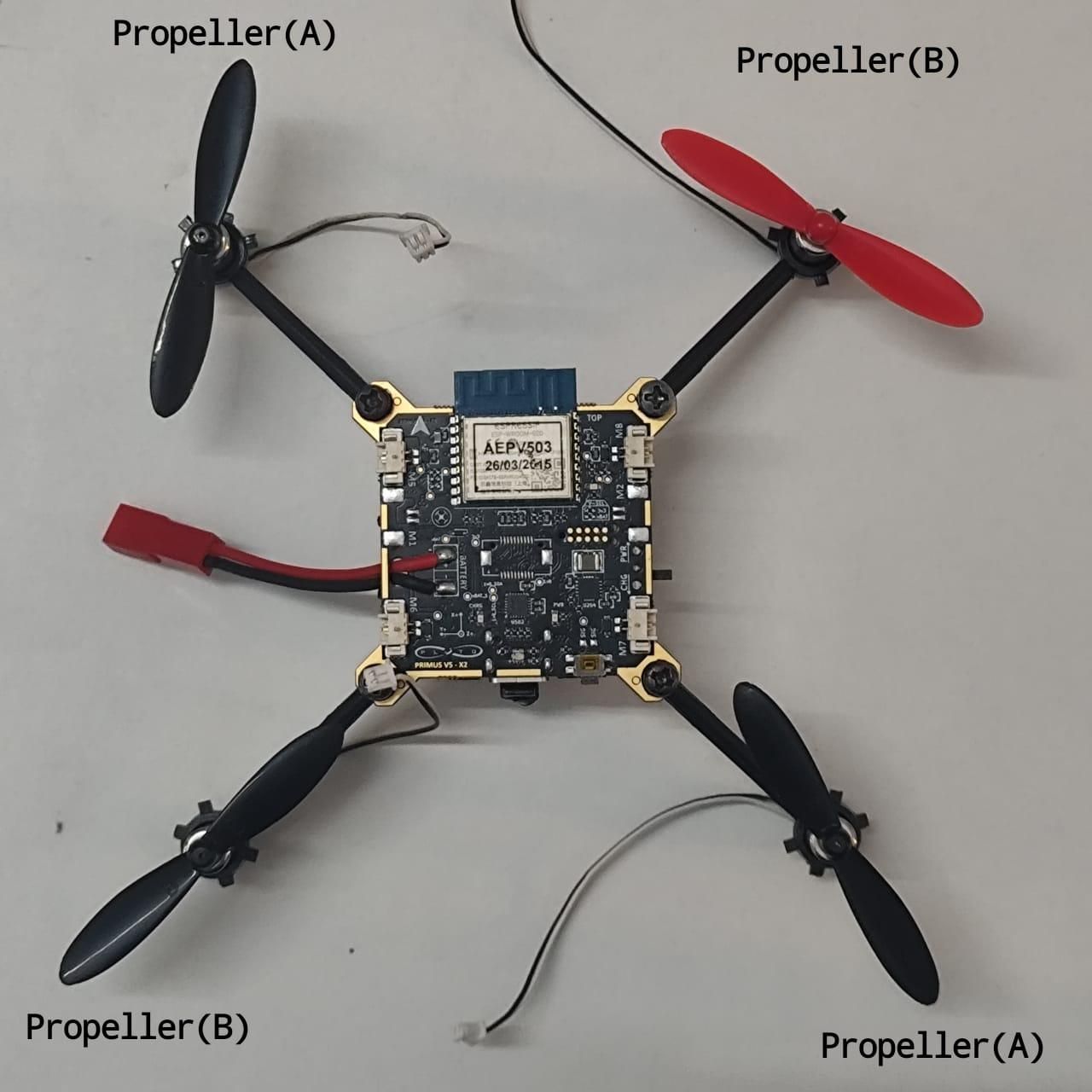

Attach Correct a and B Propellers to Their Corresponding Motors

(Note: A propeller spins clockwise and B propeller spins clockwise)

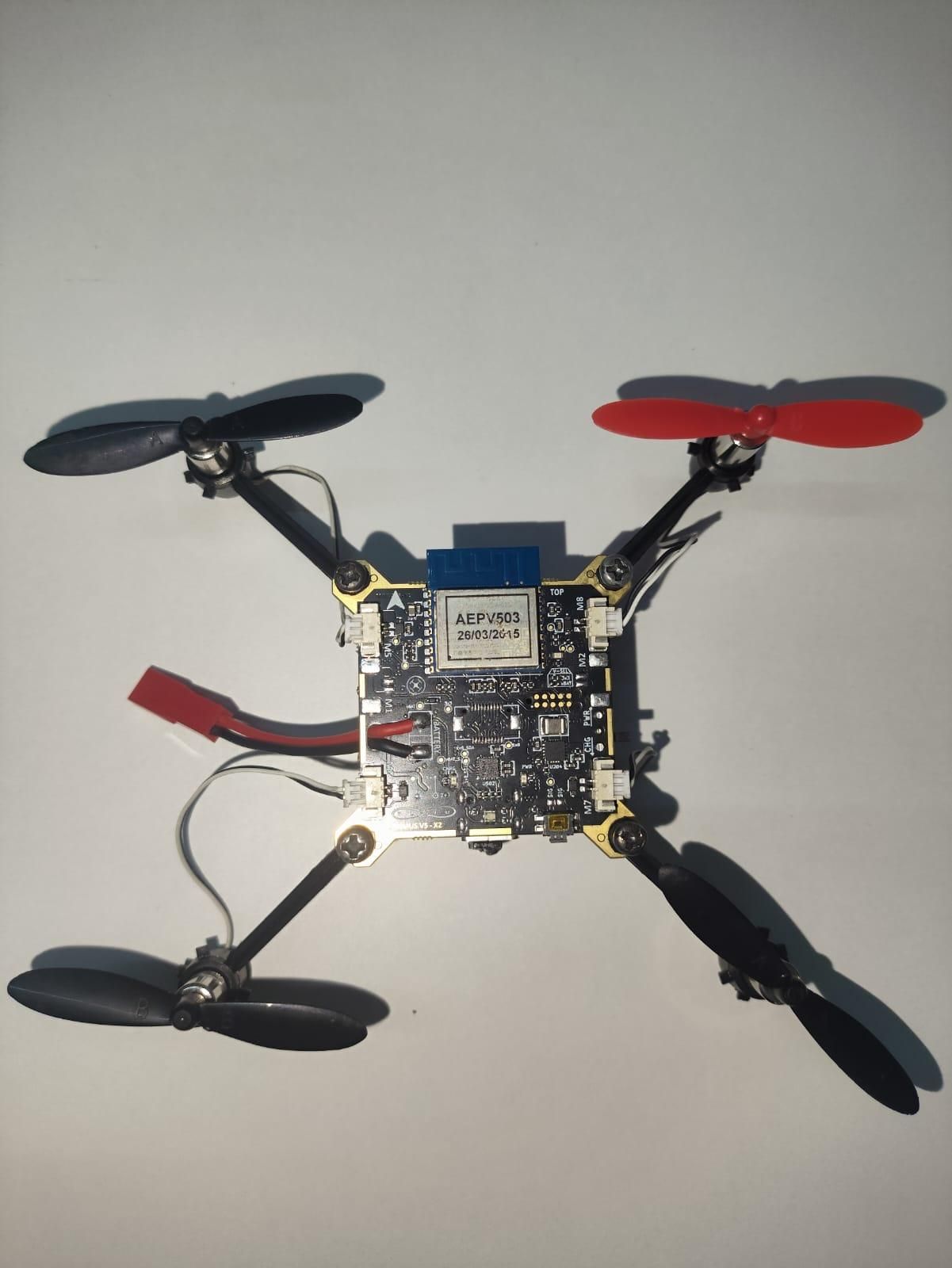

Now ,connect the Motor Wires. Plug Each White Connector Into the Designed Ports on the Flight Controller .Ensure They Are Seated Securely
