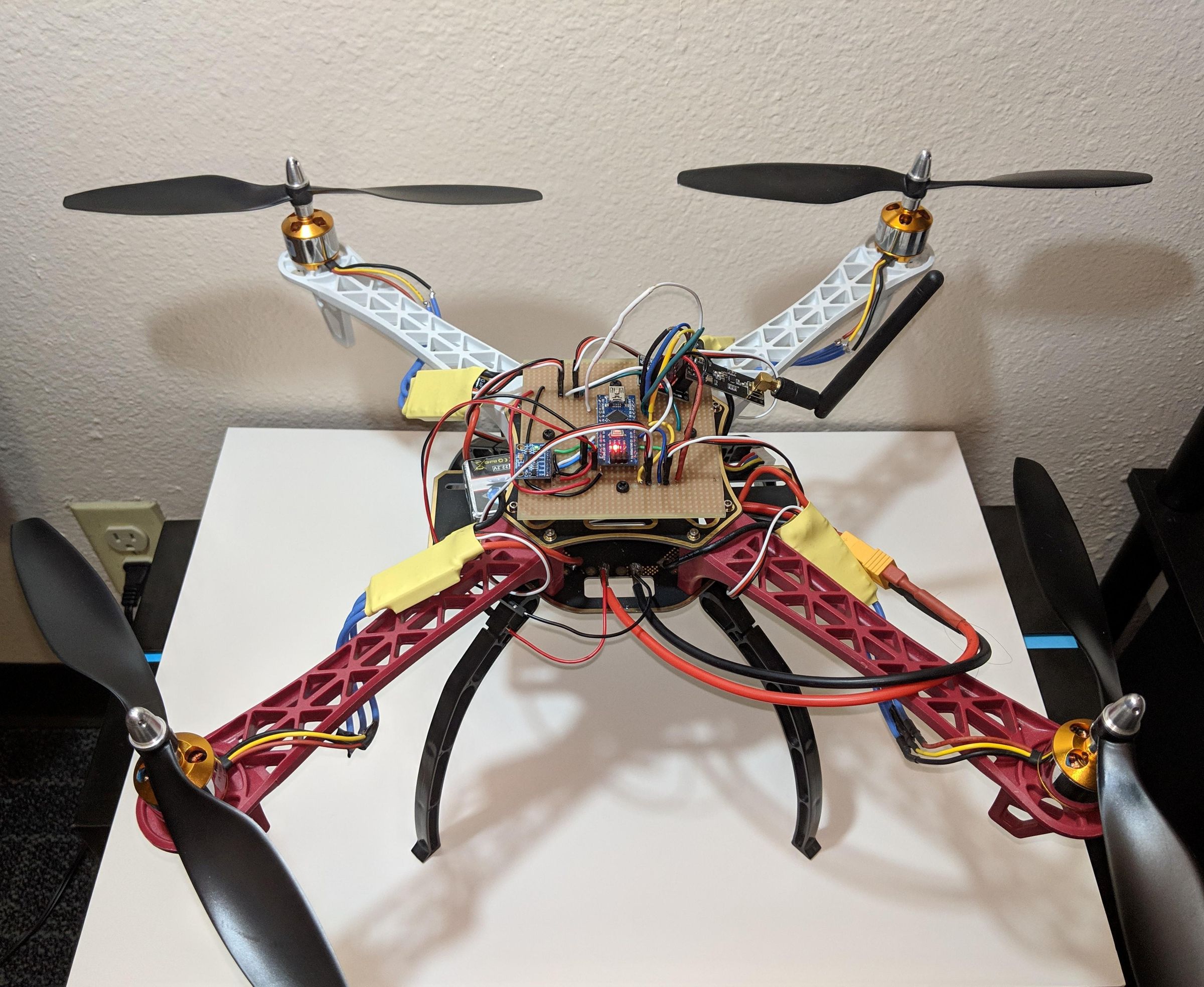

Today I’ll be showing how you can build your own quadcopter drone at home using basic engineering principles, electronics, and programming. This project combines mechanical engineering, electrical systems, aerodynamics, and flight control technology into one fully functional flying machine.

Components

QuadCopter Body Frame -

Brushless Motors (4x)

Electronic Speed Controllers (ESCs)

Propellers (2 CW, 2 CCW)

LiPo Battery

Power Distribution Board

Transmitter & Receiver

Battery Charger

Tools

Soldering iron

Screwdrivers

Zip ties

Electrical tape

Wire cutters

Heat shrink tubing

Each component plays an important role in helping the quadcopter fly safely and efficiently. The motors and propellers create lift, the battery supplies power, and the flight controller acts as the brain of the drone.

A quadcopter flies using four motors and four propellers that spin at different speeds to control movement and stability.

1. Two propellers spin clockwise (CW)
2. Two propellers spin counterclockwise (CCW)
3. This balances torque and keeps the drone stable

Movement/Function

Throttle/

Moves drone up/down

Pitch/

Tilts forward/backward

Roll/

Tilts left/right

Yaw/

Rotates left/right

Flight Controller

The flight controller acts as the “brain” of the drone by:

1. Reading sensor data
2. Stabilizing the quadcopter
3. Adjusting motor speeds automatically

Simple Physics Behind Flight

F=ma

1. More thrust from the motors creates lift
2. Balanced forces keep the drone level
3. Changing motor speed changes direction

What You Are Doing

The frame is the “skeleton” of the quadcopter. It holds all components in place and keeps everything balanced.

Steps to Assemble

1. Lay out all frame parts (center plates + arms)
2. Attach the arms to the central body
3. Secure using screws and bolts
4. Tighten evenly to avoid imbalance
5. Add landing gear (if included)

Important Tips

1. Keep the frame perfectly symmetrical
2. Don’t overtighten carbon fiber (can crack)
3. Use thread locker on screws to prevent loosening
4. Double-check alignment before moving on

What You Are Doing

Now you install the 4 brushless motors that will spin the propellers and generate lift.

Steps to Install

1. Attach one motor to the end of each arm
2. Secure using screws (usually 4 per motor)
3. Route motor wires along the arm toward the center
4. Keep wires neat using zip ties
5. Label motor positions if needed (Front/Back)

Motor Direction Setup

1. 2 motors spin clockwise (CW)
2. 2 motors spin counterclockwise (CCW)
3. This balances torque so the drone does not spin uncontrollably.

What You Are Doing

You are connecting the electrical system so power from the battery can be safely delivered to each motor through the ESCs.

What is an ESC?

An Electronic Speed Controller (ESC):

1. Controls how fast each motor spins
2. Converts battery power into motor control signals
3. Works directly with the flight controller

Wiring Steps

1. Connect each motor to its ESC (3 motor wires per ESC)
2. Attach ESC power wires to the power distribution board (PDB)
3. Connect all ESC signal wires to the flight controller
4. Install the main battery connector (usually XT60)
5. Secure all wires with zip ties

What You Are Doing

The flight controller is the “brain” of the drone. It keeps the quadcopter stable by reading sensors and adjusting motor speeds automatically.

What It Does

1. Stabilizes flight using gyroscope + accelerometer
2. Controls motor speed through ESCs
3. Responds to your transmitter inputs
4. Helps keep the drone balanced in the air

Installation Steps

1. Mount the flight controller in the center of the frame
2. Use vibration dampening pads (very important)
3. Connect ESC signal wires to correct motor outputs
4. Connect receiver (radio control system)
5. Secure all connections tightly

What You Are Doing

Now you connect the drone to a computer and set up the flight controller so it can properly stabilize and respond to controls.

Software Used

1. Betaflight Configurator (common for racing drones)
2. INAV (for GPS and navigation)
3. Mission Planner (for advanced autonomous drones)

Setup Steps

1. Connect flight controller to computer via USB
2. Install drivers (if needed)
3. Calibrate accelerometer (level the drone)
4. Set correct motor layout
5. Check receiver inputs (throttle, yaw, pitch, roll)
6. Configure flight modes (stabilize, angle, etc.)

Motor Test (IMPORTANT)

1. Test motor spinning order
2. Confirm correct direction (CW / CCW)
3. Ensure all motors respond properly

What You Are Doing

You are attaching the propellers that actually generate lift and allow the drone to fly.

Propeller Types

1. CW (Clockwise) props
2. CCW (Counterclockwise) props

Each must match the correct motor direction.

Installation Steps

1. Identify CW and CCW propellers
2. Match each prop to the correct motor
3. Place propeller on motor shaft
4. Tighten securely (don’t overtighten plastic props)
5. Double-check all 4 props are correct

Pre-Flight Checklist

Before turning anything on, confirm:

1. All screws are tight
2. Propellers are correctly installed
3. Battery is fully charged and secured
4. No loose wires
5. Motors spin freely by hand
6. Transmitter is connected

First Takeoff Steps

1. Turn on transmitter first
2. Connect the drone battery
3. Wait for flight controller to initialize
4. Slowly increase throttle
5. Lift off gently to a low hover (1–2 feet)
6. Test basic controls (roll, pitch, yaw)

Important Safety Tips

1. Test in an open outdoor area
2. Keep people far away
3. Be ready to cut throttle if unstable
4. Never fly near obstacles

Safety Rules (VERY IMPORTANT)

1. Always fly in open spaces (parks/fields)
2. Keep away from people, animals, and buildings
3. Never fly indoors for first tests
4. Wear eye protection if possible
5. Stop immediately if something feels wrong

LiPo Battery Safety

1. Never puncture or damage the battery
2. Do not overcharge or leave charging unattended
3. Let battery cool before recharging
4. Store in a safe, dry place
