Solar-Powered Wine Bottle Fairy Lights

3D Printed Solar Wine Bottle Lantern

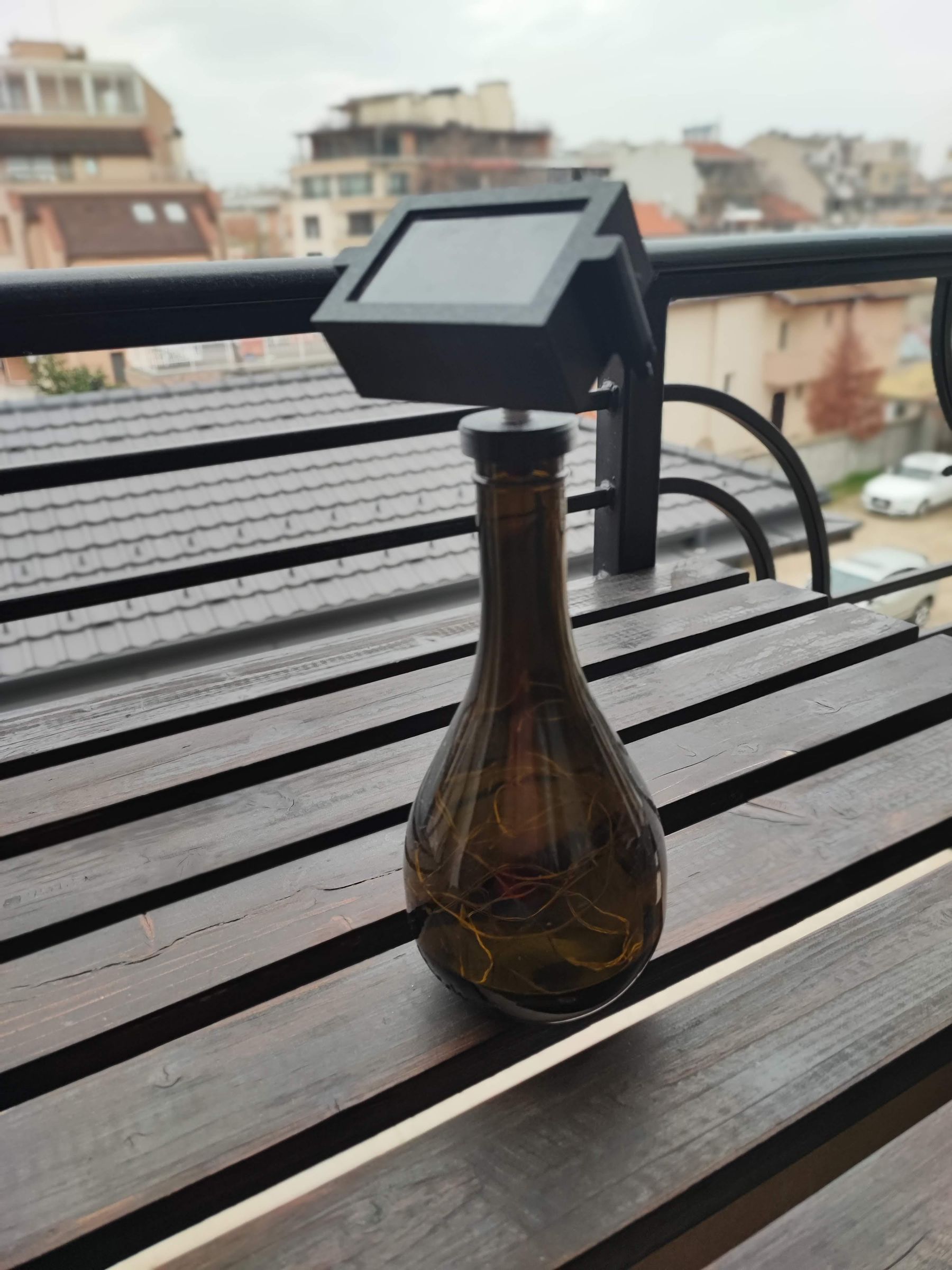

In this project, I will show you how to transform an empty wine bottle into a smart, eco-friendly garden light. While many solar bottle lights use cheap plastic inserts, I designed a custom 3D-printed housing that neatly integrates the solar panel, the control board, and the battery into one sleek unit.

The project features a lockable ball joint (based on a modified 3D model), which allows you to tilt the solar panel at the perfect angle to catch the sun, regardless of how the bottle is positioned. It’s a perfect blend of upcycling, electronics, and 3D design.

Key Features:

1. Tilt & Swivel: Adjustable solar panel orientation for maximum charging efficiency.

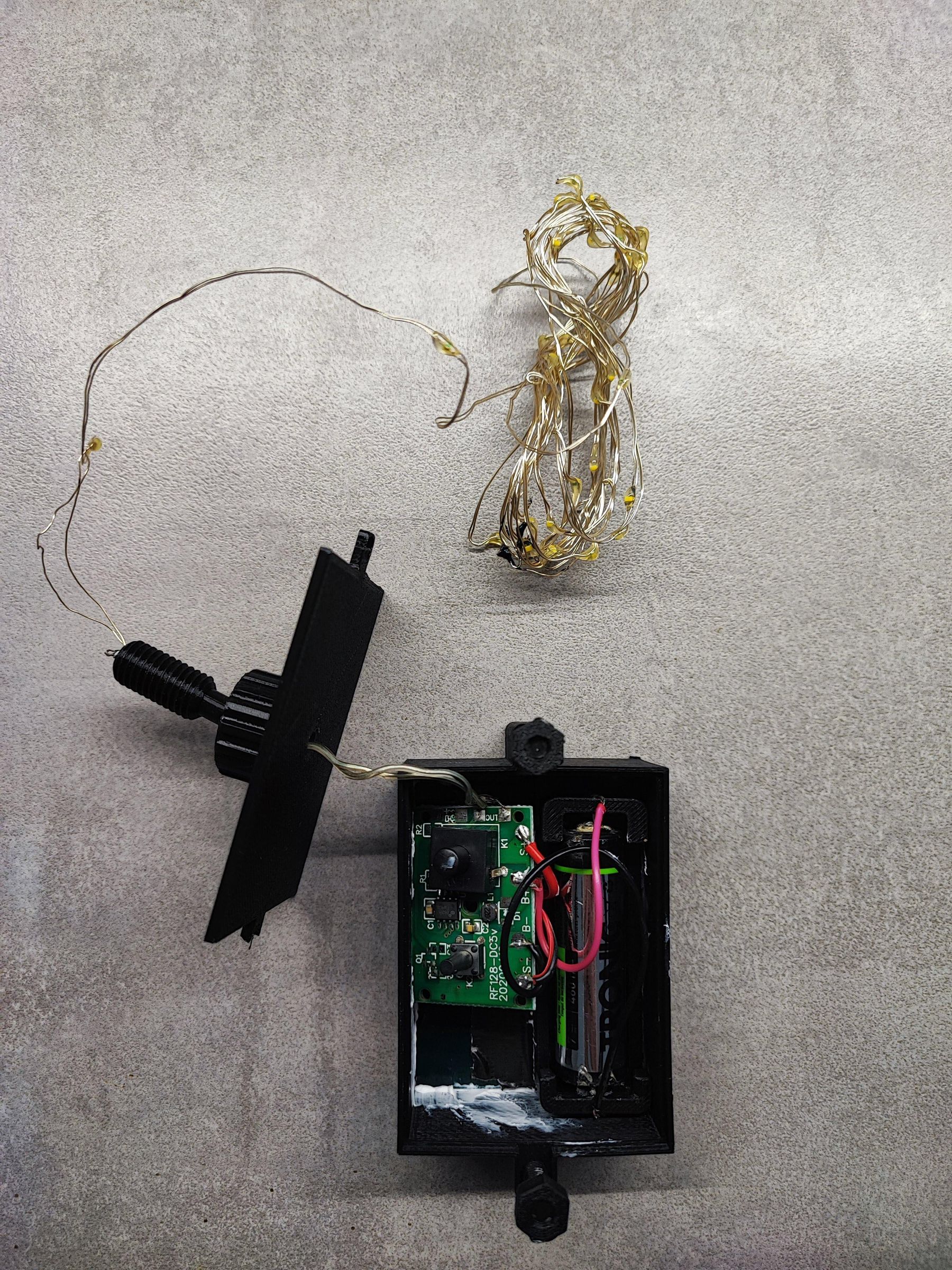

2. Integrated Design: All electronics are protected inside a dedicated 3D-printed enclosure.
3. Eco-Friendly: Reuses old glass bottles and runs entirely on renewable energy.

Solar Panel

3V 100mA 65X48 ~€1.90

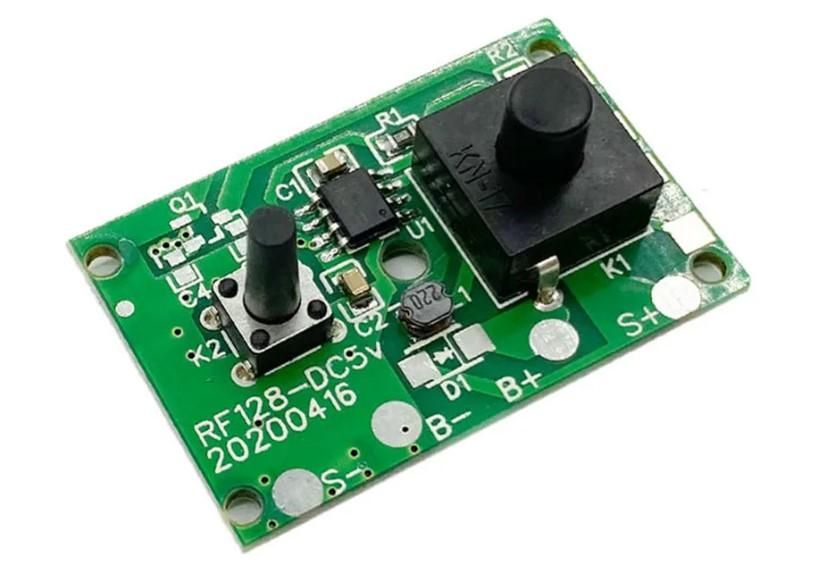

Solar Circuit Board

1.2V Solar Light String Controller with Switch ~€1.60

LED String

Copper Wire Garland LED String (1-2m) ~€1.00 - €2.00

Battery

Ni-MH rechargeable battery (usually AAA)

Wine Bottle

Any empty glass bottle

Free/Upcycled

To make this project durable and easy to maintain, I utilized three specific 3D models:

1. Adjustable Mount: Generic Lockable Ball Joint – Allows the solar panel to be aimed directly at the sun.
2. Hardware: M5 Bolt and Nut – Used to secure the joint and the enclosure parts together without needing metal screws.
3. Battery Management: Integrated Spring Battery Holder – A clever 3D-printed design that holds the AAA/AA battery securely using the plastic's natural tension, eliminating the need for external battery clips.

In this step, we combine the printed parts. The integration of the M5 3D-printed bolts makes the assembly process very accessible, as you don't need to hunt for specific hardware at the store.

Why the Integrated Battery Holder is a Game Changer: Instead of soldering wires directly to the battery (which is dangerous and difficult) or buying a separate holder, I used a model with an integrated spring.

1. Installation: Simply slide your rechargeable Ni-MH battery into the printed slot.
2. Contact: The printed spring ensures a tight fit, keeping the circuit closed even if the bottle is moved or shaken.

Technical Tip for the Ball Joint & Bolt:

When printing the M5 Bolt and Nut, I recommend using a lower layer height (e.g., 0.15mm) to ensure the threads are smooth. This allows the Lockable Ball Joint to be tightened precisely, holding the solar panel's weight even in windy conditions.

The text and structure of this guide were refined and organized with the assistance of Gemini (AI), while the original design, engineering, and assembly are my own work.
