Sonos Album Art Display

Album Art Display for Raspberry Pi 3 Model A+

Sonos Album Art Display shows the album art from the currently playing track on your Sonos music system. It runs on a Raspberry Pi 3 Model A+ (or more current version) with an attached 7-inch DSI touchscreen. The album art fills the left square of the screen, with the song, album, and artist shown on the right. The display's backlight turns fully off when nothing is playing and wakes automatically when music starts.

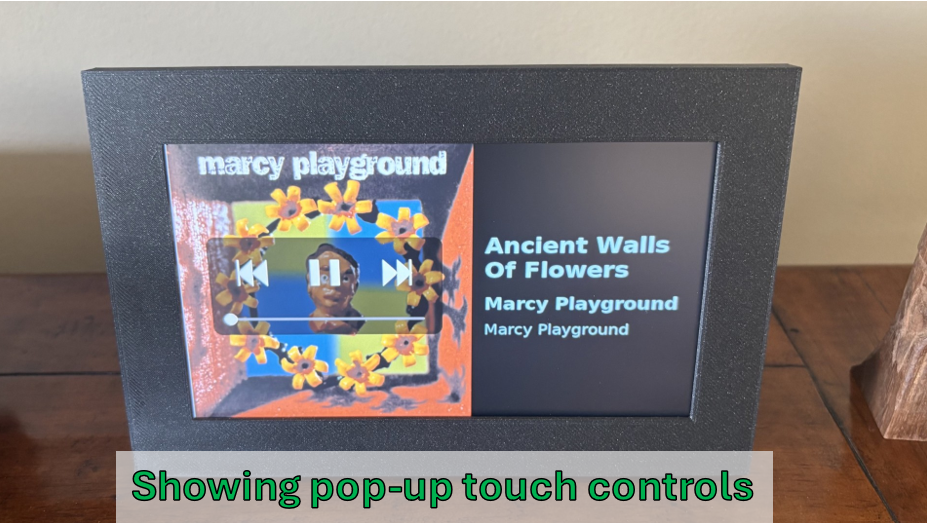

Touch the screen at any time to bring up on-screen transport controls (previous track, pause/resume, next track, and a sliding volume control) which fade away a few seconds after your last touch. If the Pi cannot automatically connect to a Wi-Fi network at startup, it broadcasts its own temporary Wi-Fi hotspot so you can connect it to the Wi-Fi network from your phone. A small built-in web page also lets you switch which Sonos zone is shown from any device on your network.

No AI, no wake word, no API keys — everything is read directly from your Sonos speaker over your local network via the SoCo library.

Raspberry Pi 3 Model A+ — A Raspberry Pi 3 Model A+ is recommended because it is affordable and more than powerful enough for this program.

5V Power Supply — Use a 5V Micro-USB Power Supply. The Pi 3 A+ uses a micro-USB power connector, not the USB-C connector found on later Raspberry Pi models.

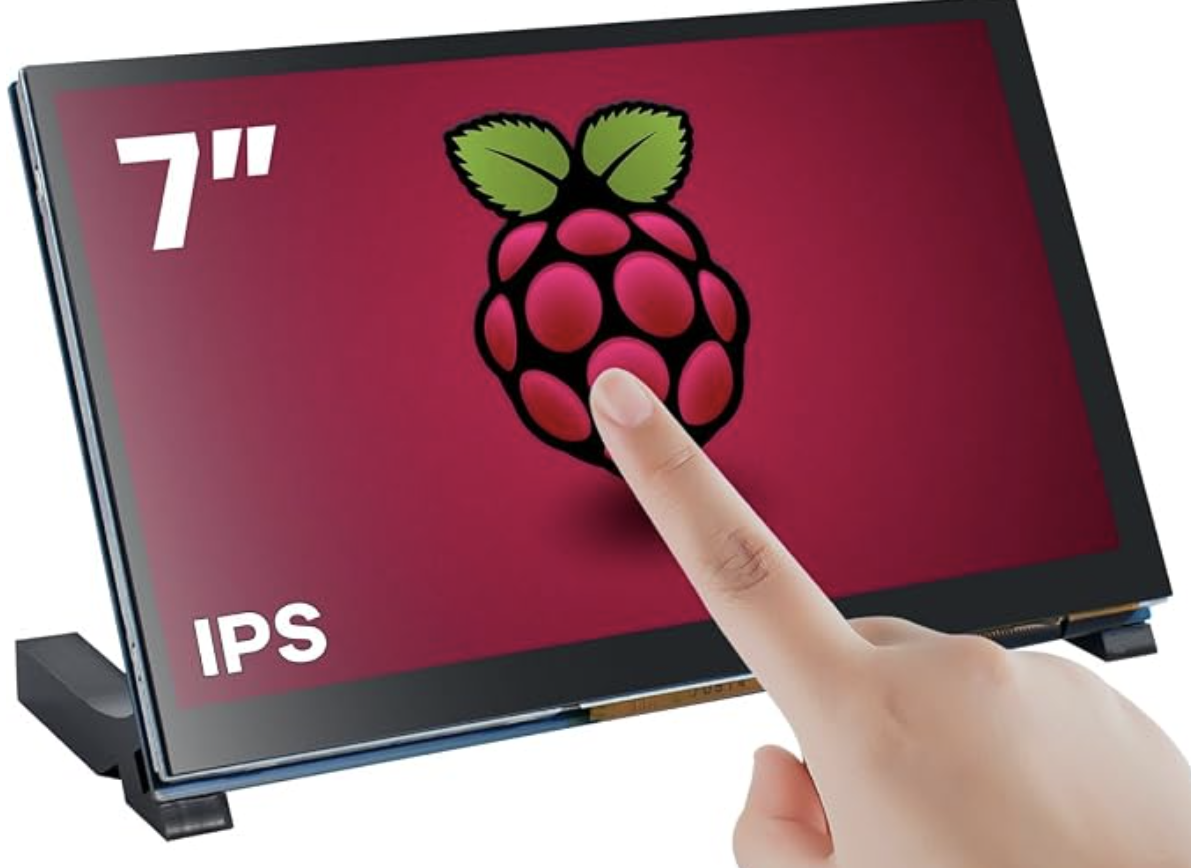

Hosyond 7-inch DSI Touchscreen — The Hosyond 7-inch Touchscreen IPS DSI Display is the one this project and its 3D-printable frame are designed and tested for. It connects to the Raspberry Pi entirely through the DSI ribbon cable — no separate USB cable is needed for touch, which is convenient since the Pi 3 A+ has only one USB port.

Note: This software is resolution-independent — fonts and on-screen layout automatically scale to whatever screen resolution is detected at startup, so a different display should generally work without any code changes. If you use a different screen, follow that display's own manufacturer instructions for connecting it to the Raspberry Pi rather than the Hosyond-specific steps below. The one Hosyond-specific detail in the code is PIXEL_ASPECTS, a small correction for this particular panel's non-square pixels (see Configuration Reference) — if your alternate display also has non-square pixels and album art looks stretched, you would add a similar entry for its resolution.

MicroSD Card — A 16 GB or larger card rated C10 and A1 (or better) from a reputable brand is recommended. Purchase from a reputable retailer to avoid counterfeit cards. I used a Ultra Plus.

Phillips Flat Head Screws (Optional) — You will need four Phillips flat head screws if you decide to use the optional 3D printed frame. The ones used elsewhere in this project are 2.5 x 0.45 x 8mm.

These instructions assume you already have a Raspberry Pi 3 A+ set up and running Raspberry Pi OS (64-bit, Bookworm or later). If not, use the Raspberry Pi Imager to install it, which is available here: https://www.raspberrypi.com/software/. Be sure to use the 64-bit version.

Note: The Debian-based OS often asks for the Pi's password when asked to take certain actions, including many commands that begin with "sudo". Whenever asked, type the password for your device and press Enter.

1. Update Your System

Open a terminal and enter the following commands in order:

If asked whether you want to continue, enter Y and press Enter. When the upgrade completes, reboot:

Log back in after the reboot.

2. Set a Hostname (Recommended)

By default, every fresh Raspberry Pi OS install uses the hostname raspberrypi. This project's zone-switcher web page is reached at http://<hostname>.local:8080/, so if you have — or ever add — another Raspberry Pi on the same network, two devices both named raspberrypi.local will conflict, and that address may resolve to the wrong device or fail intermittently. Giving this Pi its own distinct hostname avoids that entirely and gives you a memorable, predictable URL. This guide uses AlbumArt and refers to it as albumart.local in the examples below — if you skip this step or choose a different name, substitute your own hostname wherever you see albumart.local.

Then reboot:

After this, the zone-switcher page in this guide would be reached at http://albumart.local:8080/.

3. Connect the Hosyond Display

Carefully open the DSI connector latch on your Raspberry Pi board and insert the display's DSI ribbon cable, making sure the gold contacts are oriented correctly at both ends. The Hosyond panel is marketed as driver-free/plug-and-play, so no manual configuration is required.

4. Reorient the Display Screen (Optional)

If you are going to put the display in the 3D-printed or other frame and want to have the power port at a particular side of the frame, you may need to reorient the axes of the display screen. To do so, follow the display rotation instructions available in the tutorial on the manufacturer's site: https://hosyond.com/.

Then reboot:

5. Install System-Level Dependencies

Some packages must be installed at the system level via apt. Open a terminal and enter the following commands in order:

If asked whether you want to continue, enter Y and press Enter.

Note: Raspberry Pi OS images typically already include python3-pygame, python3-pil, and NetworkManager (nmcli) — the command above is a safety net in case any are missing. Unlike an HDMI display, the Hosyond 7-inch DSI Touchscreen display exposes its backlight directly through the Linux sysfs interface, so ddcutil is not needed for this project on this display — if you see a log line mentioning a different screen-off method being probed, that's just the fallback chain being checked, not an error.

6. Clone the Repository

Open a terminal and enter the following commands:

Move or copy the files into place:

Confirm all three application files are present: Sonos_Album_Art.py, album_art_setup.html, and album_art_zones.html.

7. Install the SoCo Python Package

The only package this project needs that isn't already on the system is soco, the library used to talk to Sonos speakers. No virtual environment or requirements file is needed for a single package — install it directly:

Note: --break-system-packages is required on Bookworm and later because Debian blocks plain pip install outside a virtual environment by default (PEP 668). This is safe here because soco has no dependencies that conflict with the system-installed pygame/Pillow.

8. Turn Off the Onboard LEDs (Optional)

The Raspberry Pi has two onboard LEDs that some people find distracting in a dark room: a red "PWR" LED (power indicator, lit solid) and a green "ACT" LED (SD card activity, flickers). The most reliable way to turn them off permanently is a udev rule that switches them off the moment the kernel creates the LED devices at boot:

Add this line to turn off the red PWR LED:

To also turn off the green ACT LED, add a second line to the same file:

Press Ctrl + X, then Y, then Enter to save, then reboot:

Note: The dtparam=pwr_led_trigger=none / dtparam=act_led_trigger=none lines sometimes suggested for /boot/firmware/config.txt do not reliably turn the LEDs off — the correct activelow polarity varies by board revision, so this can silently fail to work. The udev rule above avoids that entirely by writing directly to the LED's own sysfs attributes, which is unambiguous regardless of board wiring.

Note: Disabling the PWR LED's trigger also silences its usual undervoltage-blink warning. If you ever suspect a power issue, run vcgencmd get_throttled instead — anything other than 0x0 indicates an undervoltage event, regardless of whether the LED is disabled.

Tip: To test this immediately without rebooting, first check the exact LED names on your system — they occasionally differ (PWR/ACT vs. led0/led1):

Then, substituting the actual name shown:

Make sure your Hosyond DSI display is connected. Then open a terminal, navigate to the project folder, and run the script:

Wait for album art to appear if music is currently playing on your Sonos system on the configured zone, or for the idle screen if nothing is currently playing or if a zone has not yet been selected (see Switching Sonos Zones below).

Note: The program doesn't write a log file — running it this way, from a terminal, is also how you see live diagnostic output (Wi-Fi status, Sonos connection issues, etc.) if you ever need to troubleshoot something. Nothing is printed when it's launched silently via autostart, since there's no terminal attached.

Now Playing

Whatever is playing on the configured Sonos zone fills the left square of the screen with album art, with the song title, album, and artist shown on the right. When nothing is playing, the screen continues to show the album art for a short period, then the backlight turns fully off. Playing something again wakes the display automatically.

Touch Controls

Touch the screen at any time — whether it's showing album art, the idle message, or is fully dark — to bring up the transport controls: previous track, pause/resume, next track, and a sliding volume control for the applicable Sonos zone. The controls fade away 5 seconds after your last touch. Touching a dark screen wakes it and shows the controls immediately, so you can start playback right away.

Adjusting Brightness

The display starts at maximum brightness every time the program launches. If your panel has a physical brightness button (like the Hosyond 7-inch DSI Touchscreen does), you can use it at any time to lower the brightness to your preference — the program detects the change and remembers it, so the backlight returns to that same level (rather than resetting to maximum) each time it wakes back up, such as when playback resumes after a pause. To go back to maximum brightness, either use the button again or restart the program, since it always starts at max on launch. The optional printed frame obstructs easy access to the brightness button, so select your preferred brightness before mounting the display in the frame.

Wi-Fi Setup

This check runs only once, right when the program starts. If the Pi isn't online at startup and the Wi-Fi network it was previously using can no longer be detected (for example, after moving the Pi to a new location), it broadcasts its own open Wi-Fi network named AlbumArtDisplay-Setup and shows join instructions on the screen. If the previously-used network is still detectable but just hasn't connected yet (for example, a router that's mid-reboot right as the Pi boots up), the program waits quietly instead of showing setup.

Once the program reaches a normal online state, this startup check will not run again unless and until the program is restarted. So a later disconnect never brings the setup hotspot back, and the display doesn't react to it visually. Instead, a quiet background watchdog takes over. If the Pi is disconnected from your Wi-Fi network for more than 10 minutes, the program automatically power-cycles the Wi-Fi radio to help it reconnect. If you need to move the Pi to a new Wi-Fi network, unplug it, relocate it, power it back on and run the program again. The one-time setup check will run again on that fresh start.

Last-resort reboot. On some Raspberry Pi 3-series boards, the onboard Wi-Fi chip's firmware can occasionally wedge into a state that a radio power-cycle alone can't clear — only a full reboot resets it properly. If the Pi is still fully offline after 30 minutes of nudging, the program will automatically reboot to fully reset the Wi-Fi hardware, provided you've set up autostart (see below) so the program comes back up on its own. This feature is controlled by the REBOOT_ESCALATION_ENABLED constant (see Configuration Reference) and can be turned off entirely by setting it to False.

Tip: If you find the Pi's Wi-Fi drops out repeatedly, run vcgencmd get_throttled on the Pi. Anything other than 0x0 means it has logged an undervoltage event. A marginal power supply is a common cause of this kind of Wi-Fi instability on Pi 3-series boards. Replace the power supply if this happens.

To provision a new Wi-Fi network:

1. On your phone, join the AlbumArtDisplay-Setup Wi-Fi network.
2. Open http://10.42.0.1:8080/ in Safari or your browser.
3. Choose your Wi-Fi network from the list (or type its name), enter the password, and tap Connect.

The display will join the new network and the temporary hotspot will disappear.

Note: Your Raspberry Pi and your Sonos system must be connected to the same Wi-Fi network for the album art display to work.

Switching Sonos Zones

From any device on the same Wi-Fi network, open http://albumart.local:8080/ in a browser — substitute your Pi's actual hostname (run it manually in a terminal to see the exact address printed at startup, if you're not sure). This page lists every Sonos zone on your network along with what each is currently playing. Tap a zone to switch the display to it — your choice is saved and will still be selected the next time the program starts.

Tip: To make this page easier to reach, save it to your iPhone's home screen: open http://albumart.local:8080/ in Safari, tap the Share button, scroll down the screen and then tap Add to Home Screen, then tap Add. It will thereafter appear as an icon on your iPhone's home screen that you can tap directly, without needing to open Safari or type the address each time.

After everything is working, you may want the display to launch automatically when the Raspberry Pi boots upon being plugged in. The most reliable way to do this is with an XDG autostart file, which tells the desktop session to launch the program automatically once the display and network are up.

Open a terminal and enter:

Add the following content:

Press Ctrl + X, then Y, then Enter to save. The display will now launch automatically each time the Raspberry Pi boots.

Note: If you ever need to stop it from launching at startup, delete or rename the file: rm ~/.config/autostart/sonos-album-art.desktop

Note: If the cursor is showing on the display after using autostart, gently tap a finger on the touchscreen and the cursor will disappear.

Note: Setting up autostart is also a prerequisite for the automatic Wi-Fi-recovery reboot described in Wi-Fi Setup. Without it, that feature is skipped, since a reboot wouldn't bring the display back on its own. The automatic reboot also relies on the default pi user's passwordless sudo access (the standard configuration on Raspberry Pi OS); if you've changed that, the reboot will silently fail to run.

If you would like to use the optional 3D-printed frame, follow these instructions.

3D print the frame, the feet, and four of the tabs. The STLs for these 3D parts are here. The recommended setting for slicing the STLs are 0.20mm quality with 30% infill. Only the feet require supports while printing.

Mount the Raspberry Pi to the back of the Hosyond 7-inch DSI Touchscreen display per the display's instructions. Insert the display in the frame and use four Phillips flat head screws to screw on the tabs to secure the display. Tighten the screws only enough to hold the tabs in place. Overtightening them will squeeze the display and can cause damage or distortions. Insert the tabs on the feet into holes in the frame.

The display shows nothing on startup. Confirm the DSI ribbon cable is fully seated at both ends with the gold contacts oriented correctly.

Touch controls don't appear. The controls only appear when you touch the screen — they are not shown continuously. Tap anywhere on the screen and they should pop up within a moment.

The Wi-Fi setup hotspot doesn't appear after losing Wi-Fi. This is expected — the setup hotspot only ever appears during the one-time startup check. A later disconnect never brings it back. Instead, a background watchdog periodically power-cycles the Wi-Fi radio if the Pi stays fully offline for more than 10 minutes, helping it reconnect on its own. If you need to reprovision to a different network, unplug the Pi, move it, and power it back on so the startup check runs again.

Wi-Fi stays down for a very long time, and the radio nudge doesn't seem to help. After 30 minutes of continued disconnection, the program will automatically reboot to fully reset the Wi-Fi hardware. This requires autostart to be set up; see Running Sonos Album Art Display Automatically at Startup. It's also capped at 3 automatic reboots per 24 hours, so a persistent problem won't cause endless rebooting. If reboots keep being needed, run vcgencmd get_throttled on the Pi to check for undervoltage — a marginal power supply is a common cause on Pi 3-series boards. You can disable this feature entirely by setting REBOOT_ESCALATION_ENABLED = False in Sonos_Album_Art.py.

The zone-switcher page shows no zones, or "Could not reach the display." Confirm your phone/computer is on the same Wi-Fi network as the Pi, and that the hostname in the URL matches the Pi's actual hostname. Confirm Sonos speakers are powered on and reachable from the Pi's network.

Sonos Album Art Display does not launch at startup (if you have set it to do so). Confirm the autostart file exists: ls ~/.config/autostart/sonos-album-art.desktop. To check whether the script is currently running, enter pgrep -a python3 in a terminal.
