Sounds of Bali — Interactive Sound Lamp

Click a location on a illustrated Bali map to trigger traditional music and LED mood lighting — all controlled from your browser via Arduino

Supplies

1. Arduino UNO
2. DFPlayer Mini MP3 module
3. NeoPixel Ring (12 LED WS2812B)
4. MicroSD card (any size, FAT32)
5. Speaker (4Ω or 8Ω, 1–3W)
6. Breadboard
7. Jumper wires (at least 8)
8. USB-A to USB-B cable (Arduino cable)

Software

1. Arduino IDE
2. Google Chrome or Microsoft Edge (any browser)
3. Python 3

Open Arduino IDE → Tools → Manage Libraries. Search and install:

1. DFRobotDFPlayerMini by DFRobot
2. Adafruit NeoPixel by Adafruit

Connect DFPlayer Mini directly to Arduino

2.1 — Power first

Take your red wire:

1. One end → Arduino 5V pin
2. Other end → DFPlayer Mini Pin 1 (VCC) — this is the very TOP pin on the LEFT side

2.2 — Ground

Take your black wire:

1. One end → Arduino GND pin
2. Other end → DFPlayer Mini Pin 7 (GND) — count 7 pins down from the top on the LEFT side

2.3 — TX (receive)

Take your yellow wire:

1. One end → Arduino Pin 10
2. Other end → DFPlayer Mini Pin 3 (TX) — 3rd pin from top on LEFT side

2.4 — RX (send)

Take your green wire:

1. One end → Arduino Pin 11
2. Other end → DFPlayer Mini Pin 2 (RX) — 2nd pin from top on LEFT side

2.5 — Speaker

Take 2 white wires:

1. Wire 1 → DFPlayer RIGHT side, 6th pin from top (SPK2) → Speaker wire 1
2. Wire 2 → DFPlayer RIGHT side, 8th pin from top (SPK1) → Speaker wire 2

The NeoPixel gets its power from the breadboard rails, which connect to Arduino 5V and GND.

3.1 — Breadboard power rails

Take 2 wires:

1. Red wire → Arduino 5V → breadboard red rail (+)
2. Black wire → Arduino GND → breadboard blue rail (−)

3.2 — NeoPixel power

Take 2 wires:

1. Red wire → breadboard red rail (+) → NeoPixel 5V
2. Black wire → breadboard blue rail (−) → NeoPixel GND

3.3 — NeoPixel data

Take your orange wire:

1. One end → Arduino Pin 6
2. Other end → NeoPixel DIN

Format the SD card as FAT32, create the mp3 folder, and add the attached 5 audio files.

Open the attached Arduino IDE file. select Arduino UNO as board, select the correct port, then click Upload.

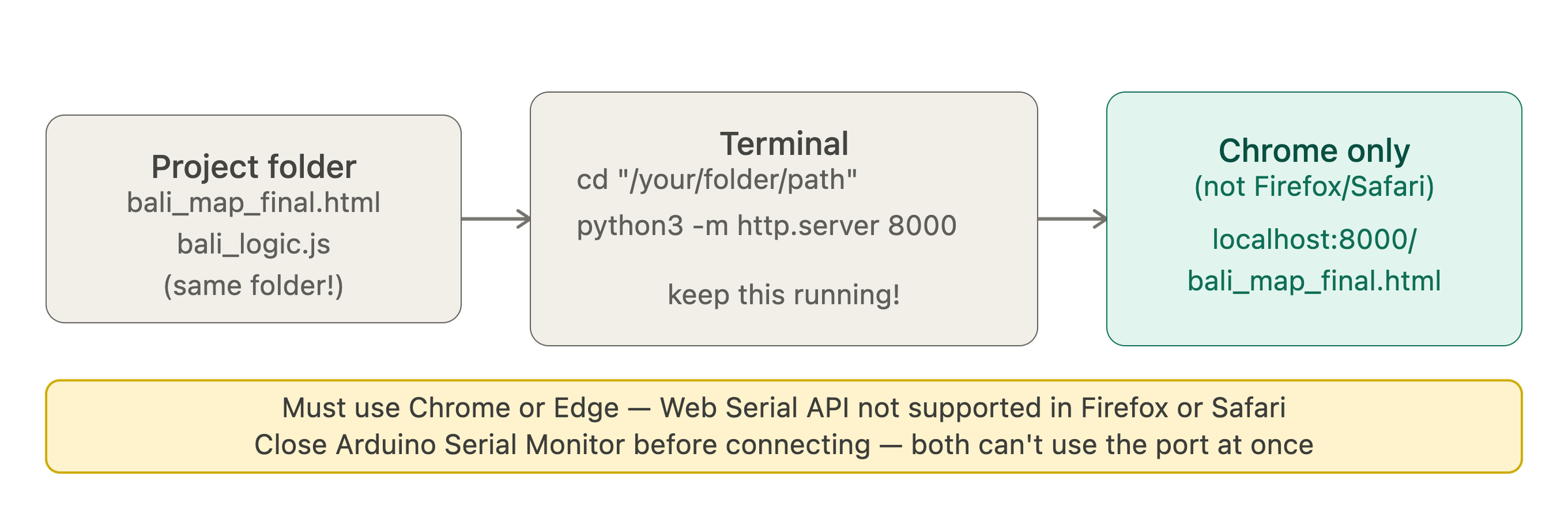

Open Terminal, navigate to your project folder, and start a local server.

What you need in your project folder:

your-folder/

├── bali_map_final.html

└── bali_logic.js

(Both files must be in the same folder!)

Open Terminal and run:

cd "/Users/YOUR_NAME/Downloads/design thinking final"

python3 -m http.server 8000

(Replace YOUR_NAME with your Mac username. Leave Terminal running — don't close it!)

Then open Chrome and go to:

http://localhost:8000/bali_map_final.html

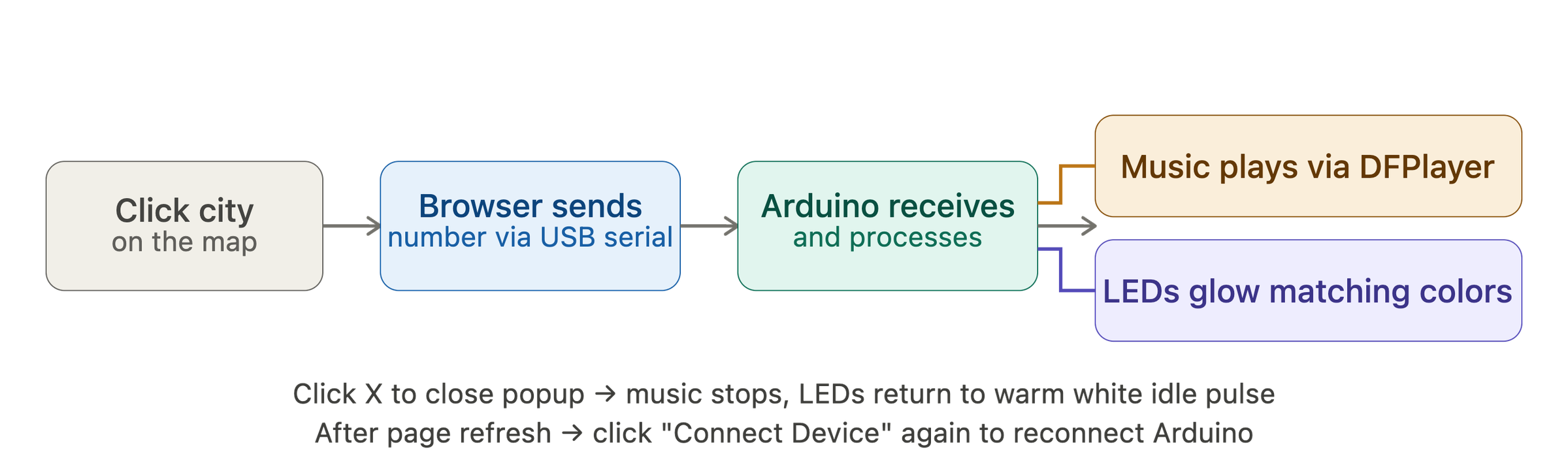

To connect Arduino to the website:

1. Click the "Connect Device" button in the top right of the page
2. A popup appears listing available ports
3. Select your Arduino (shows as "USB Serial" or "usbserial")
4. Button changes to "Connected"

(Rememeber to close Arduino IDE file before connecting the website)

Project File:

https://drive.google.com/drive/folders/1wR1Oucf1sTg1MkUdbs5VI_xL_oJUegCg?usp=sharing

Click "Connect Device", select your Arduino, and start clicking locations on the map!

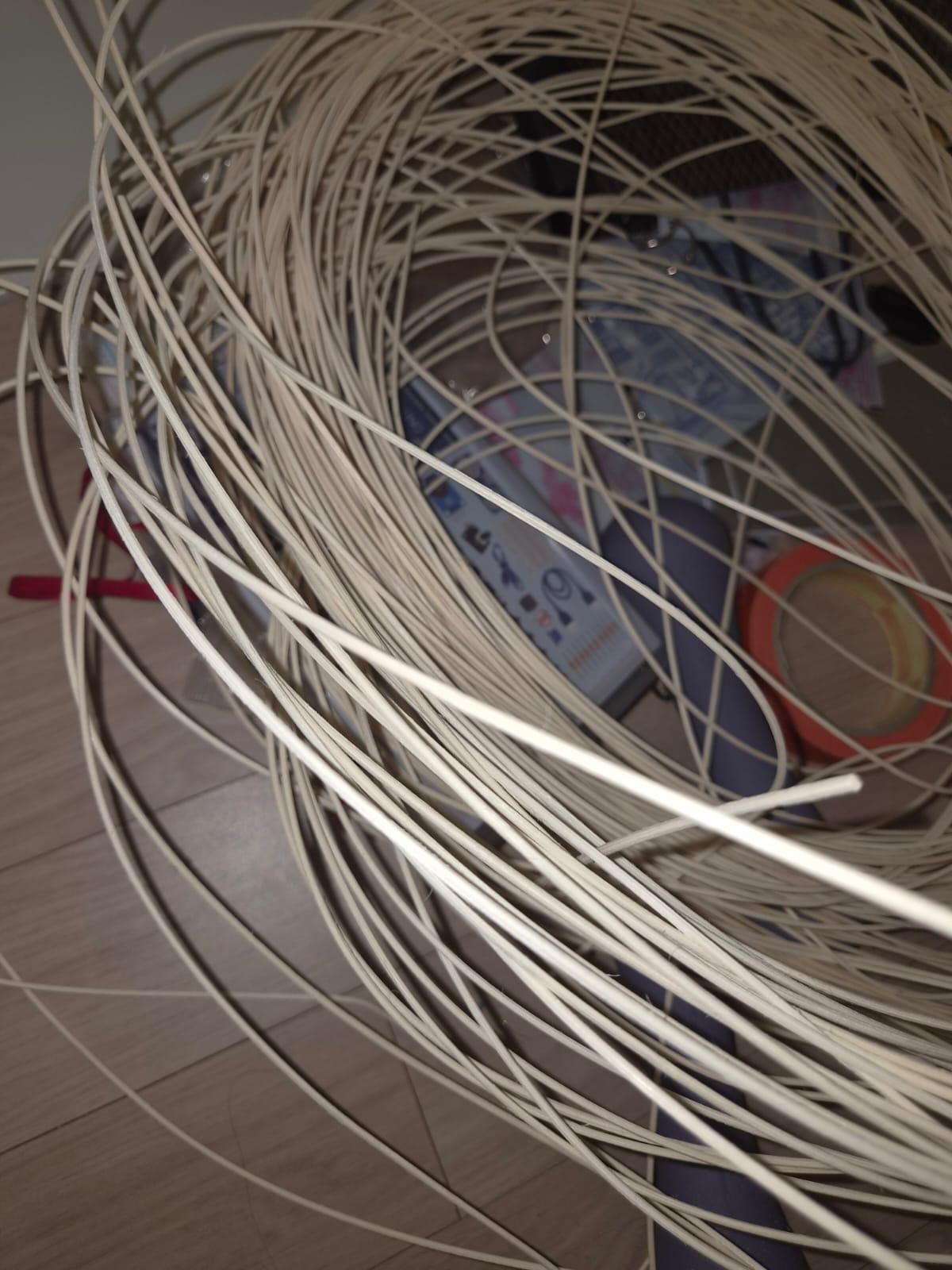

In my case I used rattan strips and hanji paper (a thin Korean handmade paper) to build the lamp casing. The NeoPixel ring sits inside and shines through the hanji paper, which diffuses the light into a soft glow. The rattan gives it structure and lets sound pass through naturally.

Any casing works: 3D printing, wood, bamboo, cardboard, fabric over a wire frame & others choices
