Stamps

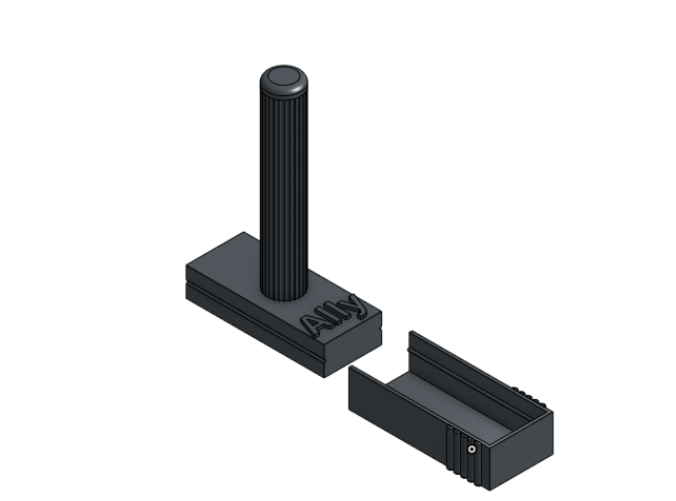

In our class we partnered up with the Lane Tech cluster programs. In which each group took on a specific task that the cluster programs wanted to have. My partner and I took on the task of making stamps for the cluster students. Here you see custom named stamps of the students who need them.

Supplies

1. link to rubber: https://www.amazon.com/Rubber-Engraving-Machine-Cutter-Stamps/dp/B09NBZS3TD?th=1
2. PLA
3. Laser cutter
4. 3D printer machine
5. Onshape

1. 1st open Onshape
2. 2nd you want to make a rectangle based upon these dimensions

1. you want to make a new sketch on your newly made rectangle based on the following dimensions
2. From there you want to extrude that sketch
3. The purpose of this is to have room for the rubber engrave name, to be able to fit in perfectly

1. next look from the side of the rectangle and make two triangle indentions into the sides of the rectangle
2. the length is the same for all line segments(dimensions are listed above)
3. Extrude all the way through

1. from there you should have a 3D rectangle with side indentions
2. from there you want to make a new sketch on TOP of the 3D rectangle
3. You want to use the text tool in Onshape to show case any name you want

1. You want to make a new sketch on TOP of the 3D rectangle, it should be a circle.
2. From there, extrude to any desired length(TIP: measure the length of your hand to see how long you want the handle to be)

1. From your already extruded circle, you want to make lil mini circles on top of you cylinder(which was the circle you just extruded).
2. Acts as a form of grip for your hand
3. Next, extrude all the mini circles to form a grip like texture to the handle(Reminder: it is the circle you just extruded)

1. The purpose of this is to make the top part of the cylinder less sharp!
2. you want to use the tool "fillet" in Onshape
3. Use fillet on the edge of the cylinder(Radius: 0.113468 in)

1. You want to make a new part studio to make the Cap for the stamps
2. Follow these dimensions above to achieve success!
3. Once sketched in, extrude the design(3 inches)

1. Next you want to make lil mini circles again!
2. Acts as a grip to pull of the Stamp
3. Next, Extrude your mini circles to the edge of the rectangle

1. you need to open adobe illustrator
2. from there make a new document

1. create a rectangle: set fill to black and thr boarder to red(0.1)
2. The dimensions of the rectangle should be 2.773 by 0.113
3. From there, add your text inside the Black rectangle .
4. Change or place the text however you want, BUT the text must remain inside the Black rectangle!

1. once your illustrator file is done, send that file to your laser
2. the settings you want to have put down for the laser is:

RASTER SETTINGS: 10% speed 100% power at 600 dpi

CUTTING SETTINGS: 15/100/100

1. Grab your double sided tape
2. slap that bad boy onto the non engraved part of the rubber stamp!

1. once everything is done, apply the rubber stamp to the bottom of the 3D printed stamp!
2. YAYYYY UR DONE!
3. Enjoy stamping away!
