Switchboard

Ensuring proper Switchboard Clearances is crucial for maintaining safety and functionality in electrical installations. Switchboards must be located and installed with adequate space, ventilation, and accessibility to prevent overheating, facilitate easy maintenance, and ensure safe emergency evacuations.

Switchboard Location – General Requirements

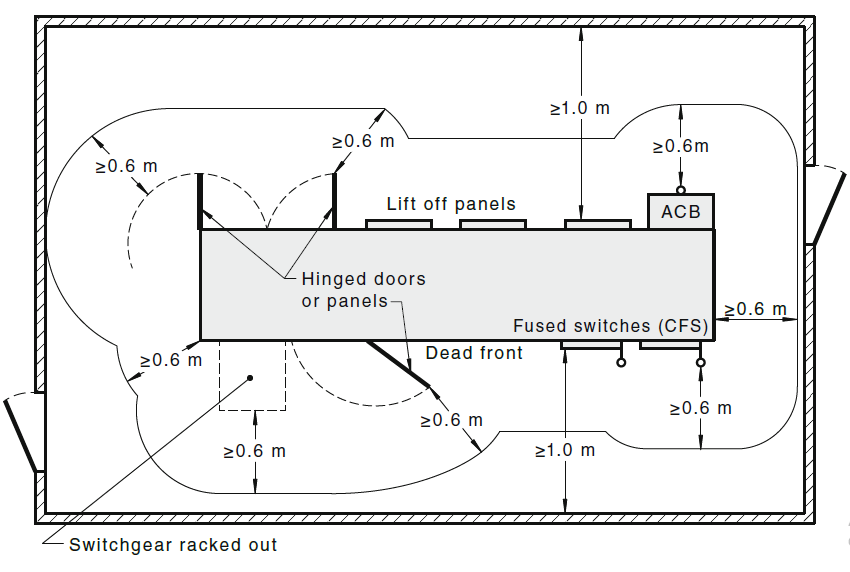

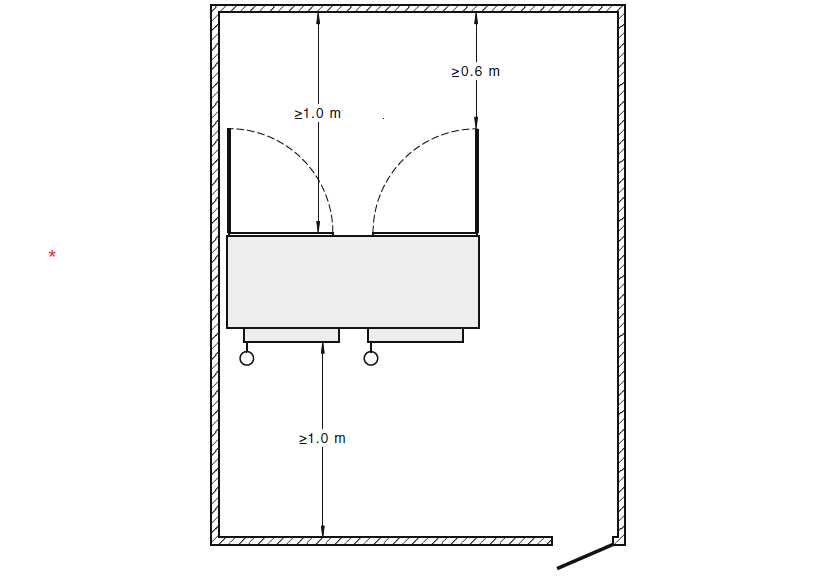

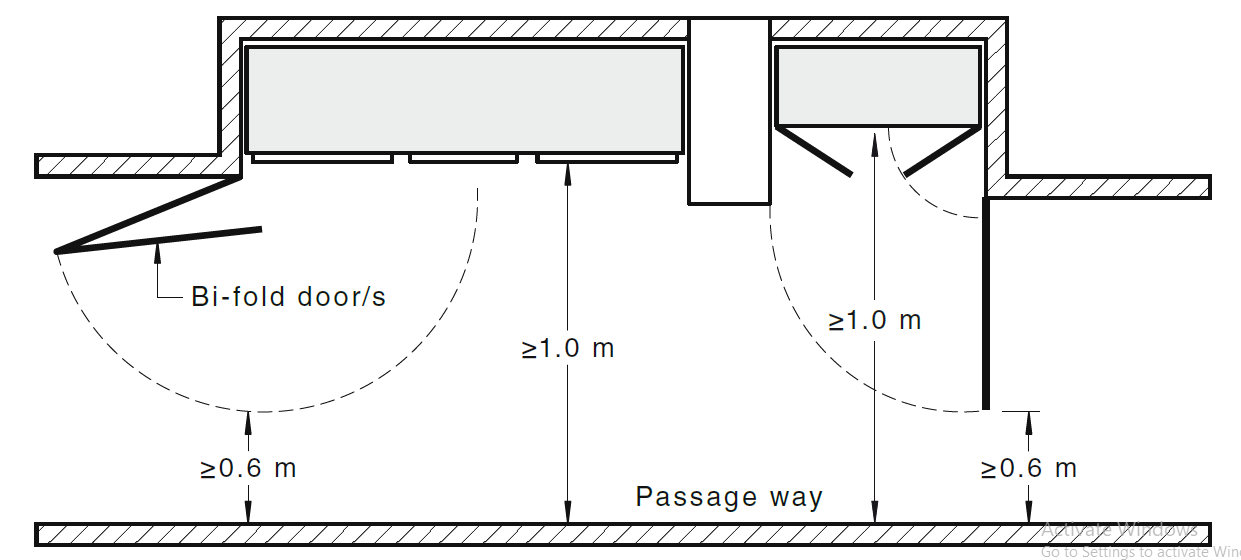

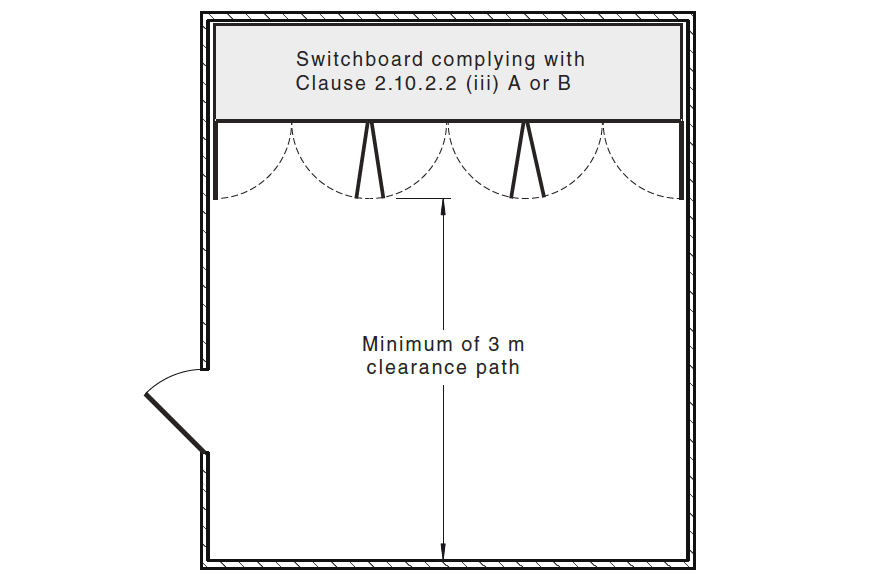

Switchboards should be located in well-ventilated areas to prevent overheating. They must be placed in locations that allow for proper airflow. Additionally, switchboards need protection against moisture to avoid damage. There must be enough space around the switchboard for installation, future replacement of devices, and for easy operation, testing, maintenance, and repair.

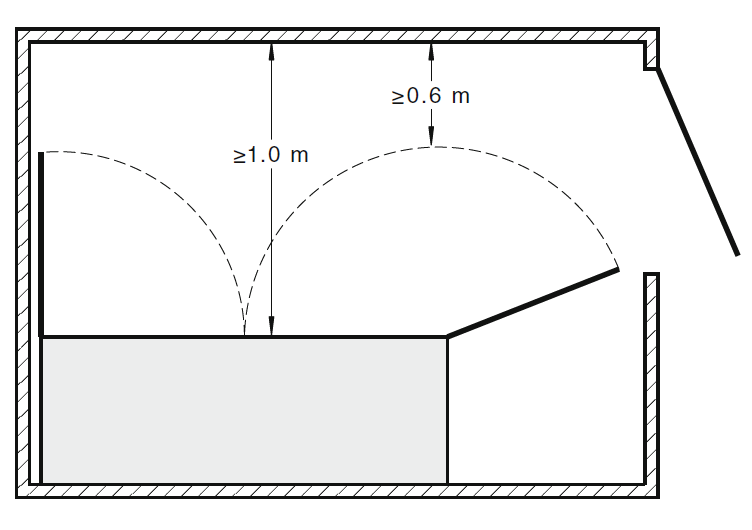

Access Openings: Openings or doorways should be at least 0.9 meters wide by 2.2 meters high for switchboard rooms or enclosures (see Figure 2.20).

Location of Main Switchboard

The main switchboard has extra location requirements and must be installed according to these guidelines:

Accessibility

It should be easily accessible, located near a building entrance. Alternatively, a remote control panel for main switches can be used.

Multiple Installations

In buildings with multiple electrical installations, the main switchboard should not be within any single tenancy. This ensures that it is accessible for the entire premises.
