The 5 types of circuits you’ll actually encounter in real-world work (not just theory) are Series, Parallel, Series-Parallel (Combination), Open, and Closed Circuits. Forget the overly complex jargon—this is what you need to troubleshoot, build, and avoid costly mistakes.
Let’s cut to the chase. I’ve spent a decade fixing botched circuits, training new techs, and watching seasoned pros facepalm over basic classification mistakes. Textbooks love to overcomplicate things, throwing around terms that mean nothing when you’re staring at a fried PCB at 2 a.m.
Here’s the truth: most people only need to master 5 circuit types to handle 99% of on-the-job scenarios. Not 10, not 7—5. And I’m not going to list them like a robot. Instead, I’ll break down what they do, why they matter, and the mistakes that’ll make you want to throw your multimeter across the room.
Why Your Textbook’s Circuit Classification Is Useless (And What Matters Instead)
Textbooks love to group circuits by “AC vs. DC” or “digital vs. analog” first. That’s fine for exams, but in the field? You don’t care if it’s AC or DC when a light won’t turn on—you care if the path is broken or the components are wired wrong.
I once had a new hire spend 3 hours testing a “faulty DC circuit” only to realize it was just an open circuit (a loose wire). He’d been so focused on the textbook’s AC/DC split that he missed the obvious. Don’t be that guy.
Before you dive into troubleshooting any of these circuits, make sure you’re fluent in reading schematics—check out our guide Circuit Symbols: The Essential Key to Reading Electronic Schematics to avoid misinterpreting component connections and wasting time on preventable errors.
Closed Circuits
The 5 Circuit Types That Actually Matter (With Real-World Pain Points)

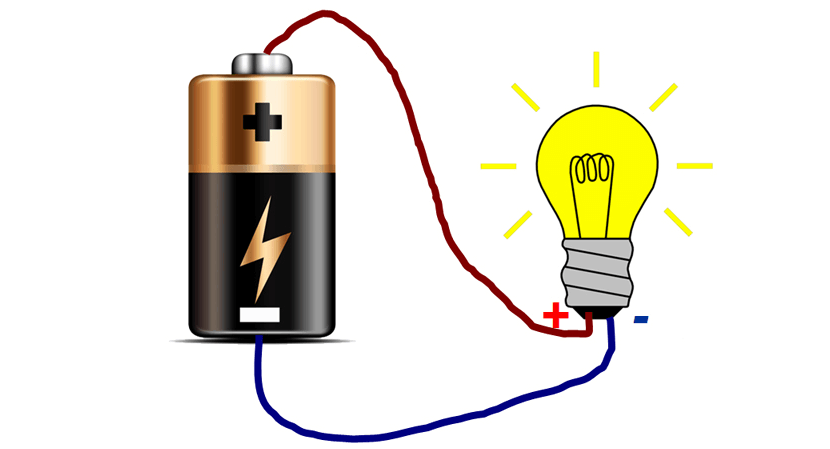

1. Closed Circuits: The “Normal” Ones (That Still Trip People Up)
A closed circuit is just a complete path for electricity to flow—power source, load, wires, all connected. Simple, right? Wrong.
Last year, a client called me because their warehouse lights kept flickering. Their techs had replaced every bulb, checked the voltage, and even swapped the power supply. Turned out, a single wire was slightly loose in the junction box—enough to make the circuit “mostly closed” but not consistent. Flickering lights, $500 in wasted parts, and a team of frustrated techs over a 2-cent connection.
Closed circuits are the baseline. If it’s not closed, nothing works. But even “closed” isn’t enough—connections need to be tight, and components need to be rated for the current.
Open Circuits

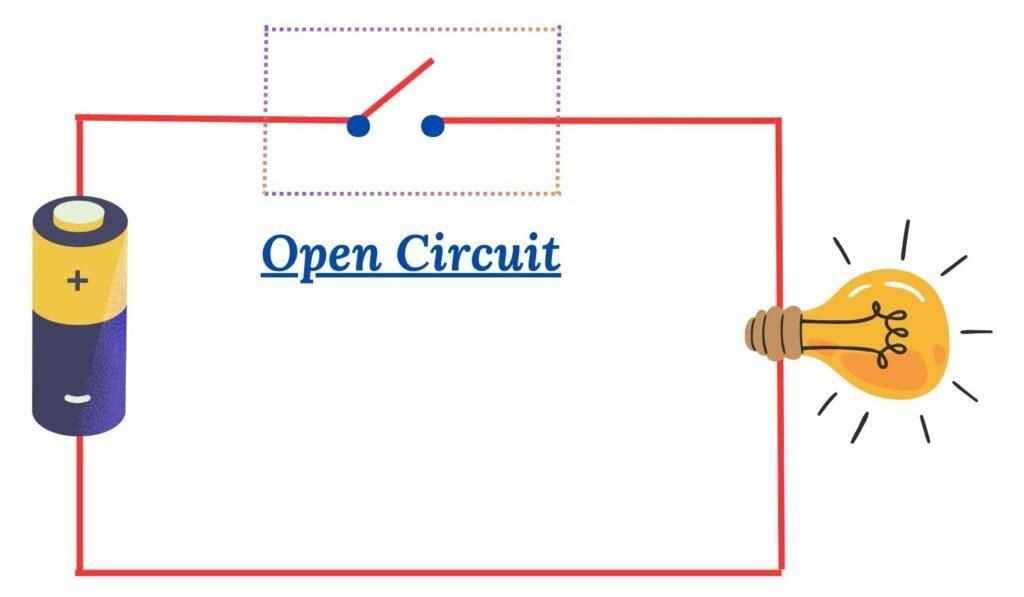

2. Open Circuits: The “Why Isn’t This Working?” Culprit
Open circuits are broken paths. No current flows. Period.
The most common mistake? Confusing open circuits with short circuits (we’ll get to those next). I’ve seen techs replace a fuse in an open circuit, thinking it’s a short—only to have the new fuse sit there doing nothing. Open circuits don’t blow fuses; they just kill power.
Example: A home smoke detector that won’t chirp (even with new batteries). 9 times out of 10, it’s an open circuit—either the battery terminal is corroded, or the internal wire has come loose. No fancy tools needed; just a visual check and a little cleaning.
Series Circuits
3. Series Circuits: Simple, But Dangerous If Misused
Series circuits wire components in a single path—current is the same everywhere, but voltage splits between components.
Here’s the pain point: if one component fails, the whole circuit dies. I worked on a holiday light display once—500 bulbs, all in series. One bulb burned out, and the entire string went dark. We spent 2 hours testing each bulb because the client refused to use parallel wiring (he thought “series was cheaper”). Spoiler: it wasn’t.
Series circuits have their place—current sensors, battery packs, old-fashioned Christmas lights—but use them sparingly. They’re a nightmare to troubleshoot.
Parallel Circuits
4. Parallel Circuits: The Ones You Use Every Day (Without Realizing It)
Parallel circuits wire components across the same voltage source—multiple paths for current. Voltage is the same everywhere; current splits between branches.
This is how your home is wired. Turn off your fridge, and your lights still work. That’s parallel. But here’s the catch: too many branches, and you overload the circuit (hello, tripped breakers).
A restaurant client once added 10 new heat lamps to a single parallel circuit. Cue breaker trips every time they turned them on. They thought “parallel means unlimited components”—nope. Each branch draws current, and the total has to stay within the circuit’s rating.
Series-Parallel (Combination) Circuits
5. Series-Parallel (Combination) Circuits: The “Hybrid” That Solves Real Problems
Most real-world circuits aren’t pure series or parallel—they’re a mix. Think of a car’s electrical system: the battery is in series with a fuse, but the lights, radio, and AC are in parallel branches.
These are the trickiest to troubleshoot, but they’re also the most useful. I designed a combination circuit for a manufacturing plant last year—series fuses to protect the main power, parallel branches for different machines. It cut downtime by 30% because a single machine failure didn’t take the entire line down.
The mistake? Overcomplicating the mix. Keep it simple: use series for protection, parallel for independent operation.
