Not Just a Puzzle — A Journey Across India

How I turned a map into a storytelling game for children

When we were kids, most of us learned geography from textbooks. We memorized capitals before exams, forgot them afterward, and rarely felt connected to the places we studied.

India was just a flat printed map on paper.

But one question stayed in my mind:

What if learning geography felt like an adventure instead of homework?

That idea became the beginning of this project.

I wanted to create something that children could:

1. touch
2. play with
3. explore
4. and remember.

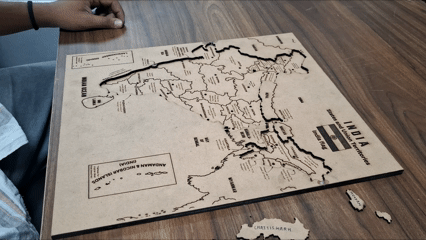

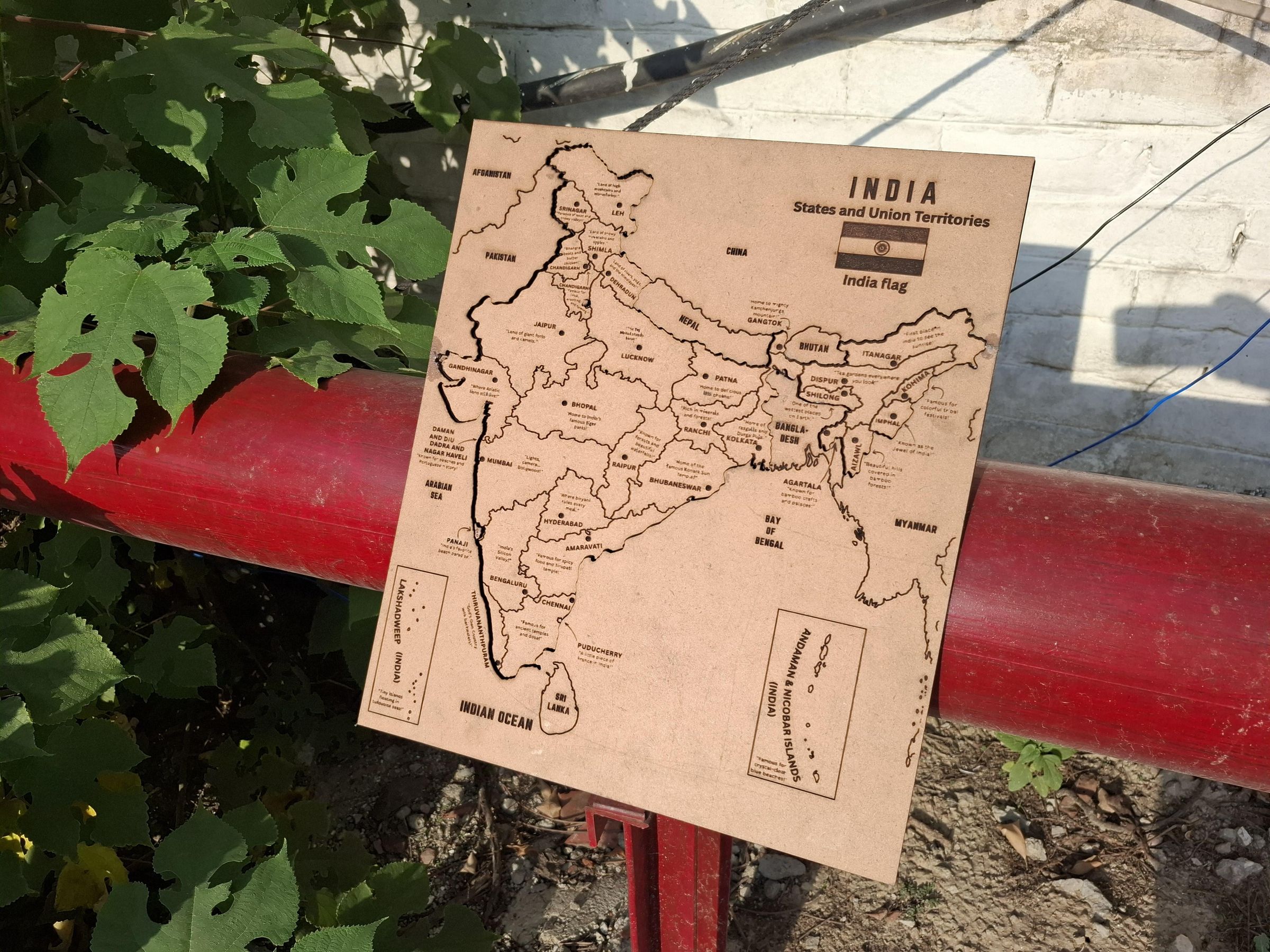

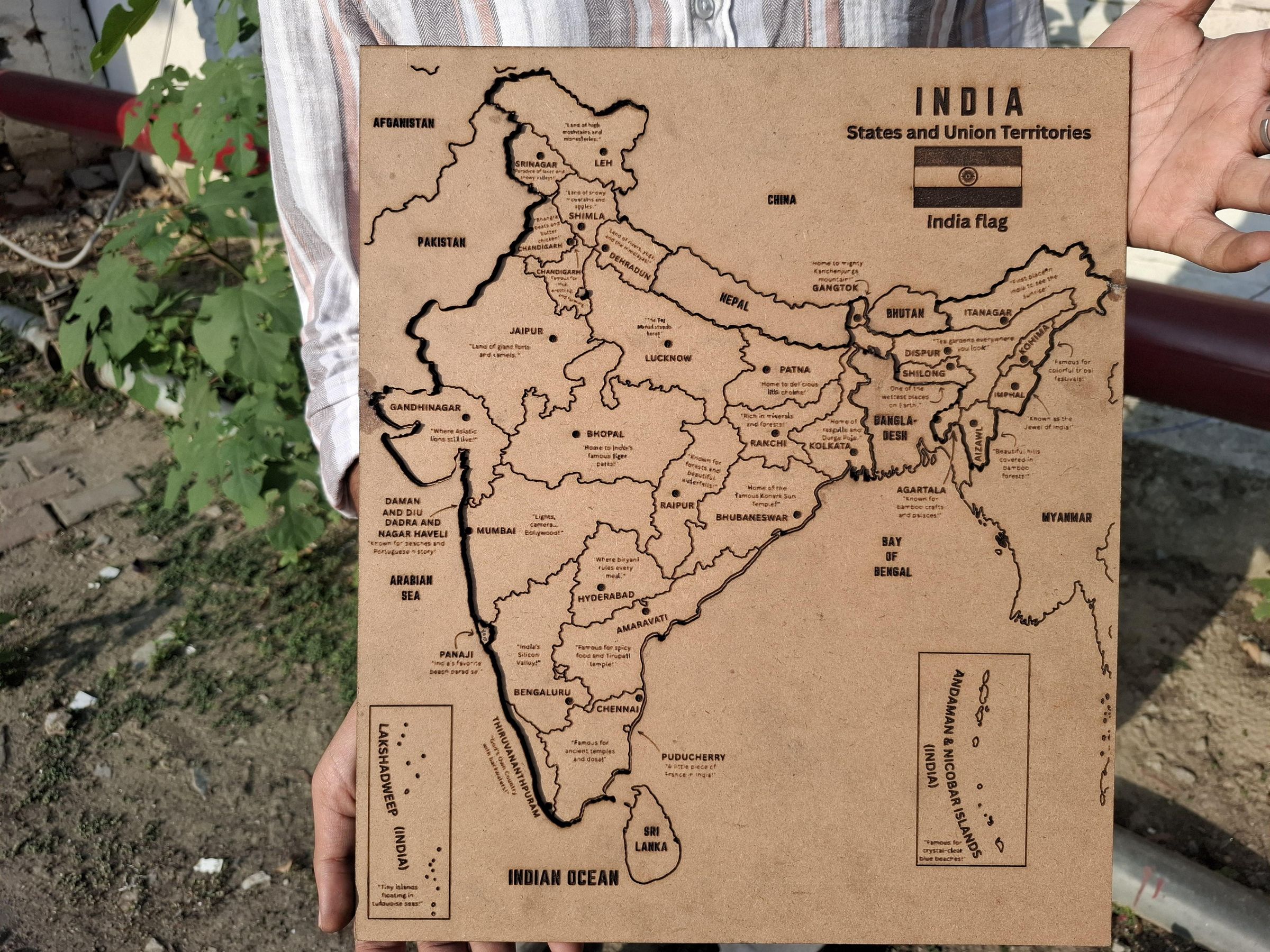

So instead of building a normal political map, I created an interactive laser-cut India map puzzle where every state becomes a story.

Each state is a separate puzzle piece.

But the most important part is hidden on the back.

Every piece contains:

1. the state capital,
2. and a fun engraved hint about the culture, food, history, or identity of that state.

Not boring textbook facts.

Real, memorable, human stories.

For example:

1. Punjab talks about bhangra and butter chicken
2. Maharashtra hints at Bollywood
3. Kerala introduces its beautiful backwaters
4. Bihar reminds children about litti chokha and ancient learning

The goal was simple:

If a child smiles while reading a fact, they will remember it forever.

Instead of forcing memorization, this puzzle encourages curiosity.

Children naturally start asking questions like:

1. “Why is Rajasthan famous for camels?”
2. “What is special about Assam tea?”
3. “Where is the Taj Mahal?”

That moment of curiosity is where real learning begins.

To create this interactive India map puzzle, I used the following materials and tools:

Materials

1. 3mm plywood / MDF sheet
2. Wood glue
3. Acrylic paints

Tools

1. CO₂ laser cutter
2. Clamps
3. Computer

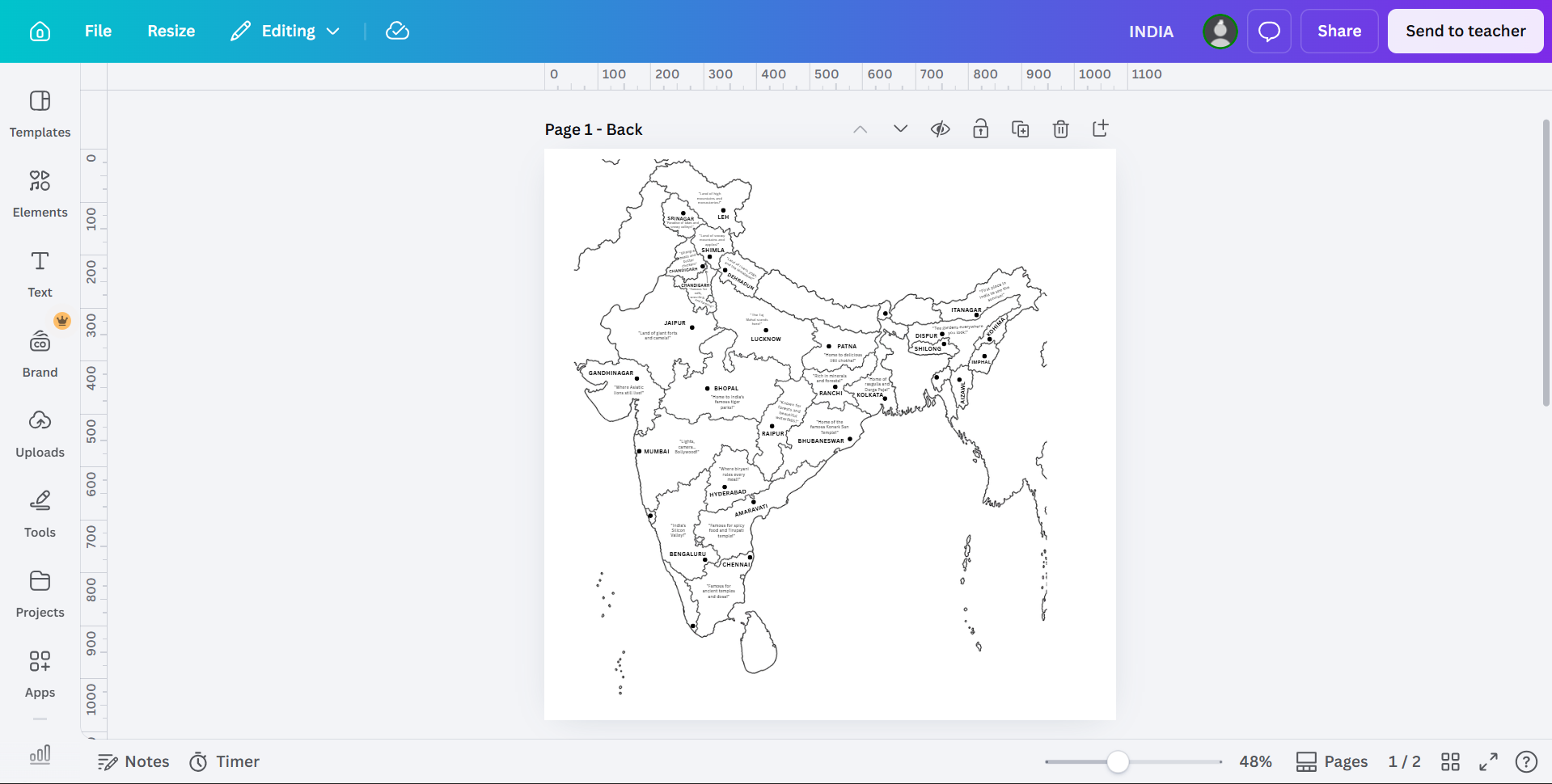

Software

1. Canva
2. LaserCAD

The puzzle pieces were laser cut individually, and the backside of each state was engraved with its capital and a fun educational hint to make learning geography more engaging for children.

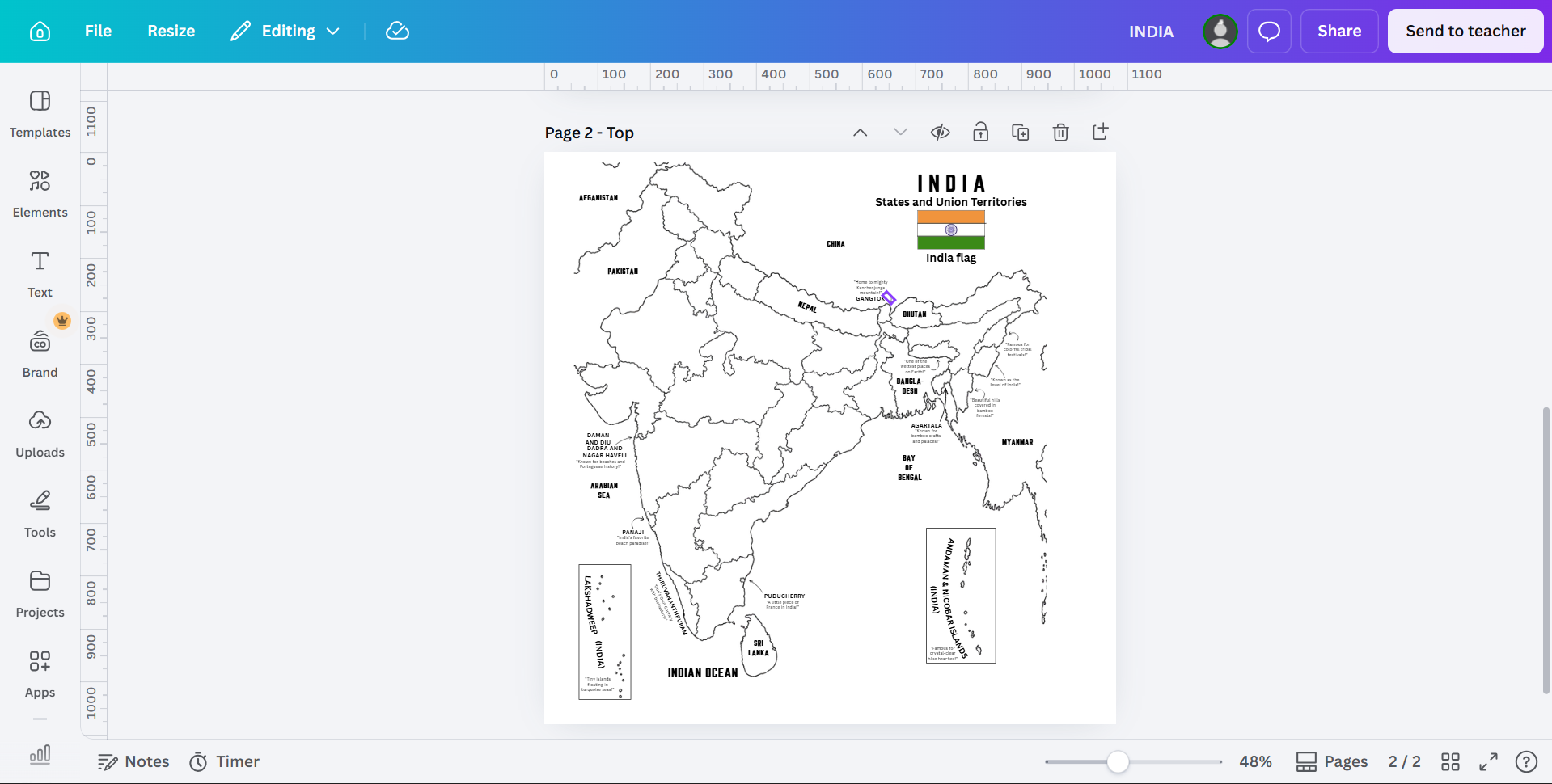

Planning the Map

The first challenge was complexity.

A world map looked exciting initially, but many countries were too tiny and fragile for laser cutting.

So I decided to focus on India instead:

1. more meaningful,
2. easier for children,
3. and rich in culture and diversity.

Two-Layer Puzzle Design

To make the puzzle more interactive and child-friendly, I designed it using two separate laser-cut layers.

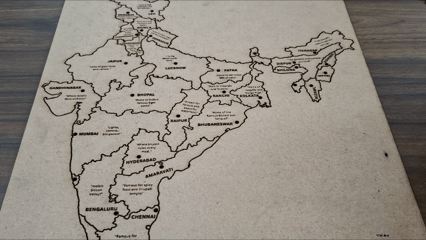

🔻 Bottom Layer — The Learning Board

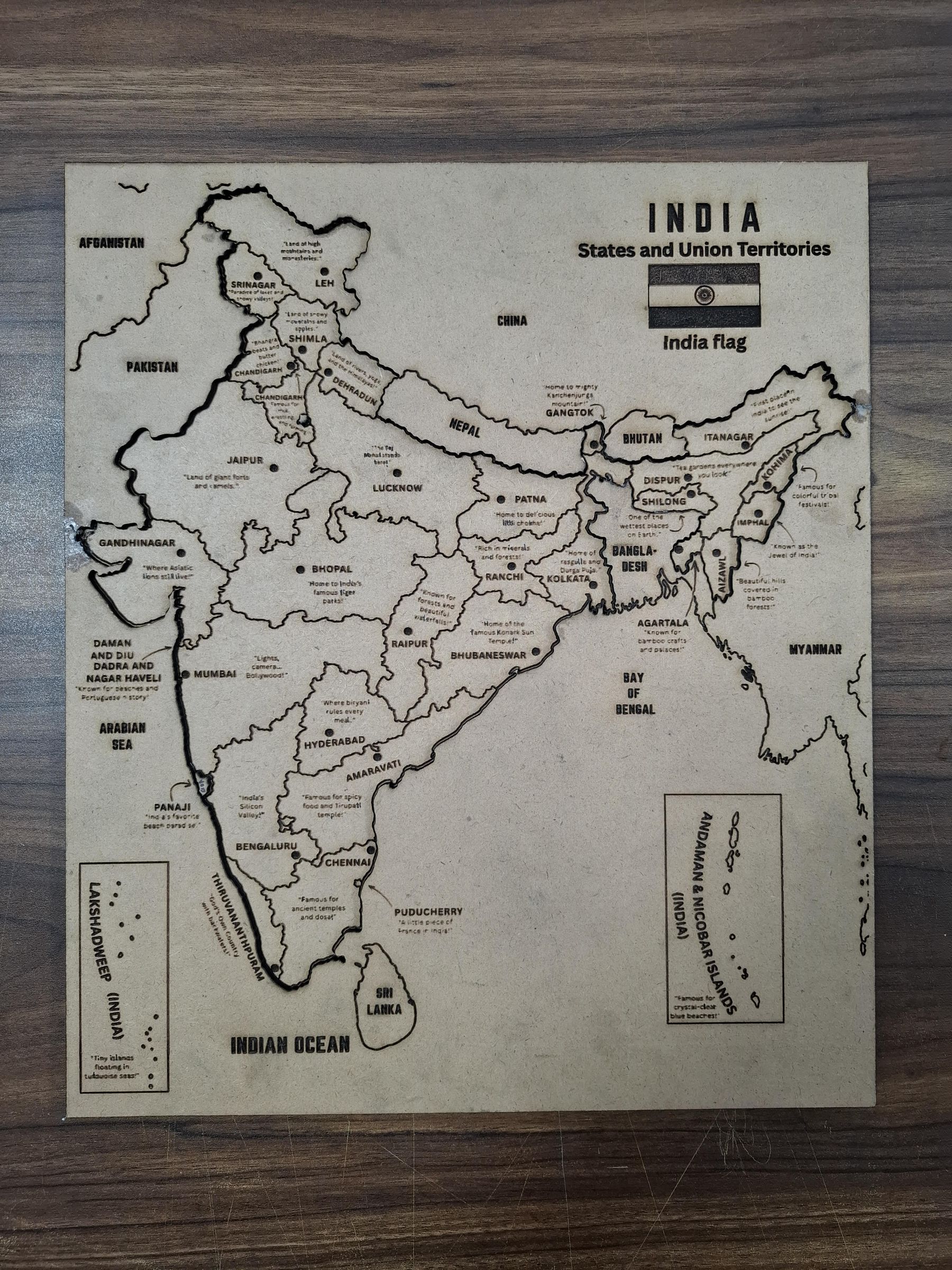

The first layer acts as the base map.

Instead of leaving it blank, I engraved:

1. the outlines of every state,
2. the capital city,
3. and a fun hint or fact related to that state.

This layer helps children identify where each state belongs while also learning something memorable about it.

The idea was to make the board itself educational — even without the puzzle pieces placed on top.

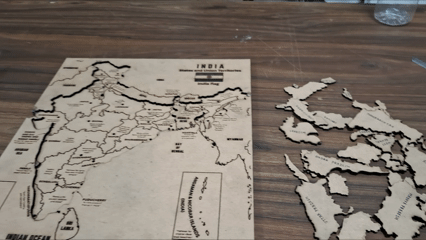

🔺 Top Layer — The Puzzle Pieces

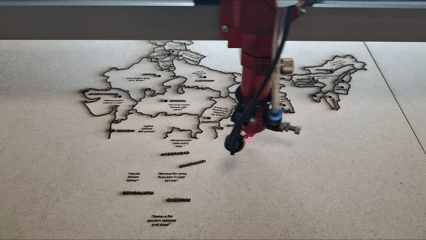

The second layer was designed separately to create the actual state pieces.

Each state was carefully cut and sized to:

1. match the engraved outlines perfectly,
2. fit smoothly into the board,
3. and be easy for children to handle.

I spent extra time adjusting the dimensions and tolerances so the pieces would fit snugly without being too tight or loose.

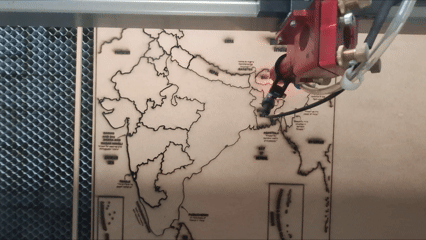

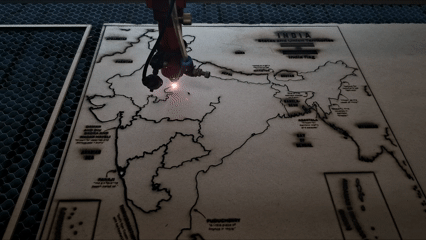

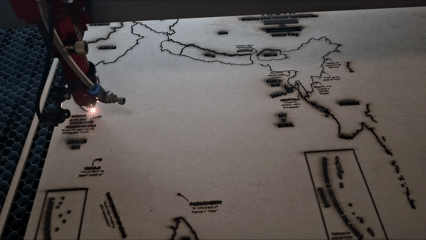

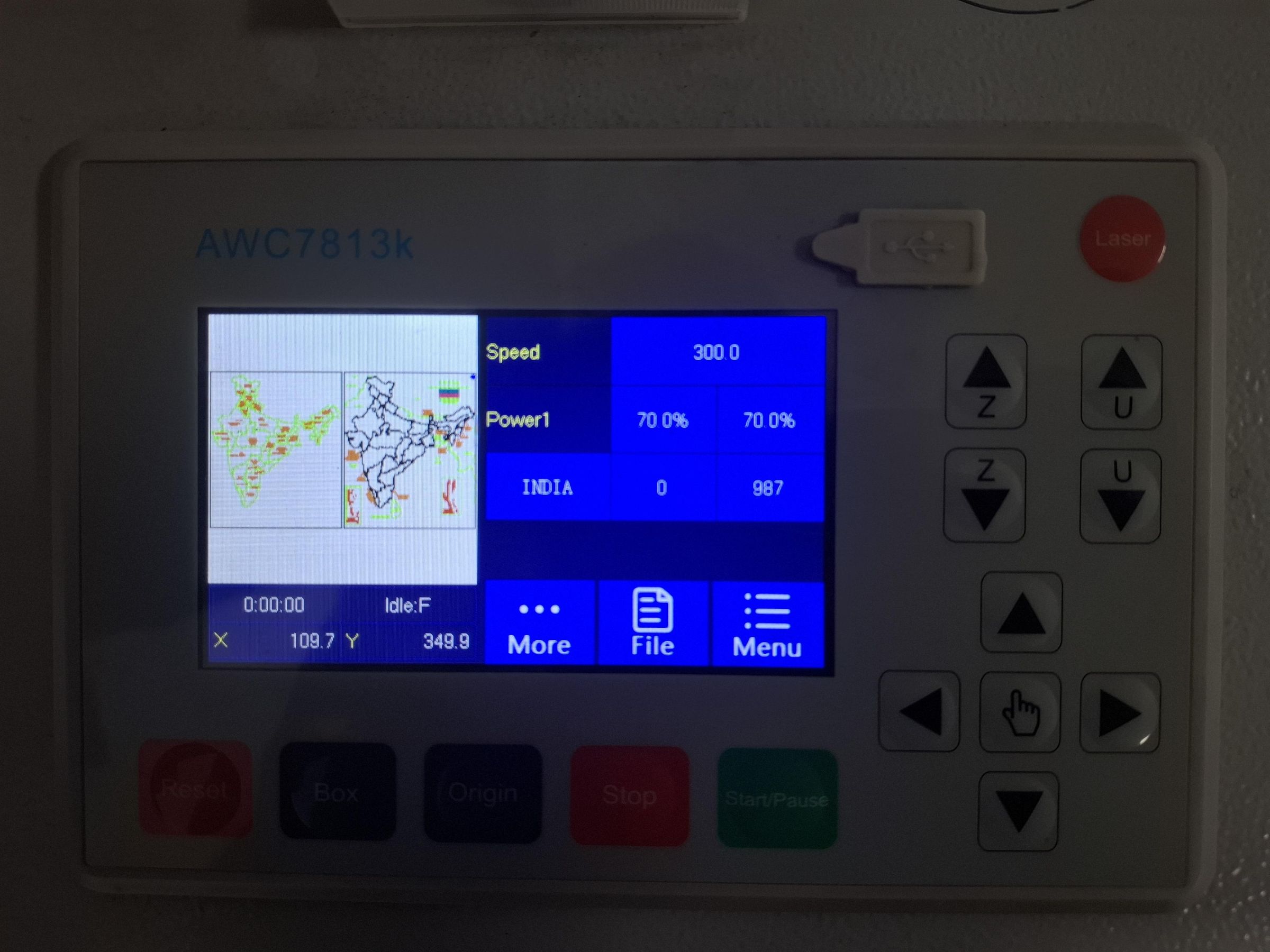

Using a CO2 laser cutter, each state was:

1. cut individually,
2. engraved on the backside,
3. cleaned and polished,
4. and organized into the final puzzle.

One of the biggest challenges was balancing:

1. durability,
2. readability,
3. and precision.

Some states required multiple redesigns before they fit properly.

I didn’t want children to simply “place shapes.” I wanted the puzzle to guide them naturally.

The engraved base layer acts like a subtle learning assistant:

1. helping younger children recognize locations,
2. encouraging independent play,
3. and reducing frustration while solving the puzzle.

This transforms the project from just a wooden map into an interactive educational experience.

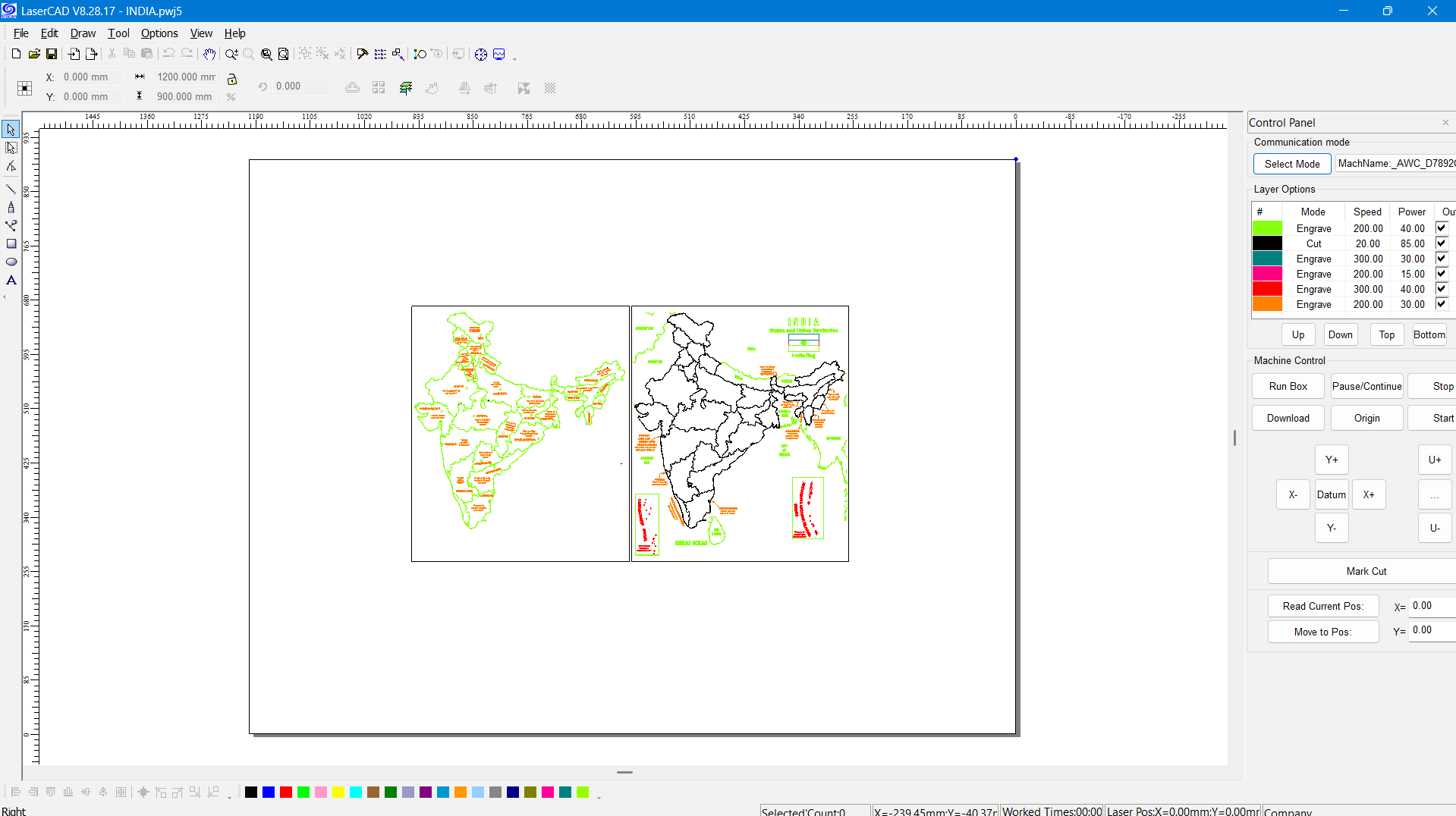

To make this project easy for others to recreate, I’ve uploaded the original LaserCAD project file used for laser cutting the puzzle.

You can:

1. download the .pwj5 file,
2. open it directly in LaserCAD,
3. adjust the size if needed,
4. and start cutting immediately.

You can download file here:

👉 Github

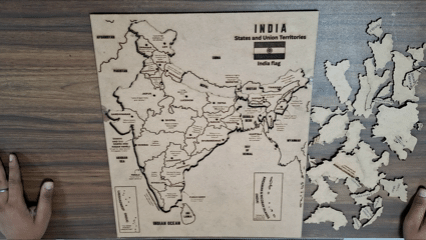

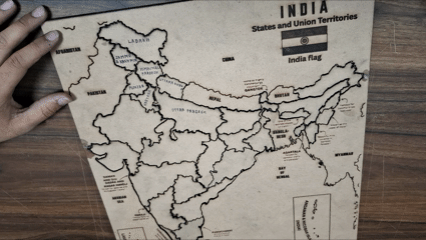

Once both laser-cut layers were completed, the next step was assembling them into a single interactive puzzle board.

The engraved base layer was used as the foundation of the puzzle. Since it already contained the state outlines, capitals, and fun hints, it worked as a built-in guide for children while solving the puzzle. The second layer contained all the individually cut state pieces. Before final assembly, I carefully tested each piece to ensure it aligned perfectly with its engraved position on the base board.

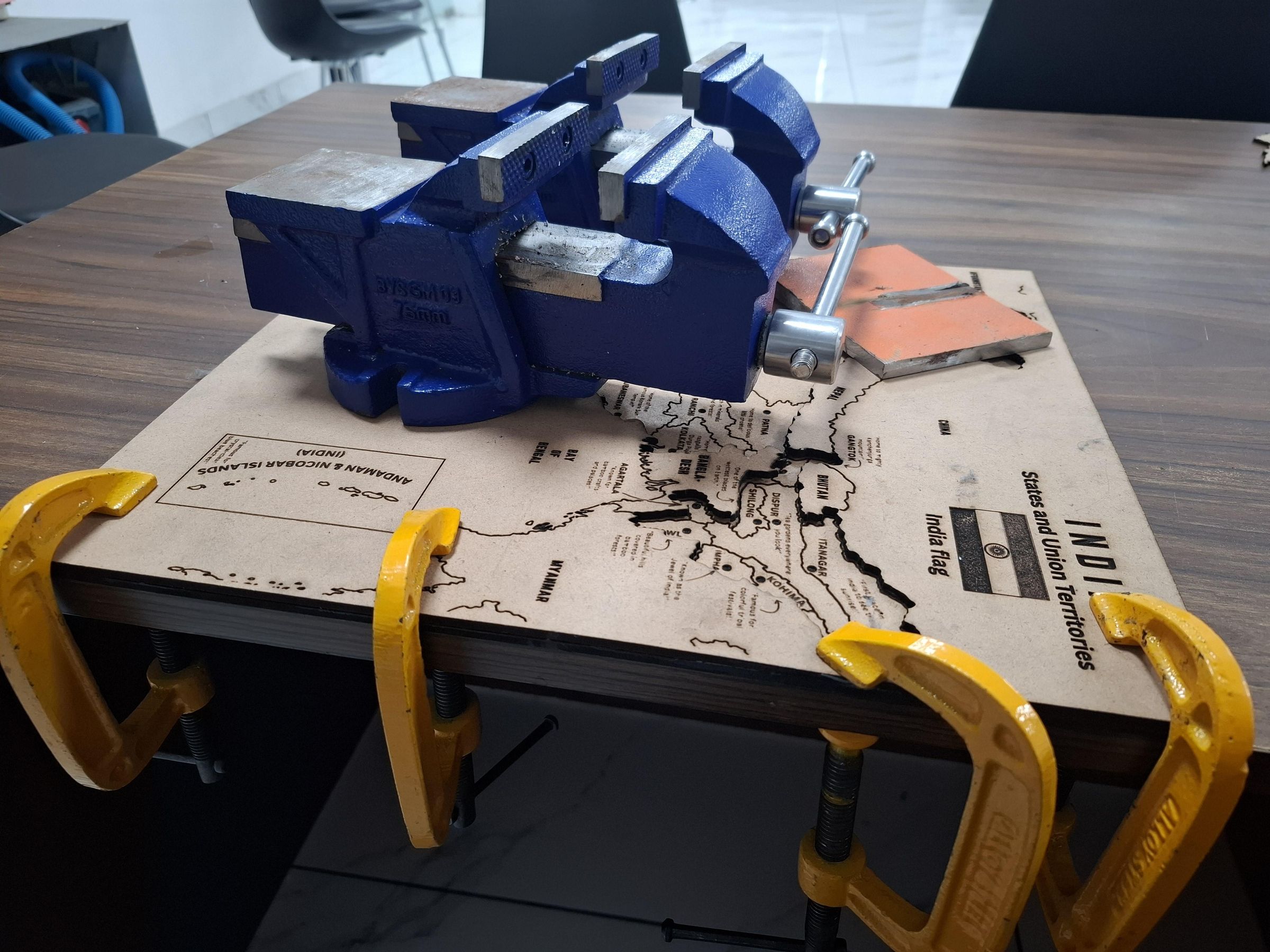

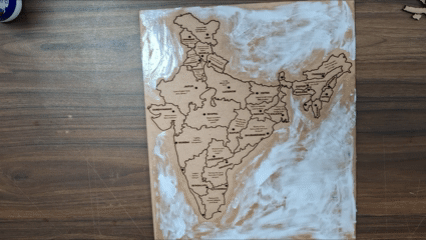

Aligning the layers to assemble the board:

1. The engraved bottom layer was placed on a flat surface.
2. The top frame and borders were aligned carefully.
3. Wood glue was applied evenly to avoid warping.
4. The layers were pressed together using clamps and left to dry completely.

Proper alignment was important so that every state piece would fit smoothly into its correct location.

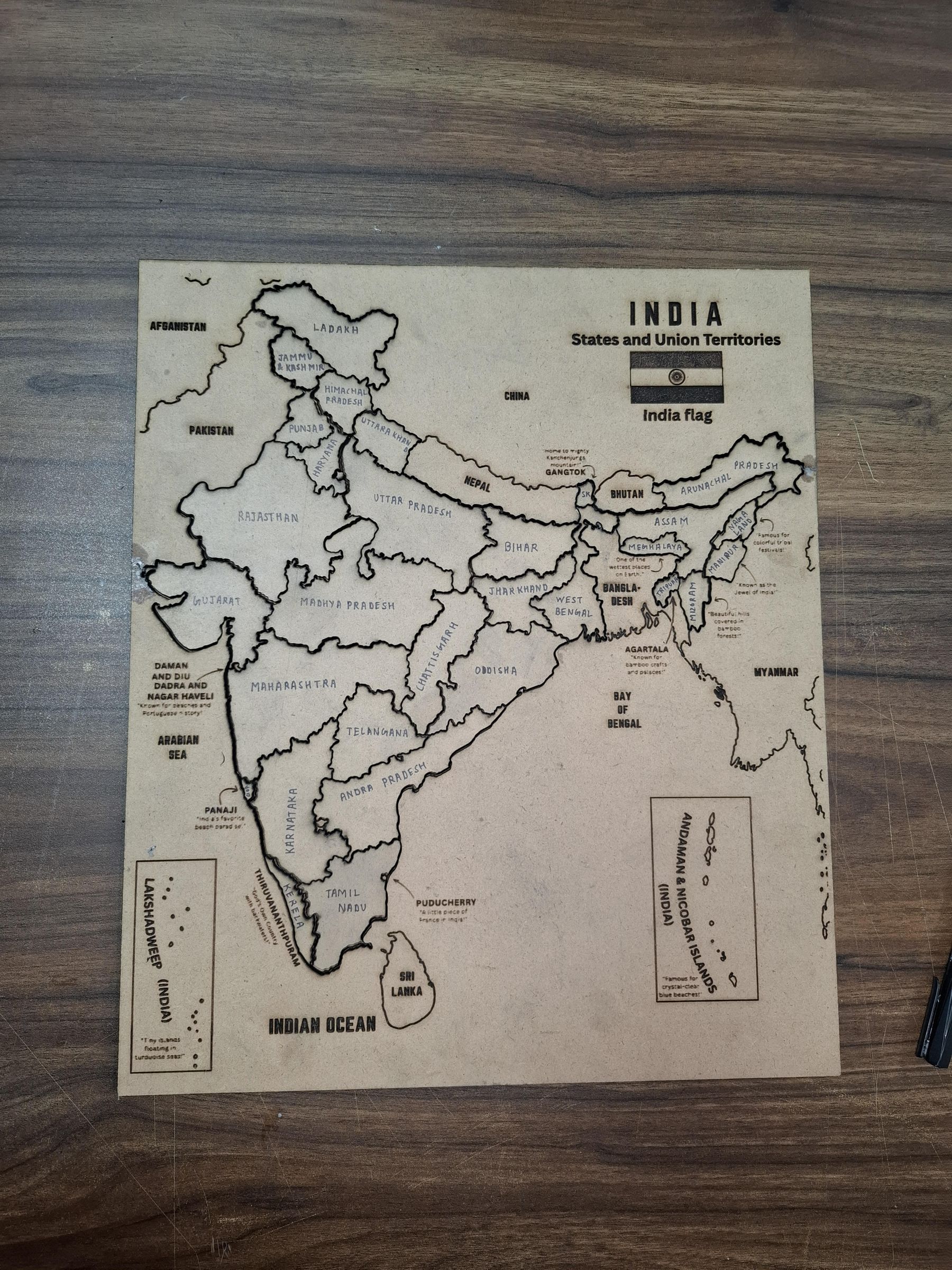

After the glue dried:

1. the edges were cleaned,
2. rough burn marks from laser cutting were lightly rubbed using wet cloth

I wanted the final puzzle to feel satisfying for children to use so I wrote state names on each peice :

1. easy to pick up,
2. easy to place,
3. and durable enough for repeated play.

The layered construction is what gives the puzzle its educational value.

This project is not just about capitals.

It is about identity.

India is incredibly diverse:

1. languages,
2. food,
3. festivals,
4. landscapes,
5. traditions,
6. architecture.

I wanted children to feel that diversity while playing. A map should not feel like boundaries on paper. It should feel like stories waiting to be discovered.

As a student, I wanted to build something meaningful — not just decorative.

Something that combines:

1. creativity,
2. education,
3. engineering,
4. and storytelling.

Most importantly, it reminded me that technology becomes powerful when it helps people learn in a joyful way.

Maps are more than navigation tools. They tell stories about people, culture, history, and connection.

This puzzle transforms a map into an experience one where children learn not because they have to but because they want to. And I think that is the best kind of learning.

I hope children using this puzzle become curious about places they’ve never seen, learn geography naturally and feel proud of India’s diversity.

Maybe one child will read a tiny engraved fact… and decide to learn more about that state someday.

If that happens, this project has already succeeded.😇
