The Sci-Fi Nuclear Core Battery Lamp
Have you ever wanted to bring a piece of a futuristic, post-apocalyptic wasteland or a high-tech video game universe right onto your desk?
The Sci-Fi Nuclear Core Battery Lamp is a functional piece of industrial art designed to simulate a heavy-duty, multi-cell radioactive power cell. Featuring a rugged, matte-blue/black chassis, contrasting hazard-striped panels, mechanical switches, and exposed structural wiring, this project blends aggressive sci-fi aesthetics with practical ambient lighting.
The centerpiece of the design features four individual "energy cells" filled with a vibrant, glowing fluorescent fluid that mimics unstable nuclear material. By combining precise 3D design tolerances, careful electronics routing, and a bit of creative chemistry, this build moves past a standard desk lamp into a highly detailed prop replica.
Whether you are a seasoned maker looking to refine your post-processing and multi-material assembly techniques, or a sci-fi enthusiast wanting a unique statement piece for your workshop, this step-by-step guide will take you from raw digital models to a glowing, tactile power core. Let's flip the switch and build it!
Supplies
Before diving into the workshop, it’s essential to gather everything you need. Building this lamp requires a mix of materials, basic electronics, and a safe fluid-handling setup.
Here is the complete checklist of everything used in this build:
⚙️ 1. Main Chassis Components :
- Wood batens
- PVC sheet (different thickness)
- 1mm Clear Acrylic sheet

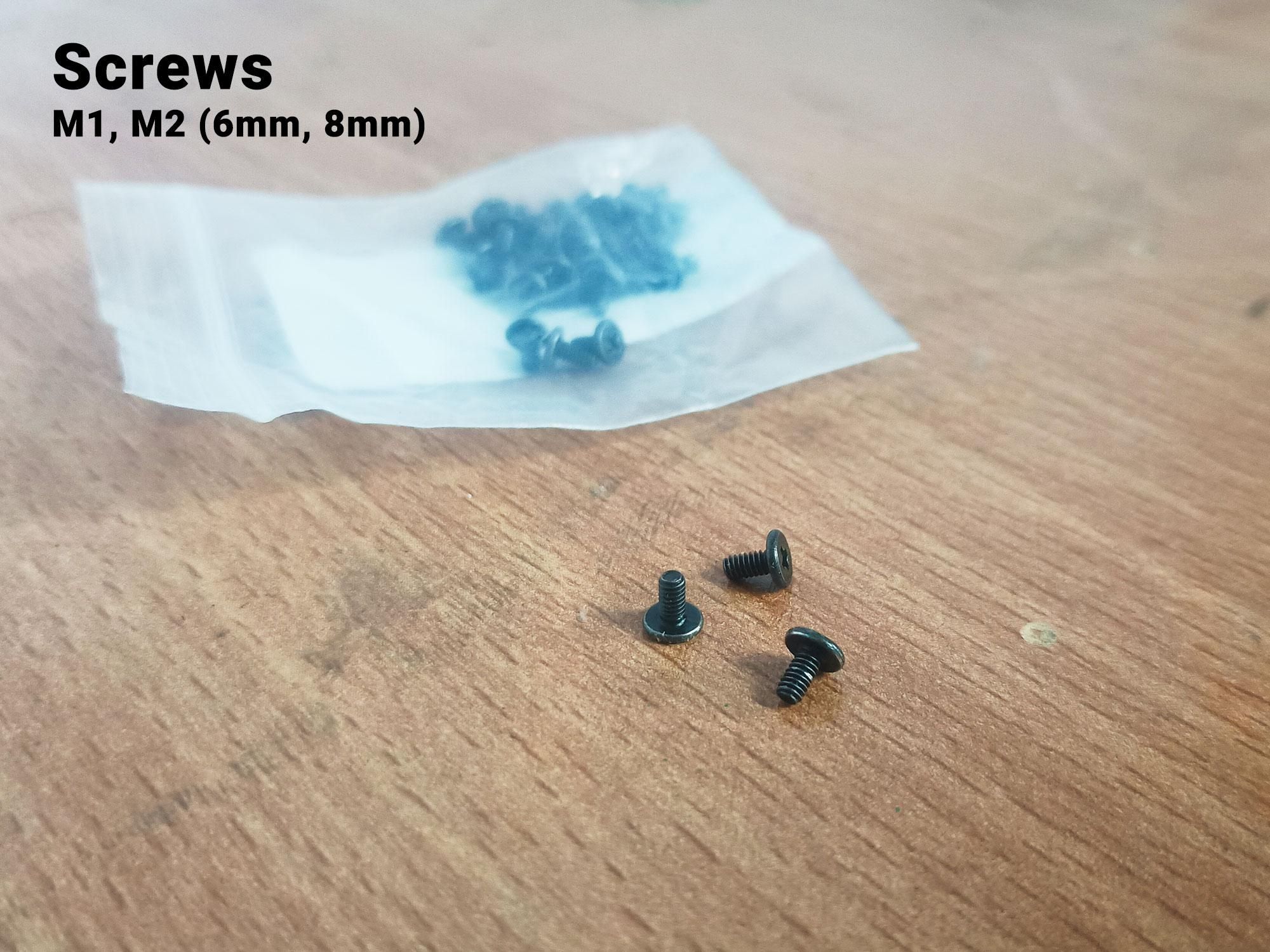

- Screrws (M1 & M2, 6mm & 8mm)
- 6mm water tubes
- Water filter L-Connectors (6mm)
⚡ 2. Electronics & Lighting Elements :
- Ultra-bright Green COB LED
- 3.7v, 14500/500mAh Li-ion Battery
- TP-4056 Charging module (type C)
- 3.7v to 12v converter Boost step up module
- Battery level indicator
- Toggle Switches
- Type-C Connector
- Voltage Dimmer Circuit :
- IC LM317T
- B10K Potentiometer
- 1K ohm Resistor
- Aluminium Heatsink
- PCB board
- Potentiometer Knob
- M2 x 6mm screw
- Solid or stranded copper wire in multiple colors
- Heat shrink tubes
3. Liquid Core & Sealing Materials :
- Glass Vials / Test Tubes (approx. 15mm x 60mm)
- Distilled water
- Neon-green Highlighter pen
- Watertight Sealant
️ 4. Tools Required :
- Hacksaw
- Scissor
- Plier
- Knife / cutter
- Lighter
- Carving tools
- Marker pens
- Screw drivers
- Tweezers
- Soldering Iron
- Drill machine / Rotary dremel tool
- Diffrent drill / rotary bits (1mm, 2mm, 3mm, 6mm, 15mm, etc)
- Hot air gun
- Clamps
- Heavy duty workshop machines :
- Band saw
- Scroll saw
- Belt & Disc Sanding machine
- Other Materials :
- Tapes (masking tape, electrical tape, etc)
- Sanding papers
- Super glue / Wood glue
- Spray Paint (yellow, black, blue, grey / silver, Chrome)

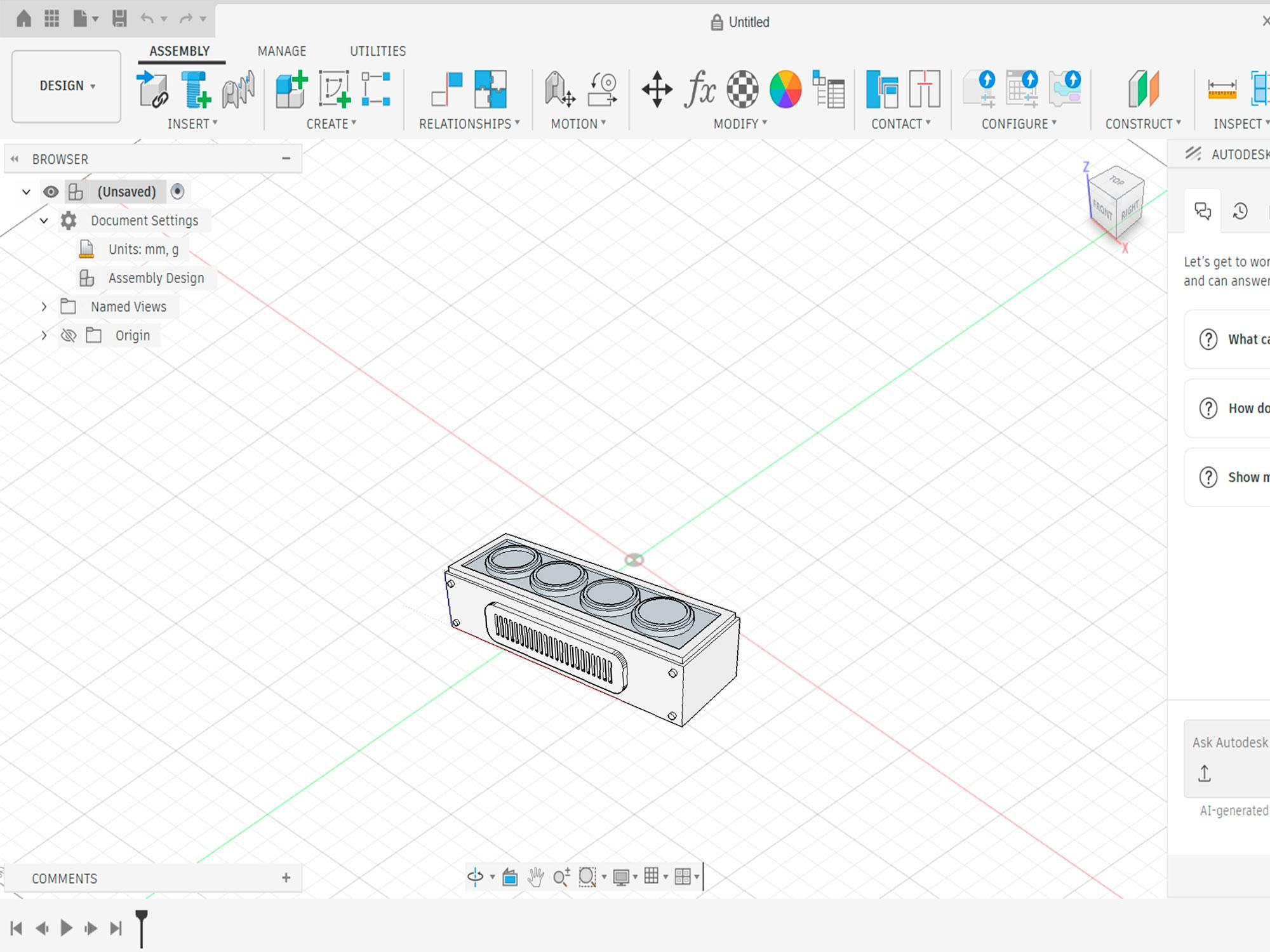

Planning : 3D Design & CAD Modeling (Drafting the Core)
The goal was to create a compact, heavy-duty aesthetic that feels dense and mechanical. Using Autodesk Fusion 360, I structured the lamp around a C-shaped frame to showcase the glowing cells while hiding the primary electronic routing inside the top and bottom cavities.
- The Structural Skeleton: Heavy-duty wood battens were used to create the inner core frame. Wood provides excellent structural rigidity and allows for solid mechanical fastening.
- The Outer Skin & Panels: High-density PVC sheets were chosen for the outer armor plates, hazard strips, vent grills and other design elements. PVC is an incredible material for prop making because it is lightweight, easy to score and cut with a utility knife, and finishes beautifully with paint.
So, first I sketch the profile, drawn by hand, rough geometric shapes and designs, then proceed to 3d build and then making.
Making the Body Frame
While the 3D model served as an excellent digital blueprint for scale and reference, the actual physical chassis was built from scratch using traditional hand tools and accessible workshop materials. By substituting 3D prints with wood battens and PVC sheets, the frame gains a rugged, tactile weight that feels incredibly solid.
- Cut the Frame: Using my CAD dimensions as a reference, I cut the wooden batens and join them using wood glue. Here I only made the top and bottom inner chambers with wood.

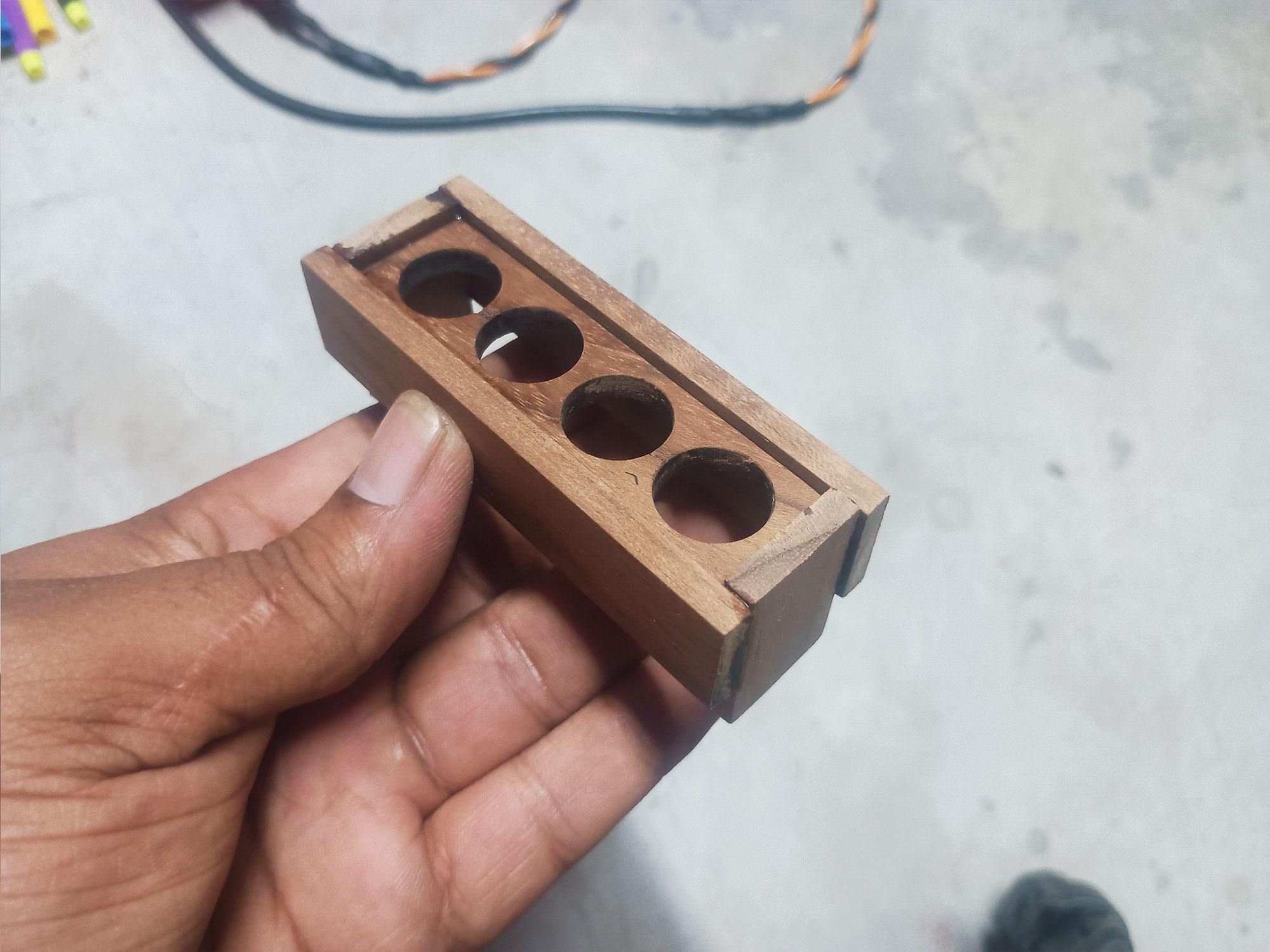

- Drill Vial Recesses: I drilled the top and bottom frame segments with different drill bit bit to ensure the glass vials align perfectly straight.
After dried, my both top and bottom chambers are ready to fabricate with PVC wrapping.

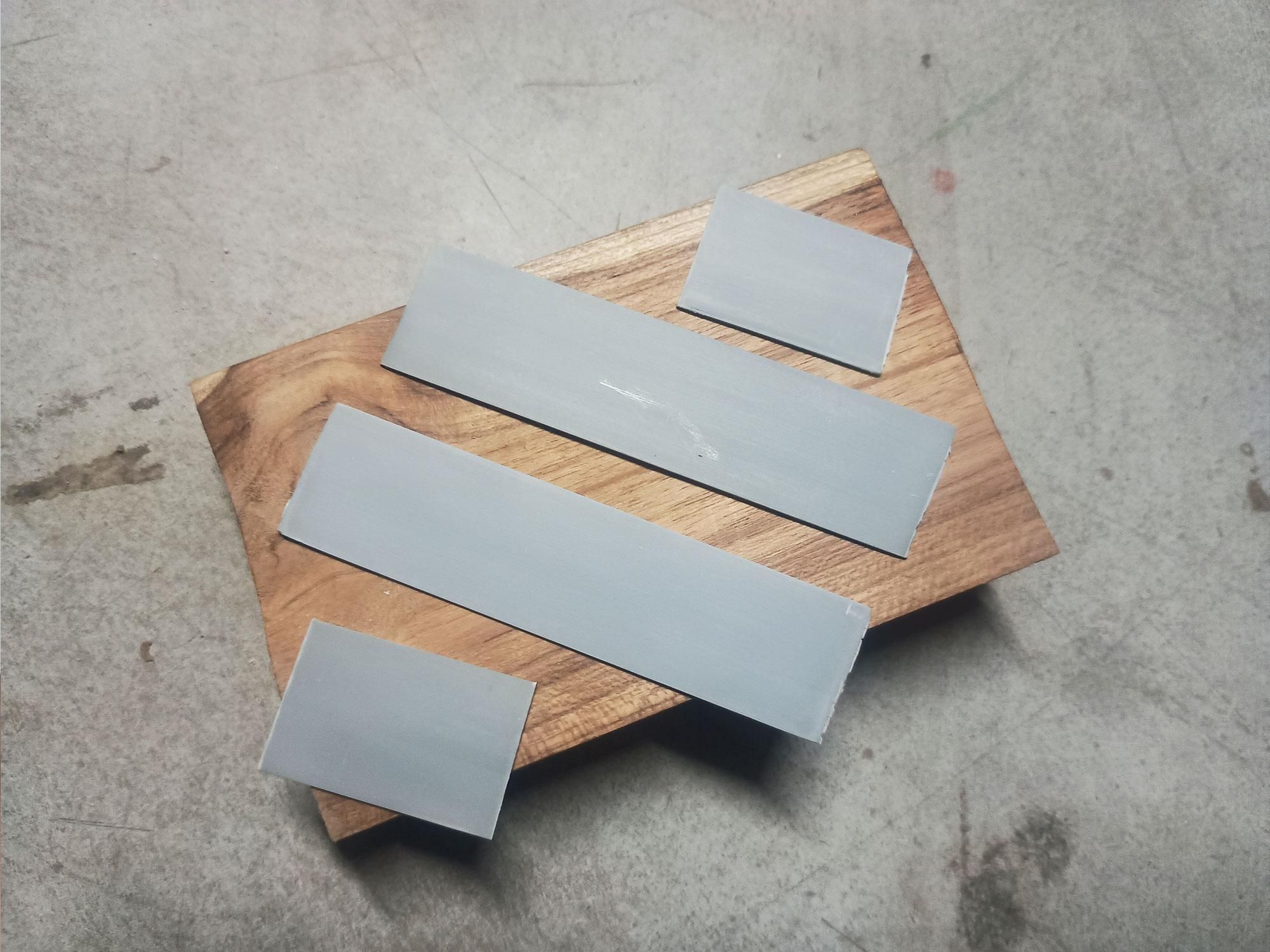

Fabricating the Outer Panels (Wood & PVC Skin)
To transform the raw wooden skeletal frame into a armored sci-fi power cell, you need to skin it using the PVC sheets. This step adds the mechanical depth, groove for our acrylic panel and that distinct industrial texture.
Next, I cut the PVC sheet of same size and super glued to the body to make some grooves to sit the transparent acrylic panel on the body frame.

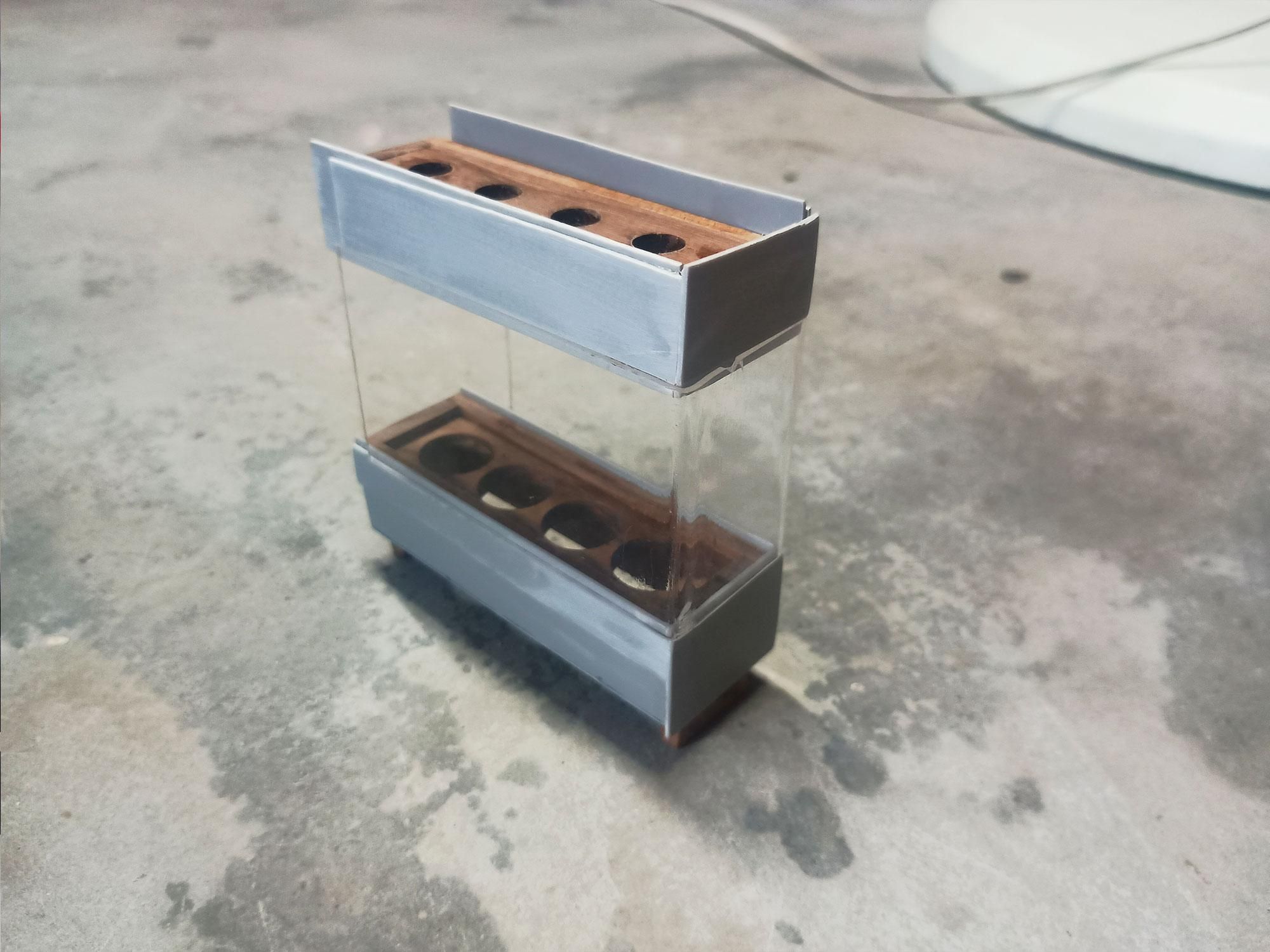

Making the Front Acrylic Glass Shield
The final structural element is the clear acrylic panel. In sci-fi lore, this acts as the radiation shield protecting the user from the core practically, it protects your glass vials while letting that incredible green glow shine through completely unobstructed.
- Measure the open front gap of your C-frame chassis.
- Mark the dimensions onto a 1mm transparent acrylic or polycarbonate sheet.
- Using the hacksaw I cut the sheet.
- Then I sanded and smooth the edges.
Next, I used my hot air gun to bend the acrylic sheet to proper dimension and shape.
Tip : For this I pre-made a wooden block to perfectly blend my acrylic shape.

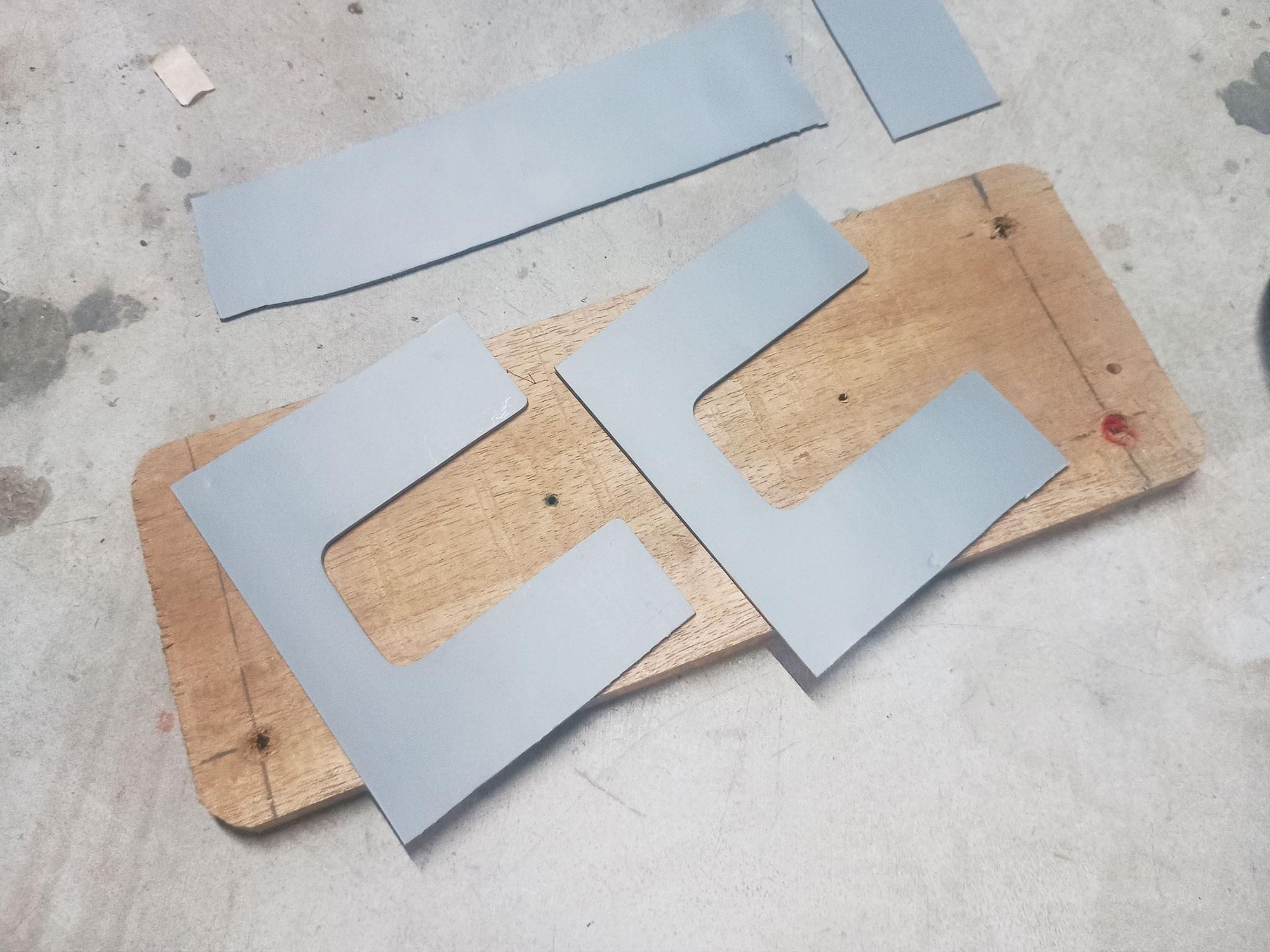

Making the Pvc Outer C Frame
To wrap the entire wooden structural skeleton and hide the raw wood grain, you need to fabricate the main outer C-frame wrapper from your PVC sheet. This creates a uniform, durable plastic exterior that acts as the perfect canvas for your industrial paint job.
- Measure the exact combined length of the wooden core's top face, back spine, and bottom face.
- Mark this long, continuous rectangle onto your PVC sheet using a steel square to ensure perfectly 90-degree corners.
- Cut and superglue the whole structure.
- sand and smooth the extra edges.
Pre-drill your pilot holes through the PVC faces and into the wood to secure the top and bottom cover plates.
Preparing the Vials Holder & Industrial Details
With the main frame and armor panels assembled, it's time to focus on the centerpiece elements: the glowing fuel cells and the subtle mechanical details that make the battery lamp look functional.
- Instead of custom-making complex shapes, use cheap, everyday hardware like pneumatic push-to-connect fittings, small PVC pipe elbows, or plastic cable glands.
- Alternatively, you can craft small metallic-looking couplings by stacking varying diameters of scrap PVC rings or cutting the ends off a plastic pen body.
Fabricating Colors on All the Components
Applying the right colors and weathering techniques is what transforms clean PVC and wood into a heavy-duty, battle-worn piece of industrial machinery.
Here I colored the body mainly in dark theme, like blueish black, and rest of the design elements in yellow, and few designs in black.

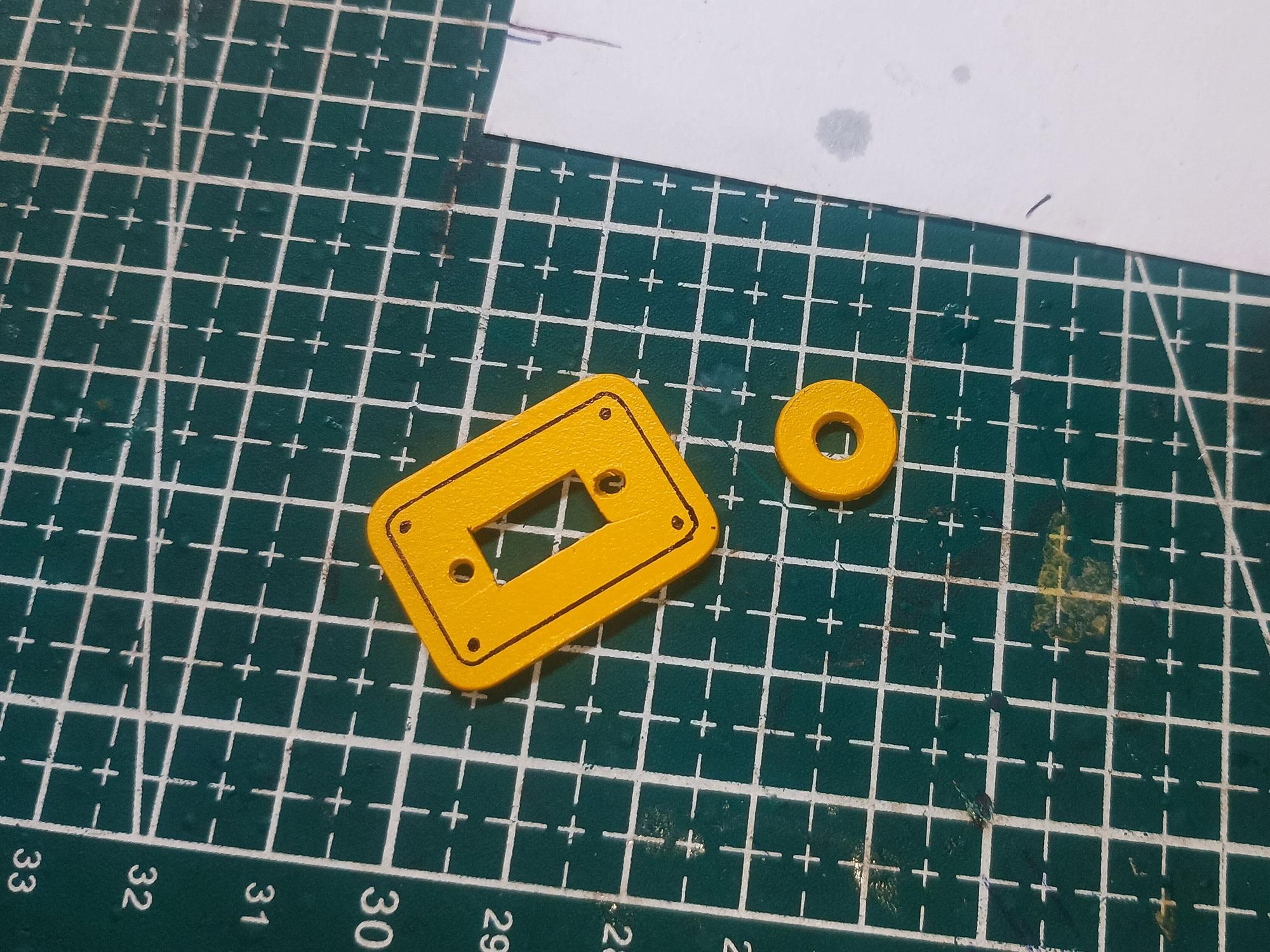

Also added few border design on type C port panels, switch panels and few Texts like "Radioactive" and "Hazardous" on the top panels.
Some industrial fitting like pipe connectors are colored in bright chrome.
Adding the Pipe Connectors & Conduits
To complete the industrial look, the last step is adding structural pipe connectors and conduits. In sci-fi prop design, these elements ground the build, making it look like fluids or energy are actively being pumped through the chassis.
- Identify the entry and exit points on your main frame (ideally near the top or bottom of the vial chambers where "coolant" or "power" would naturally flow).
- Add all the design elements to its proper places using super glue.
Building the LED Dimmer Circuit
To control the intensity of the "nuclear glow" and dial in the perfect ambient lighting, we are building a manual 12v LED Dimmer circuit. This simple circuit uses an LM317 Integrated Circuit (IC) as a linear regulator, controlled by a 10K potentiometer to dim or brighten the LEDs, and a 1k resistor to protect the circuit and set the control range.
LM317T is a 3-terminal adjustable linear positive voltage regulator. Its job is to take a higher, unstable DC input voltage and drop it down to a lower, steady, clean output voltage. By using external resistors, you can adjust the output anywhere from 1.25V to 37V.
Tip : For a 12V LED dimmer circuit, a MOSFET like the IRFZ24N is a much better choice than a linear voltage regulator like the LM317T. As we donot have much space here, so we gone with the LM317T IC.
Final Electronics Integration & Cable Management
With the voltage regulator circuit built, the final step is mounting the electronics, wiring up the LED beds, and routing that beautiful, exposed external cable harness.
- Glue your LEDs into the base of the lower chassis recesses so they point straight up into where the vials sit.
- Wire the LEDs together in parallel (all positive legs connected together, all negative legs connected together). Ensure you have inline current-limiting resistors on the positive lines to match your input voltage.

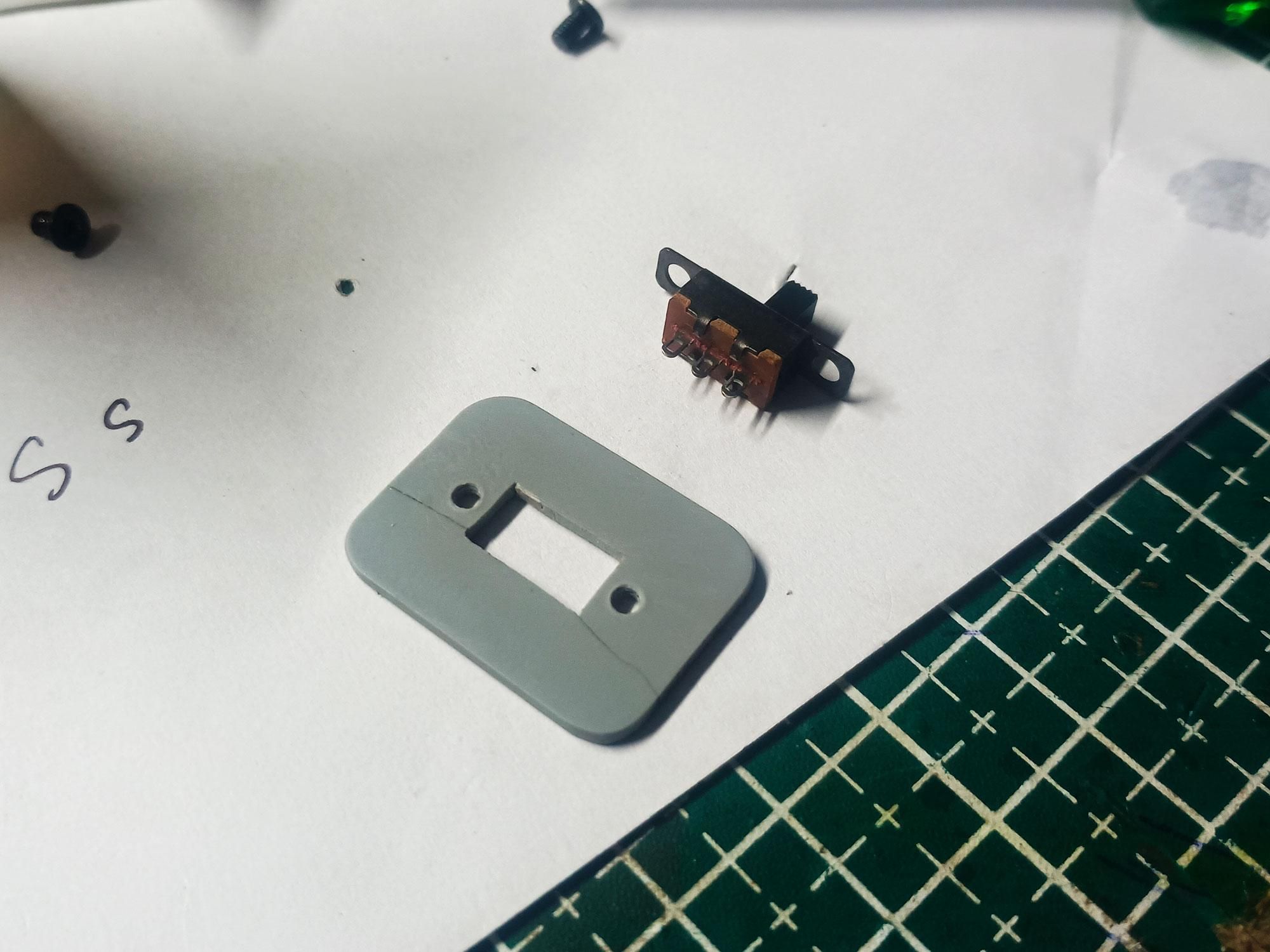

- Mount the metallic toggle switch into the top panel.
- Mount your 10k potentiometer nearby, threading its shaft through the PVC skin and securing it with the faceplate nut. Pop a vintage or industrial-style knob onto the shaft.
- Place the LM317T Dimmer Circuit inside the lower internal cavity near the ventilation grill for airflow.
- Take your multi-colored structural wires (red, black, green, blue) and solder them to the main circuit paths inside the upper cavity.
- Feed these wires out through the upper exit hole at the back of the chassis. Bundle them neatly, let them loop naturally in an elegant curve down the spine of the lamp, and feed them back through the lower entry hole to connect to the Dimmer circuit and LED.

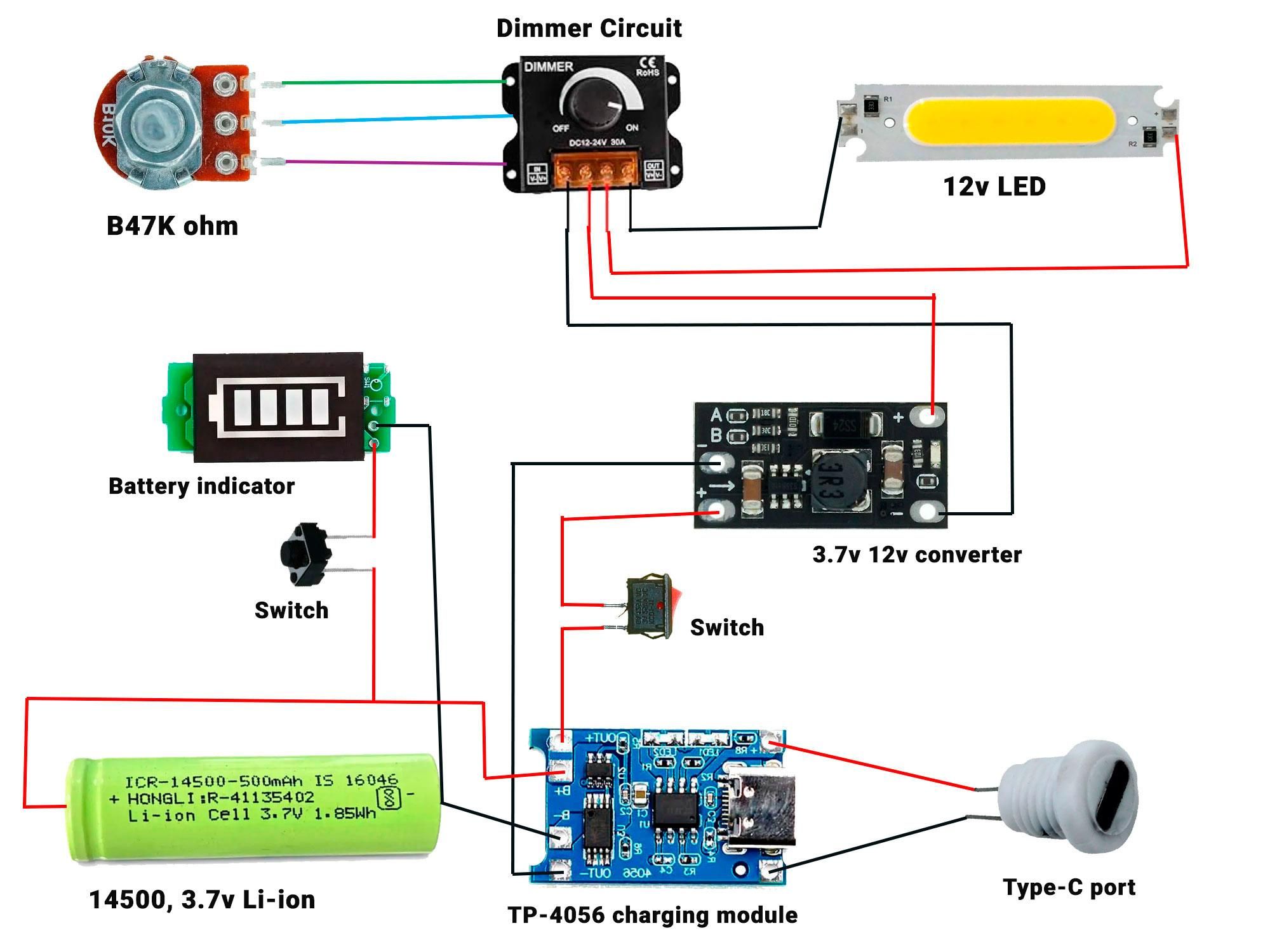

Here I connected the main input power lines to an external Type Connector then to the charging module, thus we can charge the the battery from outside with a clean look.
Mixing the Glowing Liquid Formulation
The visual centerpiece of this entire build is the glowing, radioactive-looking fluid inside the fuel cells. To achieve a vibrant, high-impact glow that doesn't fade or settle over time, we use a simple and safe fluorescent mixture.
🧪 Formulating the Fluid :
- Take a standard neon-green highlighter marker. Using a pair of pliers, carefully pop open the back cap or split the plastic casing to extract the felt ink reservoir from the inside.
- Drop the ink reservoir into a small container filled with about 100-200ml of distilled water. (Using distilled water is crucial because tap water contains minerals and impurities that will cause bacteria or algae to grow inside your sealed vials over time.)
- Squeeze the felt cartridge with gloved hands to extract all the concentrated pyranine dye until the water becomes an incredibly rich, translucent neon green.
Mounting and Securing the Vials
With the chassis painted, the electronics wired, and the fluid permanently sealed, it is time for the final mechanical marriage: mounting the glowing fuel cells into the main frame.
- Filling the Fuel Cells:
- Using a clean syringe or an eye-dropper, transfer the fluid into your four glass vials.
- The Aesthetic Detail: Fill each vial to a slightly different height (e.g., 60%, 80%, 75%, 90%). This gives the illusion that the battery cells are actively discharging or consuming energy at different rates.
- The Final Seal:
- Ensure the inner rim of the glass vials is completely dry.
- Apply a solid bead of clear two-part epoxy or silicone sealant around your rubber stoppers or caps, press them firmly into the vials, and let them cure completely before inserting the cells into the wooden/PVC chassis.
- Inserting the Vials:
- Gently slide the top of each vial into the upper chassis recess first, then swing the bottom into its corresponding lower slot.
- Arrange the vials so that their varied fluid levels look balanced from left to right (e.g., staggering the high and low fluid levels to create a dynamic visual rhythm).
- Locking Them in Place:
- For a permanent, rock-solid bond, you can apply a few drops of clear two-part epoxy or high-strength clear construction adhesive behind the top and bottom rims where the glass meets the frame.
- Connecting the Fluid Tubes:
- To give the prop an authentic, industrial look, we are going to add an external fluid transport tube that looks like it is carrying glowing radioactive coolant to power cells from bottom chamber to top chamber. Here I took a Clear flexible vinyl tube, filled it with glowing liquid, sealed both the ends with broken gas lighter parts and inserted onto the connecting pipe joints.
- Finally slide the Acrylic glass panel into the frame and you are done.
Tip : Over months of exposure to daylight and your circuit's LEDs, organic highlighter dyes can slowly break down and lose their vibrancy (a process called photobleaching). To prevent this and make your nuclear lamp last for years, add one drop of clear isopropyl alcohol (rubbing alcohol) or a drop of clear liquid sanitizer to the mixture before sealing. This prevents any microscopic mold from spoiling the liquid and helps stabilize the dye!

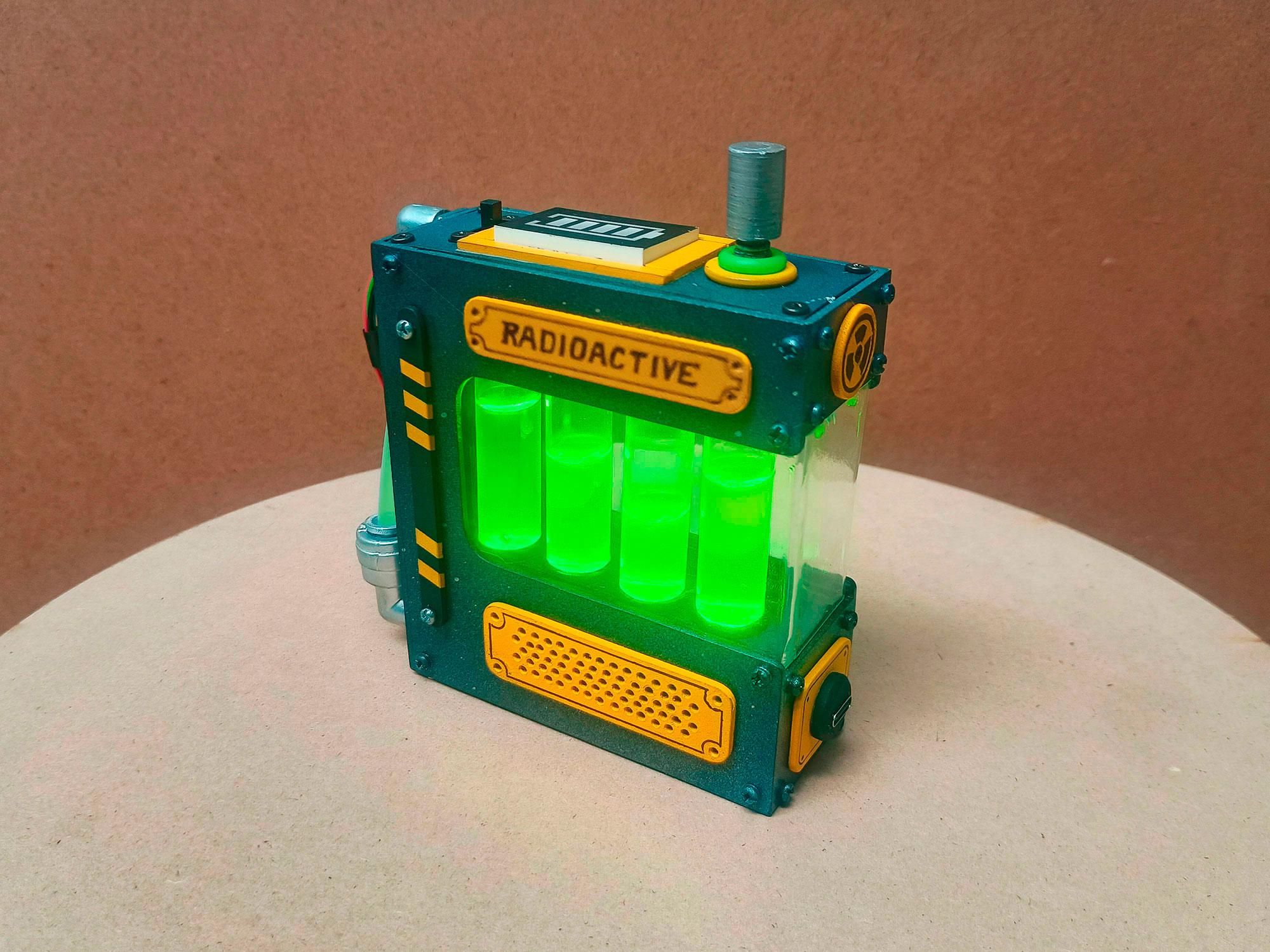

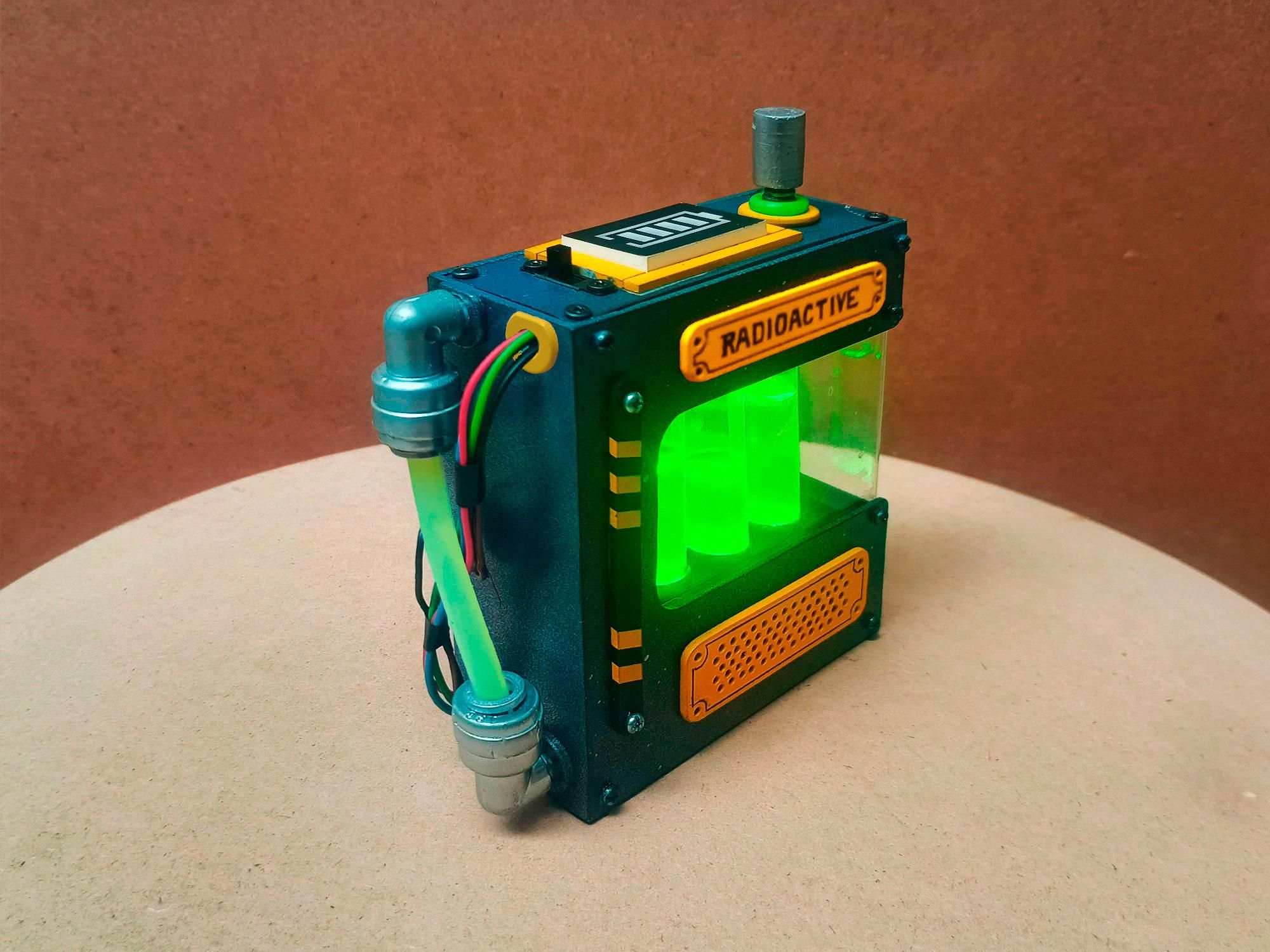

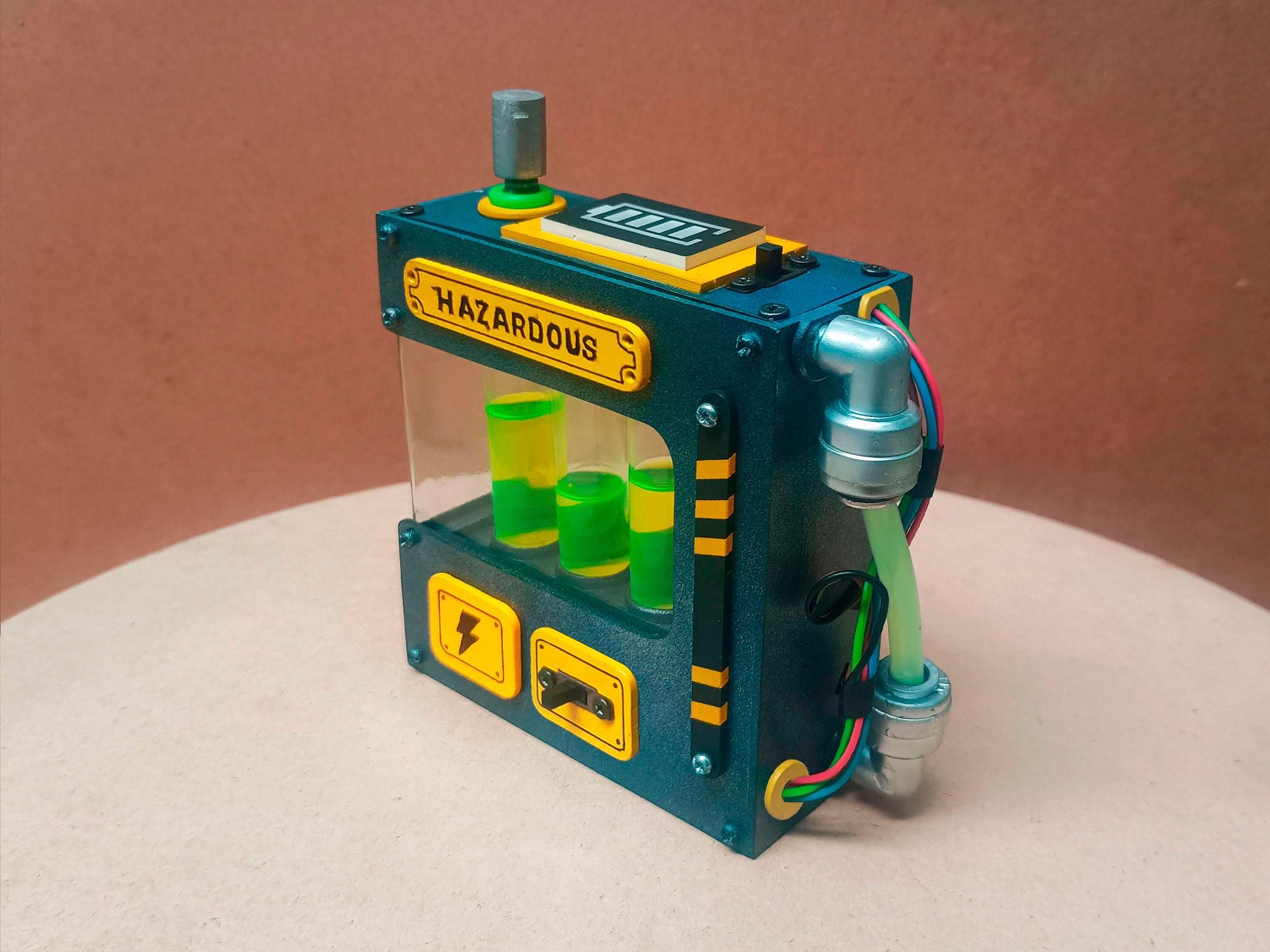

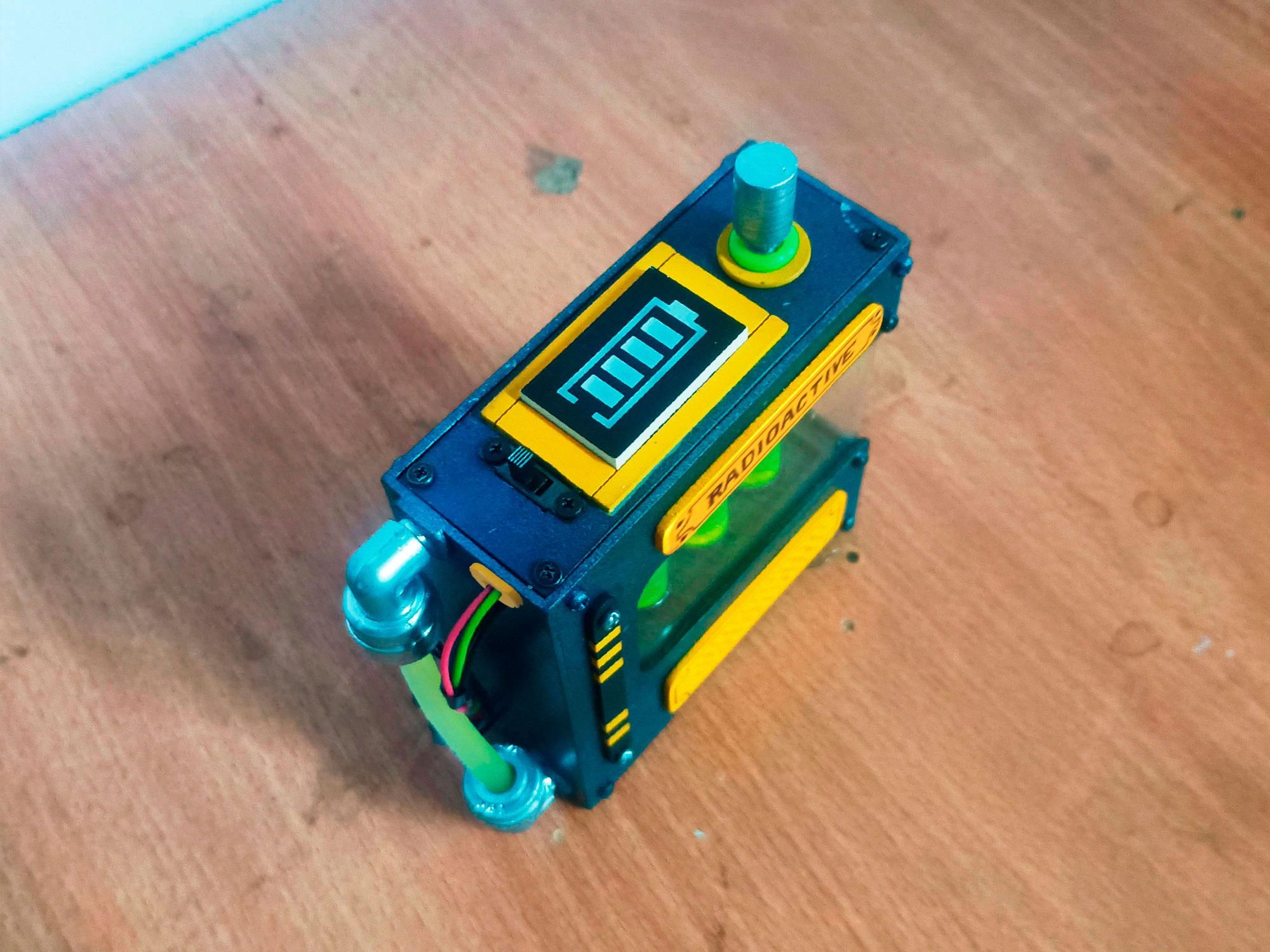

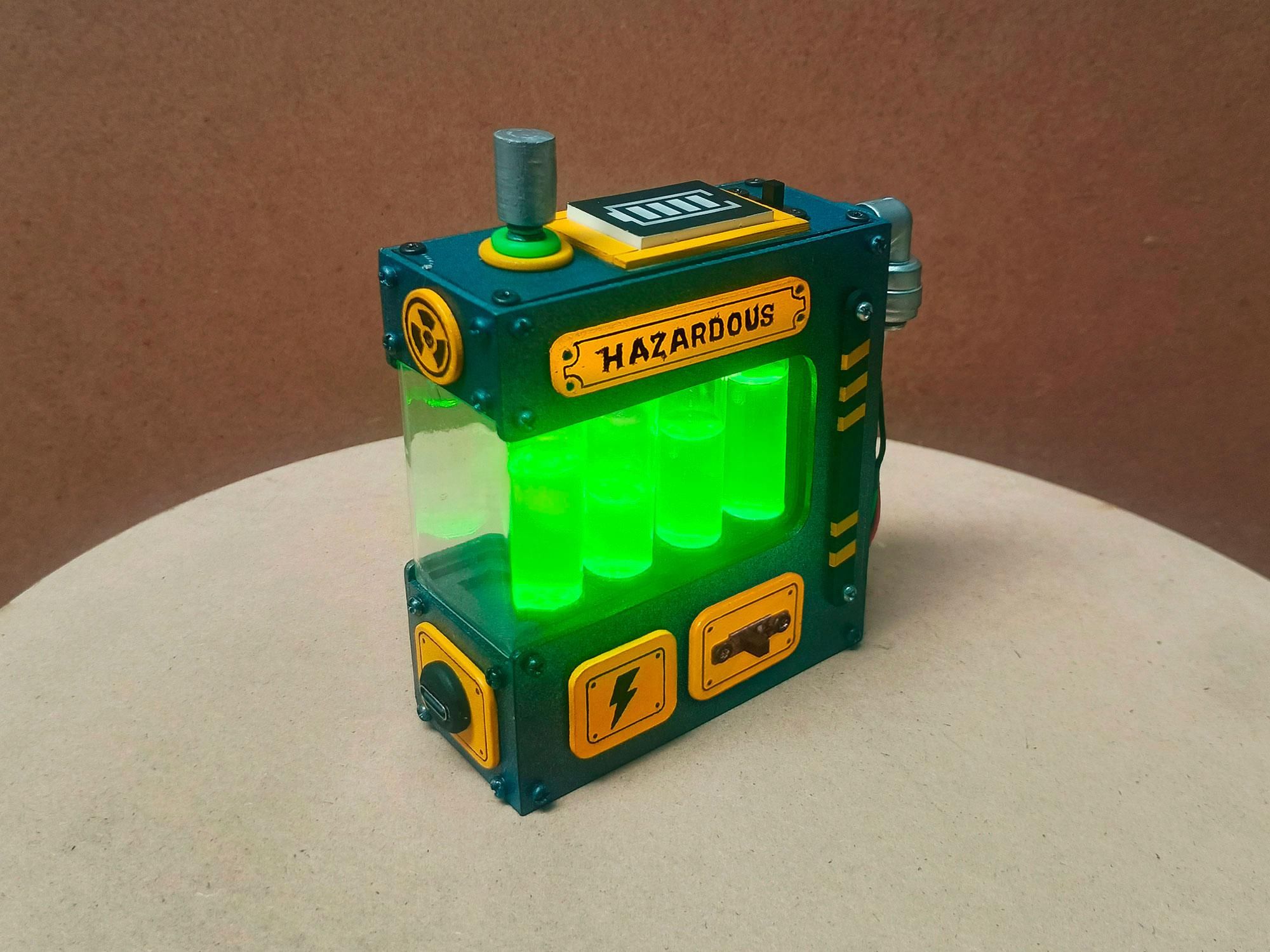

The Finished Sci-fi Nuclear Battery Concept Lamp
Congratulations! You have successfully built a stunning, scratch-built Sci-Fi Nuclear Core Battery Lamp.
By transforming simple, accessible workshop materials like wood battens and PVC sheets into an intricate, multi-layered prop, this project proves that incredible craftsmanship doesn't require a 3D printer or high-end machinery. The fusion of precise hand-tool fabrication, a custom LM-317T-based linear dimmer circuit, and a beautifully stable fluorescent fluid formulation creates an ambient light piece that commands attention in any room.
🟢 Pros (Project Benefits) :
- Accessible Fabrication: No expensive 3D printers or CNC machines are required, anyone with basic hand tools can replicate this build.
- Highly Custom Ambient Dimming: Unlike simple ON/OFF switches, the integrated dimmer circuit allow for smooth brightness control.
- Zero-Settling Fluorescent Core: Utilizing a distilled water and stabilized pyranine dye formulation ensures the liquid core stays perfectly vibrant and clear without particles settling to the bottom over time.
⚡ Advantages of Hand-Craftsmanship :
- Structural Weight and Density: The solid wood skeleton core gives the lamp a premium, heavy, tactile feel that 3D-printed plastic hulls simply cannot replicate.
- Superior Surface Finishing: Flat PVC sheets lack the rhythmic layer lines of 3D prints, making it significantly easier to achieve a flawless, smoothness.
💡 Practical Uses :
- Cinematic Desk & Workshop Lighting: It serves as an incredible, high-contrast statement piece or accent light for a maker's workbench, studio desk, or gaming setup.
- High-End Cosplay & Filmmaking Prop: Due to the realistic mechanical toggle switch, exposed wiring loom, and authentic weathering, this lamp doubles as a movie-ready prop for sci-fi, cyberpunk, or post-apocalyptic short films and costumes.
- Educational Electronics Display: This project is a fantastic hands-on teaching tool for demonstrating how linear voltage regulators function, the basics of parallel LED circuitry, and effective fluid-sealing engineering.
