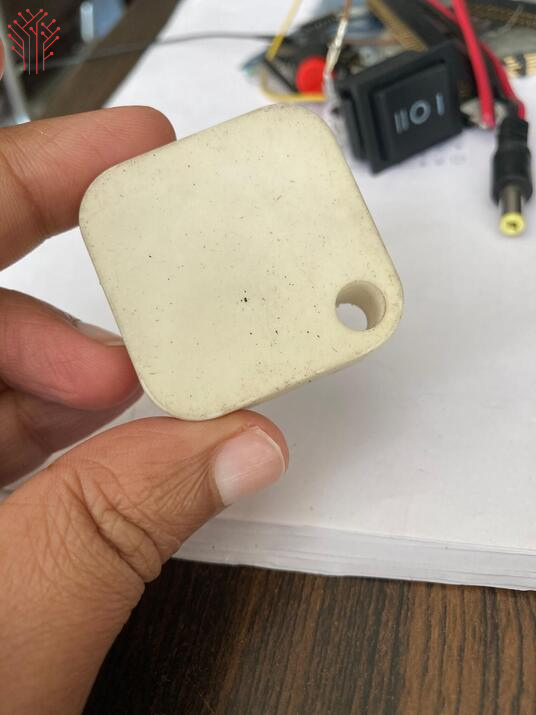

Tiny Cold Storage Monitoring Device Based on Matter Protocol for Communication

In the logistics solutions, Cold storage is very important especially in fruits, vegetables, meat and medicine and its necessary to have a device that can monitor the temperature data in real time, So I built this Smart cold storage monitor system based on ESP32 and used Matter protocol so the different device can communicate with each other as well as the server and the data is displayed on real time along with SOS alerts with temperature drops a certain point.

The system continuously tracks temperature and humidity conditions and sends data to a cloud dashboard for remote monitoring. We have automated the watch. If the storage environment hits a red flag, alerts go out instantly to protect inventory quality.

This project demonstrates how embedded systems and modern IoT communication protocols can improve industrial monitoring and automation applications.

1. ESP32 Development Board
2. DHT11 / DHT22 Temperature & Humidity Sensor
3. Relay Module (Optional)
4. Breadboard
5. Jumper Wires
6. USB Cable
7. Power Supply
8. Wi-Fi Connection
9. Laptop with Arduino IDE / Platform IO

The main goal of this projects to monitor cold storage conditions in real time using IoT technology.

The ESP32 constantly monitors temperature and humidity, processing data in real-time. The Matter-enabled communication system allows the device to securely transmit data across smart IoT ecosystems.

The system can:

1. Monitor environmental conditions
2. Display live data remotely
3. Send instant alerts
4. Support cooling automation using relays
5. Improve storage reliability

DHT Sensor to ESP32

1. VCC → 3.3V
2. GND → GND
3. DATA → GPIO 4

Relay Module (Optional)

1. IN → GPIO 5
2. VCC → 5V
3. GND → GND

The relay can be connected to a cooling fan or refrigeration control system for automated temperature management.

The ESP32 connects to the local Wi-Fi network and transmits sensor data using the Matter Protocol framework.

Matter Protocol helps create secure and standardized communication between smart devices, making the system future-ready and kindred with modern IoT ecosystems.

The live sensor data can be monitored through a cloud dashboard or smart monitoring platform.

The dashboard displays:

1. Current temperature
2. Humidity level
3. Status devices
4. Alert notifications
5. Historical monitoring data

This allows remote monitoring of cold storage conditions from anywhere using an internet-connected device.

If the temperature or humidity exceeds safe limits:

1. The system instantly generates alerts
2. Cooling systems can automatically activate through relay control
3. Users receive immediate notifications for quick action

This helps reduce product loss and improves storage safety.

After testing the system inside a simulated cold storage setup, the monitoring system successfully:

1. Detected environmental changes in real time
2. Maintained stable Wi-Fi communication
3. Alert notifications sent during abnormal conditions
4. Displayed live monitoring data
5. Supported automated cooling control using relay integration

The ESP32-based architecture also maintained low power consumption suitable for long-term deployment.

This project can be upgraded further with:

1. Multiple sensor support
2. Battery backup system
3. Mobile application integration
4. AI-based predictive monitoring
5. GSM/4G communication backup
6. Industrial-grade enclosure design

This Smart Cold Storage Monitoring System using Matter Protocol establishes how IoT and embedded systems can modernize traditional refrigeration monitoring. By combining ESP32, environmental sensors, cloud connectivity, and Matter-enabled communication, the project provides a reliable and scalable solution for industrial cold storage applications.

The system improves reduces product loss, oprational productivity and enables smarter environmental monitoring for modern industries.

If you are looking to hire IoT developers for custom embedded systems, industrial automation, or smart monitoring solutions, this project establishes a practical real-world IoT implementation.

To explore the complete working model, circuit connections, and implementation details, visit the full project here: Cold Storage Monitoring Using Matter Protocol.
