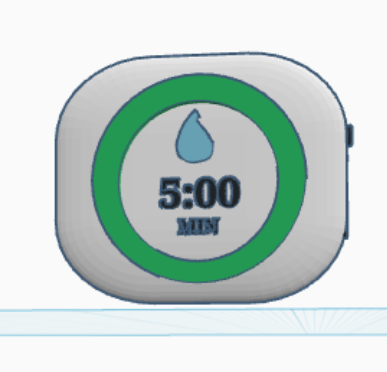

Smart Shower Timer

I designed and created a smart shower timer that will alert you when you have spent enough time in the shower. This device helps you save water efficiently and is eco-friendly. It is made of rubber and has a suction cup on the back of it that will allow you to stick it on the wall without is falling or sliding off.

https://www.tinkercad.com/things/iaSb7WQM5ve-fantastic-wolt, Chromebook

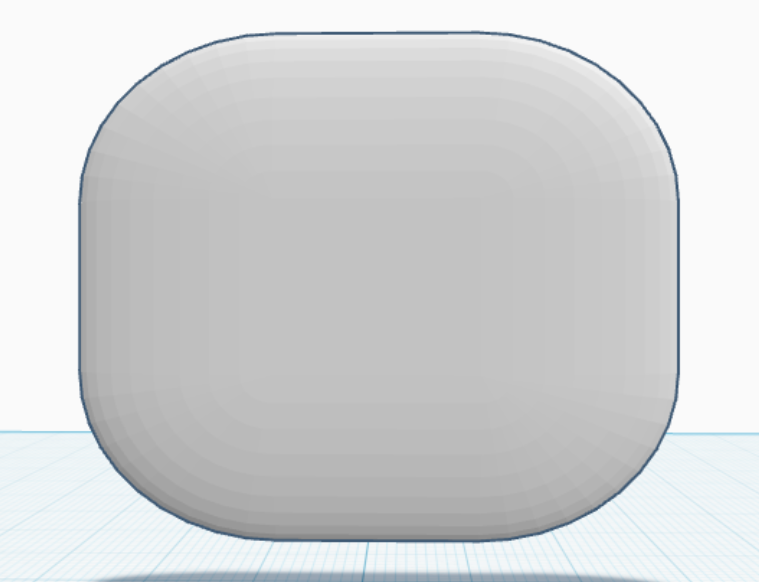

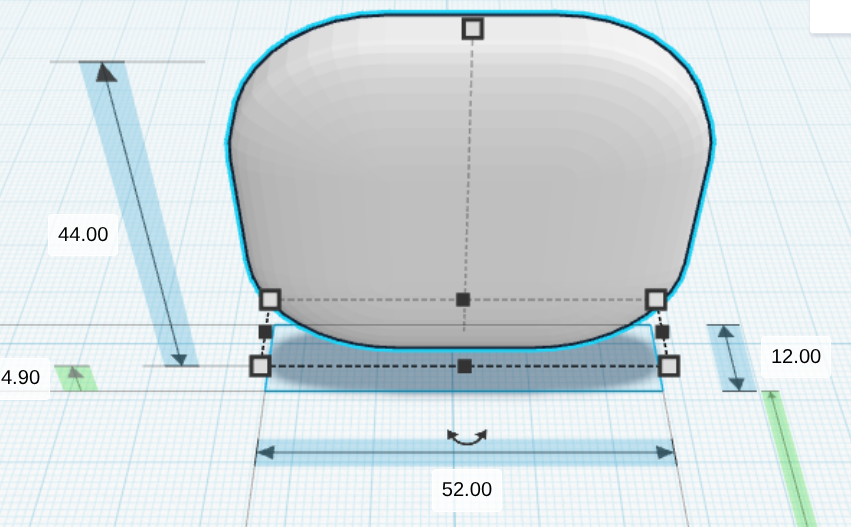

The first step was to add the base. I used the cube shape on TinkerCad, made it a little bigger (width = 12, length = 52, height = 44), and changed the radius to 6.64.

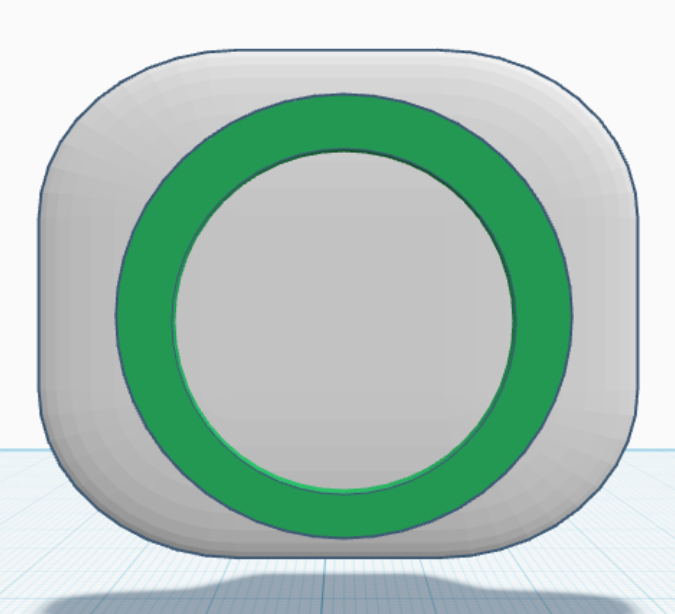

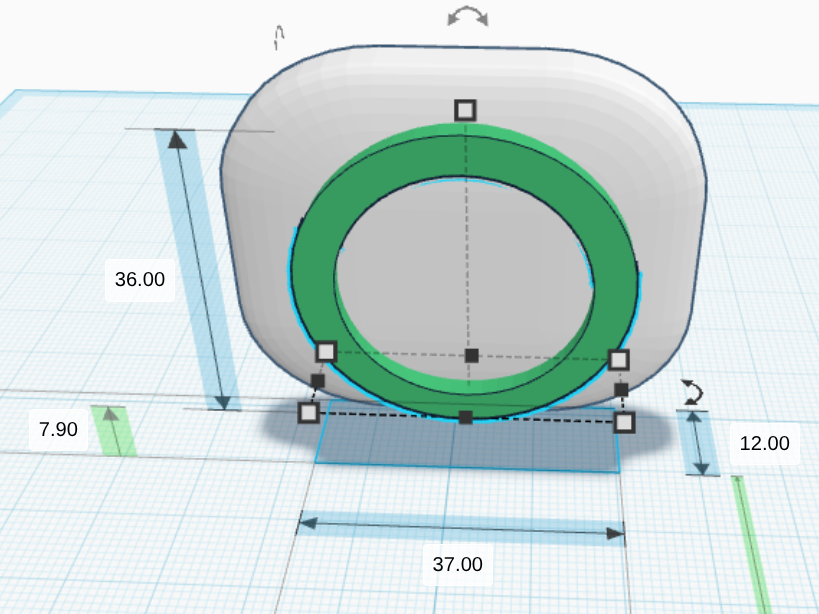

The next step was to add the LED Ring around the base, that will change color based on how much time you have left for your shower (Green: 10-5 min, Yellow: 5-3 min, Red: <2 min) The dimensions of this circle are shown below

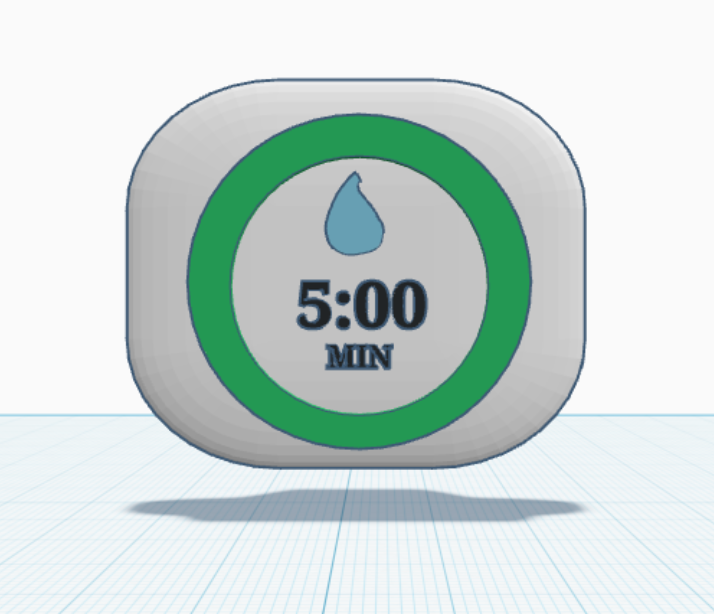

After adding the LED Ring, I used the text and scribble tools on TinkerCad to write out the time and draw a picture of the water drop.

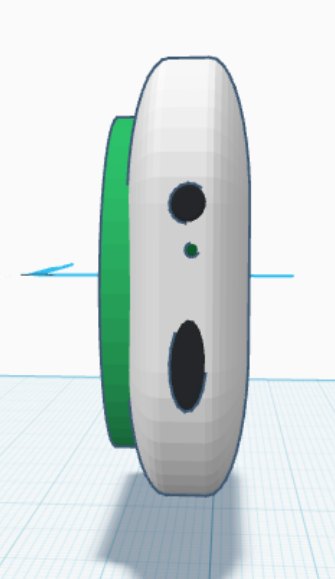

Furthermore, I added the on/off button, the charging signal and the charging port. I used cylindrical shapes to create these elements, and I think that they realy elevated the look because it filled up unused space.

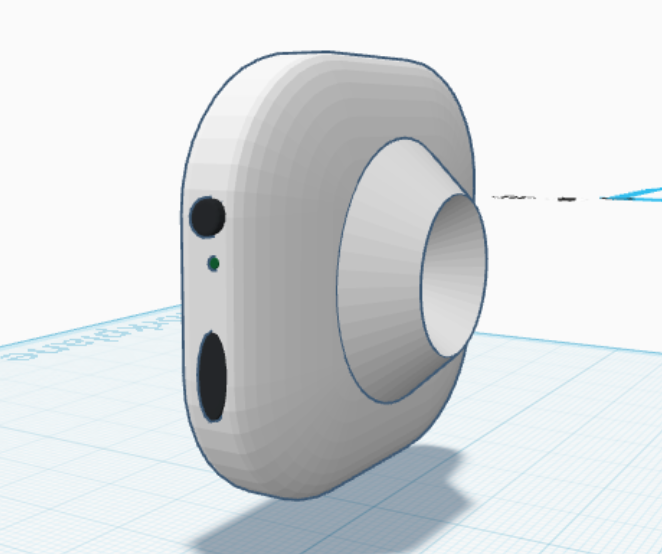

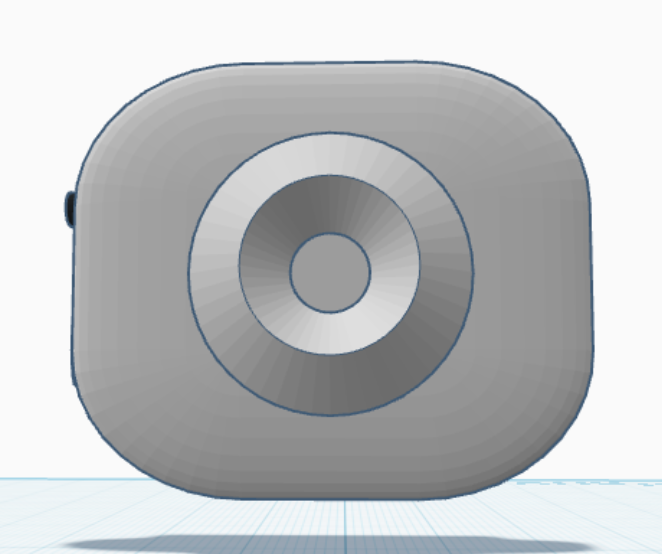

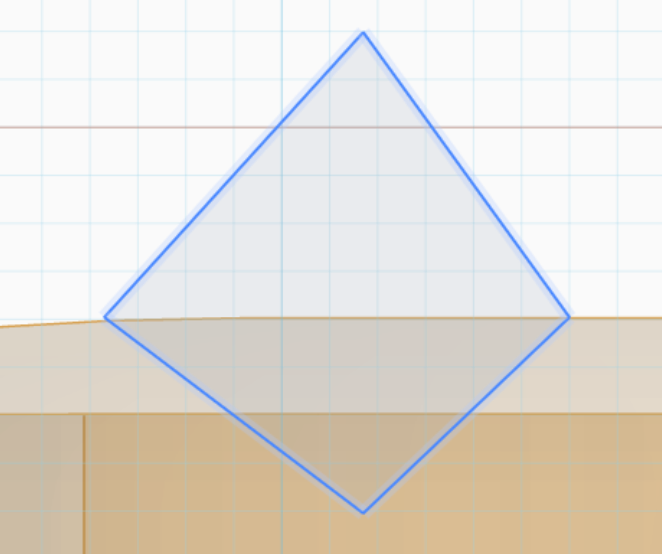

The last step of designing this device was to add the suction cup on the back to make it stick to the wall. To create this, I used the revolve sketch tool and made the shape shown below on the graph.
