Victorian Zoetrope Replica

Before the era of digital CGI and high-definition screens, there was magic in the mundane. Imagine a time when movement was captured not by pixels, but by the clever manipulation of light, shadow, and a spinning drum. This is the Zoetrope—the "Wheel of Life."

Originally patented in the 1830s, the Zoetrope became a Victorian parlor staple, mesmerizing audiences by turning a series of static drawings into a seamless, looping animation. It relies on a biological "glitch" known as persistence of vision, where the human brain retains an image for a fraction of a second longer than it appears. When viewed through the narrow slits of a spinning drum, these images blur into a living story.

Whether you're a fan of early cinema, a student of physics, or just someone who loves a beautiful mechanical challenge, this build will show you how to "animate" history from the ground up.

The Pedestal & Base:

Hardwood blank: For the turned pedestal.

Wooden dowel: As the primary vertical axis.

Plywood: For the circular floor of the drum (cut to size).

Ball bearing: A small, high-precision radial bearing to ensure a frictionless, long-lasting spin.

Adhesives: High-quality wood glue and PVA glue (thinned for sizing).

The Optical Drum:

250gsm Cardstock: Body of drum

Paper glue

Tools:

The Lathe & Turning Set: Including a roughing gouge, spindle gouge, and parting tool for detailing the pedestal.

Paint spraying gun: for coating with paint and sealer.

Drill Press or Hand Drill: Equipped with a Forstner bit (sized to your bearing's outer diameter for a snug press-fit).

Jigsaw: To cut the circular floor of the drum.

Layout Tools: Tape measure, pencil, and a compass for precise geometry.

Cutting Tools: Box cutter (with fresh blades) and precision scissors for the shutter slits.

Finishing Kit: Sandpaper (ranging from 80 to 400 grit), wood stain (dark "Antique" tones work best), and a clear sealer or wax finish.

Hardware: A single finishing nail (to act as the top pivot pin).

For this build, I repurposed a cylindrical wood blank measuring 4 inches in diameter by 6 inches tall. This size provides enough "heft" to act as a ballast, ensuring the device remains stationary while the drum is spinning.

Before hitting the power switch, I performed a visual layout of the pedestal’s profile. Using a pencil, I marked the locations for the "beads" (the rounded convex bumps) and "coves" (the concave valleys). To honor the Victorian aesthetic, I designed a tapered silhouette: a wide, sturdy base that transitions through a series of decorative beads into a narrow, refined top.

Once mounted securely on the lathe, I used a spindle gouge to begin the shaping process.

The Base: I kept the bottom 1.5 inches at nearly full diameter to maintain a low center of gravity.

The Detail Work: I carved two distinct beads in the center of the pillar to catch the light and provide that classic "turned" look.

The Taper: I gradually thinned the top of the pedestal, creating a graceful upward slope. This "top-heavy" visual contrast is a hallmark of 19th-century furniture design.

Wood is naturally porous, and if you apply paint directly, the grain will "raise," leaving a fuzzy, amateur texture. Here is how to achieve a professional, high-gloss "piano" finish.

I began by coating the turned pedestal in a thinned PVA solution (glue sizing). This penetrates the wood fibers and hardens them in place.

Once the first coat dried, I sanded the surface smooth using a fine-grit sandpaper.

I repeated this process twice. This effectively seals the "end grain" (which is particularly thirsty on the beads and coves) and creates a non-porous canvas for our colors.

Rather than using a basic off-the-shelf spray can, I mixed a custom "Antique" solution to give the piece depth. I combined:

Sanding Sealer: To provide a high-build body.

Black and Brown Pigments: To create a deep, rich "Umbrian" chocolate-black that looks more historical than a flat modern black.

Thinner: To ensure the mixture atomized perfectly through the pneumatic sprayer.

Using the pneumatic sprayer, I applied the pigment in light, even passes. This method avoids the "drips" associated with brushes and preserves the crisp edges of the lathe work. After the pigment layer was dry to the touch, I applied a final spray-coated varnish to provide a protective, high-luster seal.

A zoetrope lives or dies by the smoothness of its rotation. To achieve a "frictionless" spin, we’re moving away from a simple pin-and-hole design and moving toward a ball-bearing assembly integrated into a rigid plywood base.

1. Layout and Geometry

Using a trammel point (or compass), I marked two concentric circles on a sheet of plywood:

The Outer Diameter: 13cm, which defines the floor of the optical drum.

The Bearing Recess: A smaller inner circle perfectly matched to the outer diameter of the ball bearing.

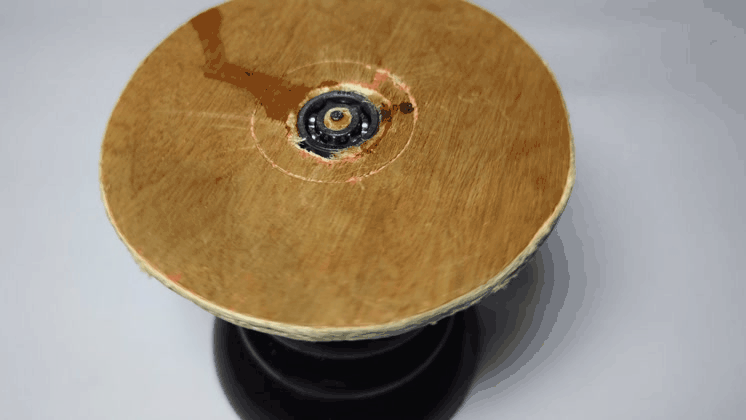

The Bearing Pocket: Using a Forstner bit on a drill press (or hand drill), I bored out the center recess. The depth was carefully set so the bearing sits flush with the wood surface.

The Drum Floor: I then switched to a jigsaw to cut the 13cm outer circle. After cutting, I sanded the edges smooth to ensure the drum rotates without catching the air or being off-balance.

The magic of this build is in the interference fit. I "pressed" the ball bearing into the plywood recess; if the hole is sized correctly, the friction alone will hold the bearing securely without needing messy adhesives.

To connect the base to the pedestal:

I cut a wooden dowel to act as the vertical axle.

The dowel was passed through the inner bore of the bearing.

Finally, I fastened the dowel to the center of the pedestal’s top using a combination of wood adhesive and a finishing nail for instant mechanical set.

At this stage, you should have a plywood disc that sits atop your Victorian pedestal. Give it a flick—it should spin freely and silently for a significant amount of time. This rotational stability is what will eventually "freeze" our animation frames into a fluid movie.

With the mechanical base spinning smoothly, we now need to build the drum. This component is responsible for the stroboscopic effect—the rapid blocking and revealing of images that creates the illusion of life.

Download and print the provided templates. For the best results, use heavy-weight cardstock (minimum 250-300gsm). This ensures the drum walls remain perfectly vertical and don’t warp under the centrifugal force of the spin.

The Slits: Using a fresh blade in your box cutter and a metal ruler, carefully cut out the vertical shutters. These must be perfectly uniform; any variation in width will cause the animation to "flicker" or look jittery.

The Drum Walls and Floor: Cut the long strips that will form the circumference of your 13cm base and the the black circular disc.

The Gold Rims: Cut out the decorative gold foil or paper rims. These serve a dual purpose: they provide a classic Victorian "brass" aesthetic and add structural rigidity to the top and bottom edges of the drum.

In a zoetrope, light management is everything. To prevent "ghosting" (where light reflects off the floor and blurs the image), we must maximize contrast.

Take the matte black disc template and glue it directly onto the top of your plywood drum base.

This creates a "light sink" inside the device, ensuring that the only thing your eye focuses on is the brightly colored animation strip against a void-like background.

Wrap the drum wall around the plywood base, securing it with paper glue. Ensure the bottom edge is perfectly flush with the wood. Once the wall is secure, finish the piece by applying the gold rims to the top and bottom. This hides the raw edges of the cardstock and gives the piece its final museum-quality flourish.

Now that the hardware is complete, it’s time to load the "software." Because our drum features 12 precision-cut slits, we must use matching 12-frame animation strips. The math here is simple but vital: each slit acts as a shutter for exactly one frame. If the frame count doesn't match the slit count, the animation will appear to "drift" or jump.

1. The Logic of the Loop

A Zoetrope's charm lies in its infinite loop. To achieve a professional-grade result, keep these two principles in mind:

Successive Progression: Each frame should represent a tiny, incremental movement of the character. The smaller the change between frames, the smoother the motion will appear.

The "Seamless Jump": For a perfect loop, the transition from Frame 12 back to Frame 1 must be a logical progression. If your character is a galloping horse, the leg position in the final frame should lead naturally back into the first.

For this project, I have included several historically accurate animation strips, including the iconic galloping horse. These designs are inspired by early pioneers like Eadweard Muybridge. Using these high-contrast, vintage illustrations enhances the Victorian aesthetic and ensures your first "test spin" is a success.

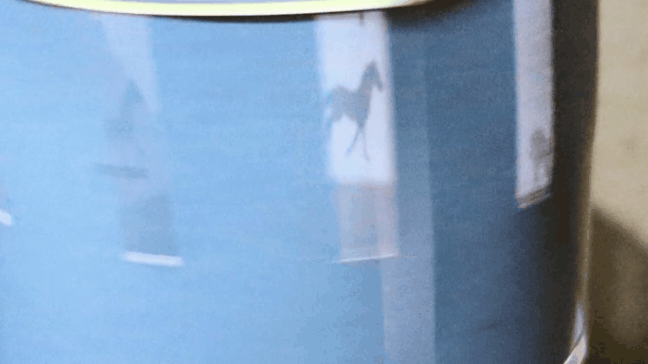

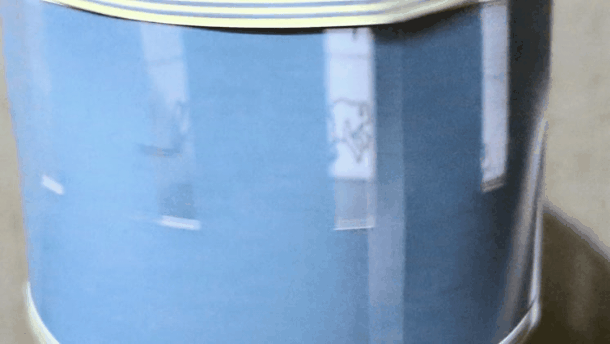

With the assembly complete and the animation strip seated, it is time for the final reveal. Operating a Victorian Zoetrope is a tactile experience that bridges nearly two centuries of optical science.

To see the magic, do not look over the rim of the drum. Instead, position your eyes at a level where you are looking through the slits at the opposite inner wall.

Lighting is Key: For the sharpest animation, ensure the interior of the drum is well-lit from above. A bright desk lamp or natural sunlight will make the "frames" pop against the matte black interior we created in Step 4.

Finding the "Sweet Spot": As the drum slows down, you’ll notice the animation change. There is a perfect RPM (revolutions per minute) where the motion blur disappears and the characters snap into sharp, fluid motion.

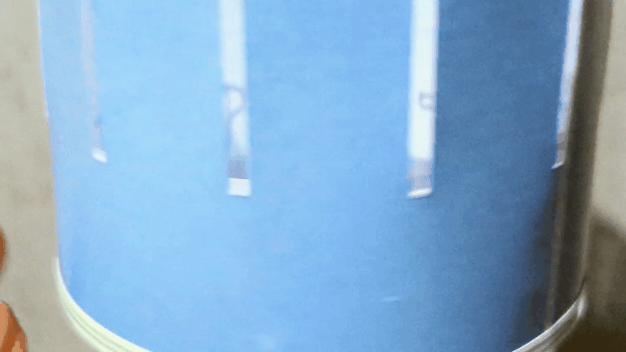

As the drum spins, the solid areas between the slits block your vision, while the slits themselves provide a split-second "snapshot" of a single frame.

Persistence of Vision: Your brain holds onto that snapshot for a fraction of a second.

The Phi Phenomenon: Before the first image fades, the next slit reveals the next frame in a slightly different position. Your brain "fills in the gaps," creating the illusion of continuous movement.

Building a Victorian Zoetrope is more than just a weekend project; it is a journey into the origins of modern storytelling. By combining traditional woodworking with the principles of optical science, we’ve taken a "found" wooden blank and basic cardstock and transformed them into a functional piece of 19th-century magic. This device stands as a tactile reminder that before we had digital sensors and high-refresh-rate monitors, we had the simple, elegant "glitch" of the human eye—persistence of vision.

I hope this project inspires you to look back at historical mechanisms and find new ways to bring them to life in your own workshop.

Happy making!
