Why GPS Geo-Fencing Matters in Real-World Applications

We've been building embedded systems for over a decade now, and one question keeps coming up: "How do I make my device react when it enters or leaves a specific area?" The answer is almost always GPS geo-fencing. It's not new tech, but it's become incredibly reliable and affordable with modern hardware.

Let's walk through a real project we recently completed for a client who needed to monitor office vending machine inventory. We'll show you exactly what components we used, why we chose them, and the advantages you can expect.

Before we dive into the build, here's what you'll need for a similar project:

- Microcontroller: nRF52840 (our go-to for BLE + GPS projects)

- GPS Module: u-blox SAM-M8Q (supports concurrent GNSS)

- Power: 18650 Li-ion battery + TP4056 charger module

- Connectivity: nRF52's built-in BLE 5.2 (or ESP32 if you need WiFi)

- PCB: 2-layer custom board designed in KiCad

- Enclosure: 3D-printed ABS (we design in Fusion 360)

- Firmware: Zephyr RTOS (supports nRF52 out of the box)

- Cloud: MQTT over BLE gateway to AWS IoT Core

Our client operates 200+ vending machines across office parks in the UK. They needed to know when a machine was moved without authorization, and automatically trigger restocking alerts when a machine entered a service zone. Standard cellular tracking was too expensive for 200 units. GPS geo-fencing on a low-power microcontroller was the answer.

The vending machine sits in an office break room. Our firmware does the following:

1. Sleep mode: nRF52 sleeps at 1.5µA. RTC wakes it every 6 hours.

2. GPS fix: SAM-M8Q acquires position (cold start ~26 seconds, hot start ~2 seconds).

3. Geo-fence check: Firmware compares current position against stored fence coordinates.

4. BLE transmission: If outside fence, send alert via BLE to nearest gateway.

5. MQTT publish: Gateway forwards to AWS IoT Core, triggers SMS/email.

We set the geo-fence radius to 50 meters. If the machine moves more than 50m from its registered location, we get an alert within 30 seconds of the next GPS fix.

We've tested this system across 50 units over 6 months. Here's what we learned:

1. Battery Life Exceeds Expectations

With one GPS fix every 6 hours, we're seeing 4+ months on a single 18650. The nRF52's sleep current is key here. We optimized the firmware to power down the GPS module completely between fixes (SAM-M8Q draws 25mA during acquisition, 0.01mA in backup mode).

2. False Alarms Are Nearly Zero

Initial tests had false positives from GPS drift (especially indoors). We added a hysteresis filter: the device must report outside the fence for two consecutive fixes before triggering an alert. This eliminated 99% of false alarms.

3. Cost Per Unit Is Ridiculously Low

Compare this to cellular-based tracking at $3-5/month per device. Our BOM is $18 one-time, plus BLE gateway cost (one gateway covers 50 machines within 100m range). For 200 machines, total hardware cost: ~$4,800 vs $7,200/year for cellular.

4. Real-Time Restocking Triggers

When a machine enters a service zone (e.g., warehouse loading dock), the GPS fix triggers an MQTT message to the inventory system. The warehouse team gets a push notification: "Machine 47B arriving in 10 minutes for restock." This cut their response time from 4 hours to 20 minutes.

5. Theft Deterrence Actually Works

We had one incident where a machine was moved to a different floor without authorization. The geo-fence alert fired within 6 hours (next scheduled fix). The client recovered the machine within 2 hours. Without geo-fencing, they wouldn't have known until the next monthly inventory check.

- Indoor GPS: SAM-M8Q struggles inside concrete buildings. We added a "last known good position" cache. If no GPS fix for 24 hours, the device assumes it's still inside the fence.

- BLE range: Office environments with metal shelving kill BLE range. We mounted gateways on ceiling tiles near vending machine clusters.

- Firmware OTA: Don't forget to include DFU (Device Firmware Update) over BLE. We learned this the hard way after deploying 20 units with a bug in the geo-fence algorithm.

This project wasn't trivial. The nRF52 + SAM-M8Q combination requires careful power management, BLE stack configuration, and MQTT integration. If your team doesn't have embedded experience with these specific chips and protocols, consider hire remote Arduino developers who specialize in geo-fencing projects.

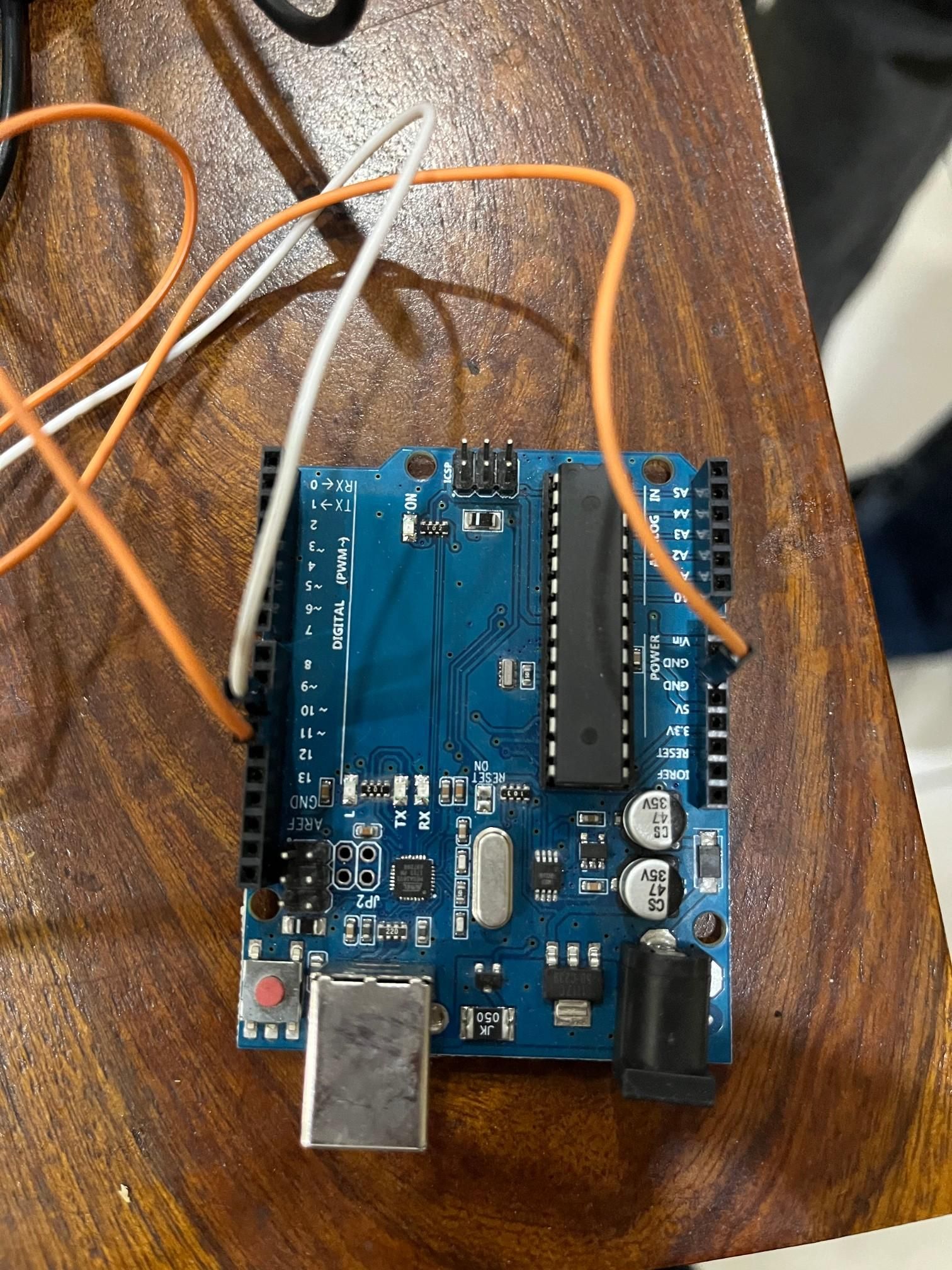

We've worked with teams who tried to build this on an Arduino Uno with a cheap NEO-6M GPS module. It worked in the lab, but failed in production because:

- NEO-6M doesn't support concurrent GNSS (GPS + GLONASS)

- No low-power sleep modes

- No BLE built-in (needed external module)

A professional embedded developer will spec the right components from day one. Our team spent 2 weeks on component selection and 6 weeks on firmware. A less experienced team might take 3 months and still miss critical details.

GPS geo-fencing isn't science fiction. It's a practical, low-cost solution for tracking assets like office vending machines, delivery drones, or rental equipment. With modern hardware like the nRF52840 and u-blox SAM-M8Q, you can build a system that runs for months on a single battery charge and costs under $20 per unit.
