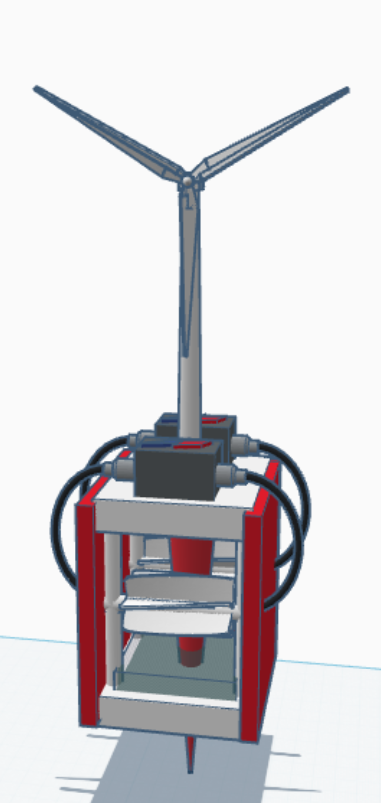

Wind Turbine, Geothermal Energy Generator

Screenshot 2026-06-03 1.12.29 PM.png
Screenshot 2026-05-28 12.49.37 PM.png

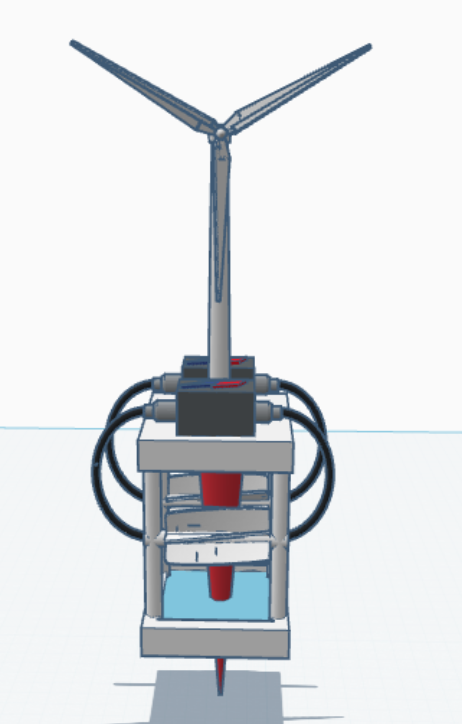

I made a design of a geothermal energy system that's intended to be placed under wind turbines as another method to obtain energy, while saving land.

Supplies

Chromebook


Tools

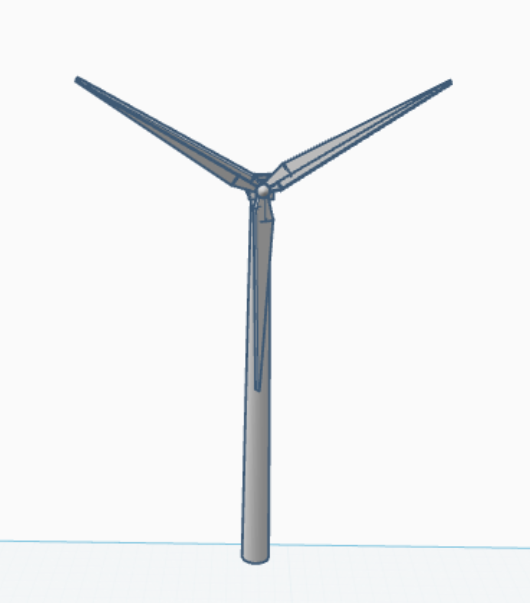

Insert the Wind Turbine

Screenshot 2026-06-03 12.54.09 PM.png

1.) Enter tinker cad, and insert a pre-built wind turbine.

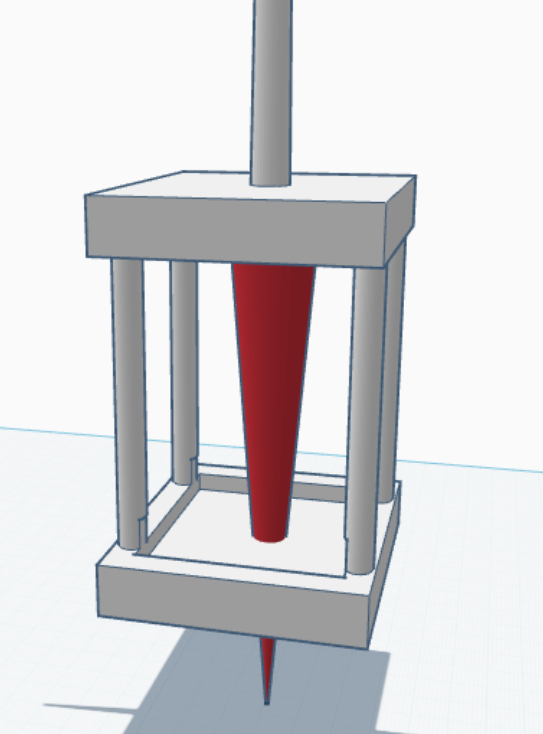

Build the Base

Screenshot 2026-06-03 12.58.23 PM.png

1.) Add a square into the bottom of the wind turbine.

2.) Add pillars to each corner, extending downwards.

3.) Add a another square into the bottom of the cylinders, and create a basin within it.

4.) To the bottom of the first base, add a cone extending downwards to impale the ground.

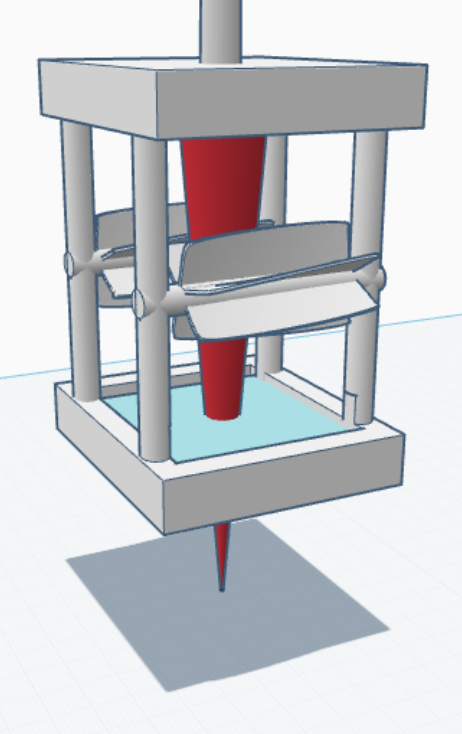

Add the Water

Screenshot 2026-06-03 1.01.35 PM.png

1.) Add water into the previously made basin

2.) Put two more pillars, horizontally that connect the pillars.

3.) Add fans onto the horizontally pillars.

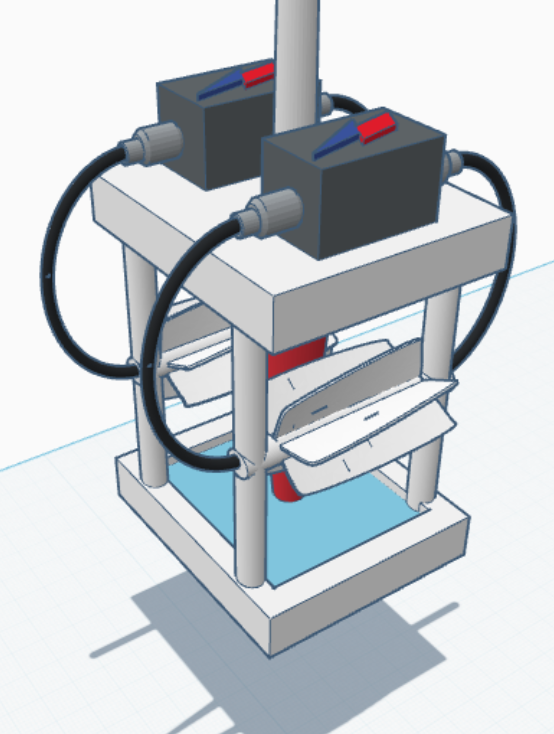

The Generators

Screenshot 2026-06-03 1.02.19 PM.png

1.) Insert two squares, and extend, and manipulate them into square prism.

2.) Add two lightning logos on top of each generator.

3.) Connect wires from the generators, to the fans, and the fans as they rotate will generate electricity.

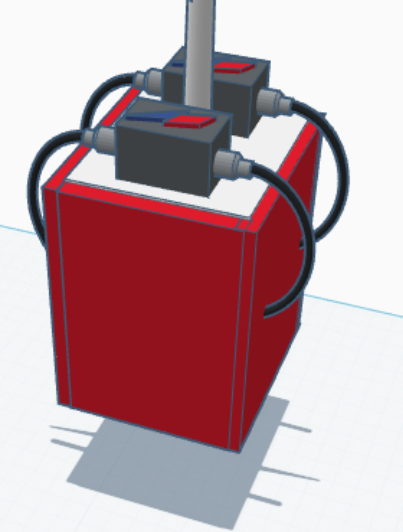

Adding Walls

Screenshot 2026-06-03 1.11.21 PM.png

1.) To the base we'll add walls to keep the water inside.
