Wood Shelf With Metal Brackets

In this project, you will learn how to build strong and visually clean wood wall shelves supported by custom steel brackets. These shelves combine Red Heartwood with hand fabricated metal supports to create a durable and industrial style design that can hold significant weight while still looking professional.

Instead of using store bought brackets, the brackets in this project are custom made from strip steel. This allows you to control the exact size, strength, and fit of the supports so they match the shelves perfectly. The process includes cutting and finishing hardwood boards, fabricating steel brackets by cutting, drilling, welding, and bending metal, and then assembling everything into a finished shelf system.

The wood is carefully sanded, stained, and sealed with polyurethane and clear coat to protect the surface and pop the natural grain of the heartwood. The steel brackets are cleaned, welded, shaped, and painted to create a strong mounting system that also gives the shelves a clean industrial look.

By the end of this project you will have a set of durable custom built shelves that are stronger and more unique than typical store bought options, while also gaining experience working with both woodworking and metal fabrication techniques.

Wood

1. 10 ft and 6 ft boards
2. 1.25 in thick
3. 7.5 in wide
4. red heartwood (or similar hardwood)

Steel

1. 4 pieces of strip steel
2. 10 ft long
3. 2 in wide
4. 0.125 in thick

Hardware

1. #10 black 1-1/4 in drywall/wood screws
2. Matching drywall anchors
3. Wood stain to your desire
4. Polyurethane
5. Clear gloss coat

Chemicals / Supplies

1. Acetone / Isopropyl alcohol
2. Soap
3. Hot Water
4. Spray paint
5. Cardboard
6. Rags
7. Sponge brush
8. Fine cloth or sock

Tools

1. Horizontal band saw
2. Drill press
3. 0.25 in drill bit
4. Countersink bit (0.45 in)
5. Welder
6. Angle grinder
7. Torch
8. Hammer
9. Sandpaper
10. Measuring tape
11. Marker
12. Bucket
13. strait edge (ruller, square)

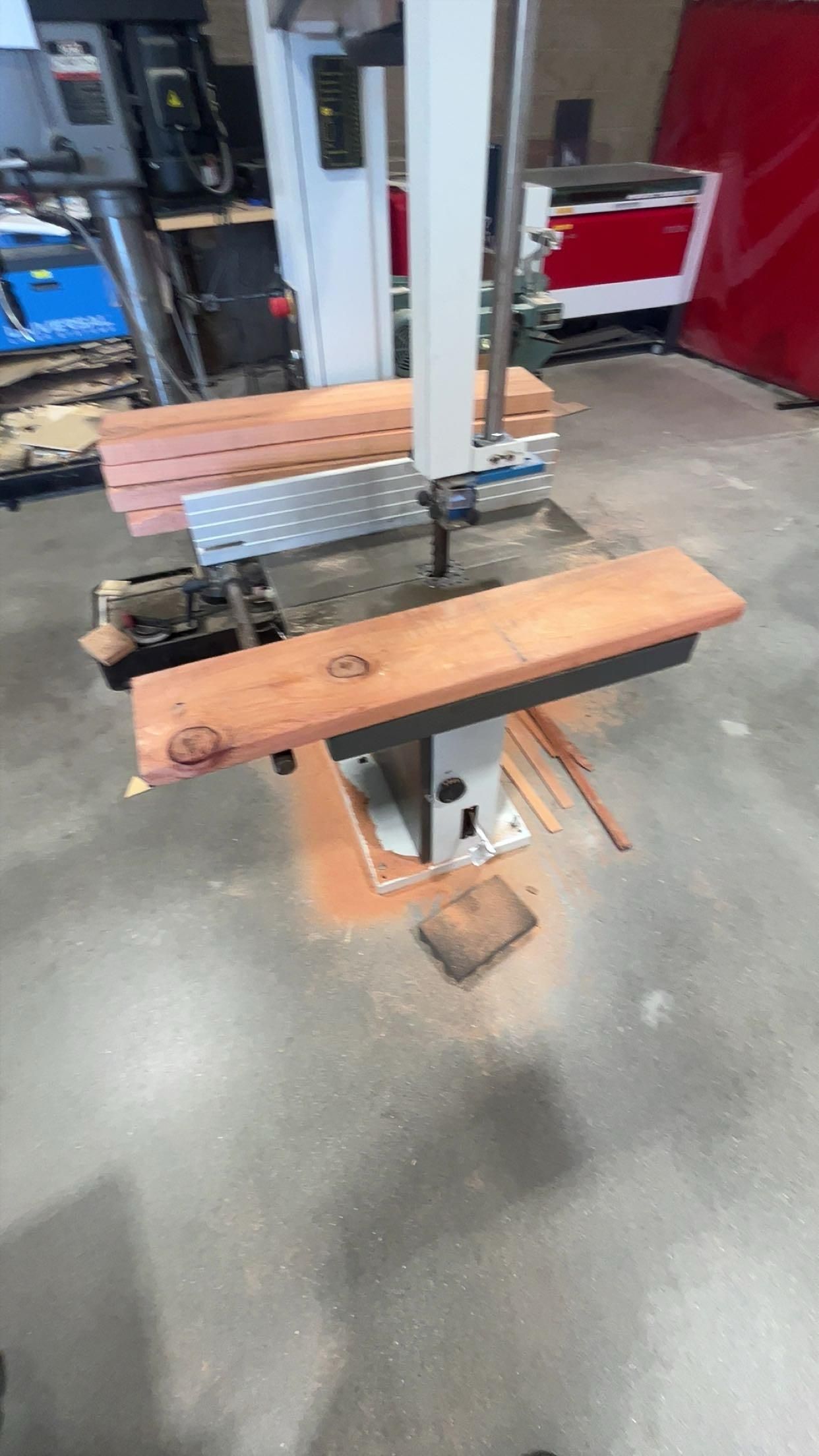

Begin by preparing the wood boards that will become the shelves. Start with boards that measure approximately 1.25 inches thick and 7.5 inches wide. These boards come in 10 foot and 6 foot lengths. Using a saw, cut the boards into 5, 3 foot boards These boards will become the individual shelf pieces. use your remaining 1 foot leftover piece as a test piece your will need this Take your time during this step and measure carefully before cutting to ensure that every shelf is the same length. Consistency will make installation easier later in the process.

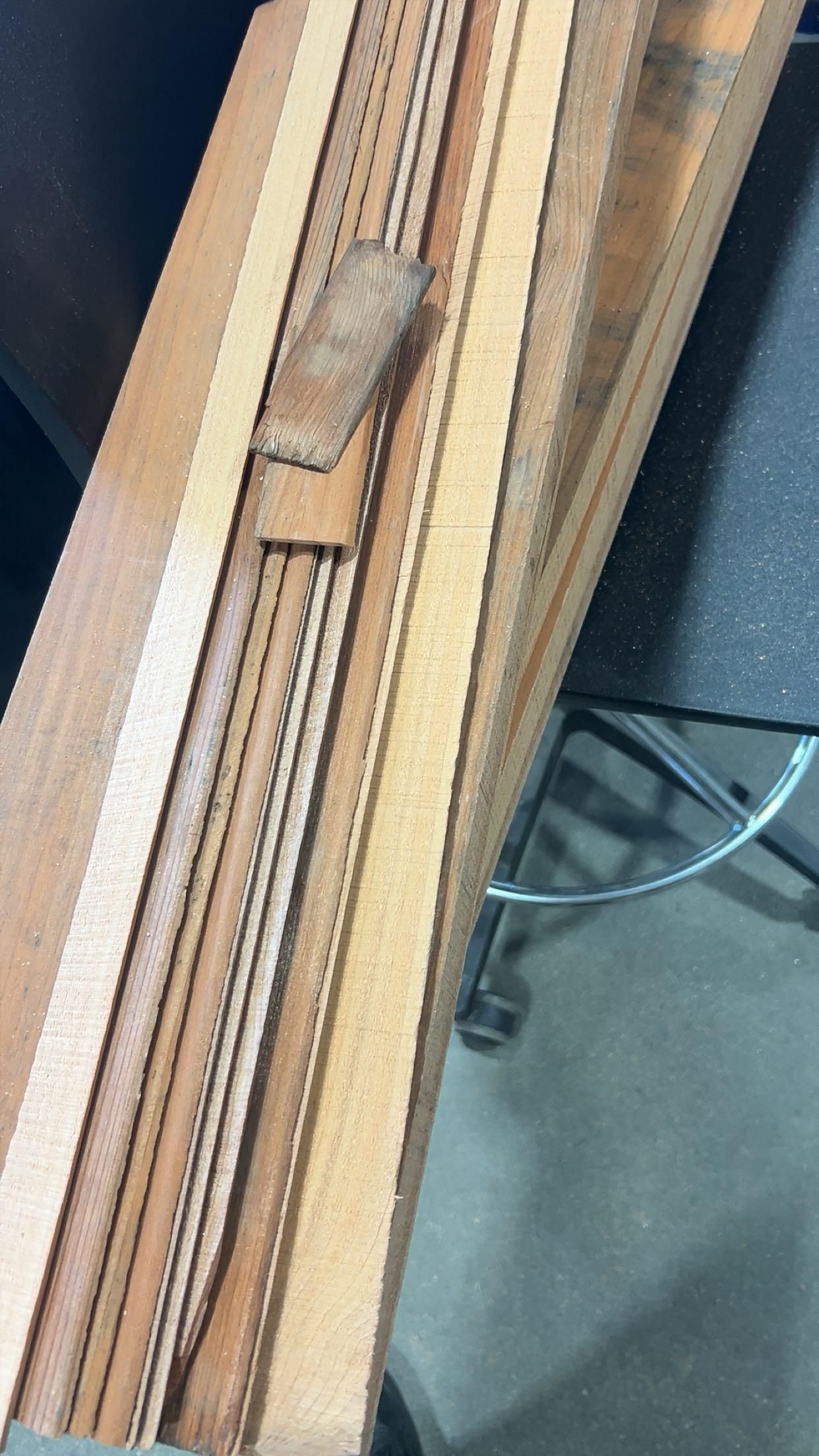

After cutting the shelves to length, the edges will likely be slightly rounded and uneven. Use your saw or a straight edge guide to clean up the sides so that each edge is straight and forms a sharp 90 degree angle. This step is important because clean edges improve both the appearance and the fit of the shelves. Straight edges ensure the brackets sit flush and the shelves line up properly when mounted.

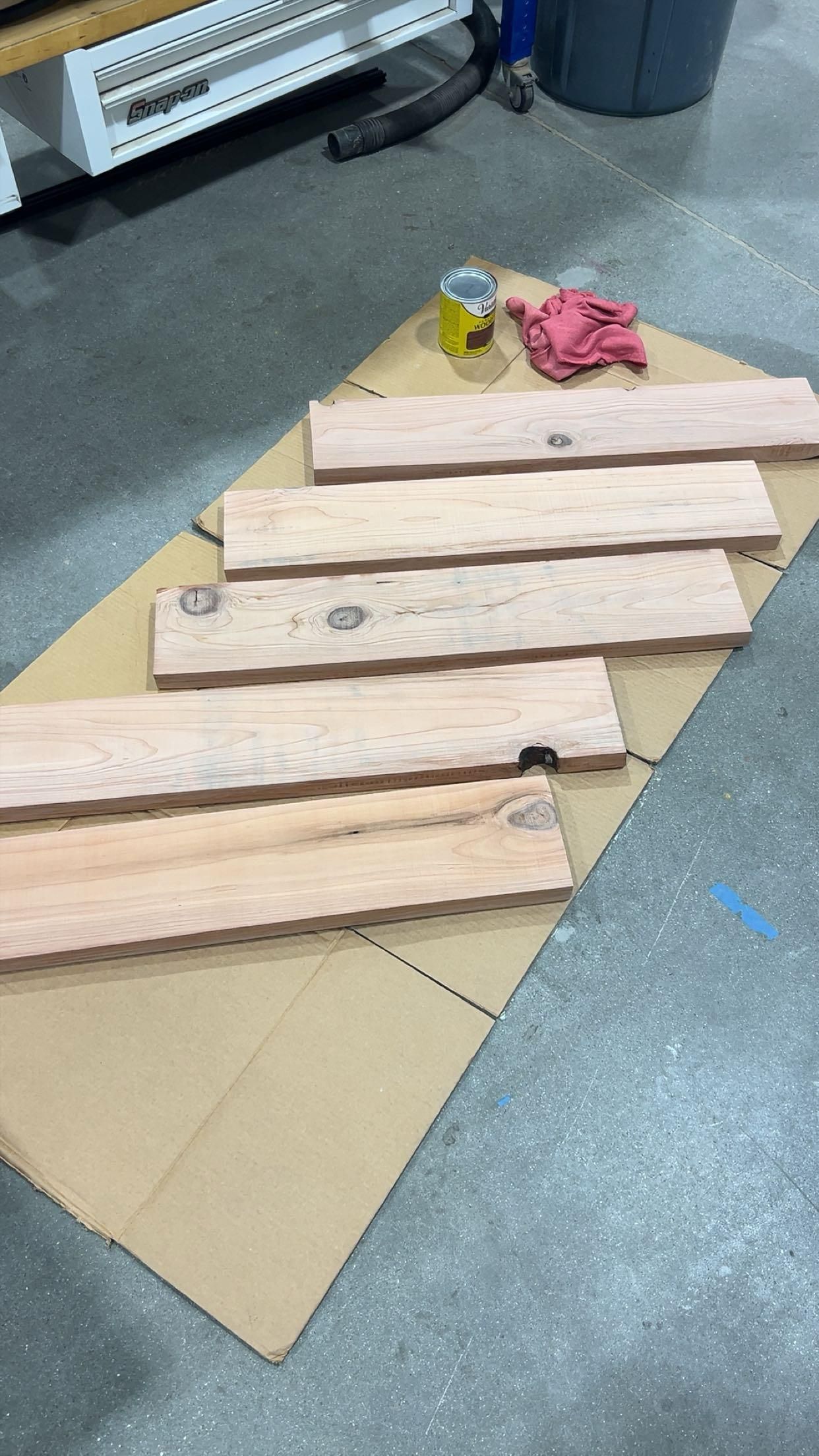

Sanding is a key step that directly affects how the finished shelves will look and feel. Start with a medium grit sandpaper to remove any dirt, saw marks, or rough spots from the surface. Make sure to sand along the grain of the wood rather than against it, as this prevents visible scratches. After the initial sanding, switch to a finer / higher grit sandpaper and go over all surfaces again. This second pass smooths the wood and prepares it for staining. Take your time during this step. The smoother the wood is now, the better the stain and finish will look later. Once finished, wipe down the wood thoroughly to remove all dust and debris.

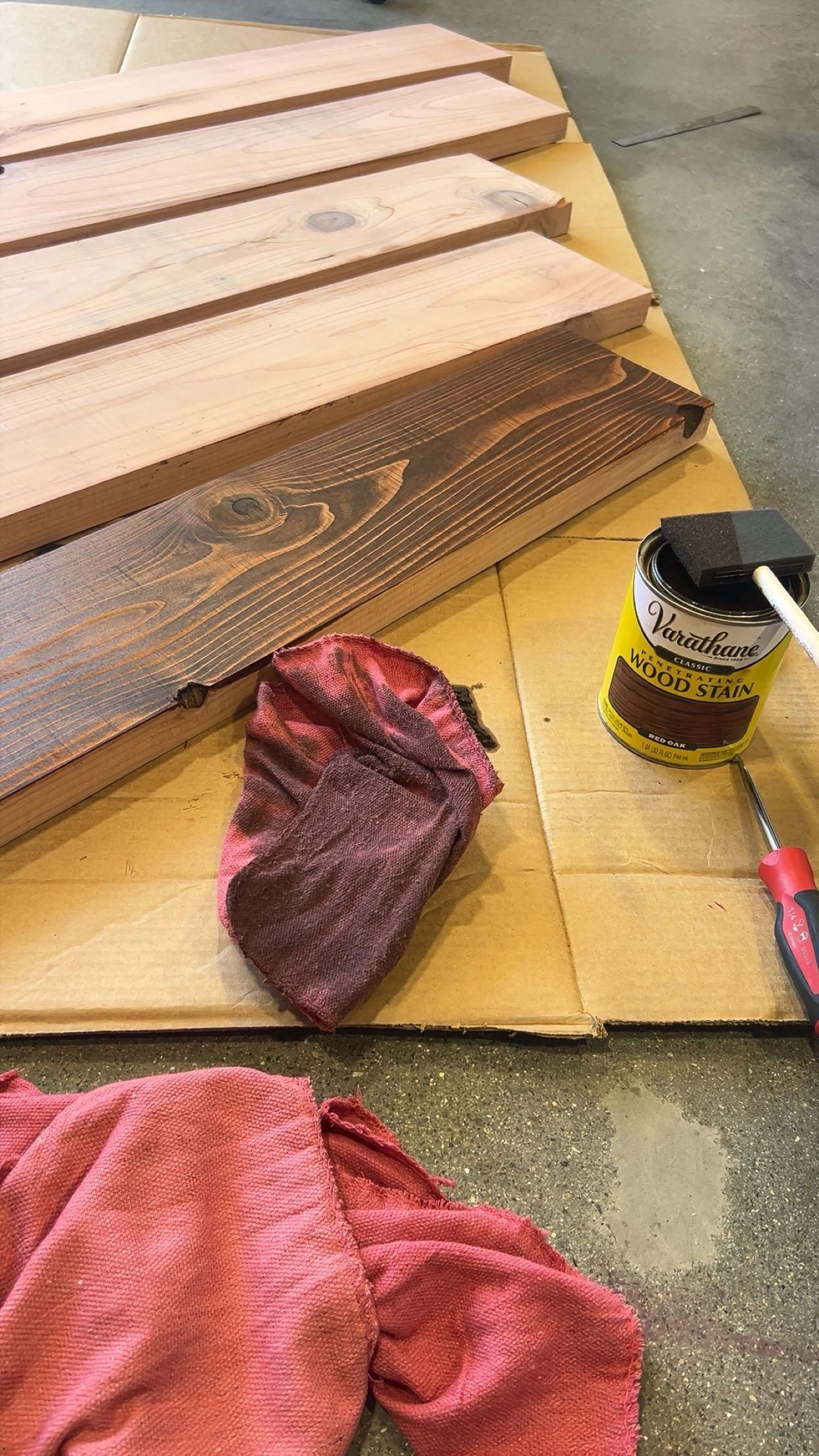

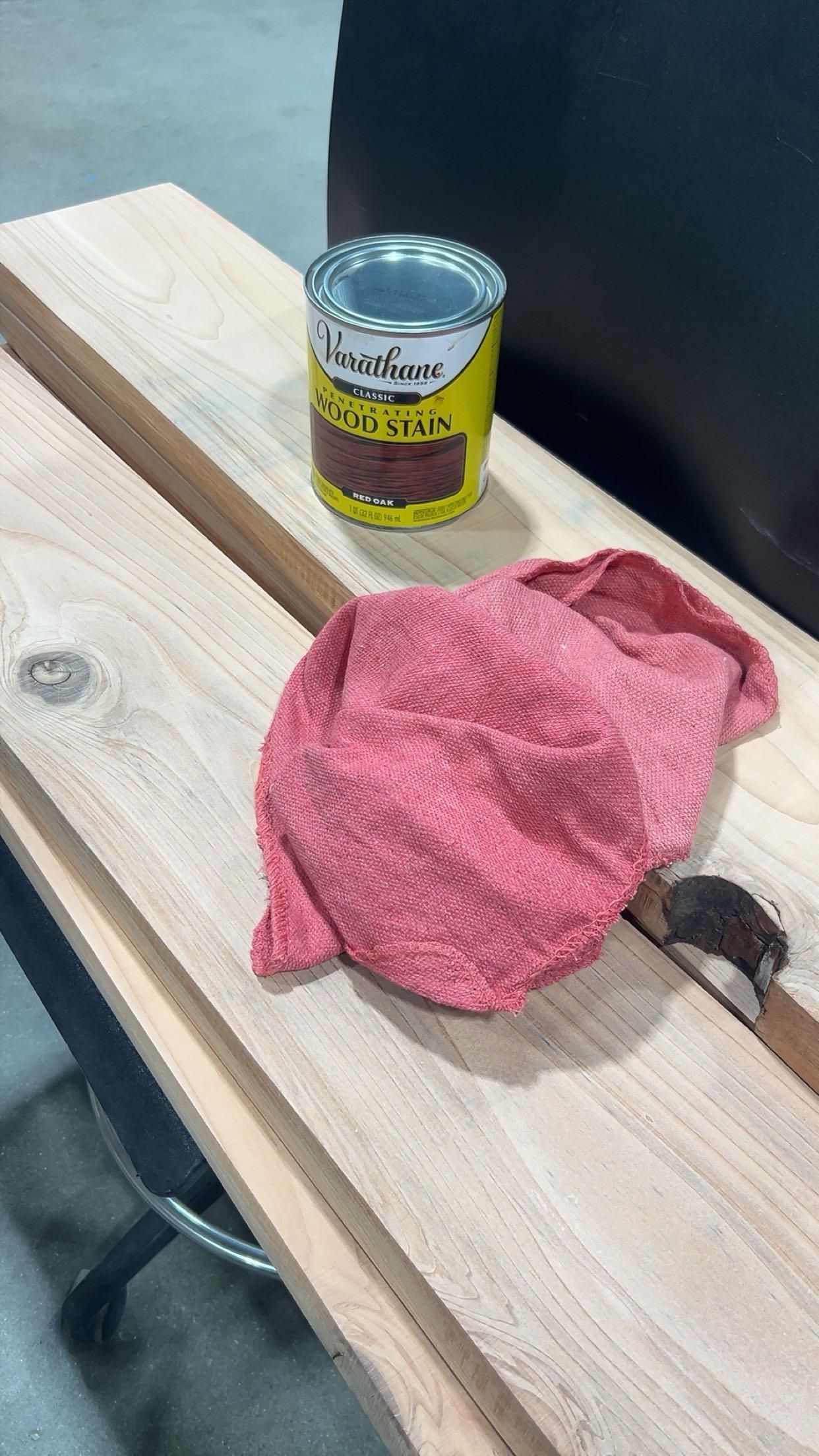

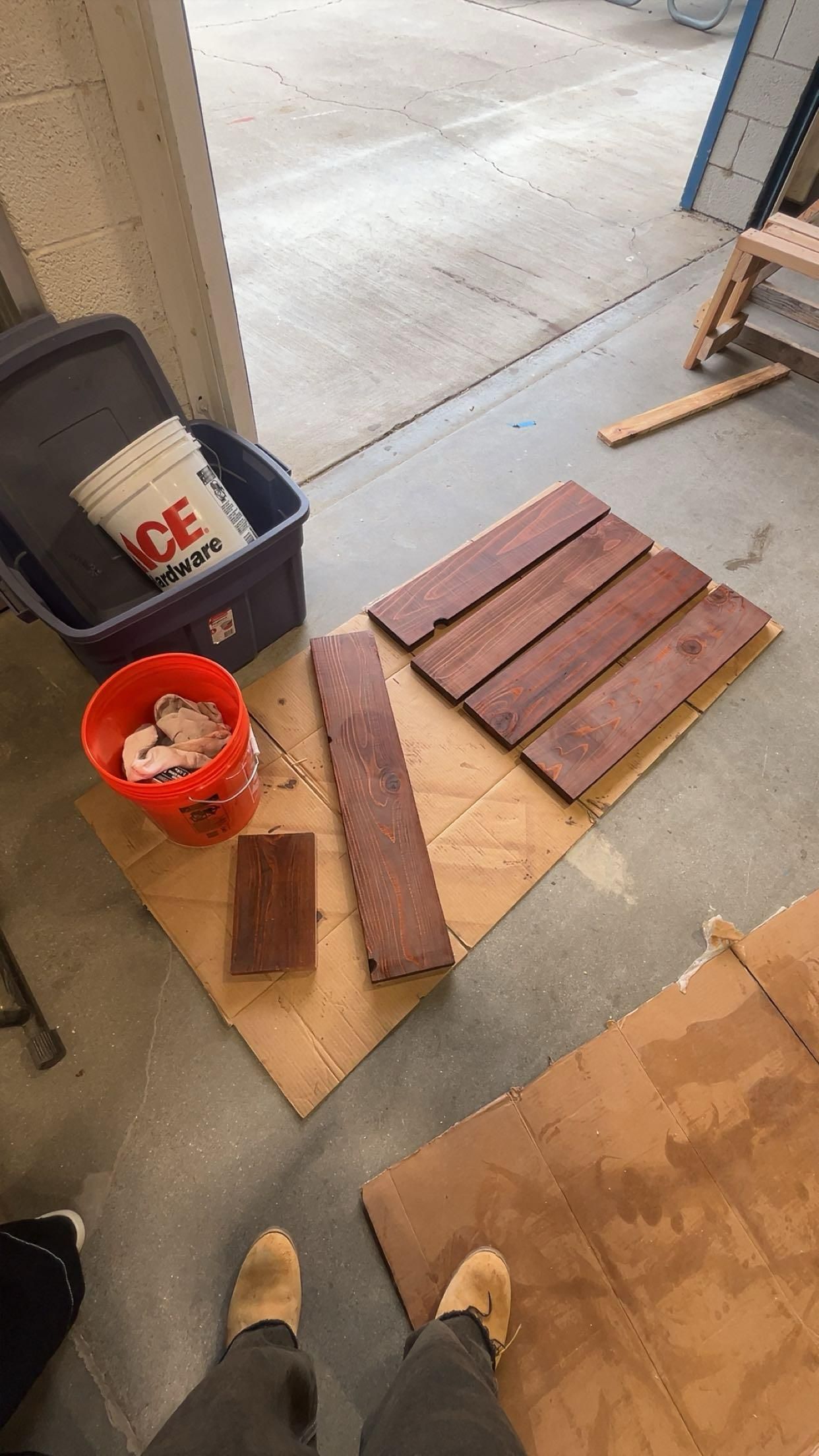

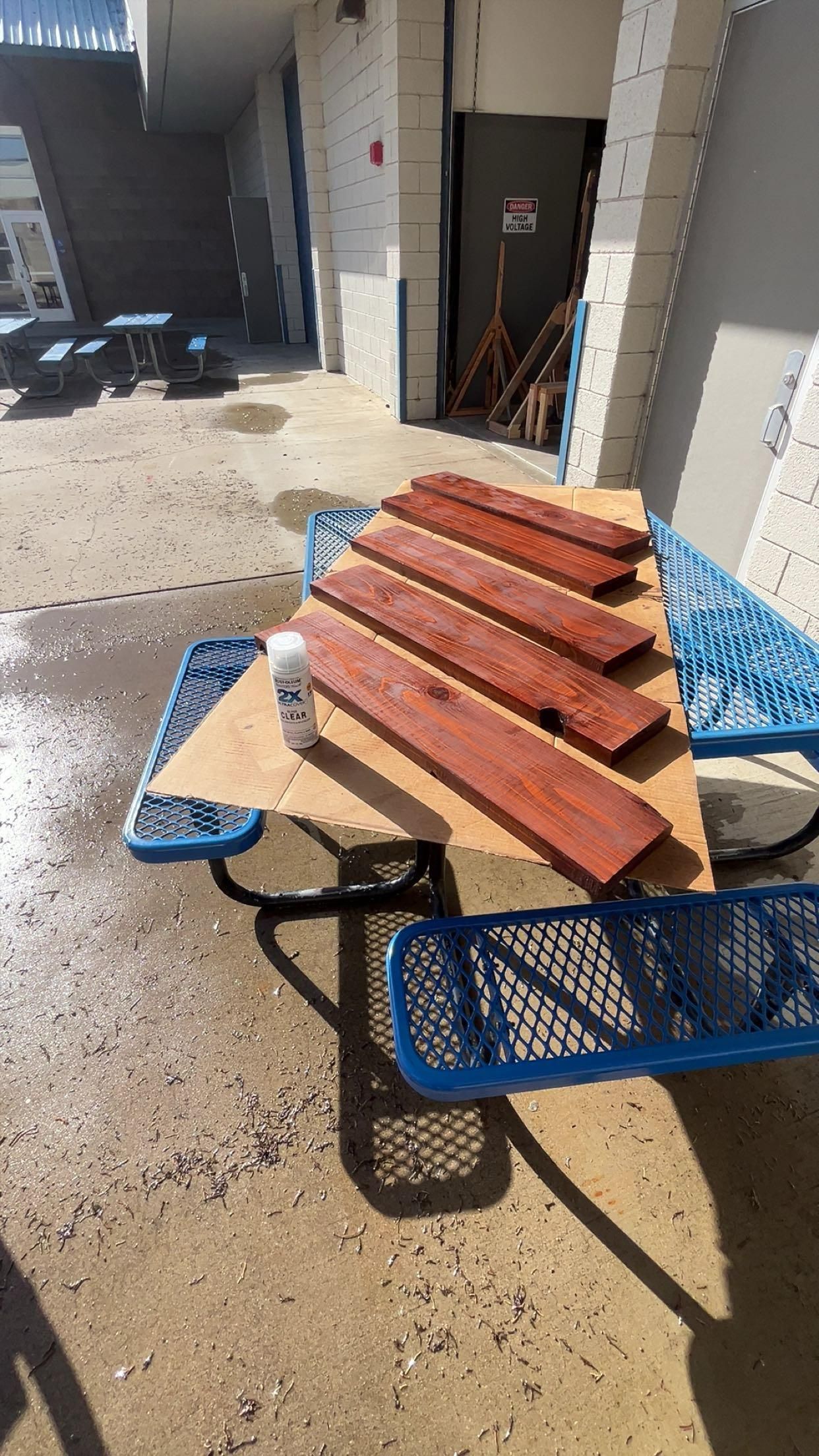

Before applying stain, double check that the wood is completely clean and dry. this process should be done outside on something like cardboard or somethings that has zero dust on it in a none windy environment so no dust leaves, dirt etc. gets stuck to the wooed. Using a sponge brush, apply the stain evenly across the surface of the wood. Work in sections to maintain control and avoid uneven buildup After applying the stain, use a clean fine cloth or fine sock to spread it out and wipe off any excess. This helps the stain soak into the wood evenly and prevents blotchy areas. Be sure to coat all sides of each shelf, including the edges and underside. Once complete, allow the stain to dry undisturbed for 24 hours. repeat this process on the other side.

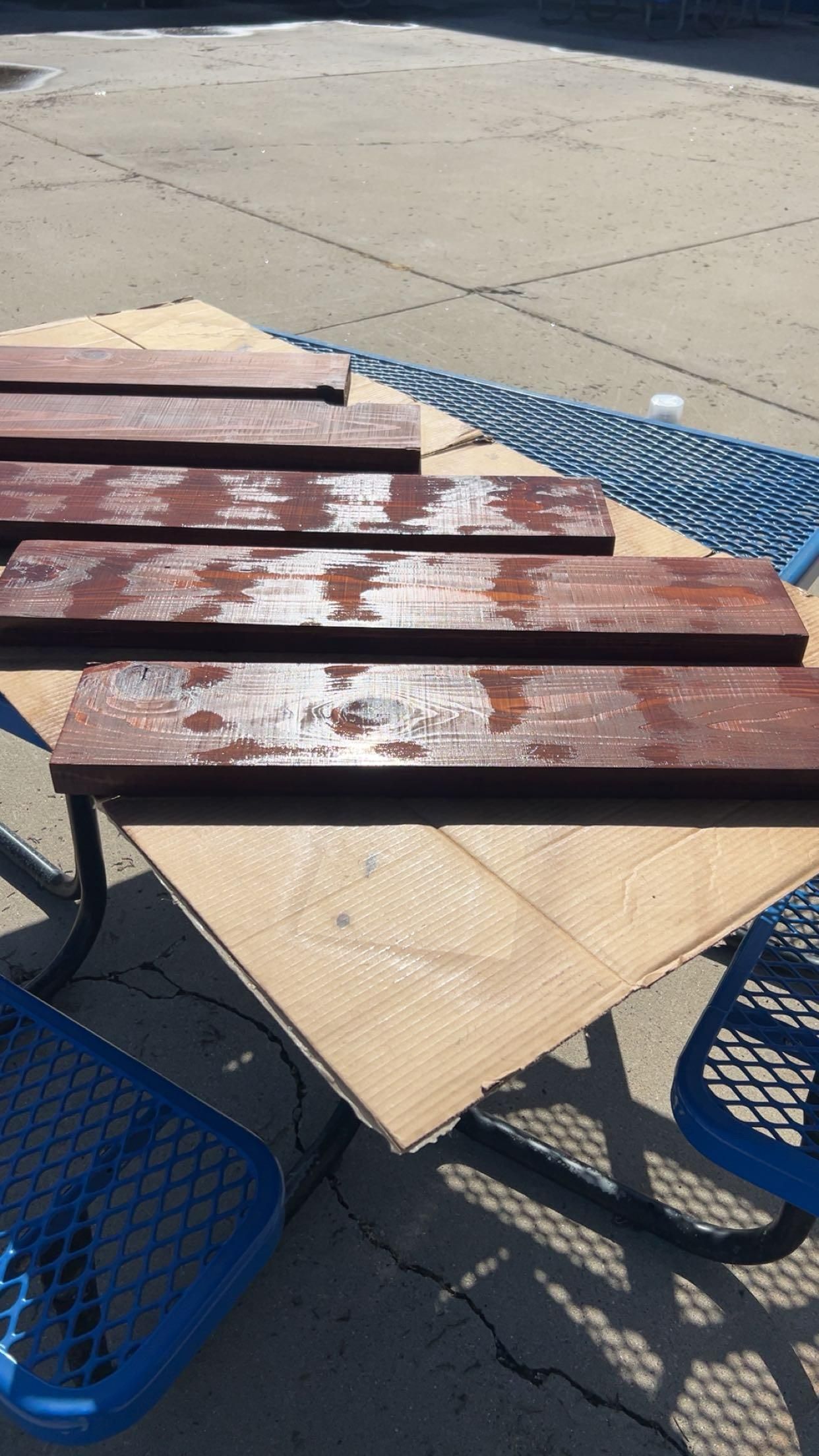

Once the stain has fully dried, apply a layer of polyurethane to protect the wood. Use smooth, even strokes to apply the finish, making sure not to leave thick spots or bubbles. Polyurethane acts as a protective barrier, helping the wood resist scratches, moisture, and general wear. Allow the shelves to dry for 72 hours so the coating can fully cure and the knots absorb it. After it has dried, lightly sand the surface to remove any minor imperfections and to create a smoother final texture.

To further protect the wood and enhance its appearance, apply a clear gloss coat. Place cardboard outside to create a clean work surface. Spray the gloss coat evenly across all surfaces, holding the can at a consistent distance. Avoid spraying too heavily in one area, as this can cause drips or splotches. Allow the first coat to dry for about two hours, then apply a second coat. This will give the shelves a more durable and polished finish. do this on both sides using the same process. after you shelves are done with all of these process, store them where they will not get scratched and not to much UV light exposure.

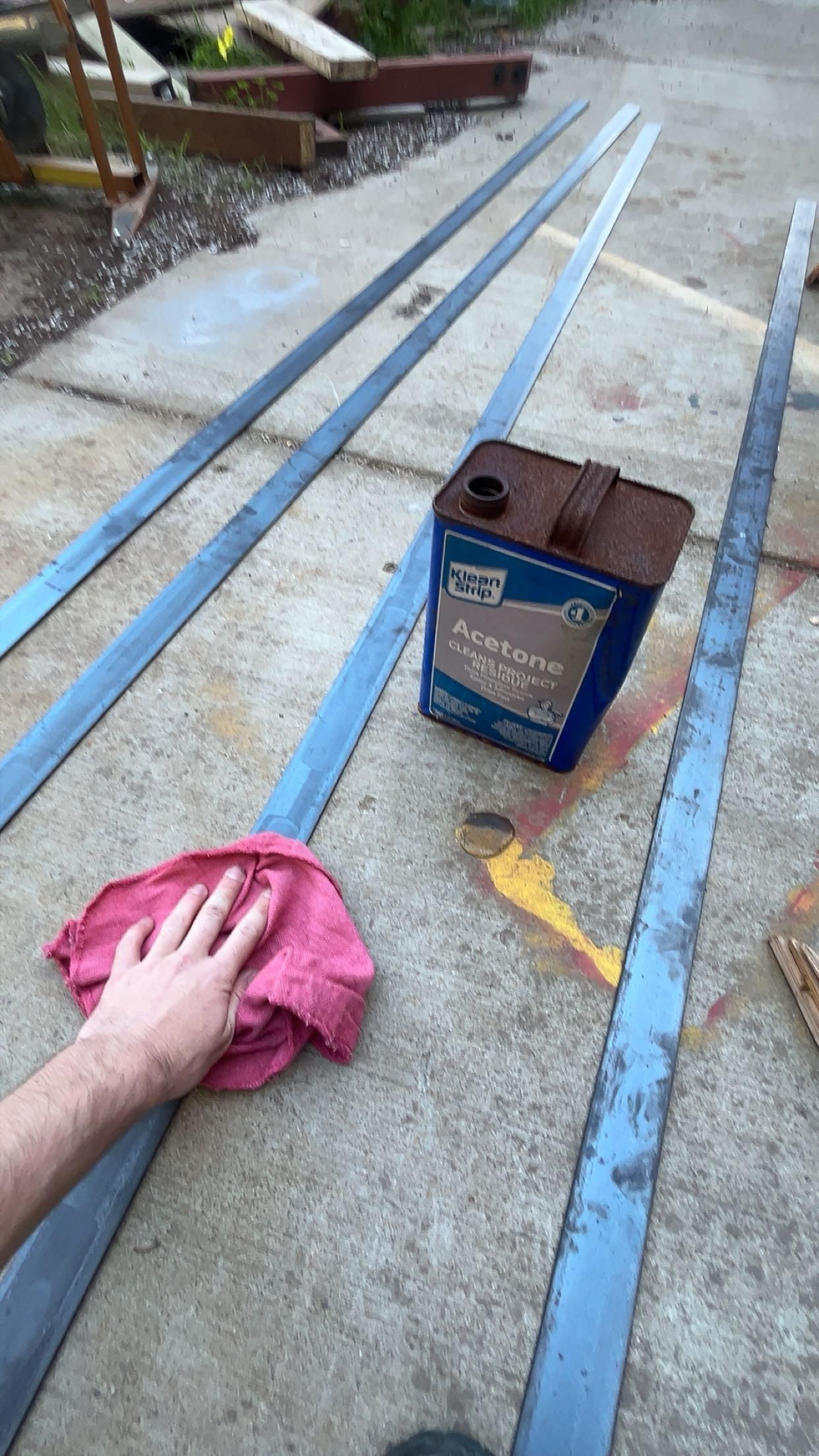

Before working with the metal, it is important to remove any oils or residues from the surface. Apply acetone / alcohol to a rag and wipe down each piece of steel thoroughly. This step ensures that the surface is clean, which is especially important for later steps like painting and welding.

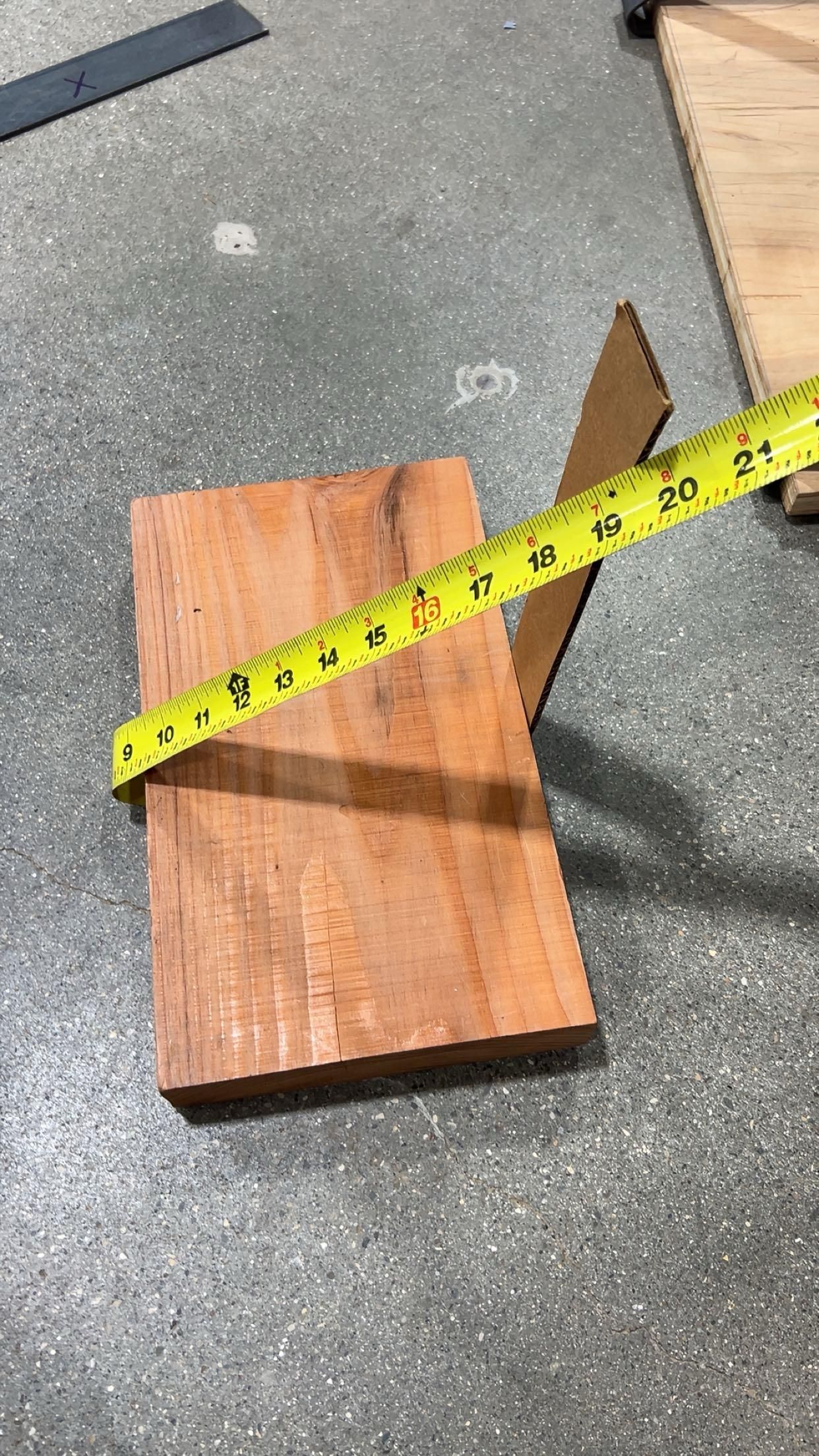

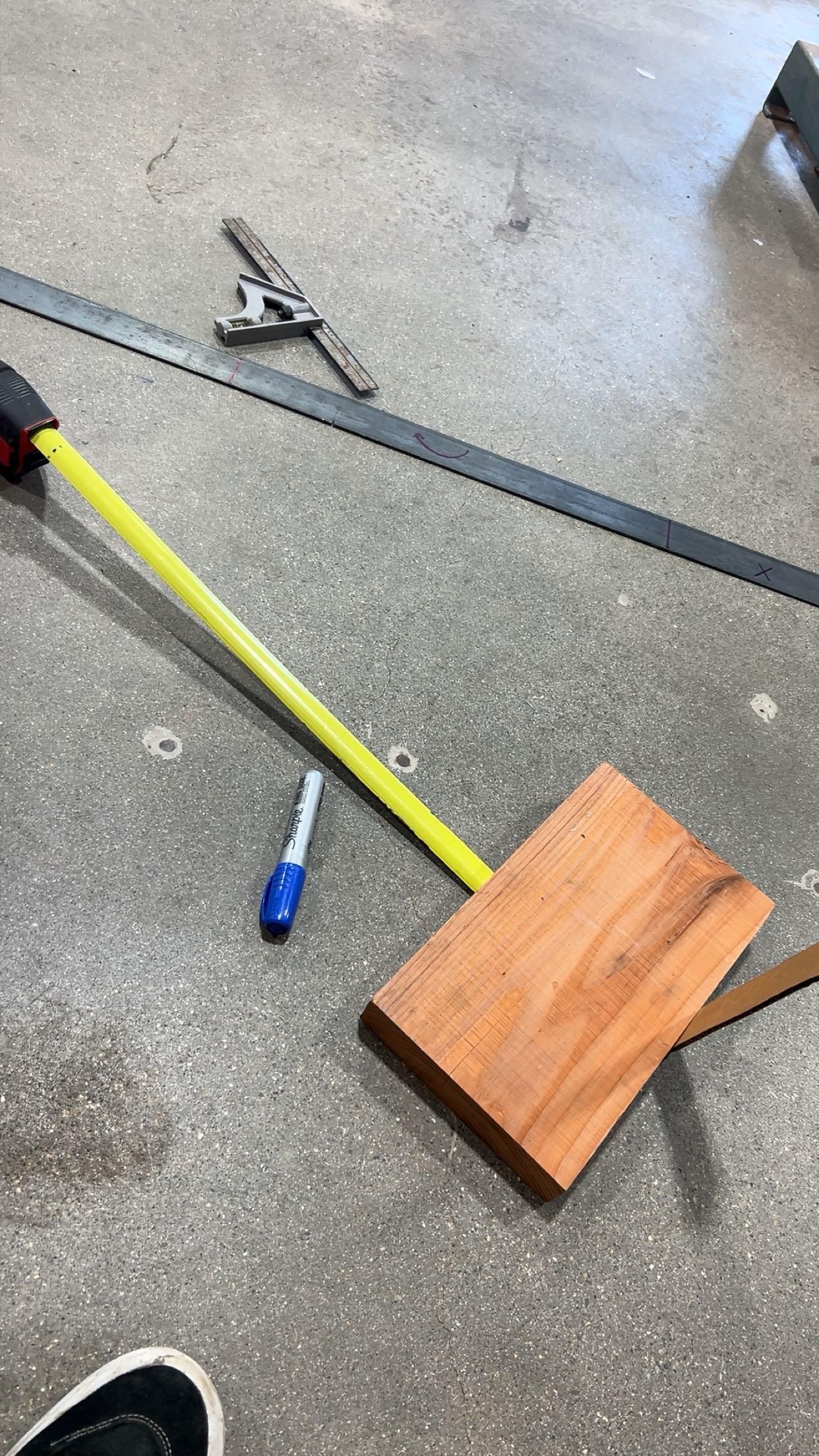

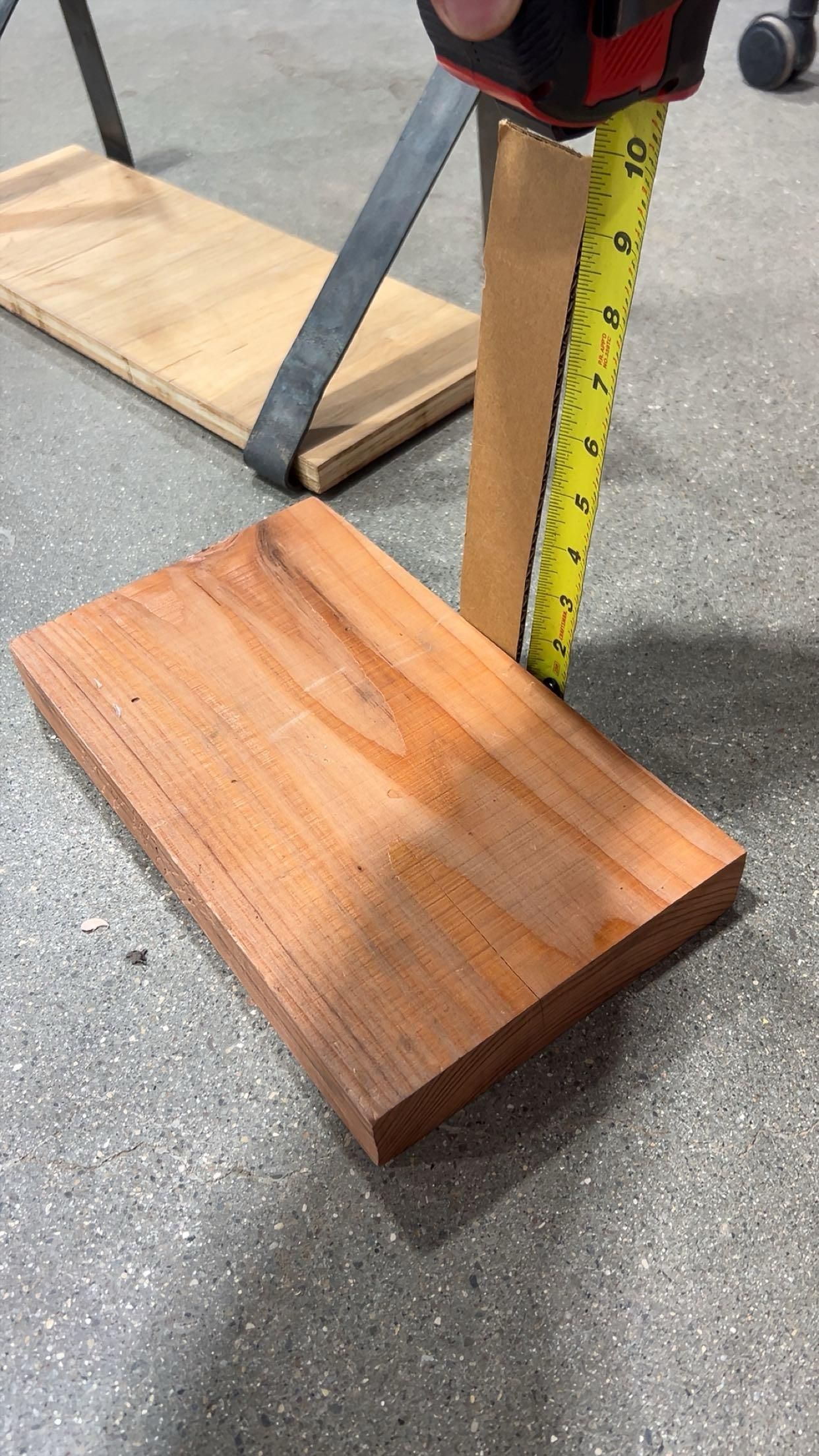

Use your test piece of wood and a measuring tape to determine how the brackets should be shaped. Place the steel against the wood and visualize how the bracket will support the shelf. Mark where bends will need to occur so that the bracket fits snugly and supports the wood properly. Planning this ahead of time will save you from having to redo bends later.

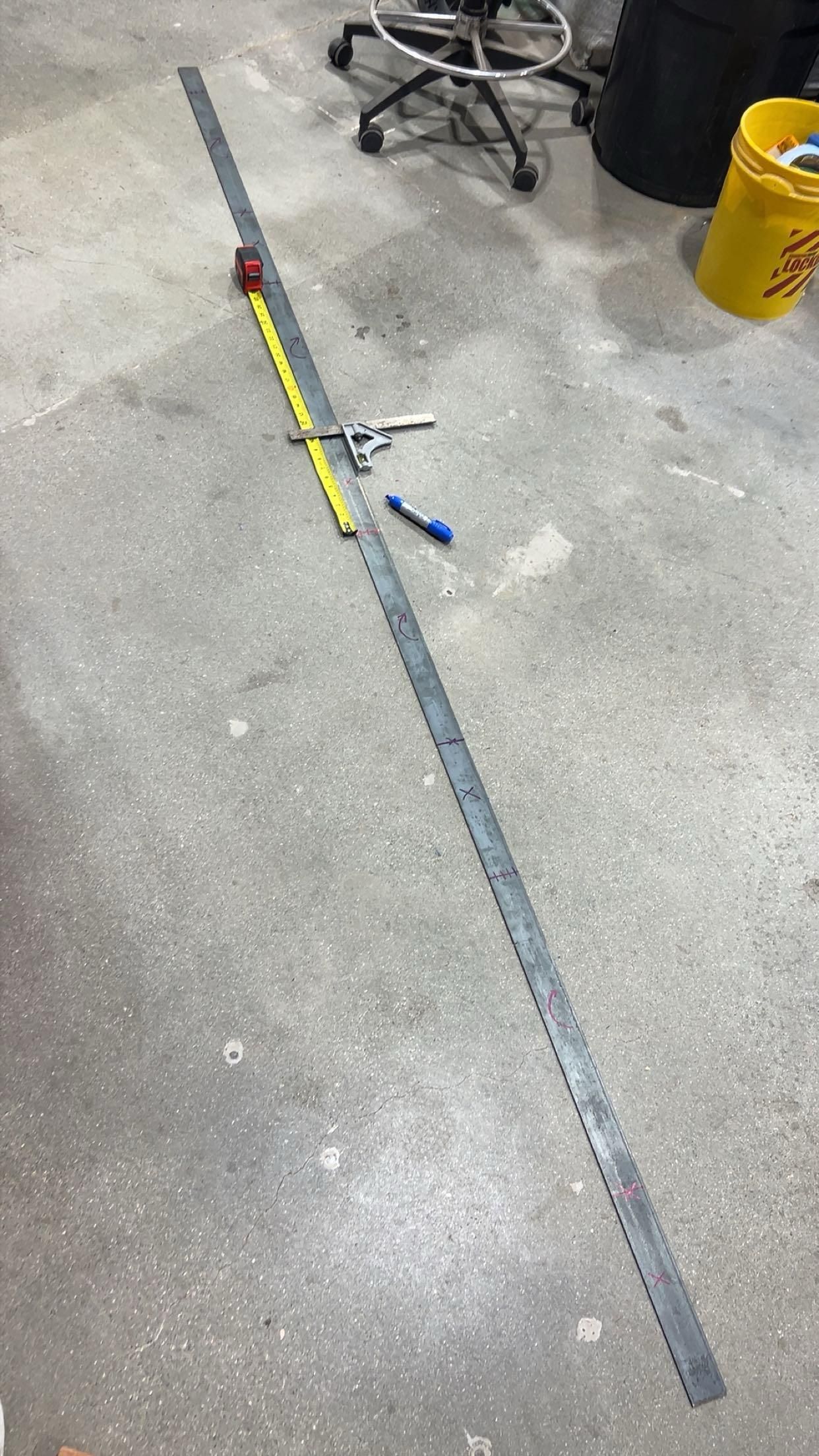

From your strip steel, measure and mark:

1. Ten pieces at 10 inches
2. Ten pieces at 19 inches

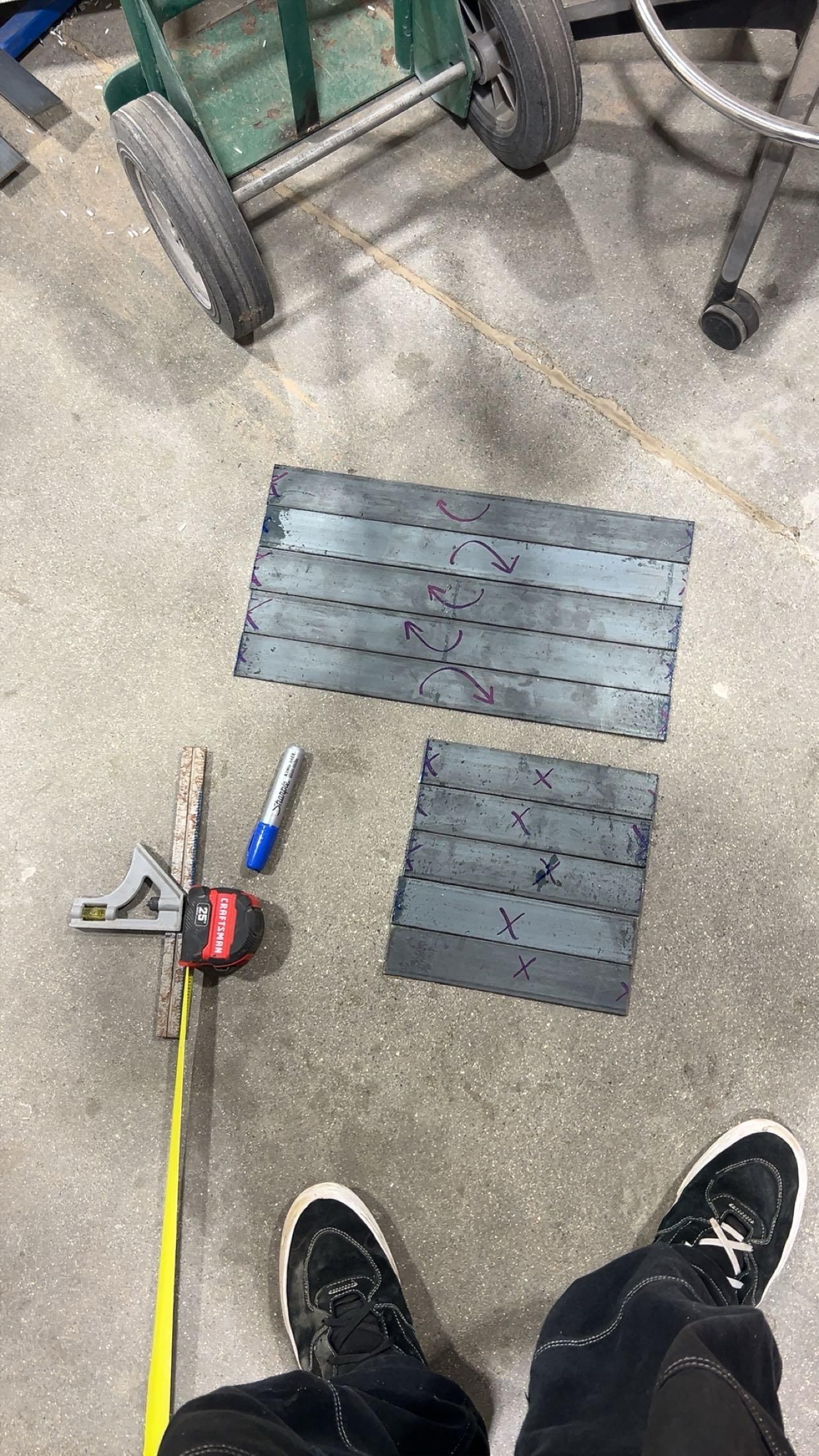

Use a horizontal band saw to make clean, straight cuts. Try to keep each cut consistent so all brackets will match in size and shape. if you do not have access to something that cuts down perfectly an angle grinder will work, just make sure everything is precis and cleanly cut.

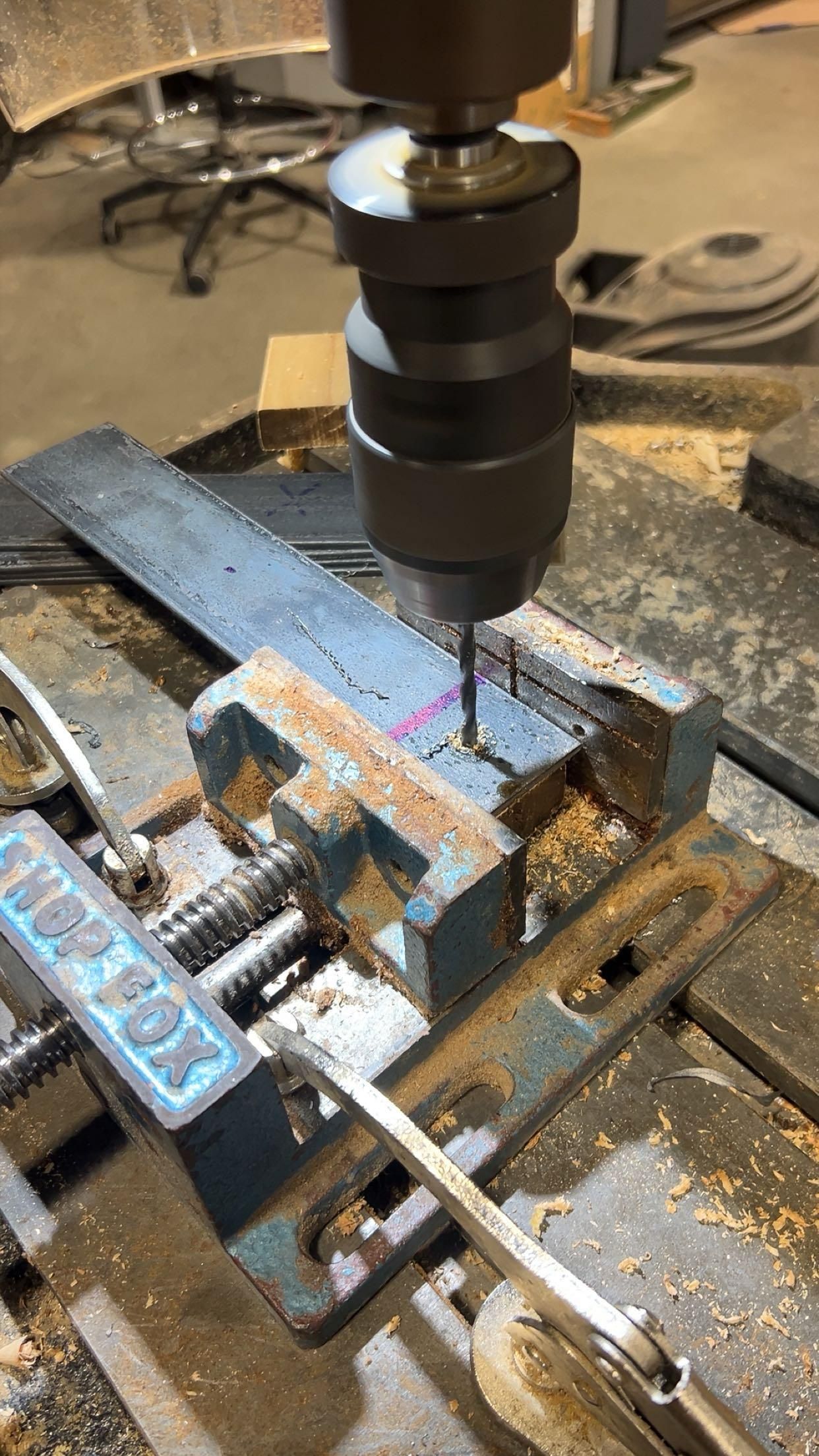

In this step, you will drill and countersink all mounting holes in the steel pieces. Accuracy and consistency are important so that all brackets align properly during assembly.

Hole Layout for 10-Inch Pieces

On each 10-inch steel strip, drill:

1. One hole 1.5 inches down from the top edge, centered across the width
2. A second hole 5 inches below the first hole (approximately 6.5 inches from the top edge)

Hole Layout for 19-Inch Pieces

On each 19-inch steel strip, drill:

1. One hole 2 inches down from the top edge, centered
2. A second hole 6 inches below the first hole (approximately 8 inches from the top edge)

Drilling Specifications

1. Drill all holes using a 0.25-inch (1/4 inch) drill bit
2. Make sure each hole is centered across the 2-inch width of the steel (about 1 inch from either side)

Drill slowly and apply steady pressure to ensure clean, round holes without excessive burrs.

Countersinking Specifications

After drilling, use a countersink bit to widen the top portion of each hole.

1. Countersink diameter: 0.45 inches
2. Depth: just enough so the head of a #10 screw sits flush or slightly below the surface

Take your time while countersinking. Do not go too deep, as this can weaken the metal around the hole.

Final Check

After all holes are drilled and countersunk:

1. Ensure all holes are aligned consistently across all pieces
2. Run your finger lightly over the holes to check for sharp edges
3. If needed, lightly sand or grind any rough edges

Properly drilled and countersunk holes will make installation much easier and give the brackets a clean, professional finish.

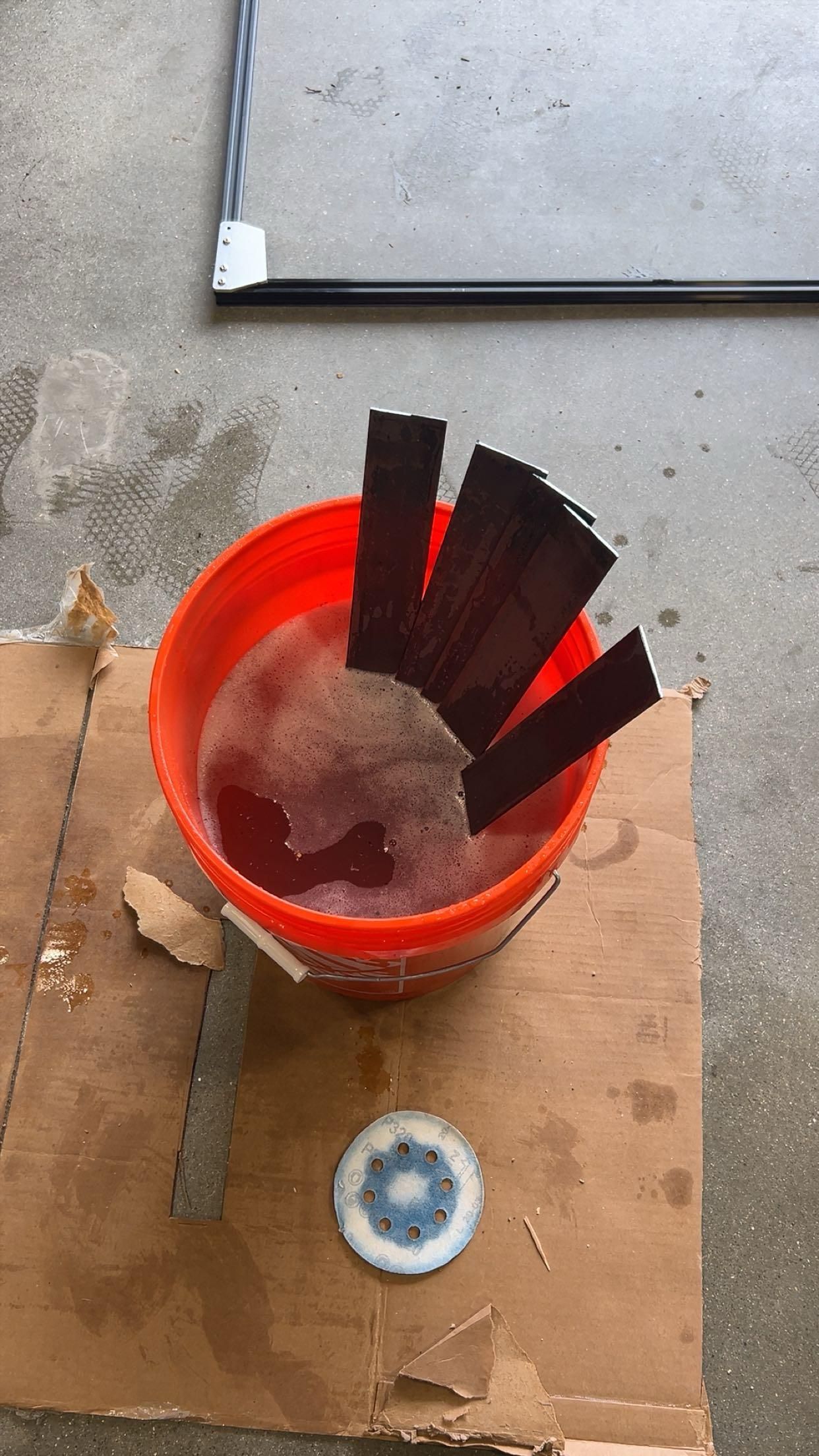

After cutting, and drilling the metal will have oil residue from the cutting oil. Fill a five-gallon bucket with hot, soapy water and submerge each piece completely. Let the pieces soak for about 30 minutes, then remove them and place them in the sun to dry. Drying them quickly helps prevent rust from forming.

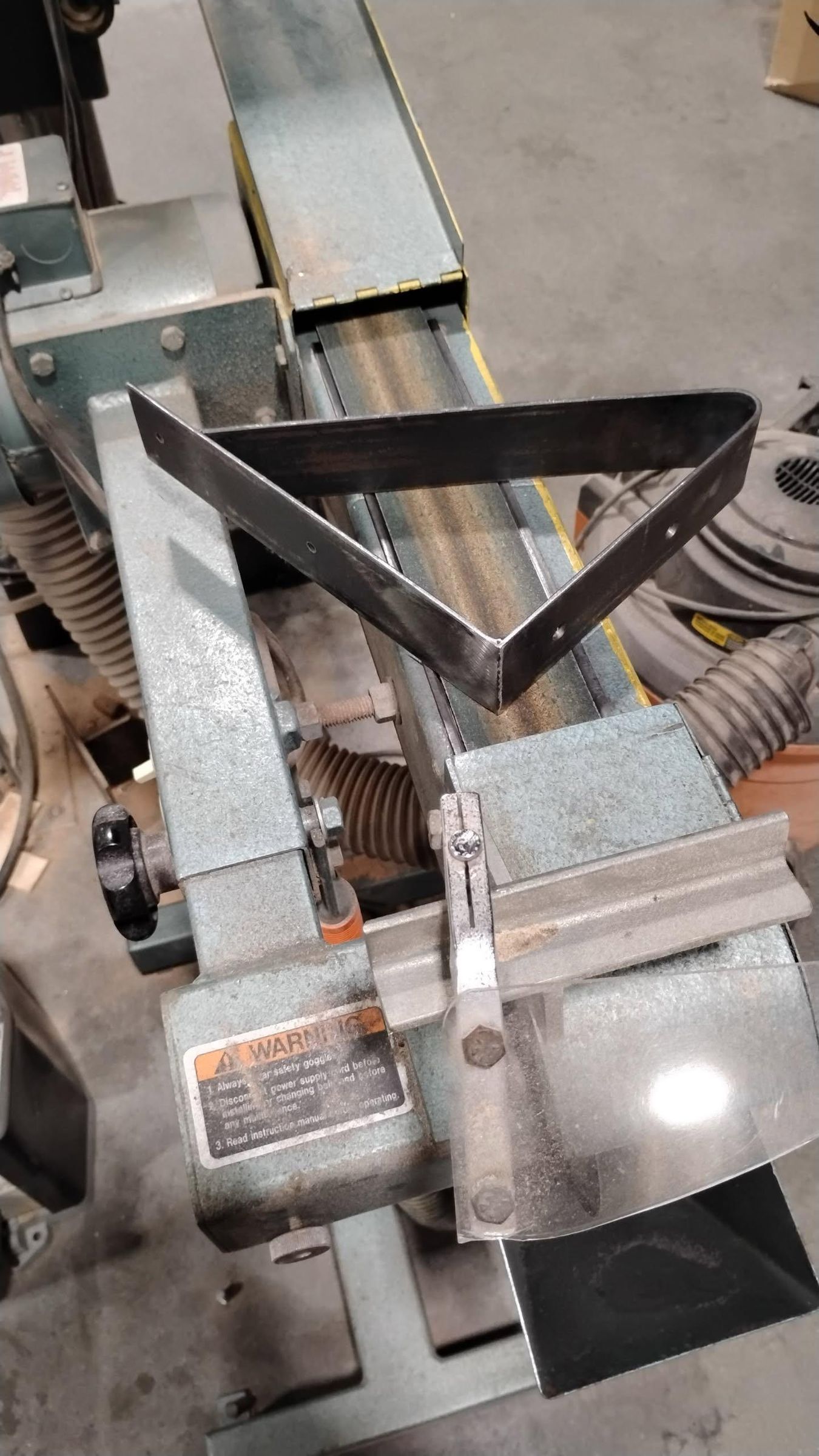

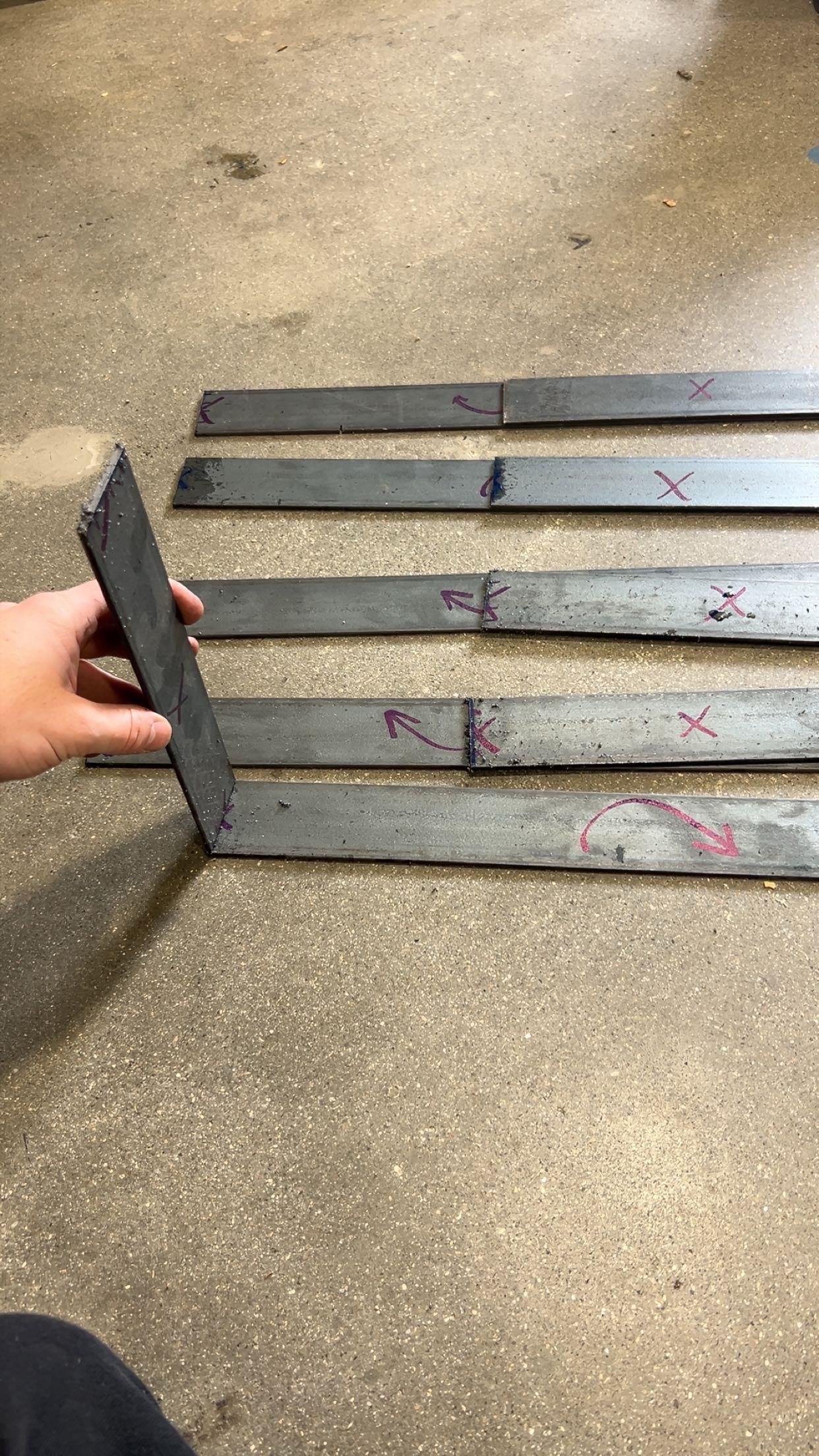

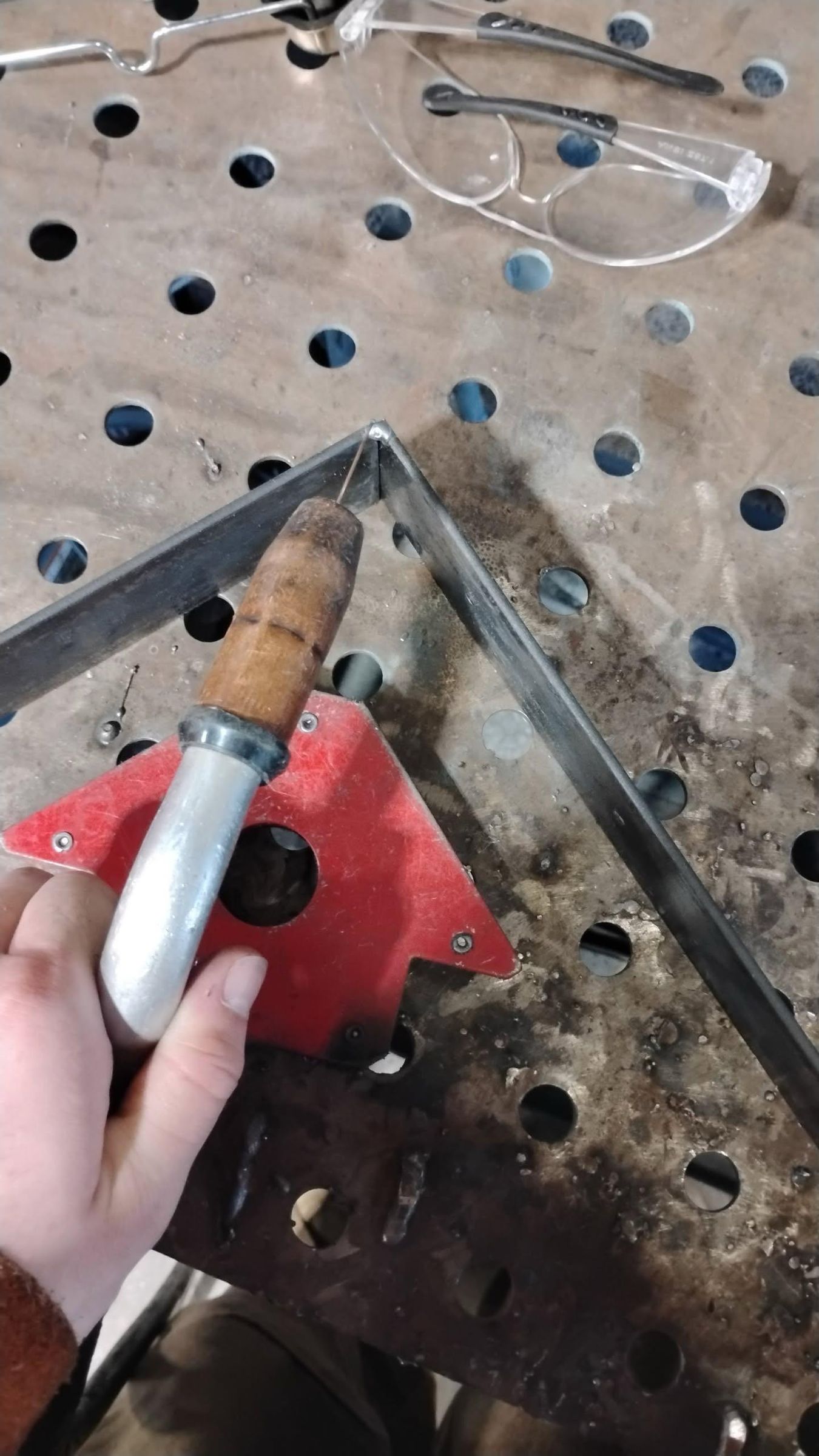

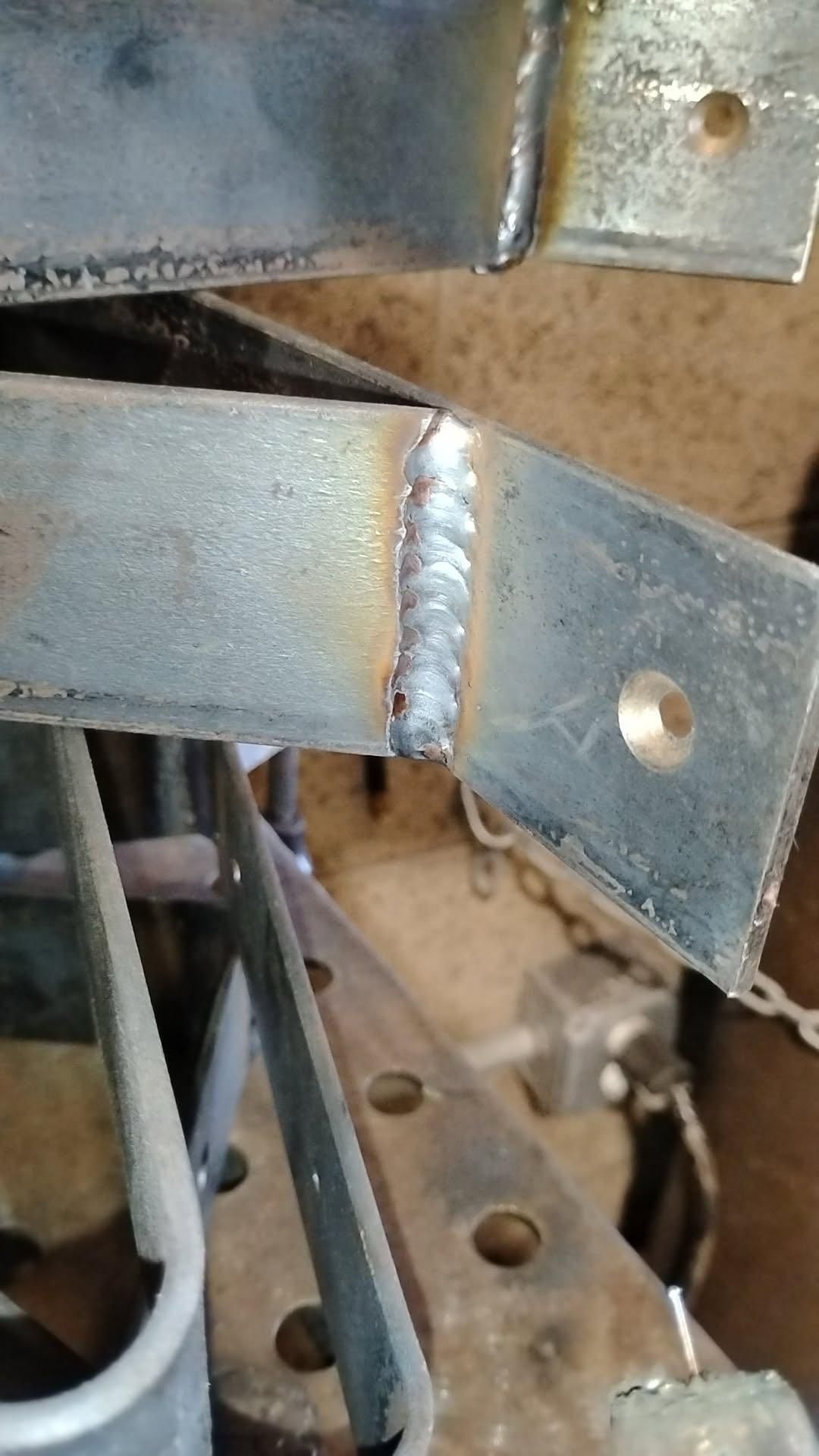

Pair one 10 inch piece with one 19 inch piece to form an L shape. Clamp or hold them at a 90 degree angle, then weld along the inside joint. Take your time to keep the angle accurate. If the metal shifts or warps, heat the joint with a torch and carefully bend it back into position. Once the weld is complete, grind it down until it is smooth and blends with the rest of the metal.

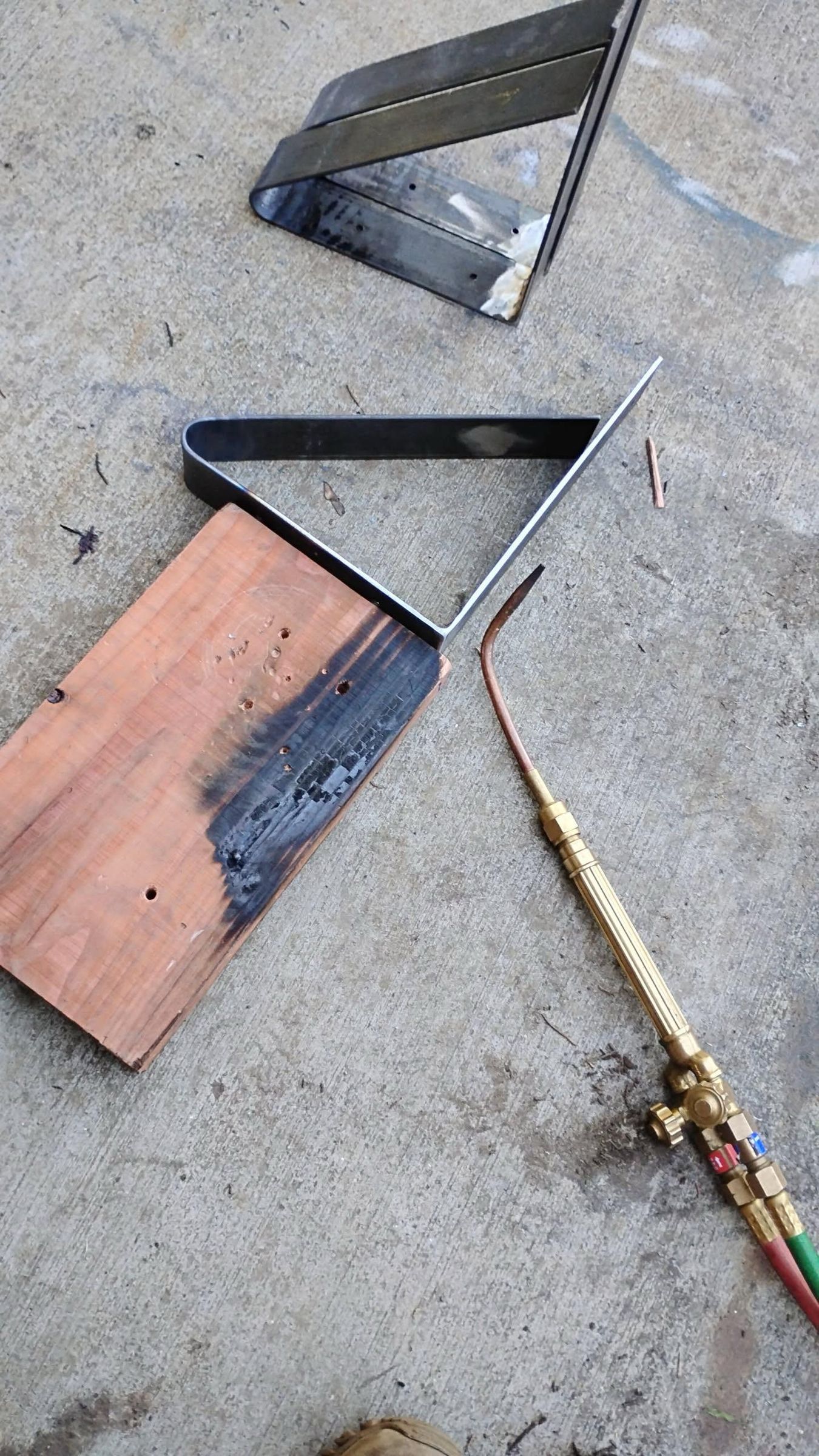

Using your marked measurements, heat the metal in the bend area until it is glowing red. Carefully bend the metal upward and inward so it forms a support that sits under the shelf. Check alignment with your test wood piece to make sure everything fits correctly. If needed, reheat and adjust until the fit is precise.

Once the bend is correct, weld the support in place to strengthen it. Grind down all welds so the bracket looks like a single, continuous piece of metal. This not only improves appearance but also removes any sharp edges.

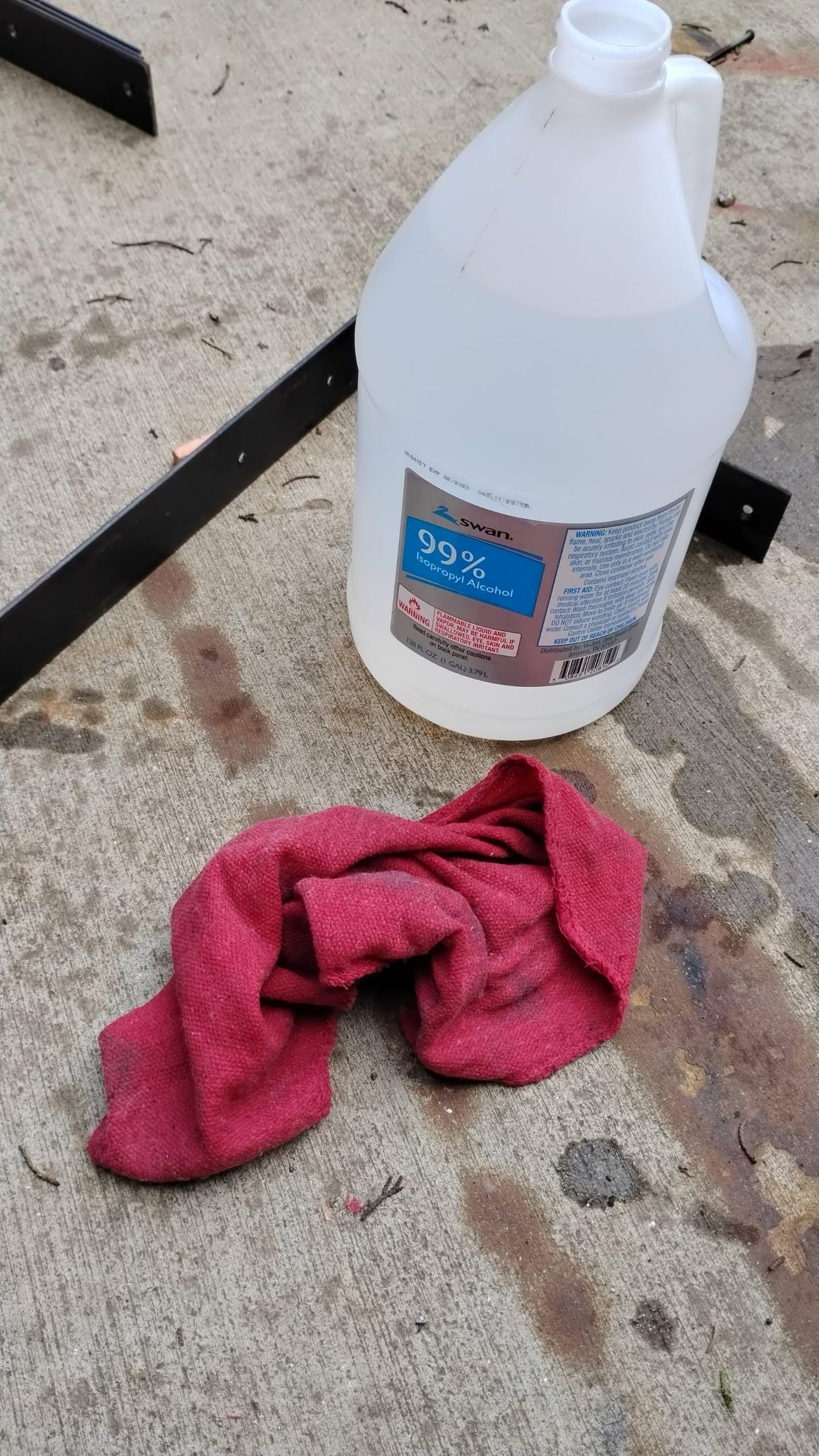

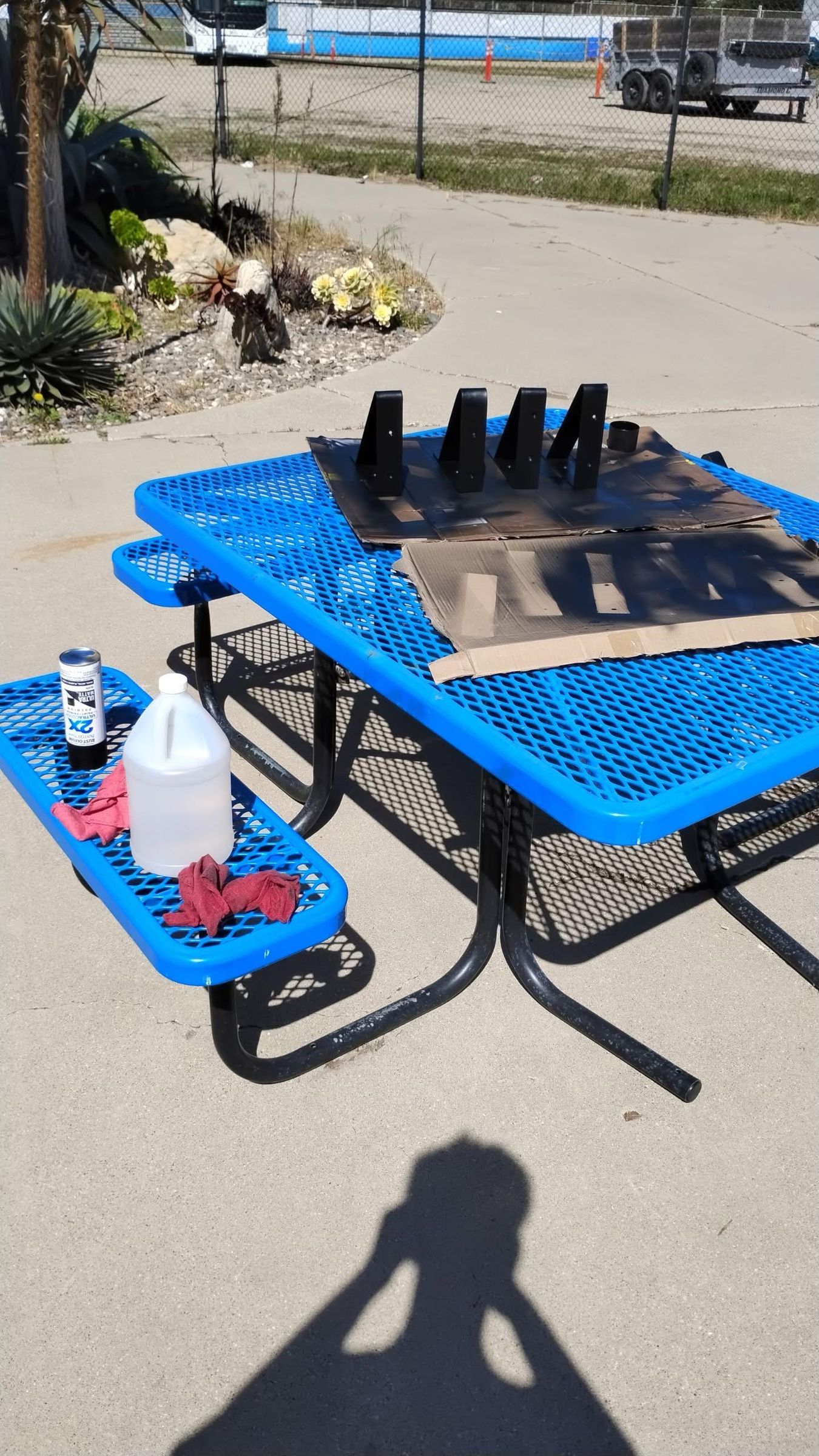

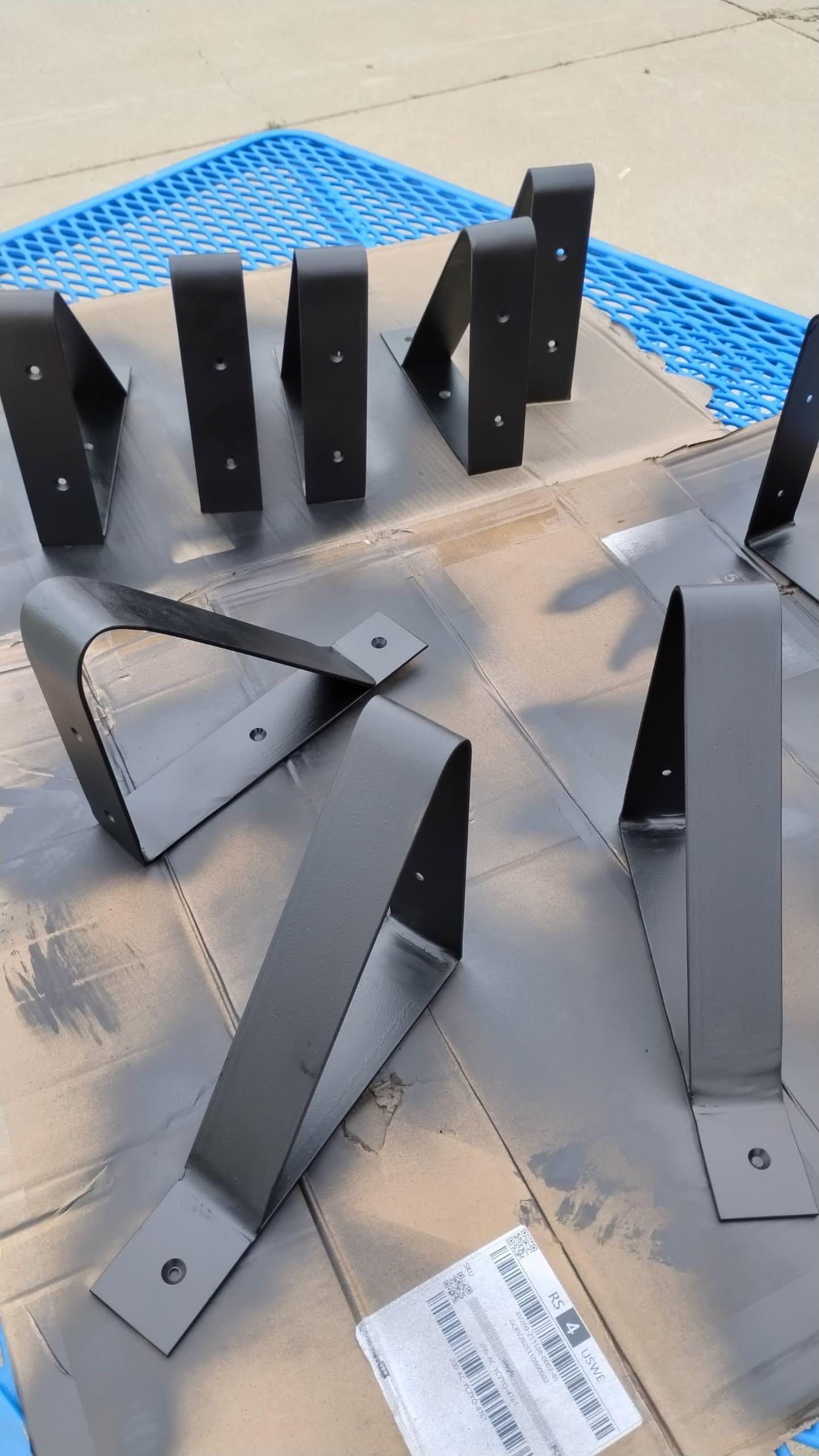

Clean the brackets again using Acetone / alcohol to remove any remaining residue. Place them on cardboard outdoors, on the side that would be mounted on the wall and apply spray paint in even coats. Allow sufficient drying time between coats to avoid smudging or uneven coverage. repeat this process for the 2nd coat.

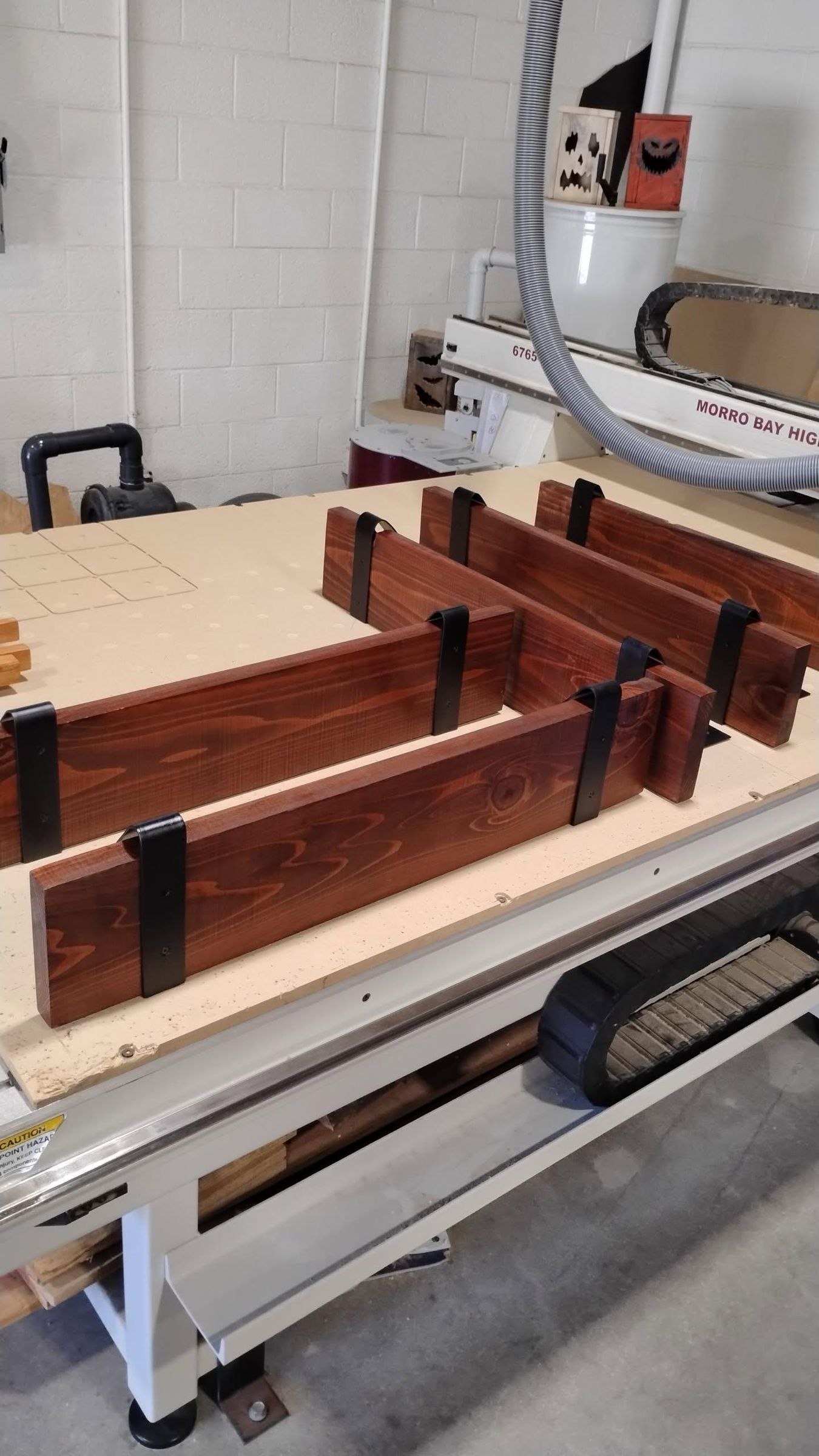

Place a clean thick towel on your work surface to prevent scratching or damaging the finished wood and painted brackets. Set the wood shelf upside down on the protected surface. Position each bracket so that the mounting side is flatside down on the blanket, carefully slide the bracket int the shelf marking the outer edge of the bracket is exactly 4 inches in from each end of the shelf. Use a measuring tape to verify both sides are equal, and ensure the brackets are square to the edges of the wood. Align the bracket so it sits flat against the underside of the shelf, with all mounting holes fully contacting the wood. Hold the bracket firmly in place or lightly clamp it if available. Using the pre-drilled and countersunk holes as guides, drive #10, 1-1/4 inch screws straight into the wood. Keep the drill perpendicular (90 degrees) to the surface to ensure the screws go in straight. Apply steady, moderate pressure while driving the screws. Do not force them in too quickly, as this can strip the wood or cause splitting. Tighten each screw until it is snug and the bracket is firmly secured, but stop before overtightening to avoid damaging the wood or countersunk holes. Repeat this process for each bracket, ensuring consistent placement and alignment across all shelves.

Step 1: Position the Shelf and Mark Hole Locations

Hold the fully assembled shelf (with brackets attached) firmly against the wall at your desired height.

Once positioned:

1. Place a level on top of the shelf and adjust until it is perfectly horizontal
2. While holding the shelf steady, use a thin-tip marker or pencil to trace the inside of each bracket mounting hole directly onto the wall

Tracing the inside of the holes ensures that your drill points are exactly aligned with the bracket, reducing the chance of misalignment during installation.

Carefully remove the shelf after marking.

Step 2: Verify Marks and Alignment

Check all marked hole locations:

1. Make sure they are level using a level tool
2. Confirm spacing matches the bracket layout

If needed, lightly adjust or re-mark any points before drilling.

Step 3: Locate Studs (If Available)

Use a stud finder to determine if any of your marked holes align with wall studs.

1. If a hole aligns with a stud, plan to drive a screw directly into it
2. If not, you will install a drywall anchor at that location

Step 4: Drill Pilot Holes

At each marked location:

1. Drill a pilot hole straight into the wall
2. Keep the drill perpendicular (90 degrees) to the wall surface

Use a drill bit sized appropriately for:

1. The screw (if going into a stud), or
2. The drywall anchor (if using anchors)

Drilling pilot holes helps guide the screws and prevents damage to the wall.

Step 5: Install Drywall Anchors (If Needed)

For any holes not aligned with studs:

1. Insert the drywall anchors into the drilled holes
2. Push or lightly tap them until they sit flush with the wall surface

Ensure they are straight and fully seated.

Step 6: Mount the Shelf

Lift the shelf back into position and align the bracket holes with the drilled holes or anchors.

Start by inserting one screw into a top hole on one bracket to temporarily hold the shelf in place.

Step 7: Secure All Screws

Once the shelf is partially secured:

1. Place the level on top again to confirm alignment
2. Drive the remaining screws through each bracket hole into the wall

Apply steady pressure and keep the drill straight to ensure the screws seat properly.

Tighten each screw until snug, but avoid overtightening, as this can damage the drywall or strip the anchors.

Step 8: Final Check

After all screws are installed:

1. Check that the shelf is level
2. Gently apply downward pressure to confirm it is secure
3. Ensure there is no movement in the brackets

Final Tip

Whenever possible, secure at least one screw per bracket into a wall stud. This greatly increases the strength and load capacity of the shelf.

This method (especially tracing the inside of the holes) keeps everything lined up perfectly, so your brackets mount clean the first time without needing to redo holes.
